Scan Tool Output Controls

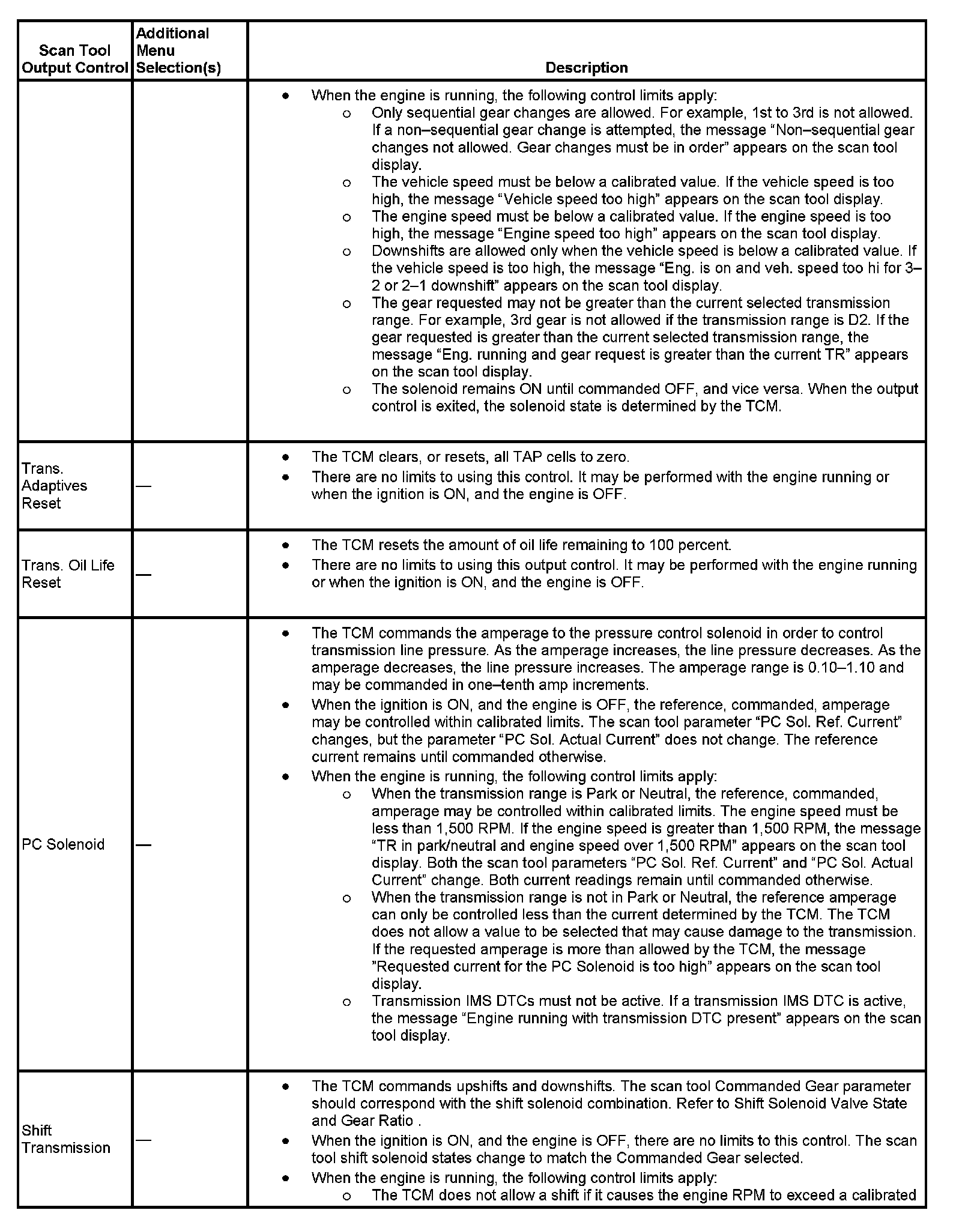

Scan Tool Output Controls (5L40-E/5L50-E):

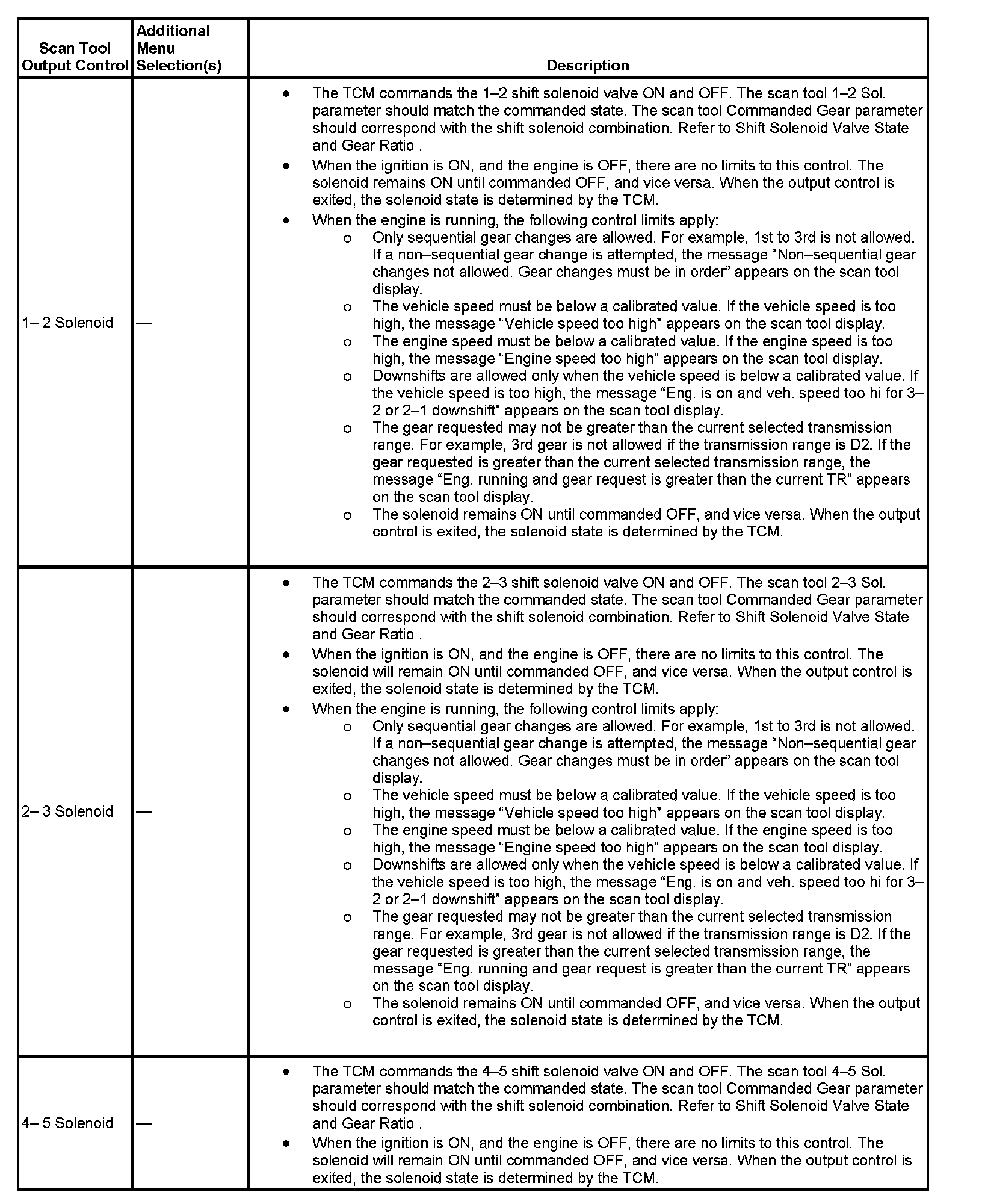

Scan Tool Output Controls (5L40-E/5L50-E):

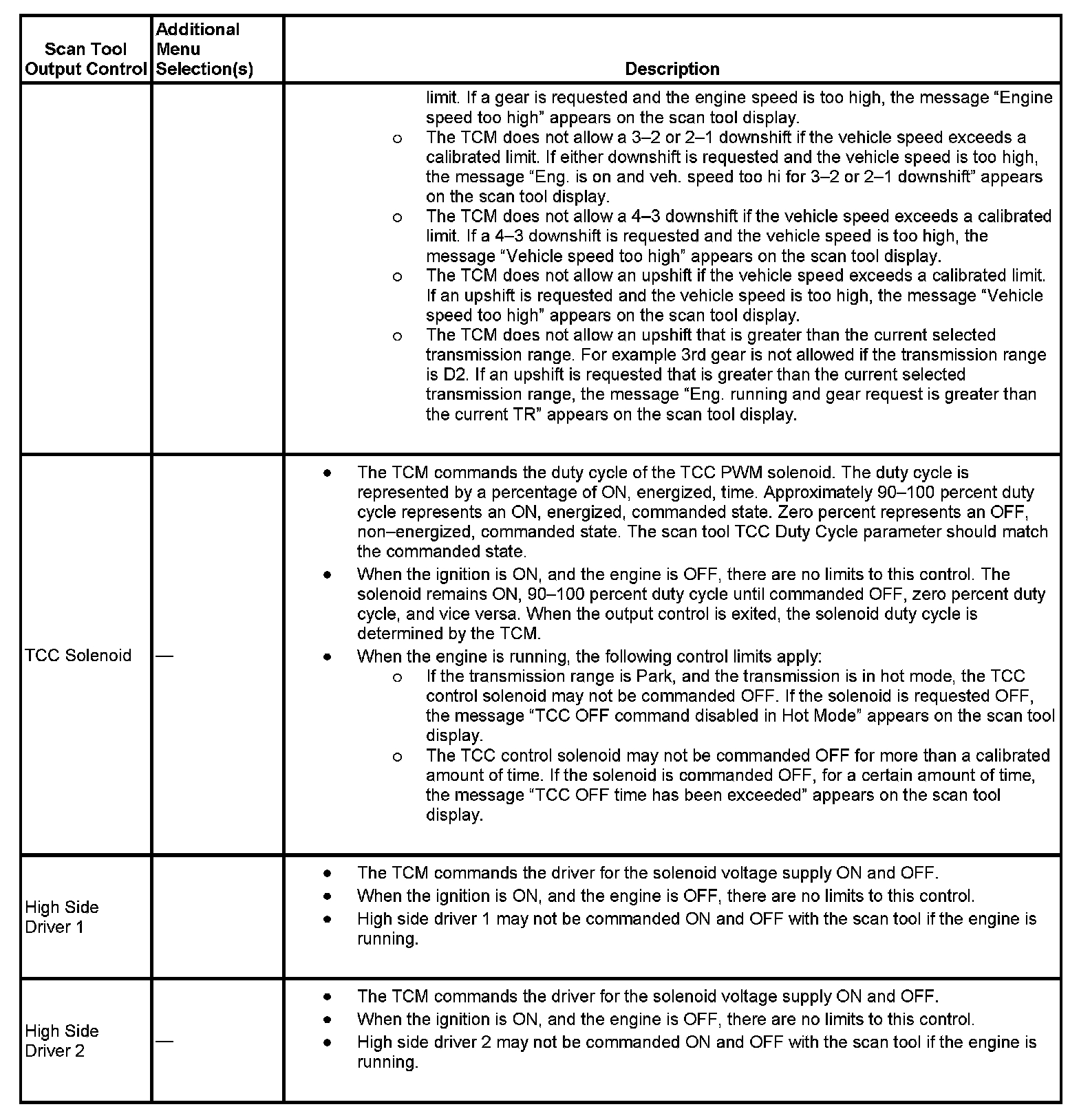

Scan Tool Output Controls (5L40-E/5L50-E):
