Power Trunk / Liftgate Control Module: Diagrams




Power Lift Gate Module C1

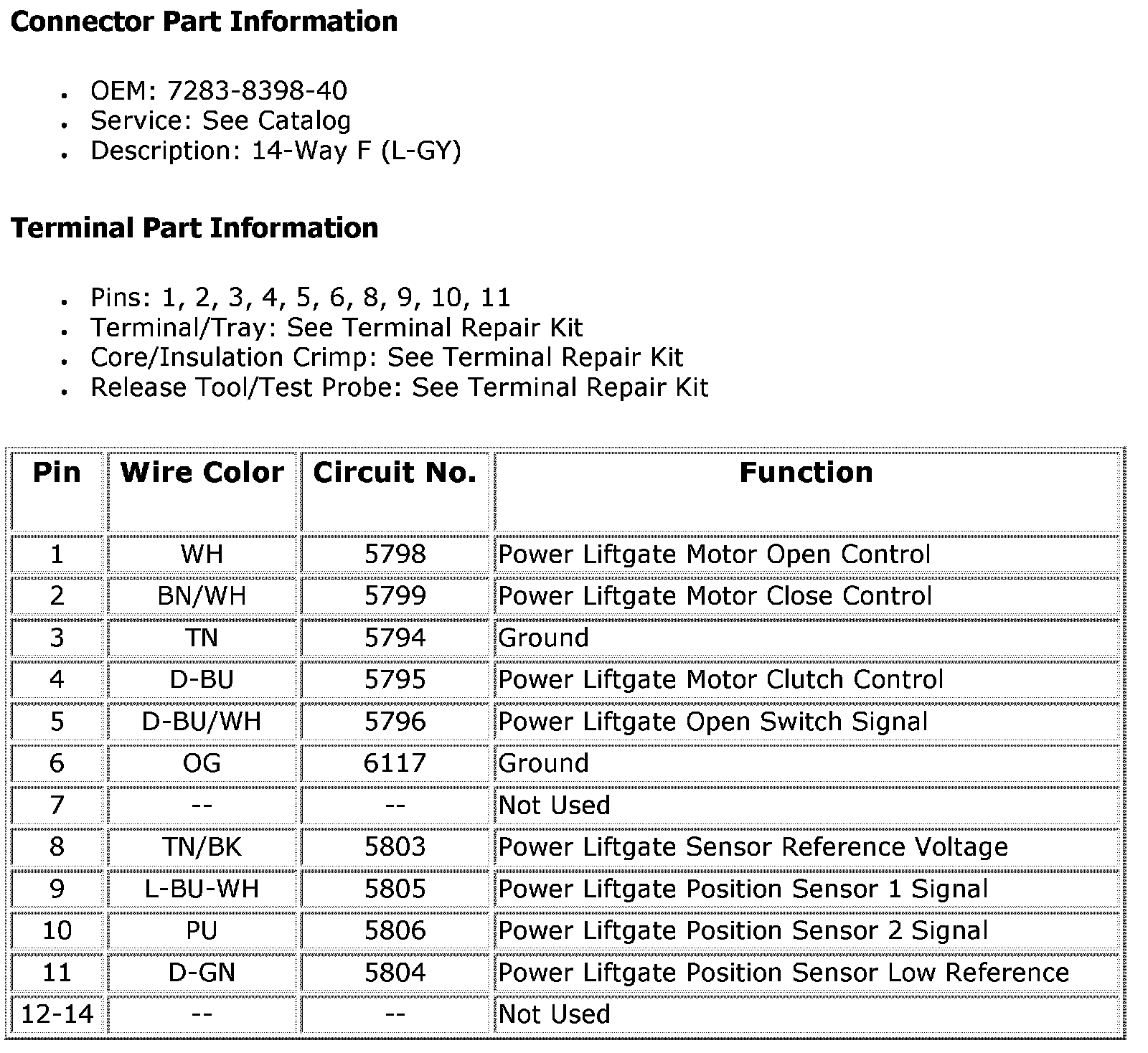

Power Lift Gate Module C2

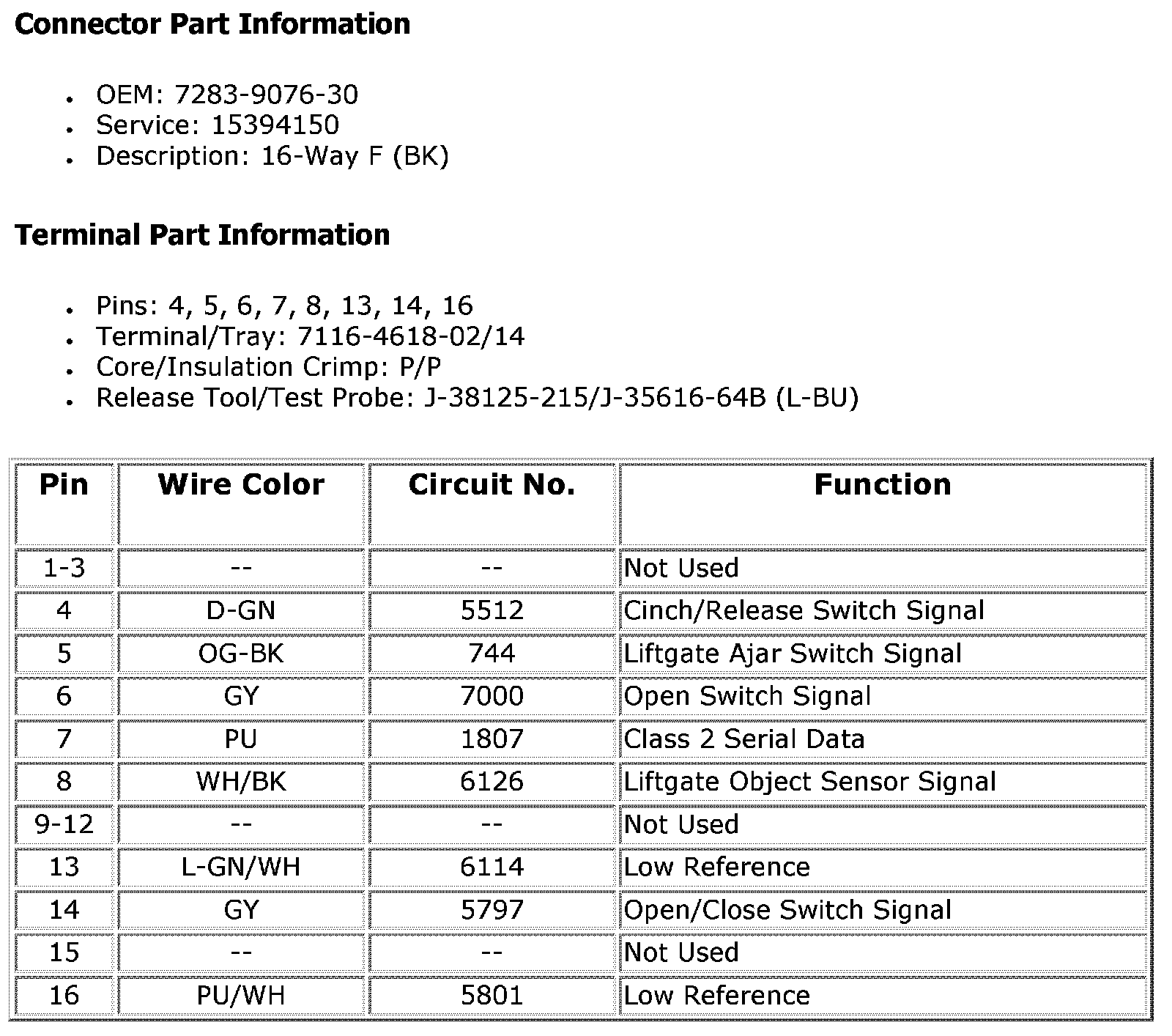

Power Lift Gate Module C3
