Cruise Control Schematics

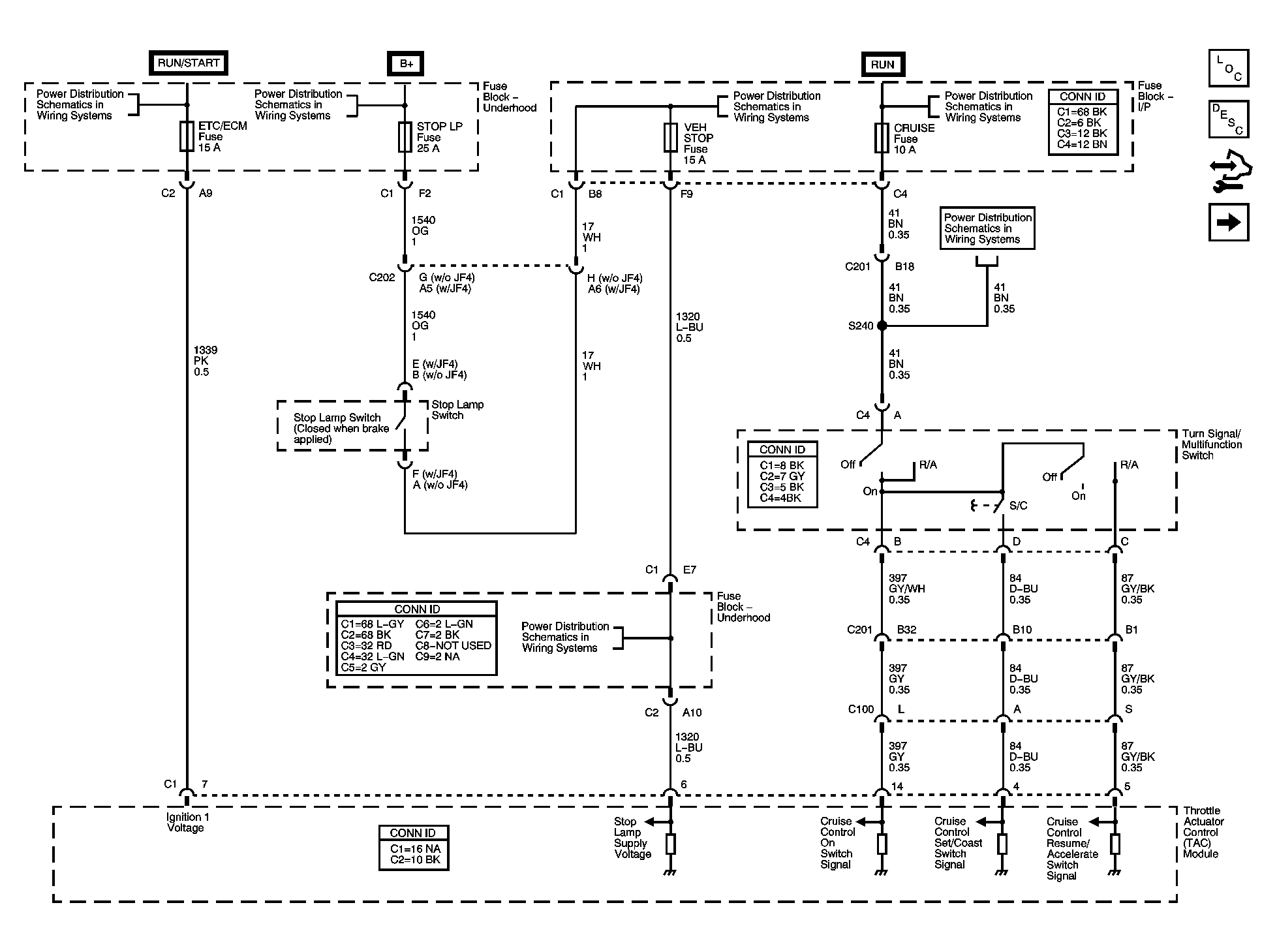

Fig 1: Power, Cruise Control Switch, and Stop Lamp Feed
GM1608875Courtesy of GENERAL MOTORS CORP.

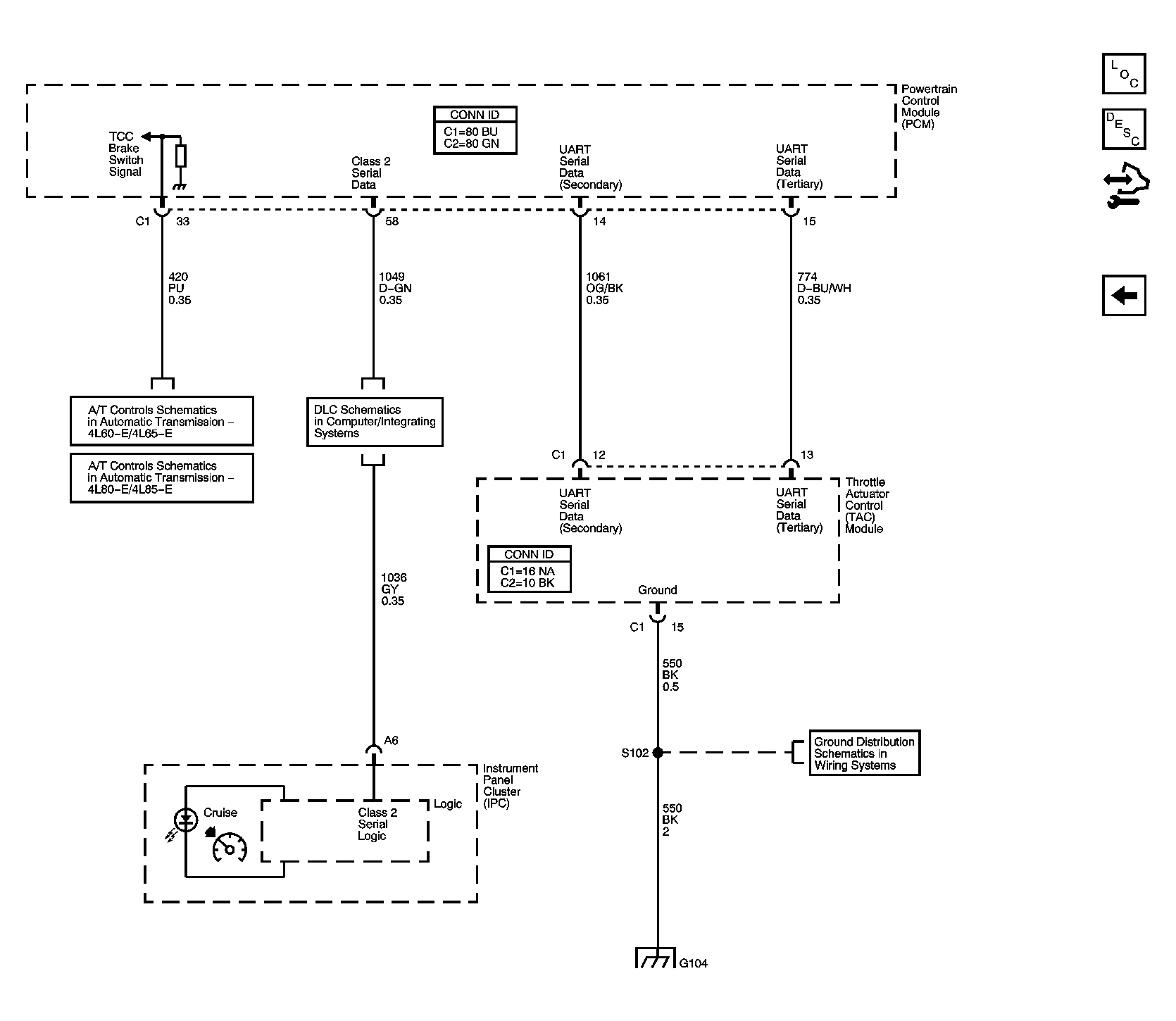

Fig 2: Ground and Class 2 Serial Data
GM1608876Courtesy of GENERAL MOTORS CORP.
