Home >> Cadillac >> 2006 >> DTS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control ( Automatic - Electronic ) >> Suspension Control Module >> Automatic Level Control
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Automatic Level Control

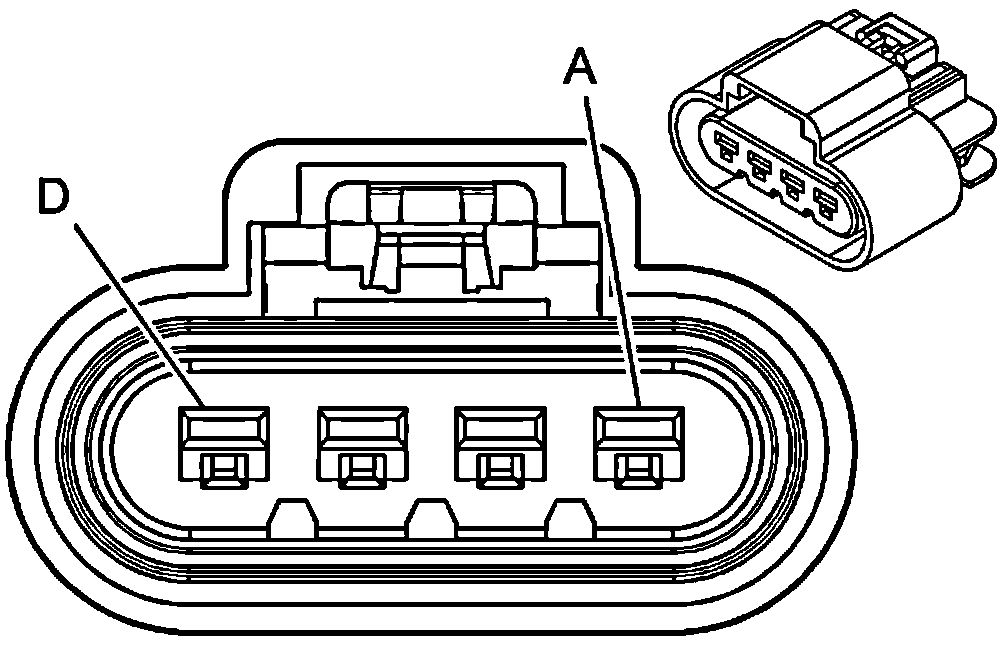

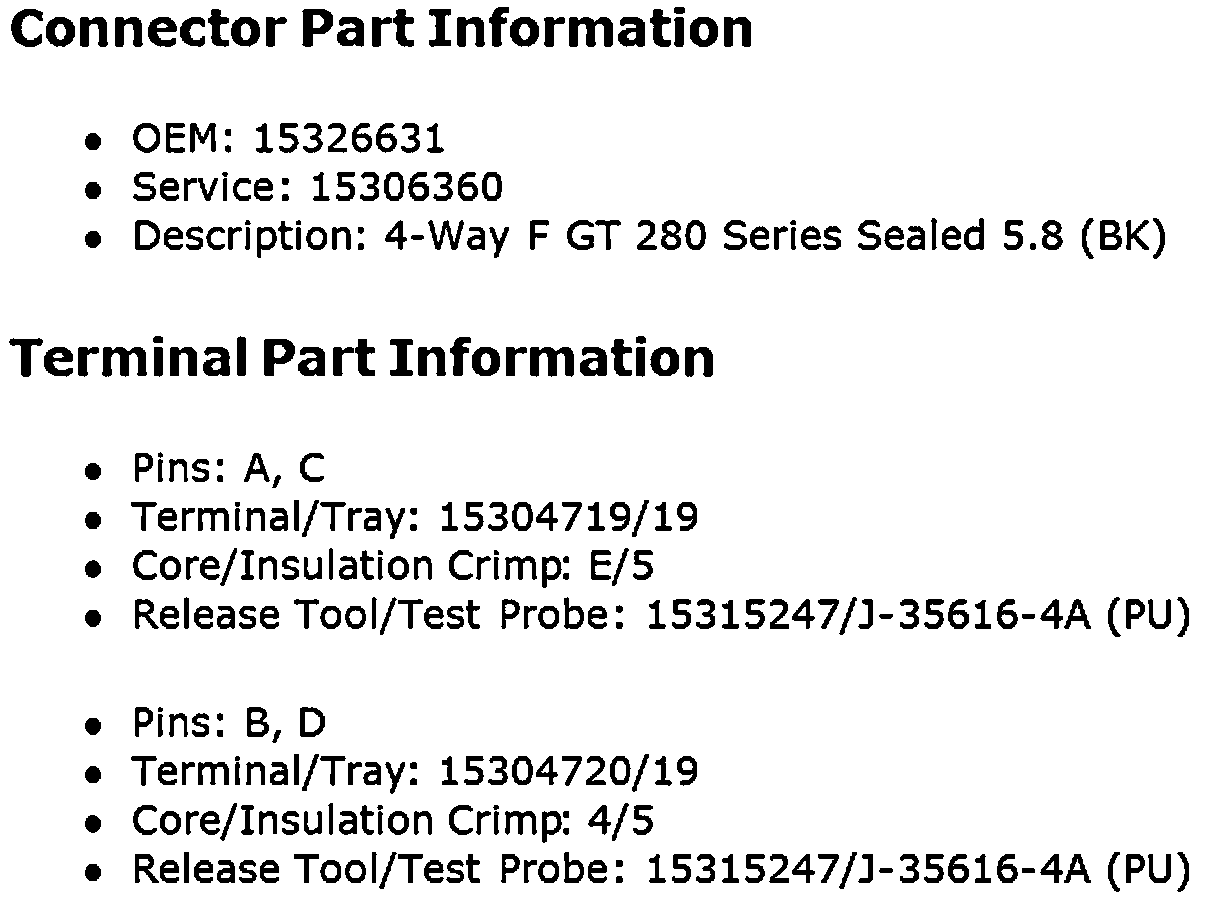

Automatic Level Control (ALC) Compressor (w/o F38, w/ FE1, F55)

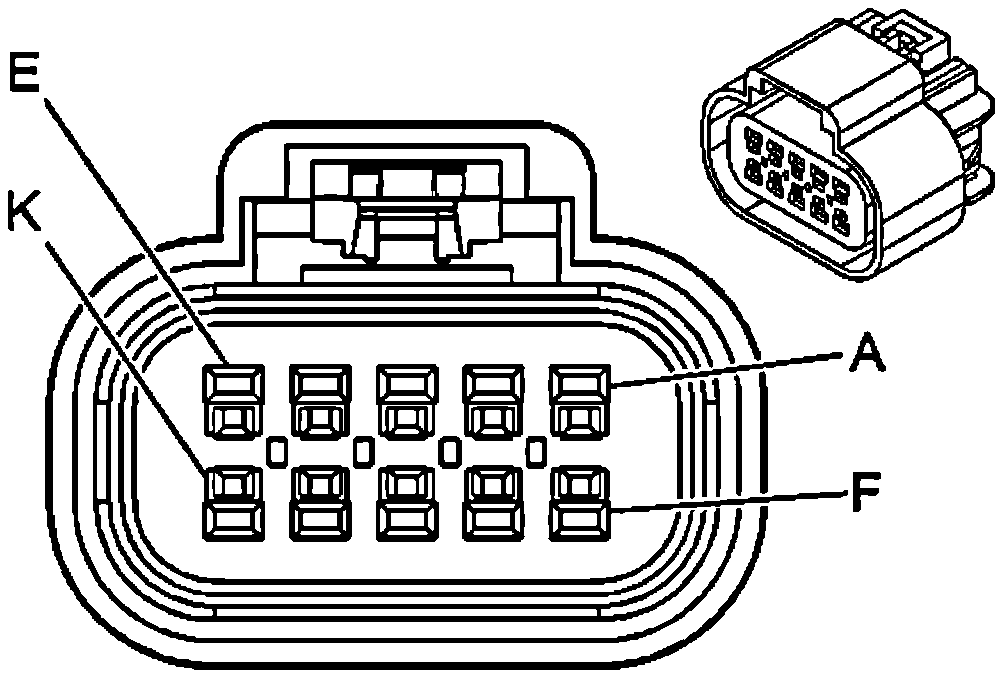

Automatic Level Control Module (FE1)
