Electronic Brake Control Module
ABS Connector End Views
Electronic Brake Control Module (EBCM)
Electronic Brake Control Module (EBCM):

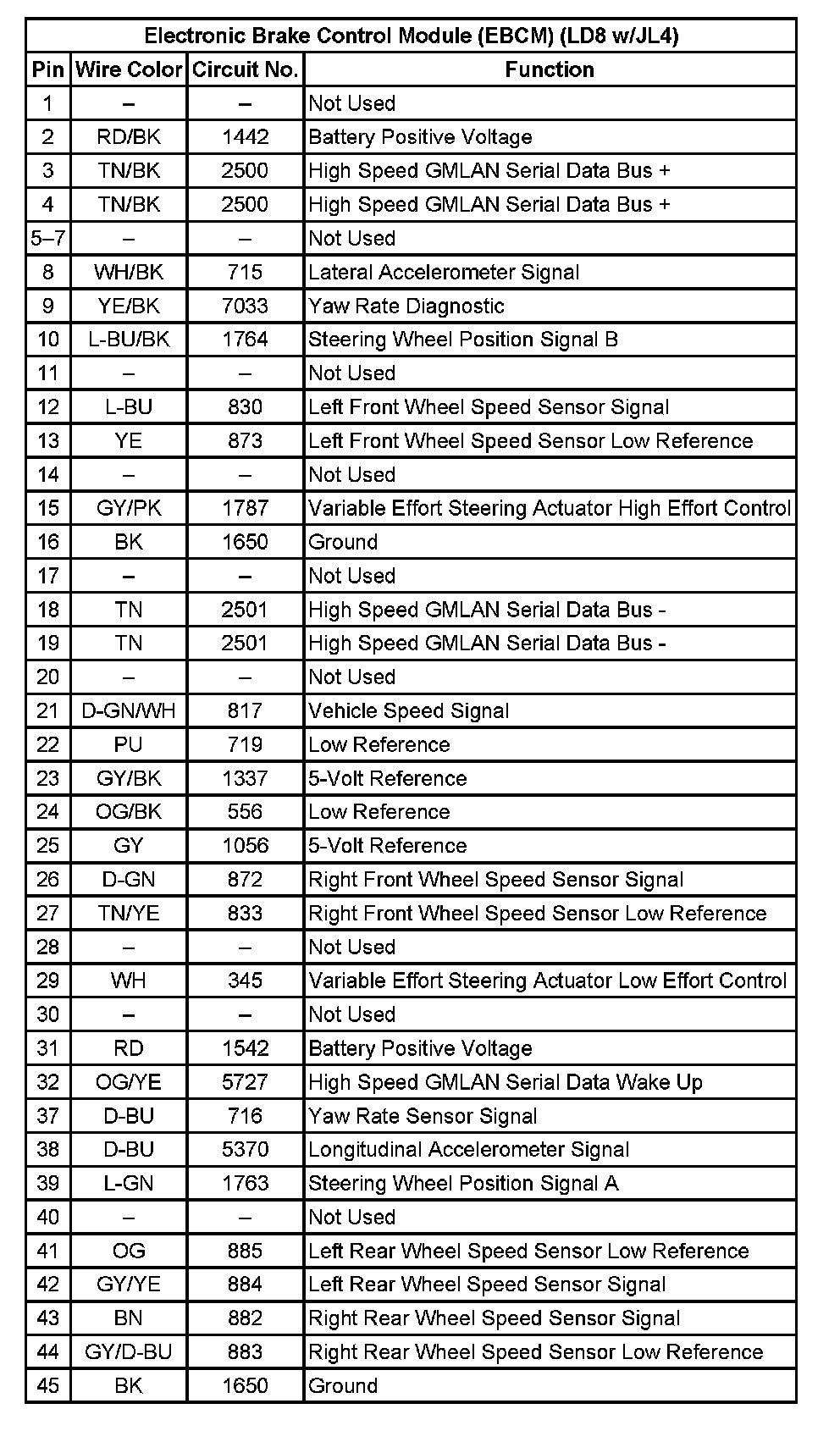

Electronic Brake Control Module (EBCM) (LD8 w/JL4):
Electronic Brake Control Module (EBCM):

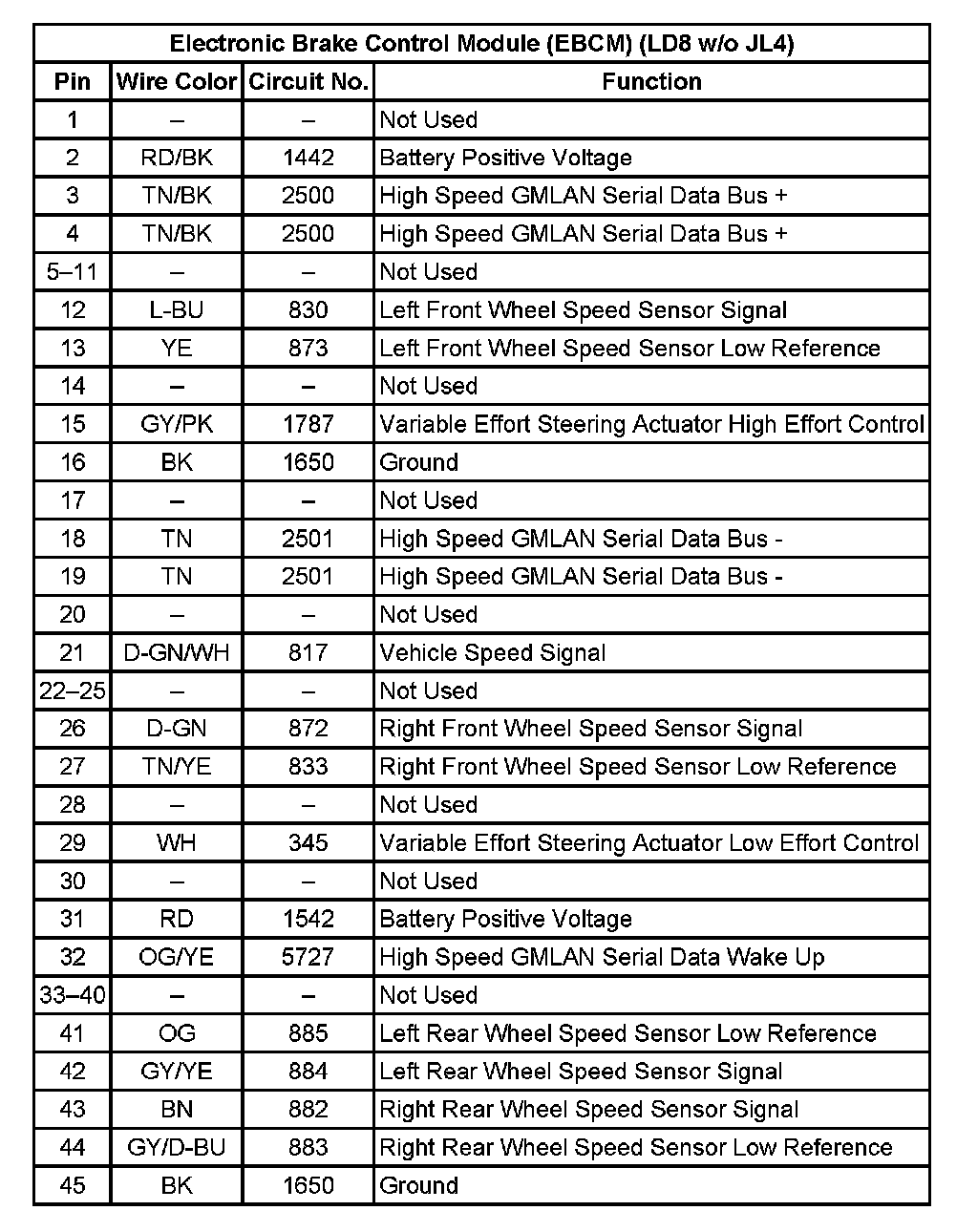

Electronic Brake Control Module (EBCM) (LD8 w/o JL4):
