Right Rear Door Module (RRDM)

Right Rear Door Module (RRDM) C1:

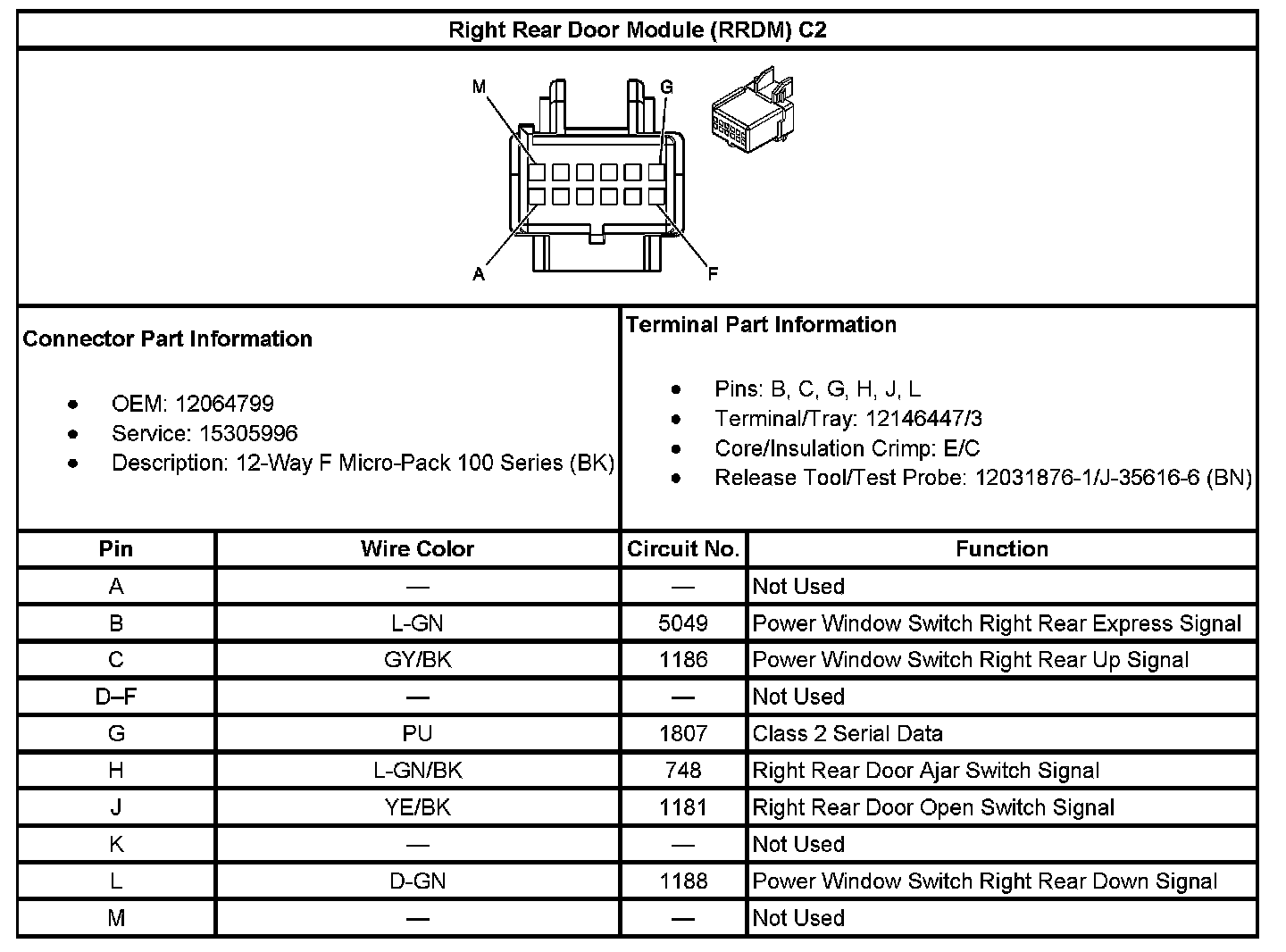

Right Rear Door Module (RRDM) C2:

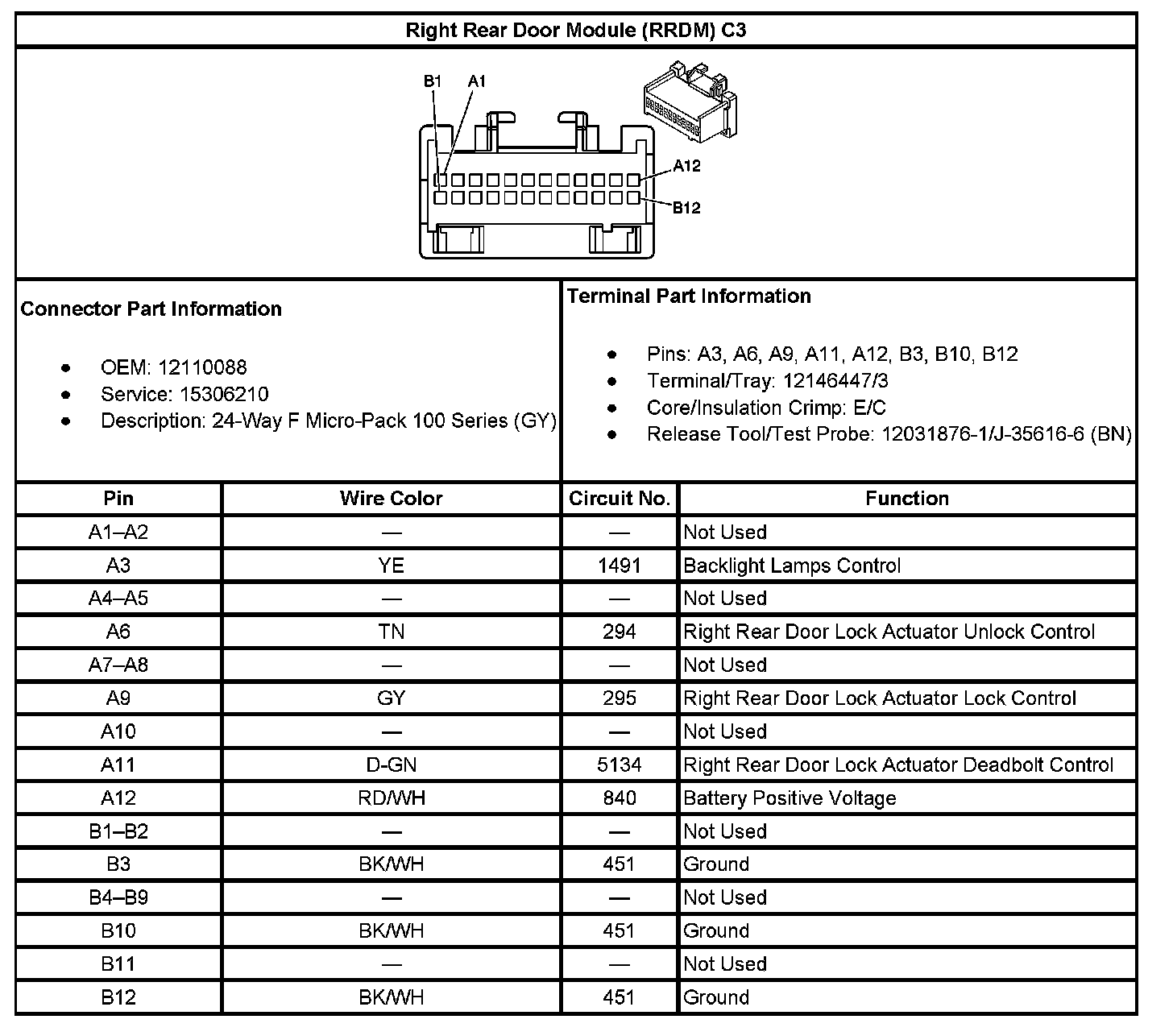

Right Rear Door Module (RRDM) C3:
