LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Cadillac
>>
2006
>>
CTS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

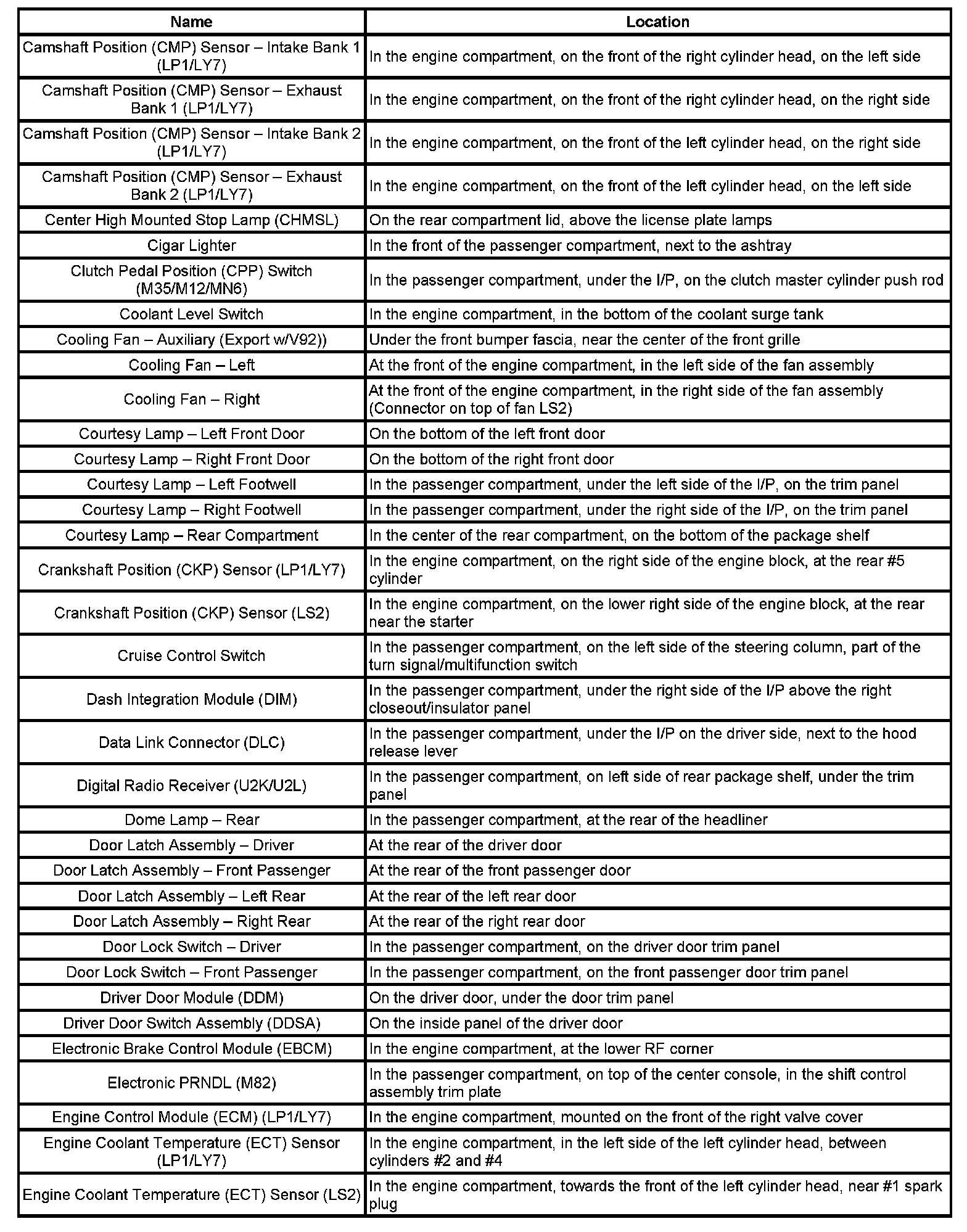

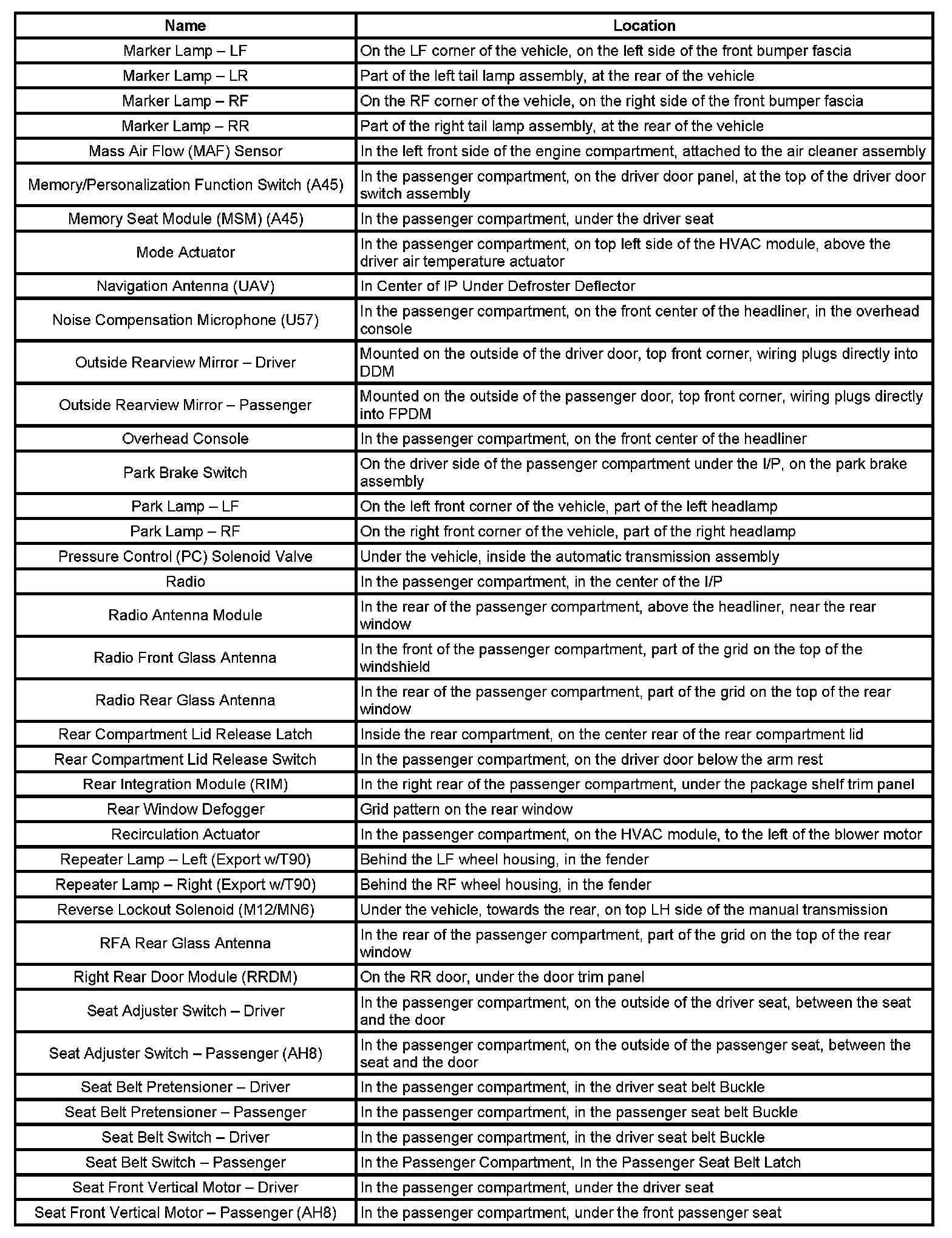

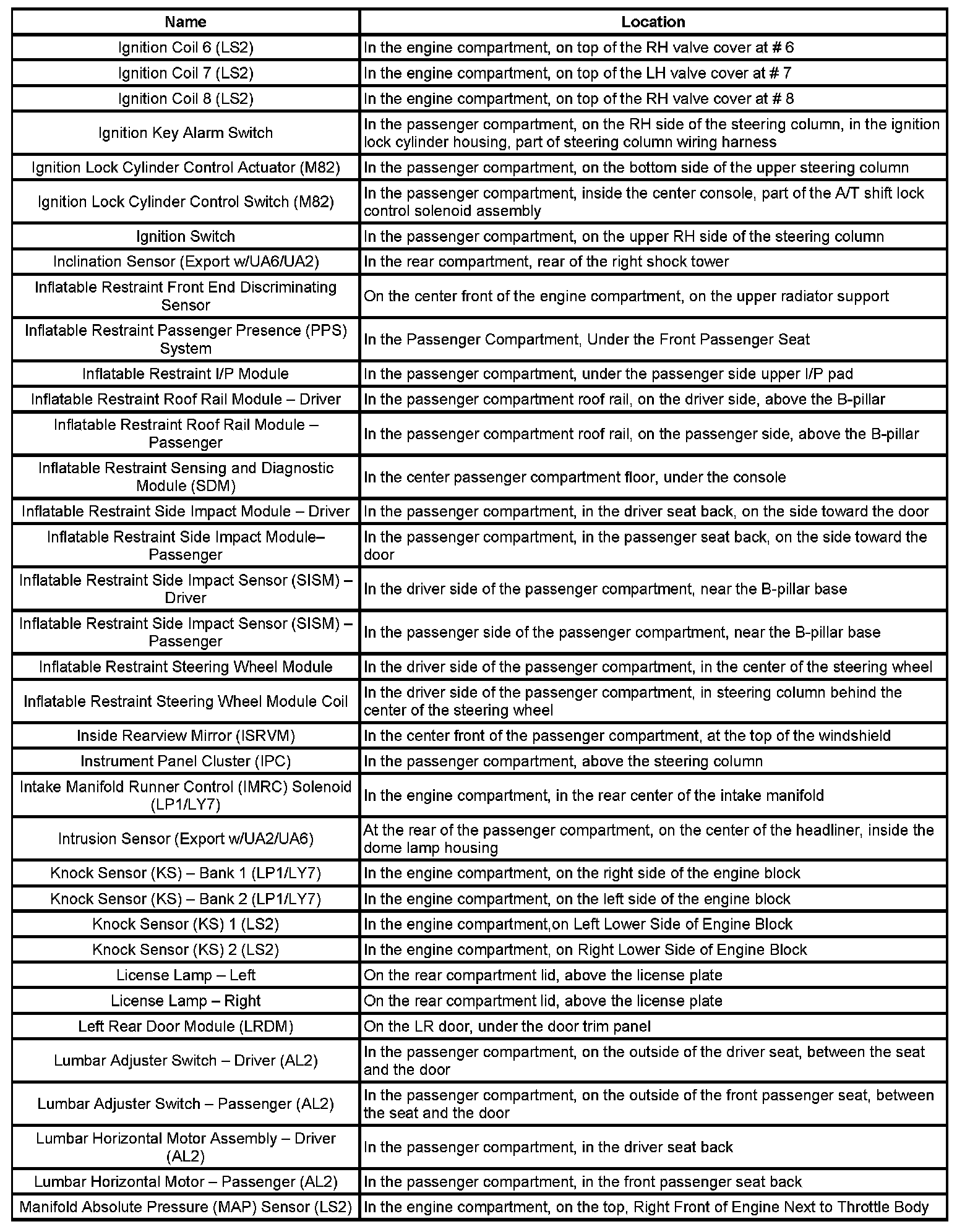

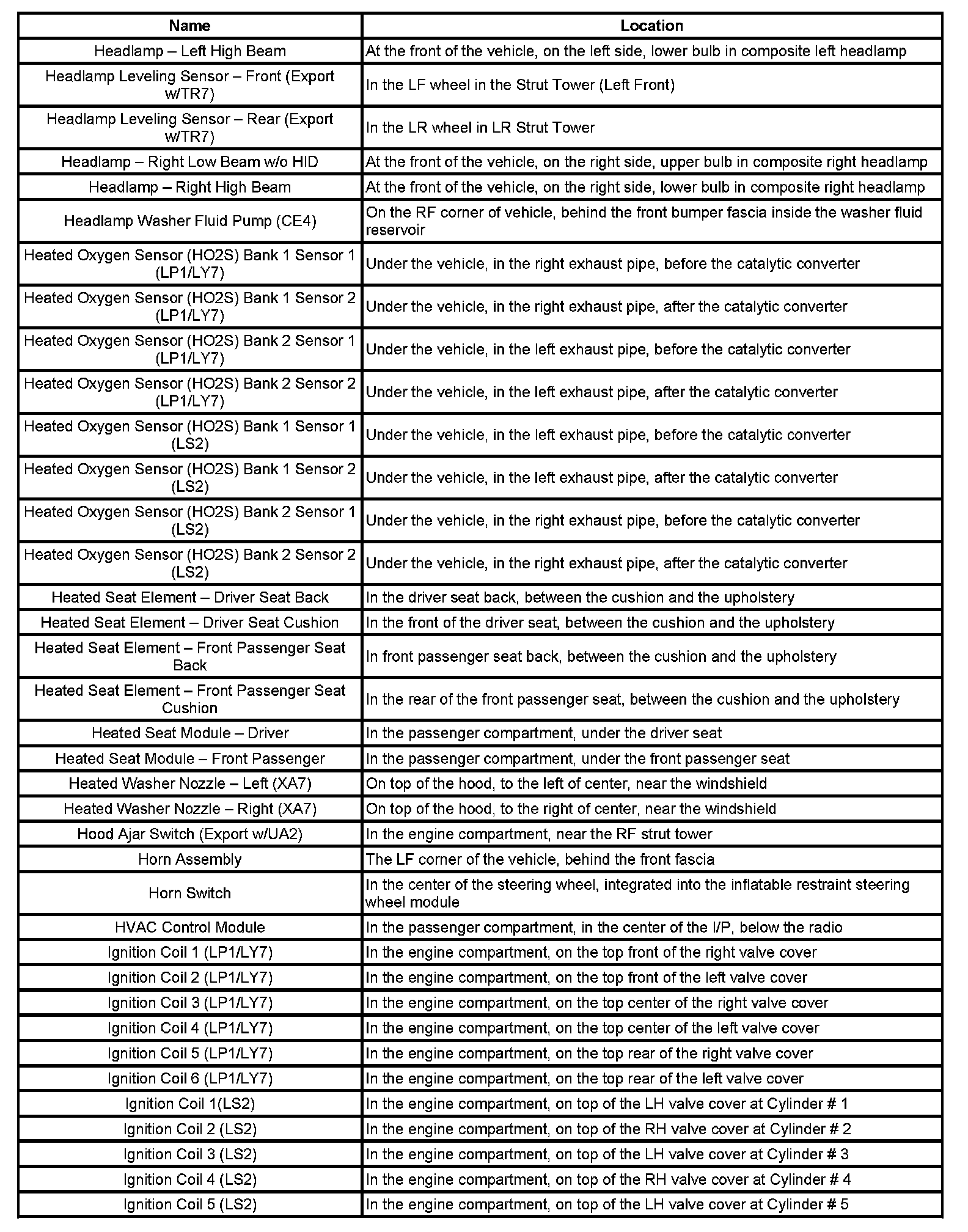

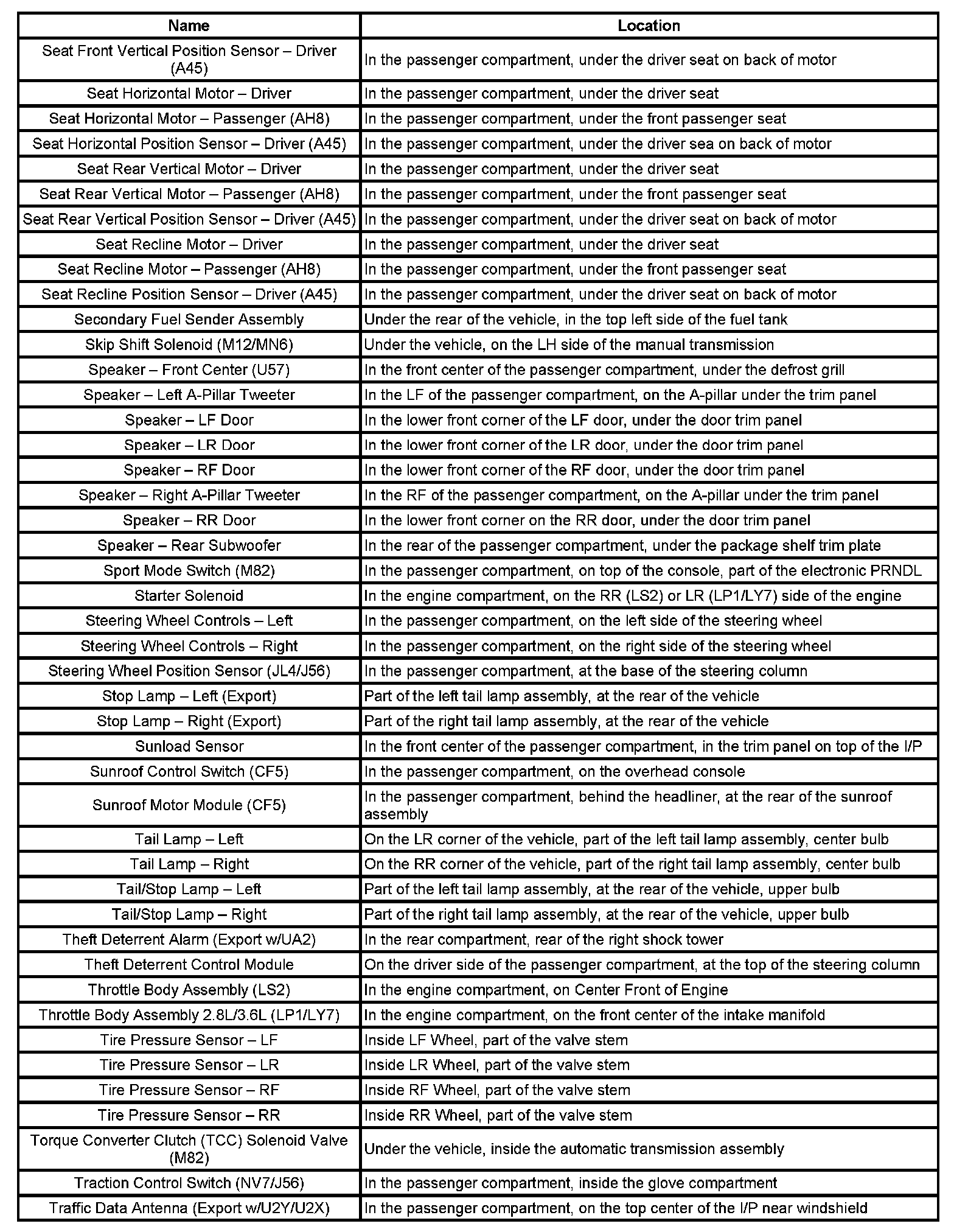

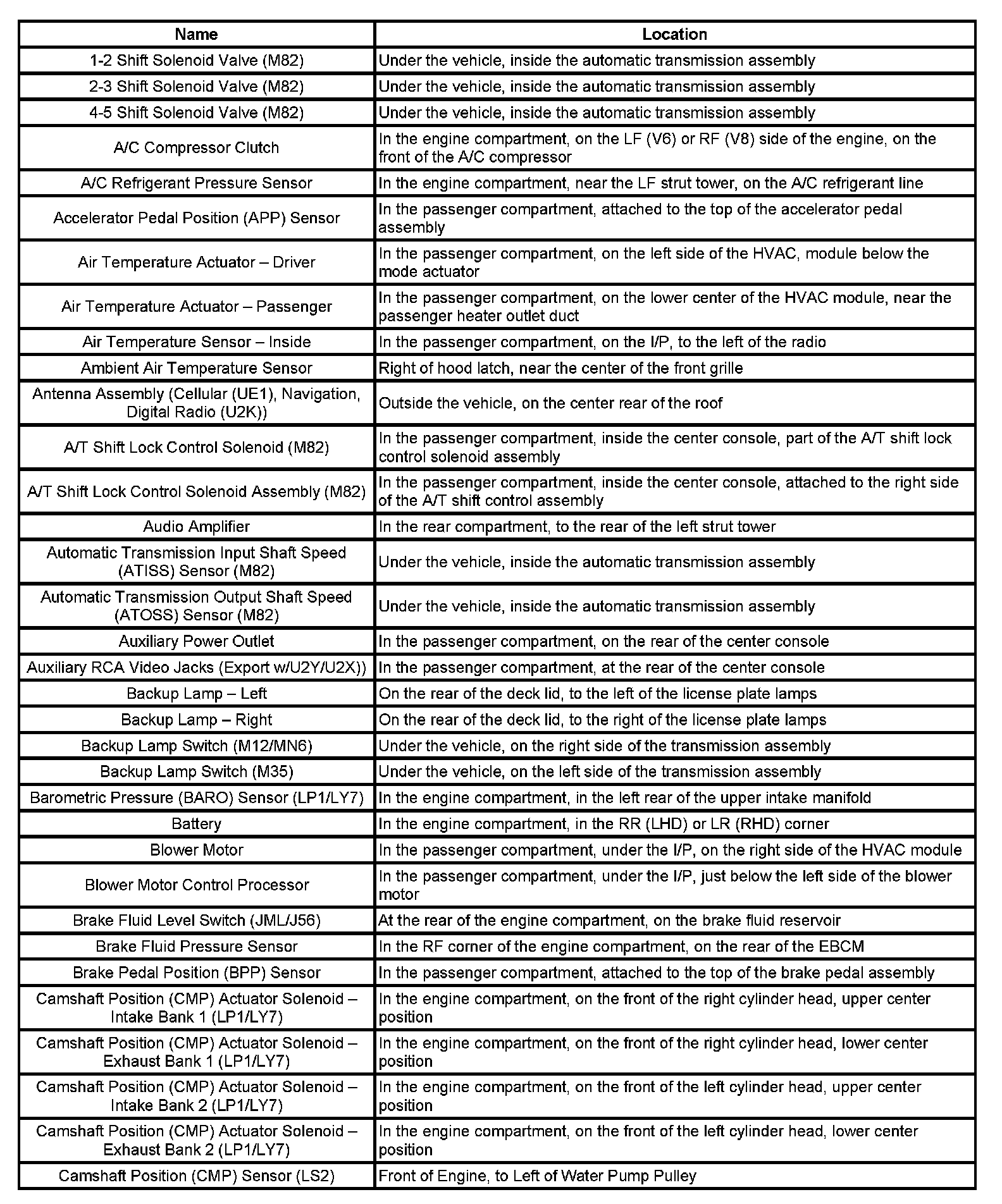

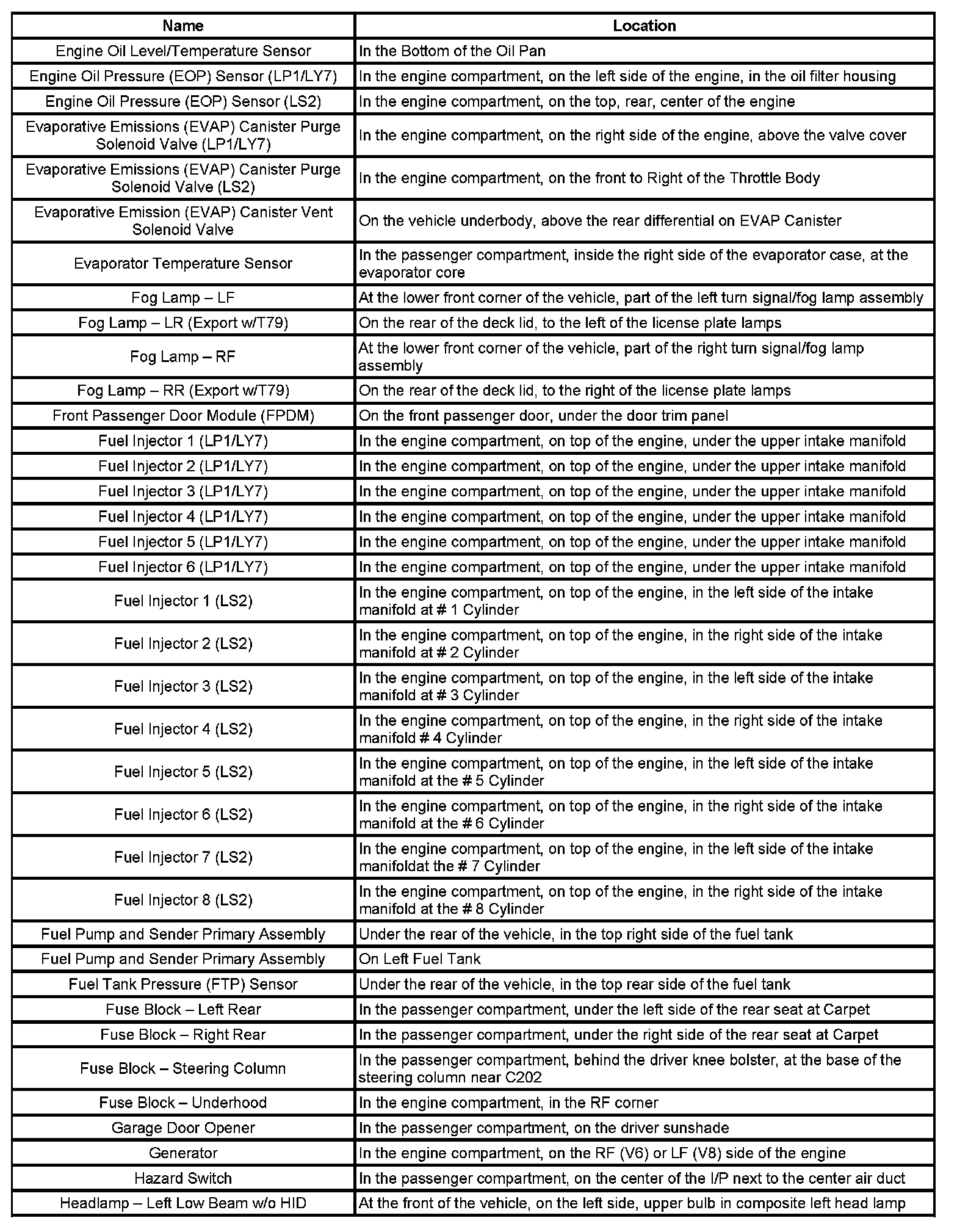

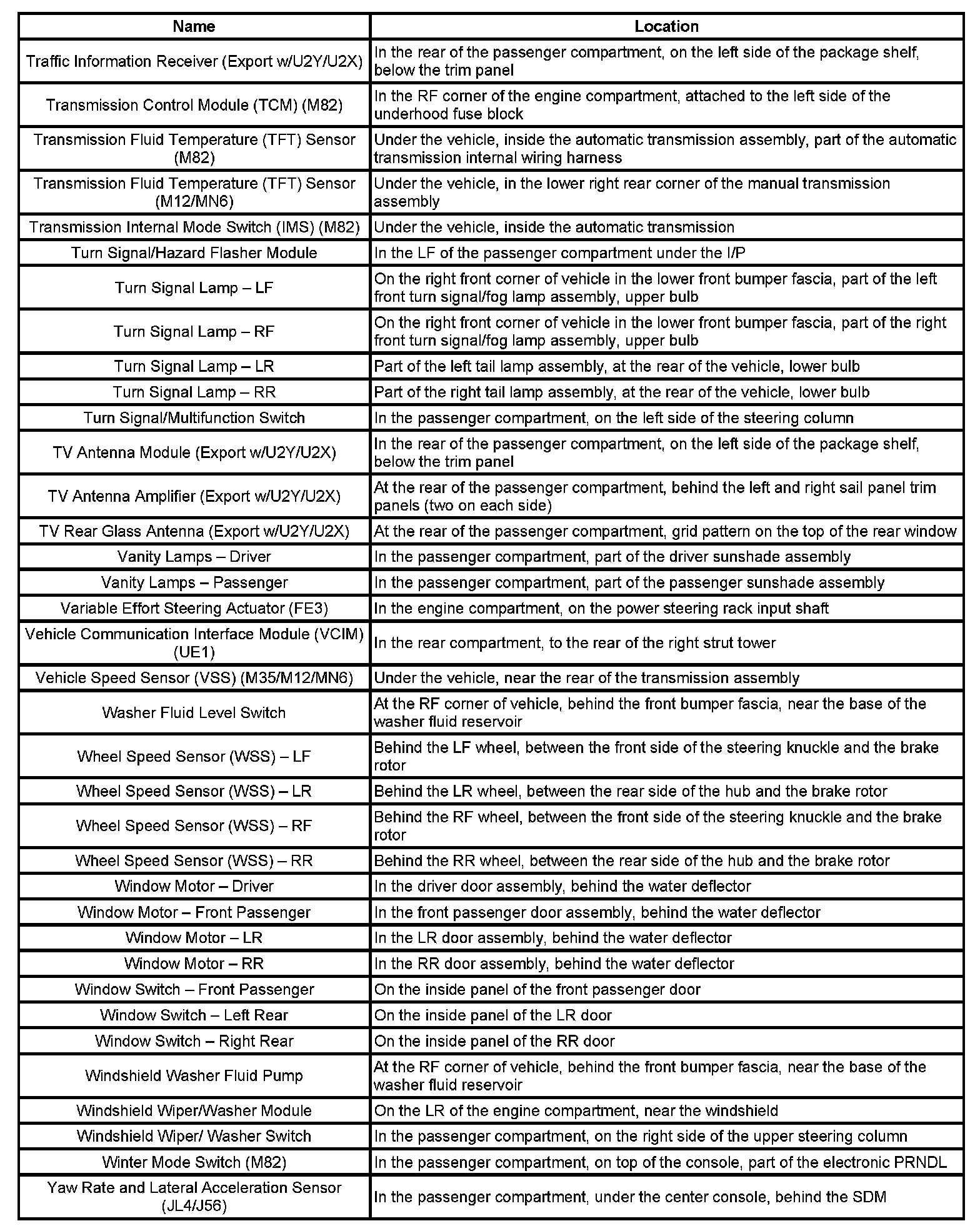

Components
1-2 Sh - Ca:
Ca - En:
En - He:
He - Ig:
Ig - Ma:
Ma - Se:
Se - Tr:
Tr - Ya:
