59. Input Speed Sensor Installation

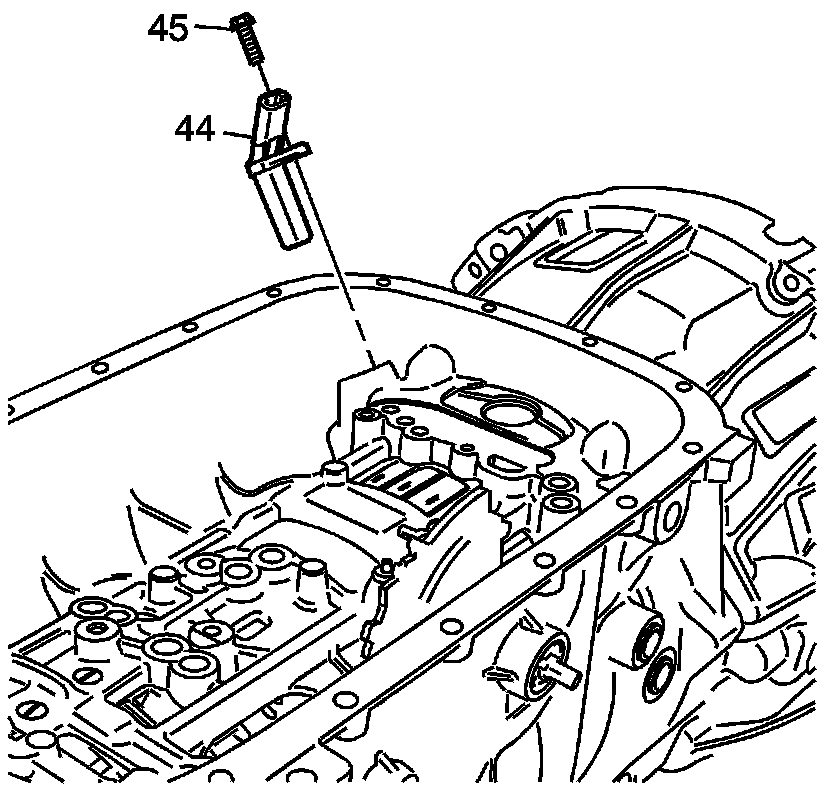

Input Speed Sensor Installation

1. Rotate the transmission 90 degrees.
2. Install the input speed sensor (44) into the case (24).

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the input speed sensor bolt (45) into the case (24).
^ Tighten the input speed sensor bolt (45) to 11 Nm (8 ft. lbs.).
