Fuse Block - Left Rear

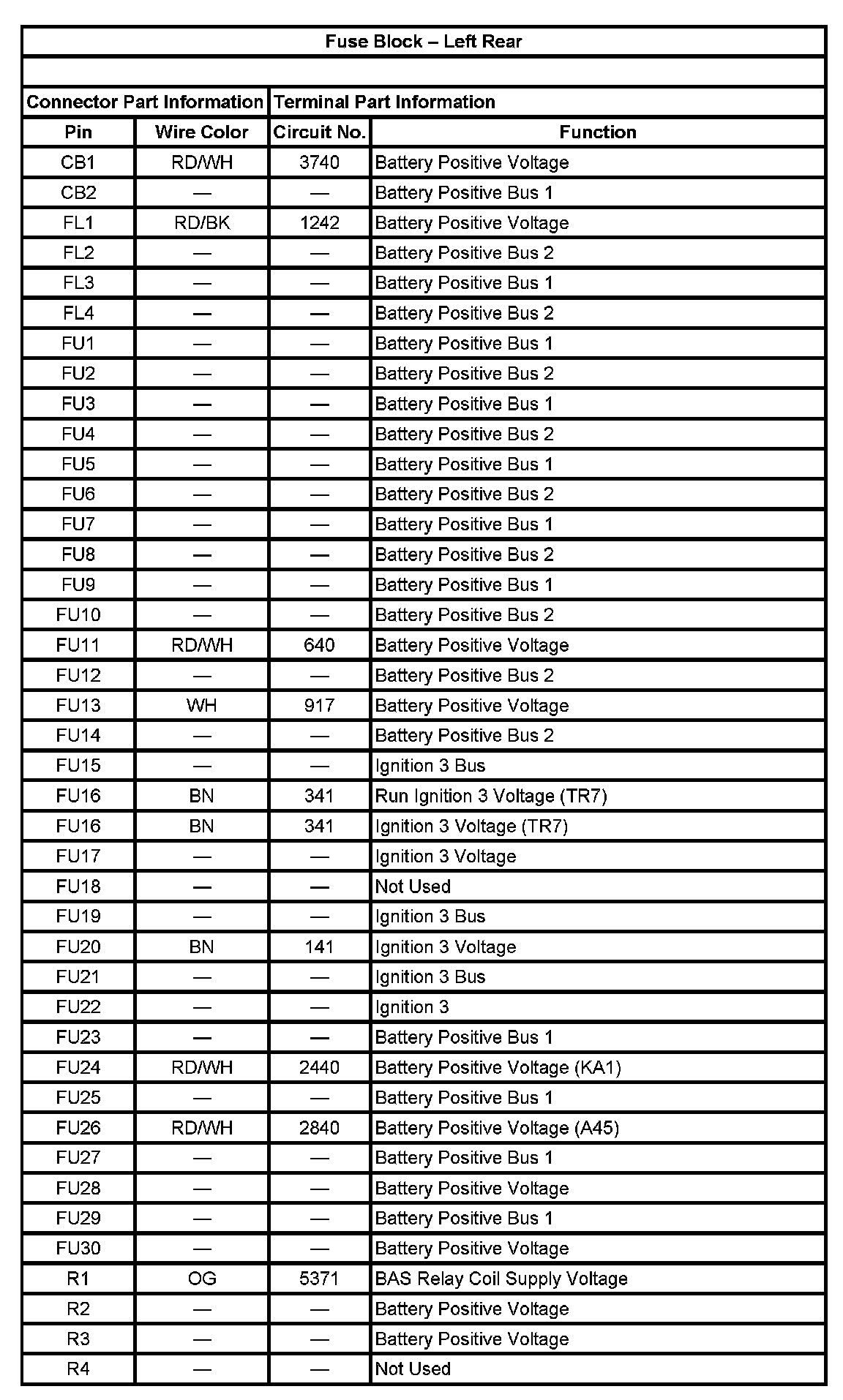

Fuse Block - Left Rear (Part 1):

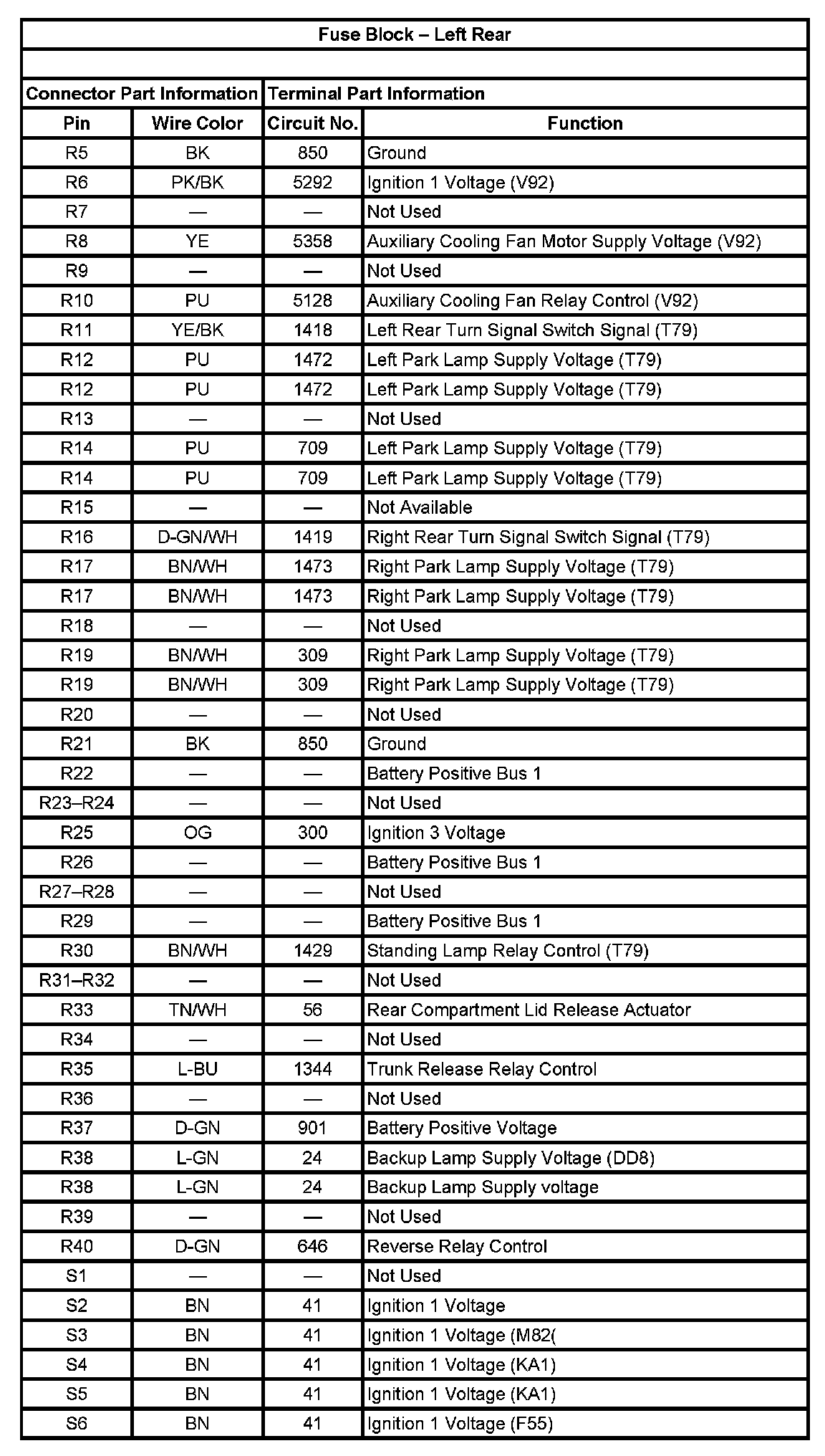

Fuse Block - Left Rear (Part 2):

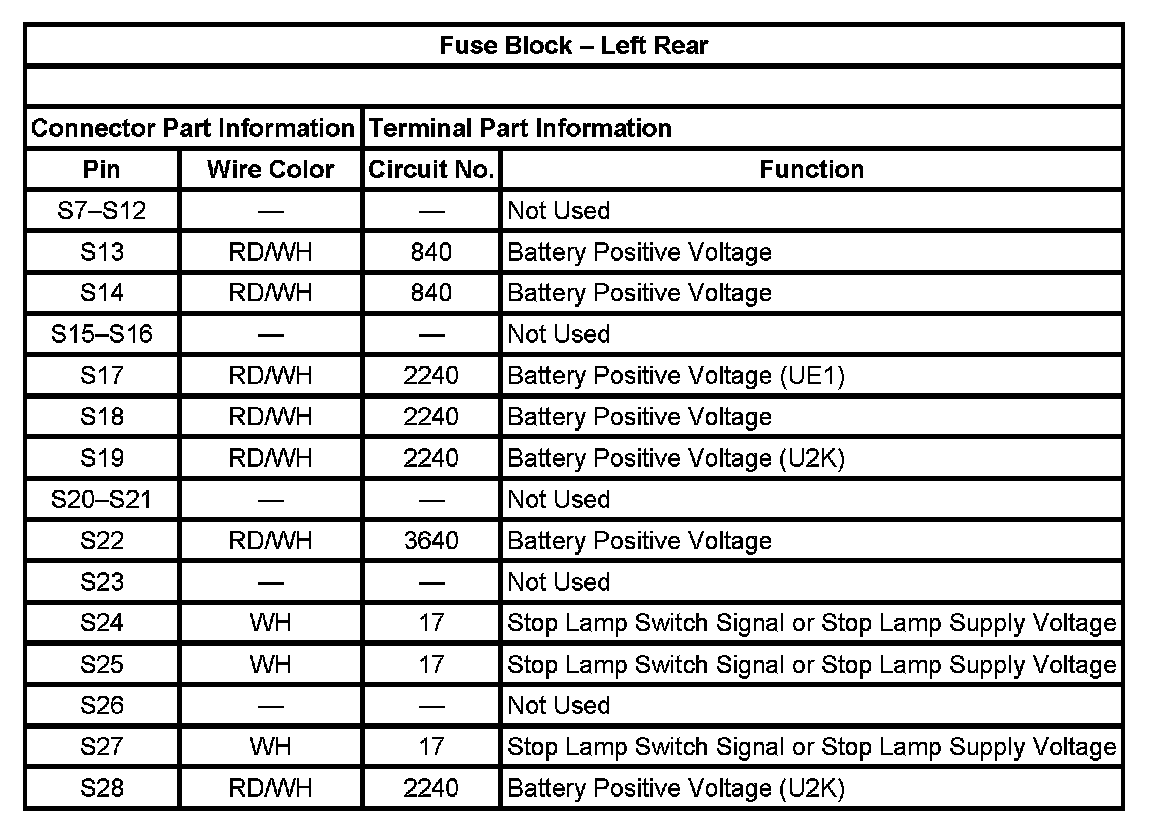

Fuse Block - Left Rear (Part 3):
