Fuse Block - Underhood C4

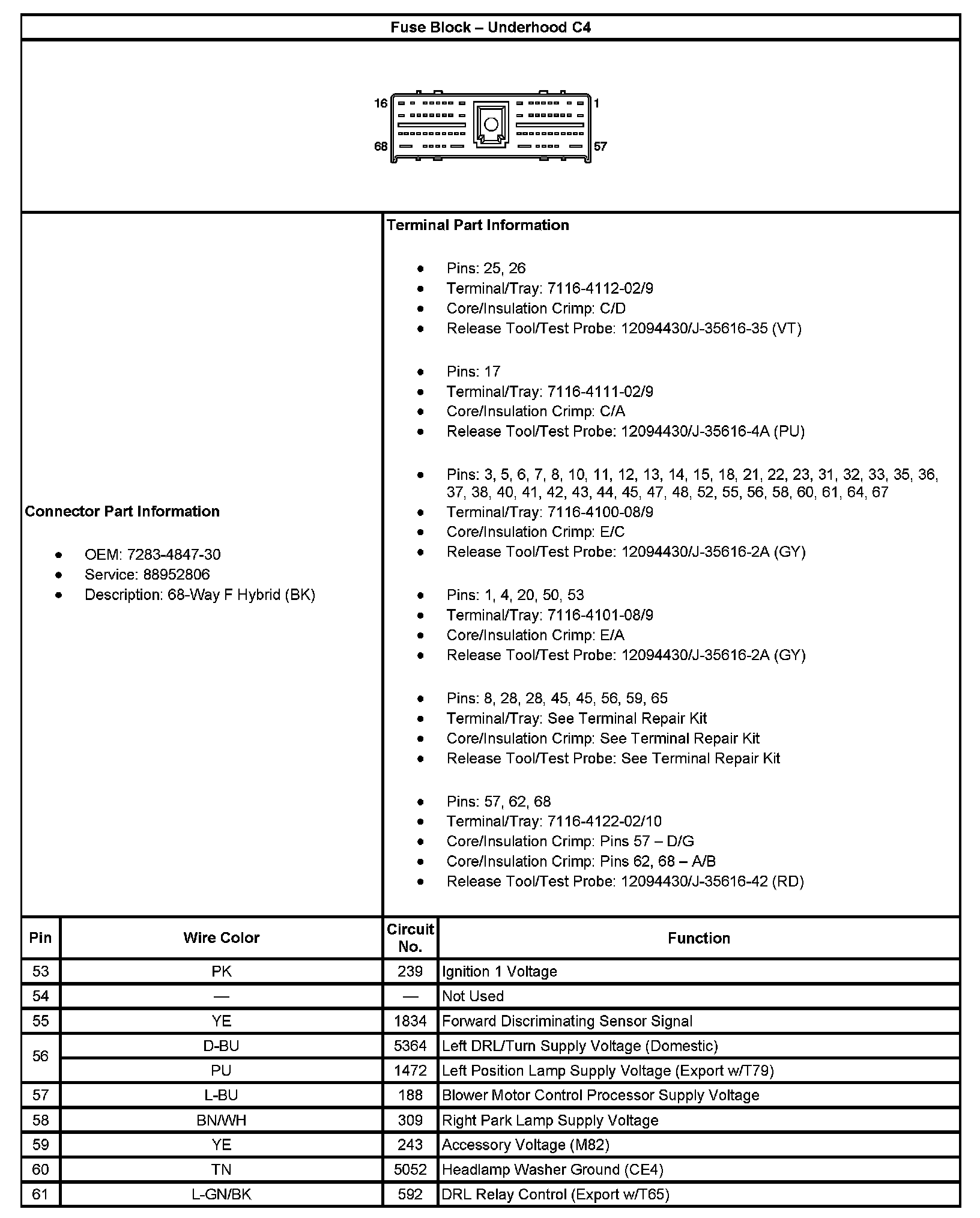

Fuse Block - Underhood C4 (Part 1):

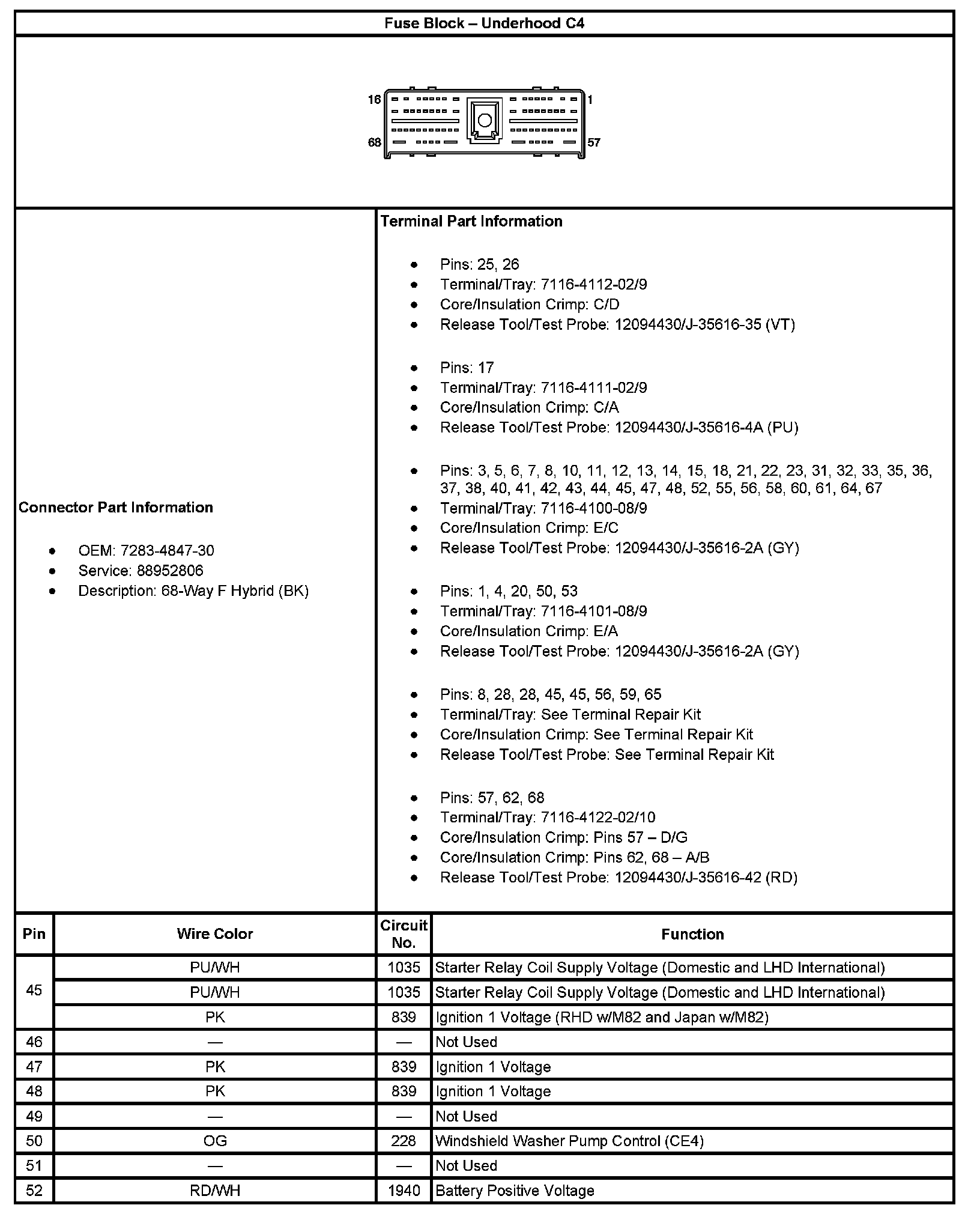

Fuse Block - Underhood C4 (Part 2):

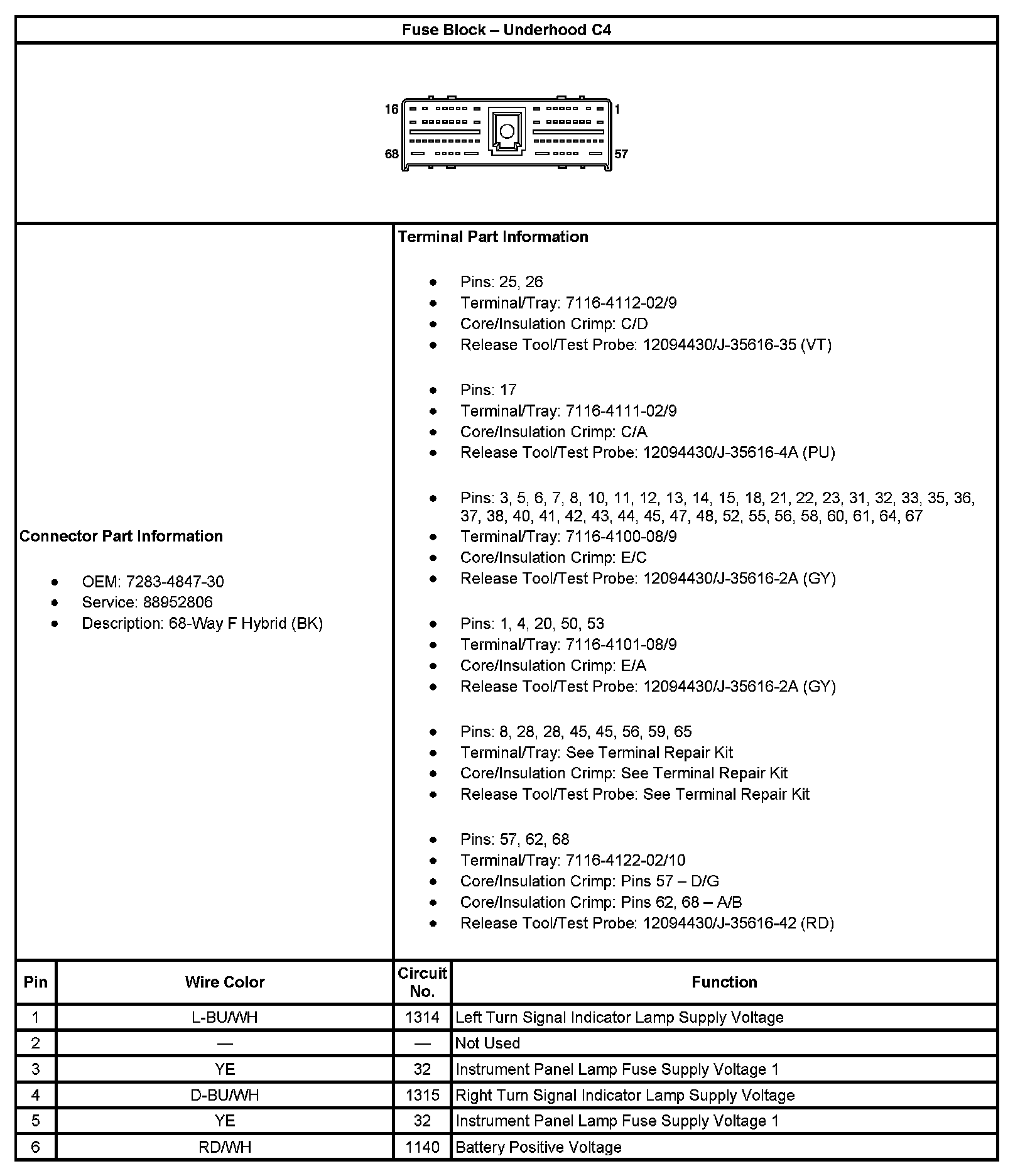

Fuse Block - Underhood C4 (Part 3):

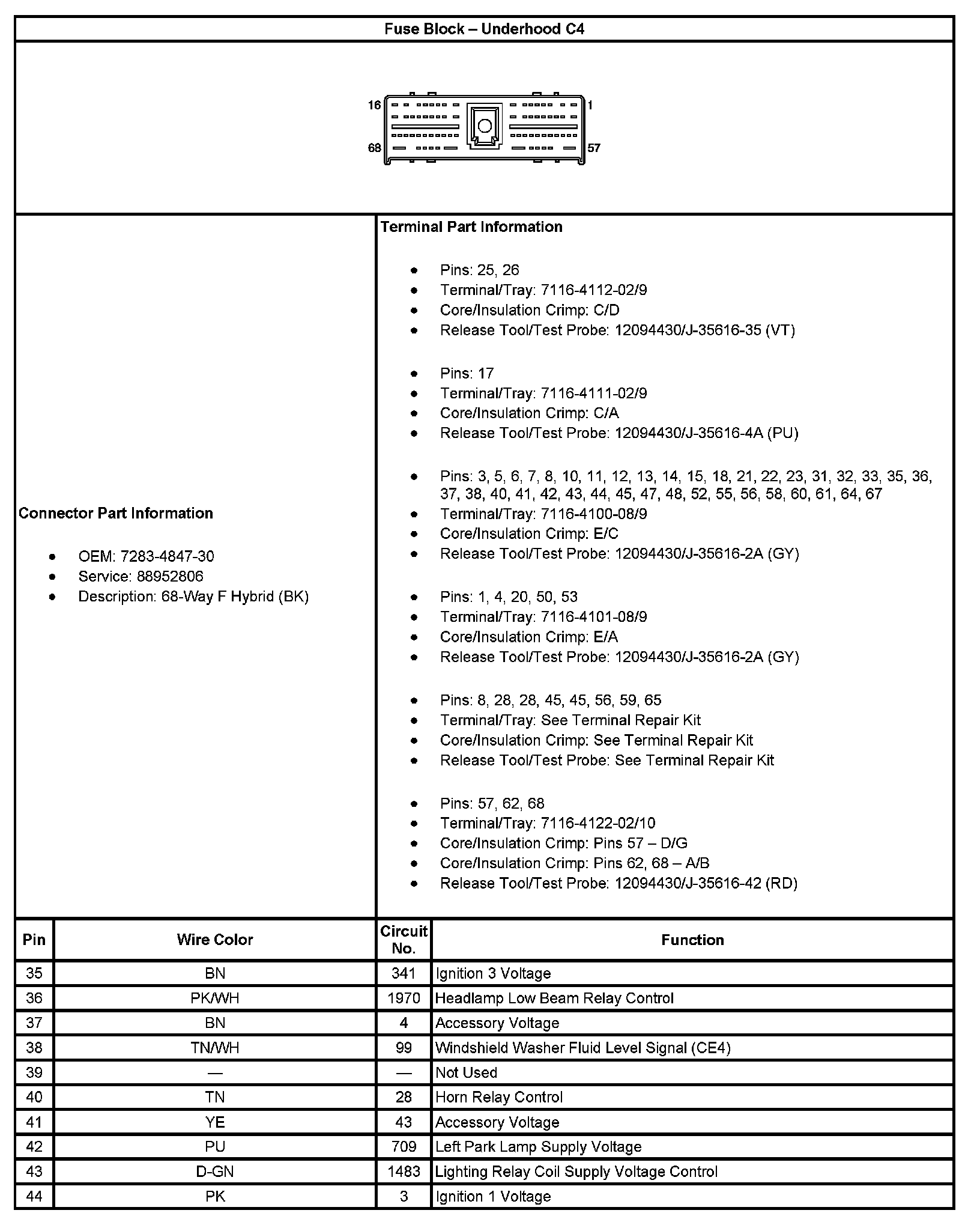

Fuse Block - Underhood C4 (Part 4):

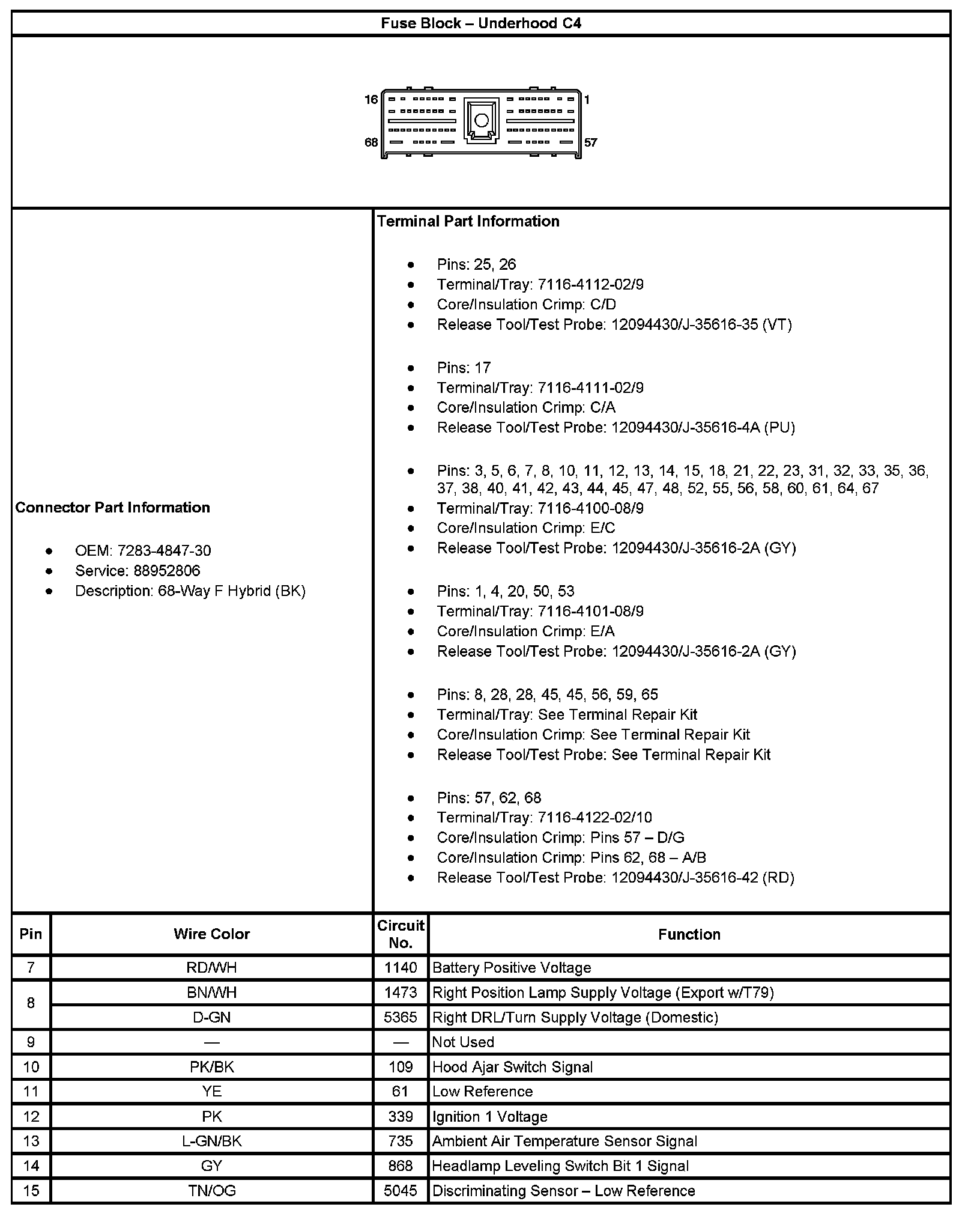

Fuse Block - Underhood C4 (Part 5):

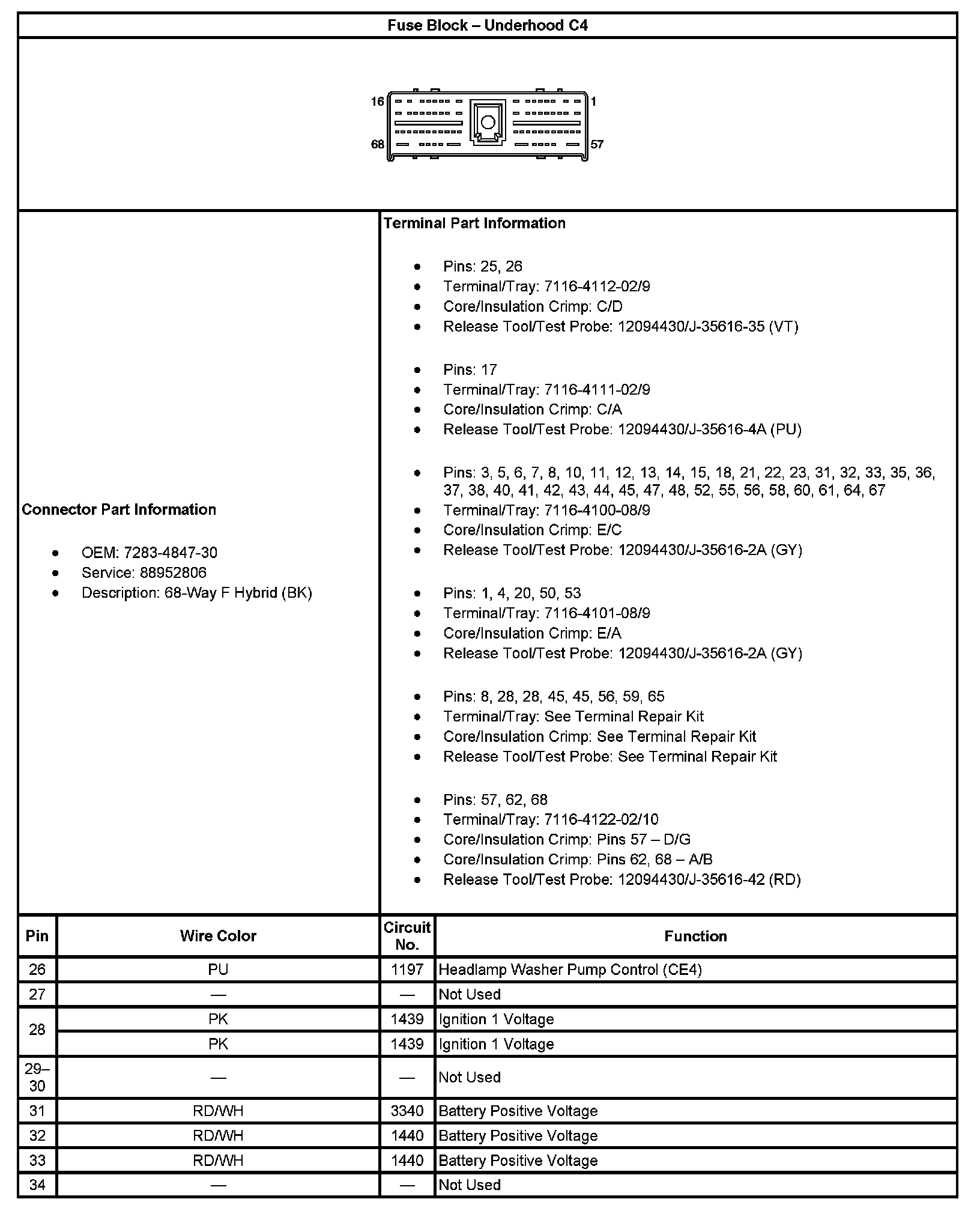

Fuse Block - Underhood C4 (Part 6):

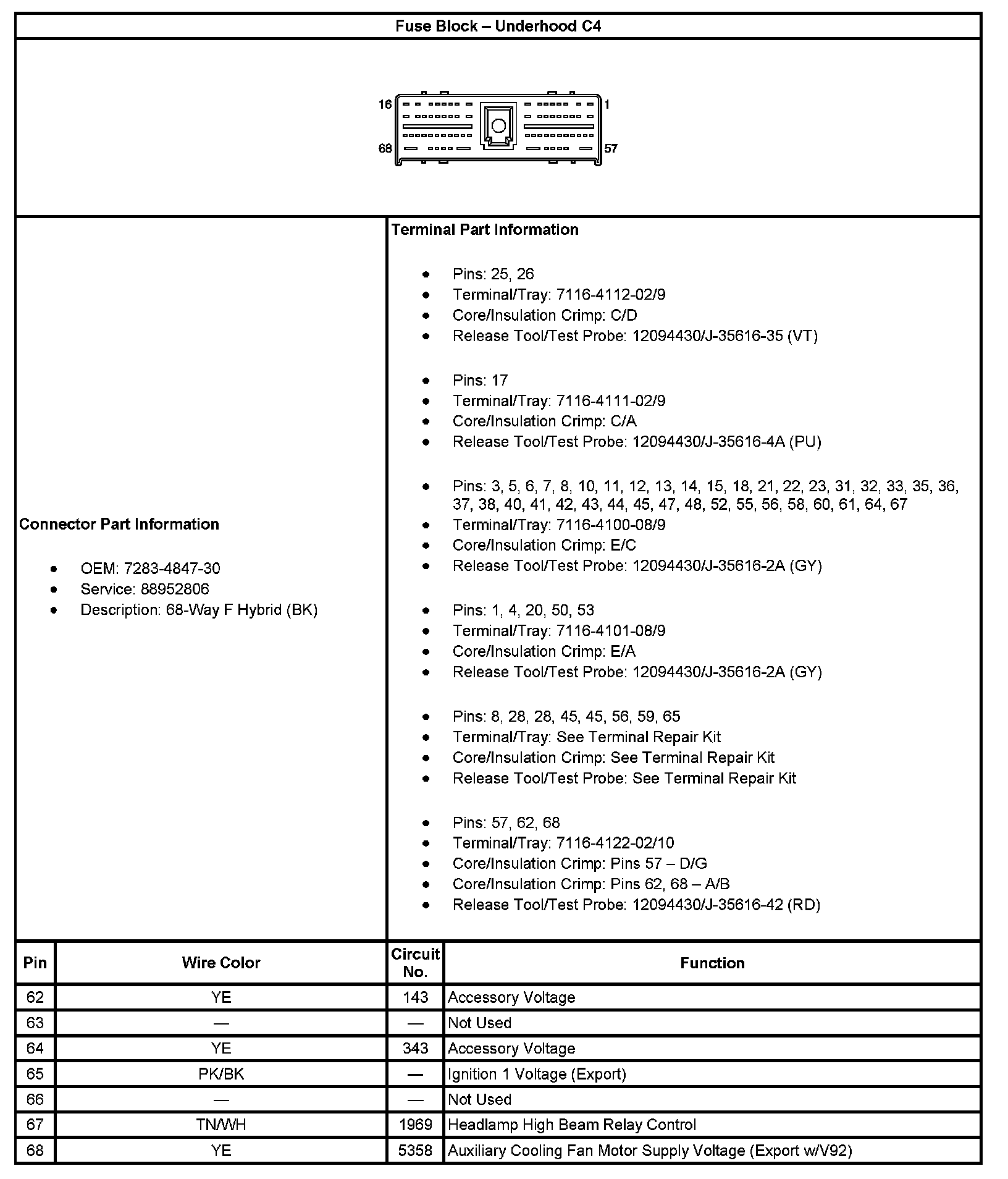

Fuse Block - Underhood C4 (Part 7):

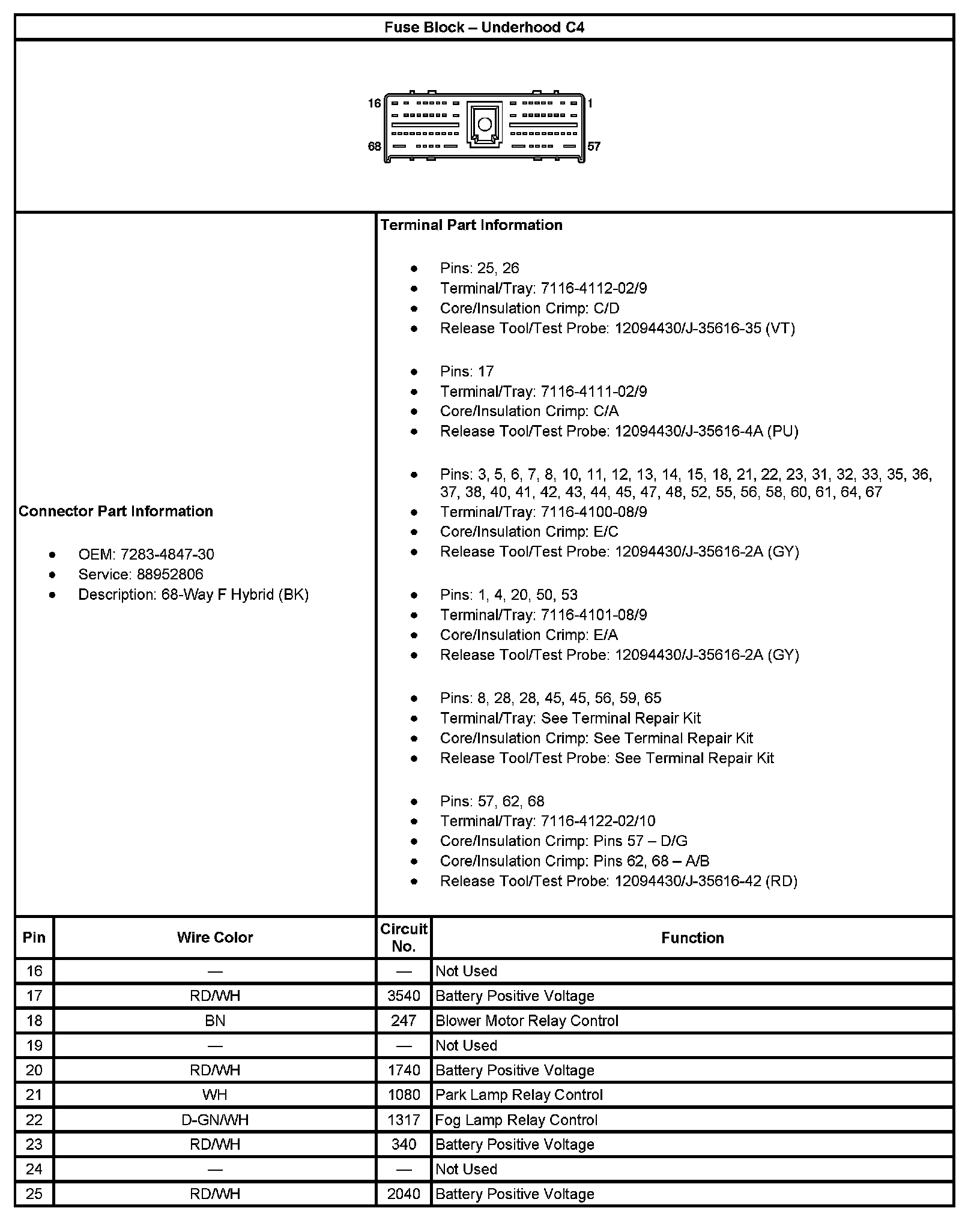

Fuse Block - Underhood C4 (Part 8):
