Theft Deterrent System Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

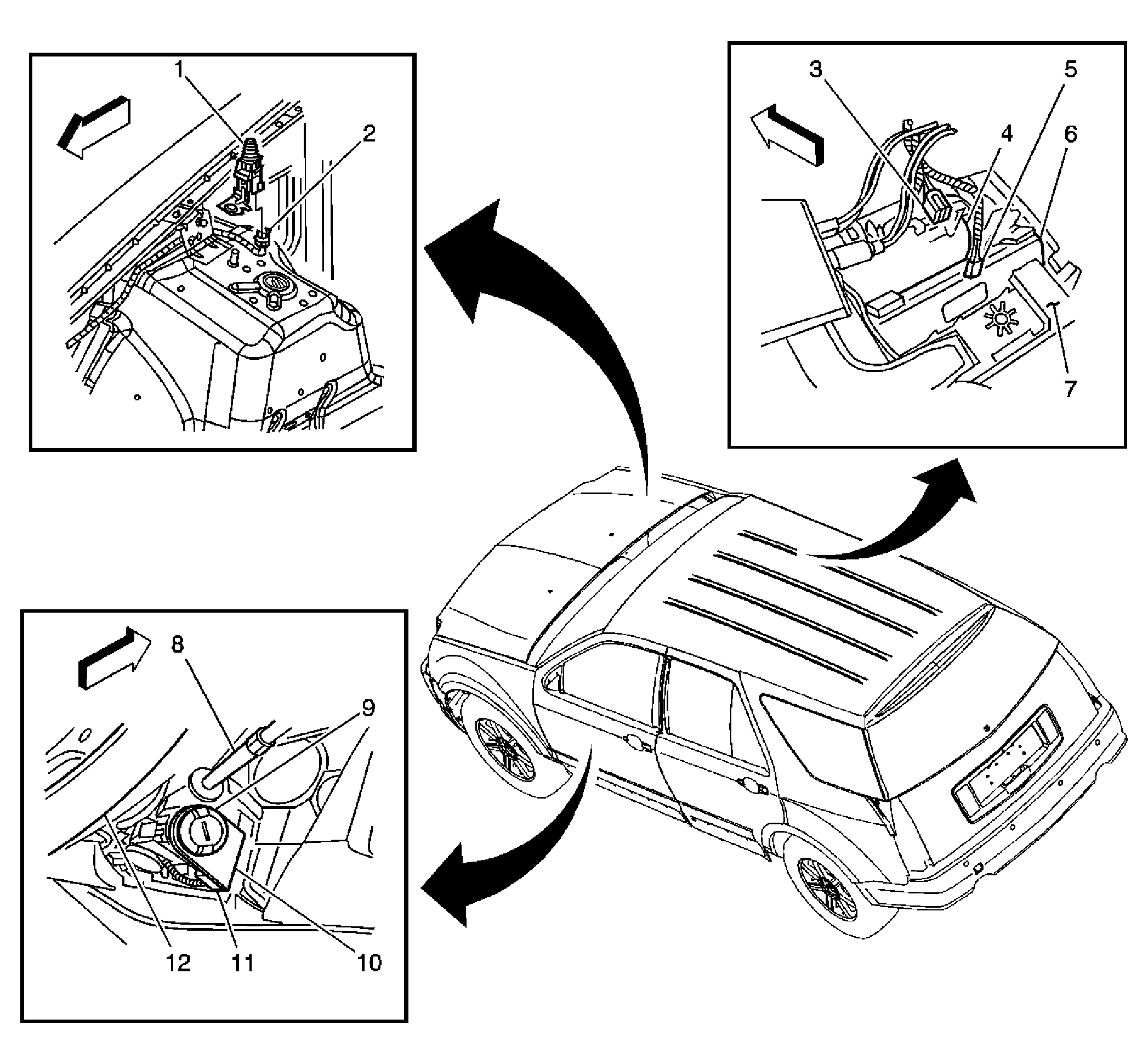

Fig 1: Theft Deterrent System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (UA6)
2	Hood Ajar Switch Connector (UA6)
3	Dome Lamp Connector
4	Dome Lamp
5	Intrusion Sensor Connector (UA6)
6	Intrusion Sensor (UA6)
7	Headliner
8	Windshield Wiper/Washer Switch
9	Ignition Lock Solenoid
10	Theft Deterrent Module (TDM) - (UA6)
11	Theft Deterrent Module (TDM) Connector (UA6)
12	Steering Wheel

Fig 2: View Of Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Module (TDM)

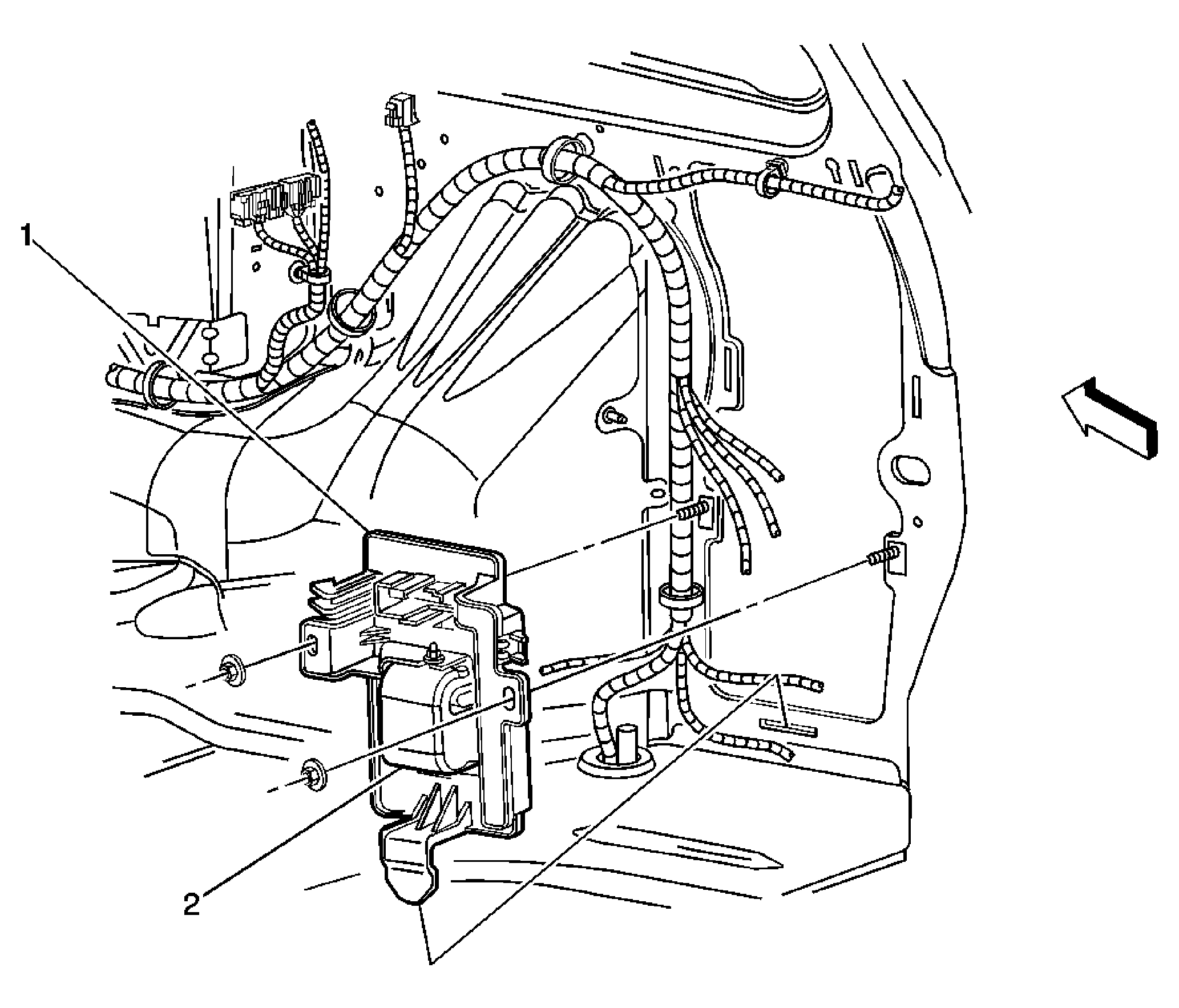

Fig 3: Right Rear Of Vehicle Behind Trim Panel (UA2) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inclination Sensor
2	Theft Deterrent Alarm Siren

Fig 4: View Of Right Rear Of Cargo Compartment (Export)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna Module-Right
2	Rear Window Antenna Assembly-Right
3	Digital Radio Receiver (U2K)
4	Rear Body Control Module (RBCM)
5	Theft Deterrent Alarm Siren (UA6)
