Engine Data Sensors - Low Reference Bus Schematics

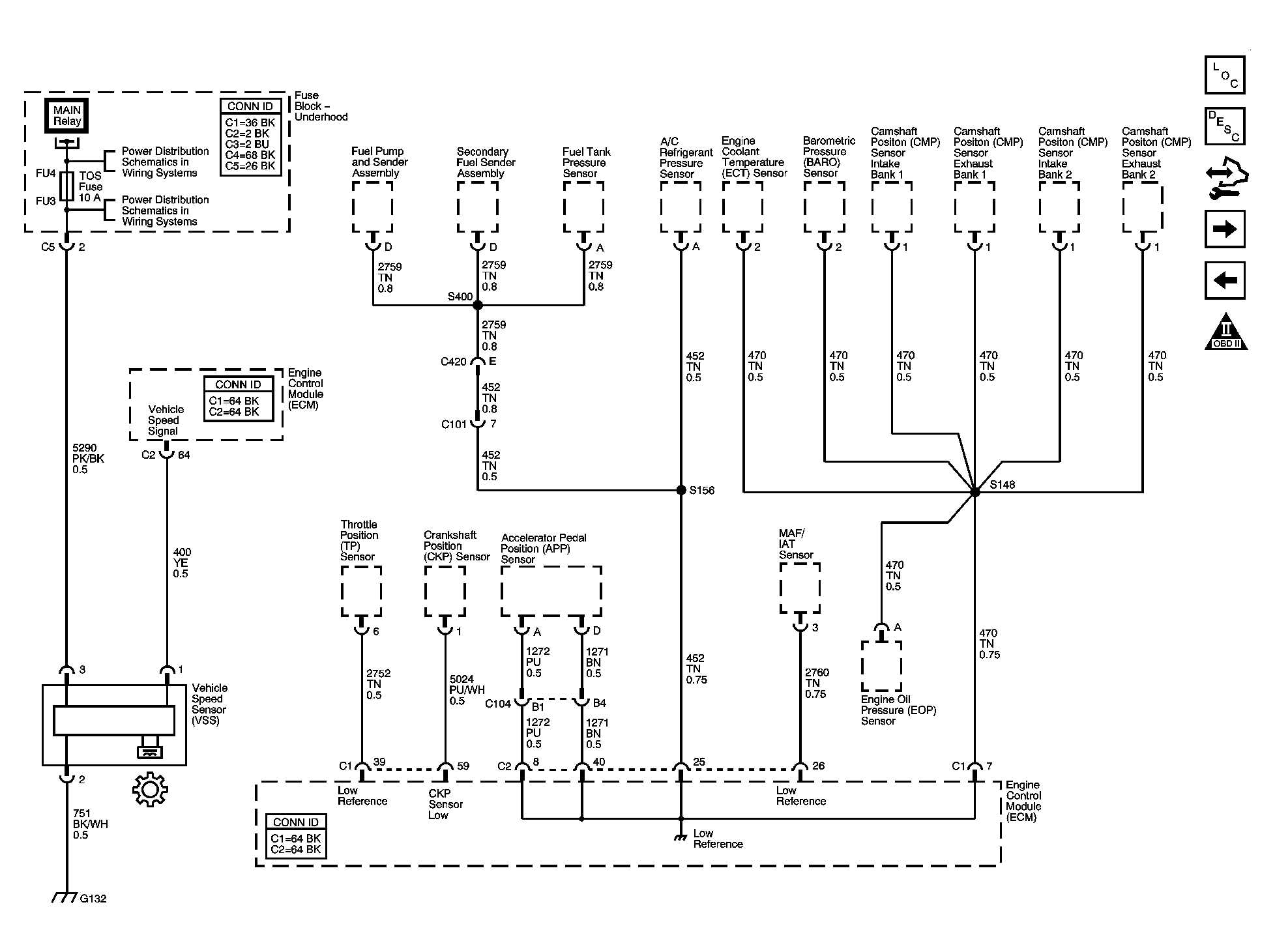

Fig 1: Engine Data Sensors - Low Reference Bus
GM1592597Courtesy of GENERAL MOTORS CORP.
