ABS Schematics

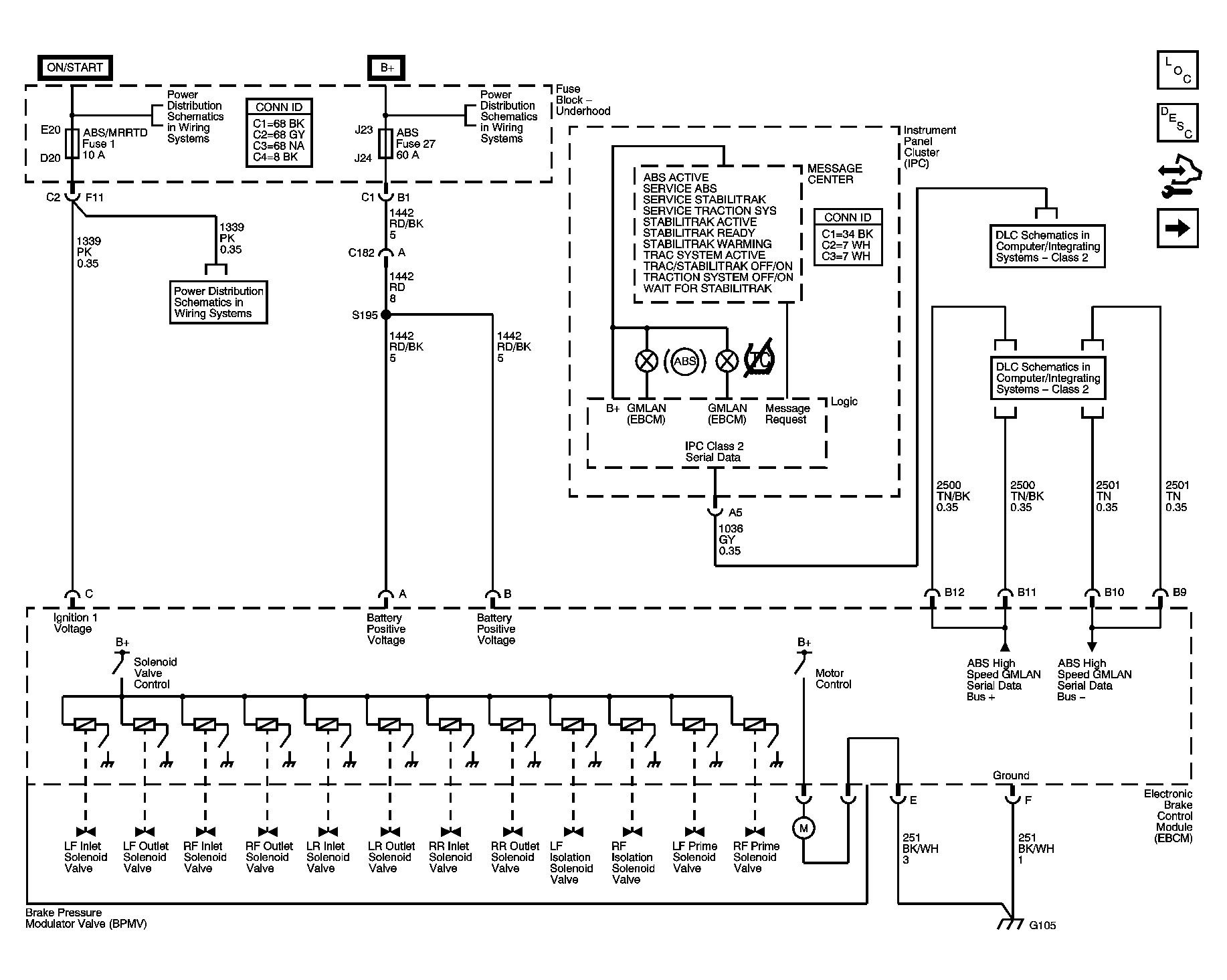

Fig 1: Ground, Indicators, Messages, and Power Schematics

Courtesy of GENERAL MOTORS CORP.

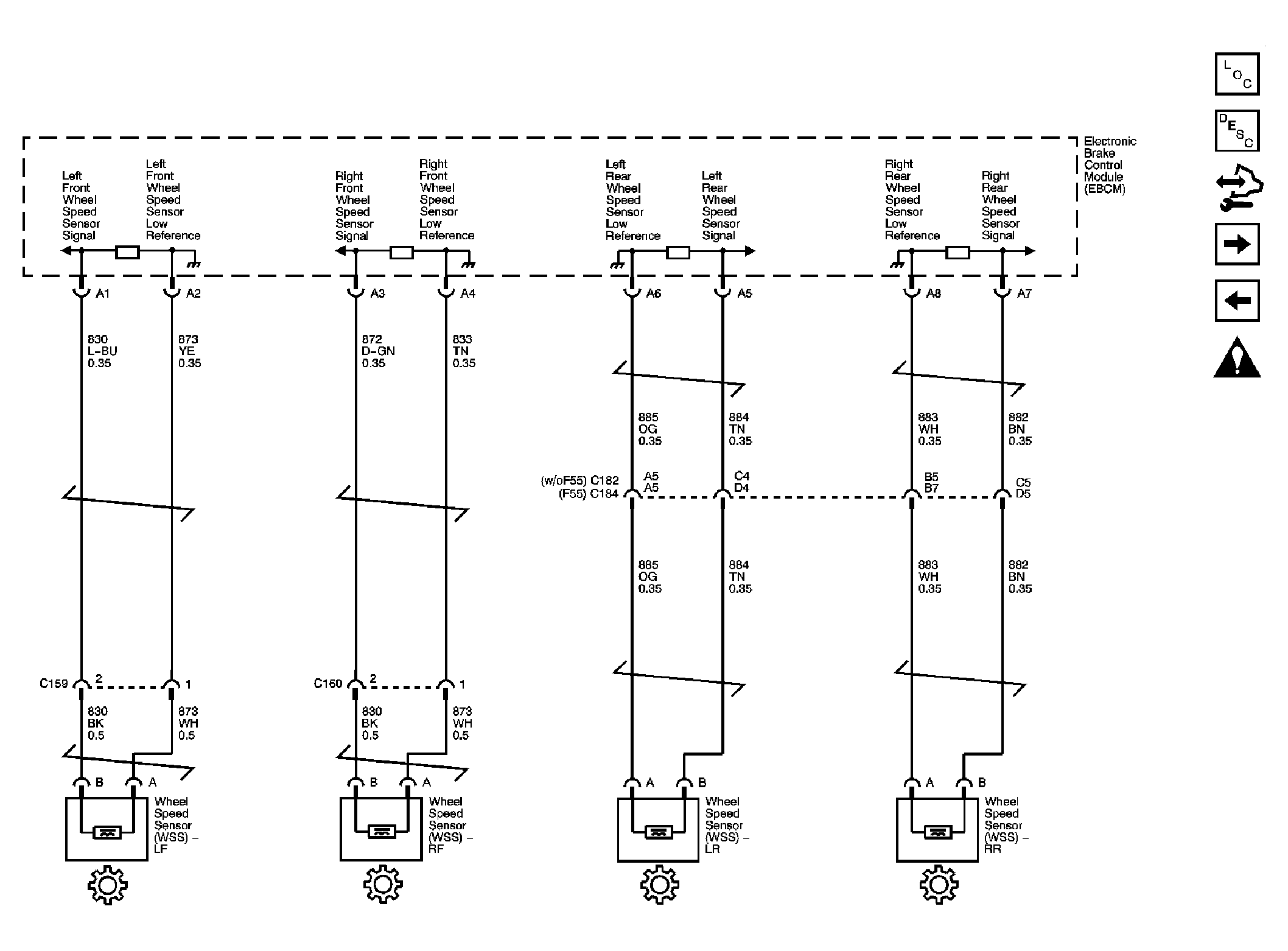

Fig 2: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

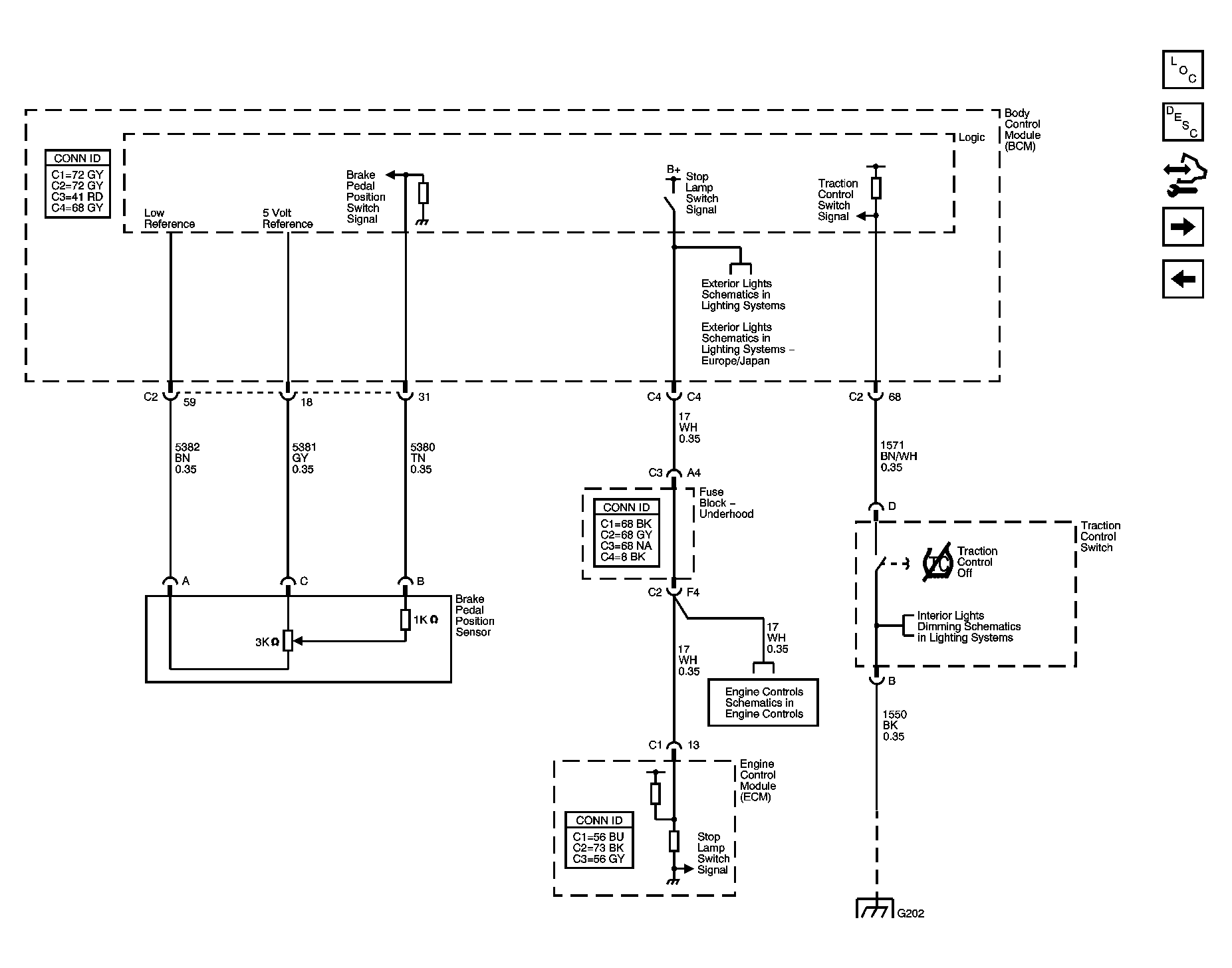

Fig 3: Brake Pedal Signal and Traction Control Switch Schematics

Courtesy of GENERAL MOTORS CORP.

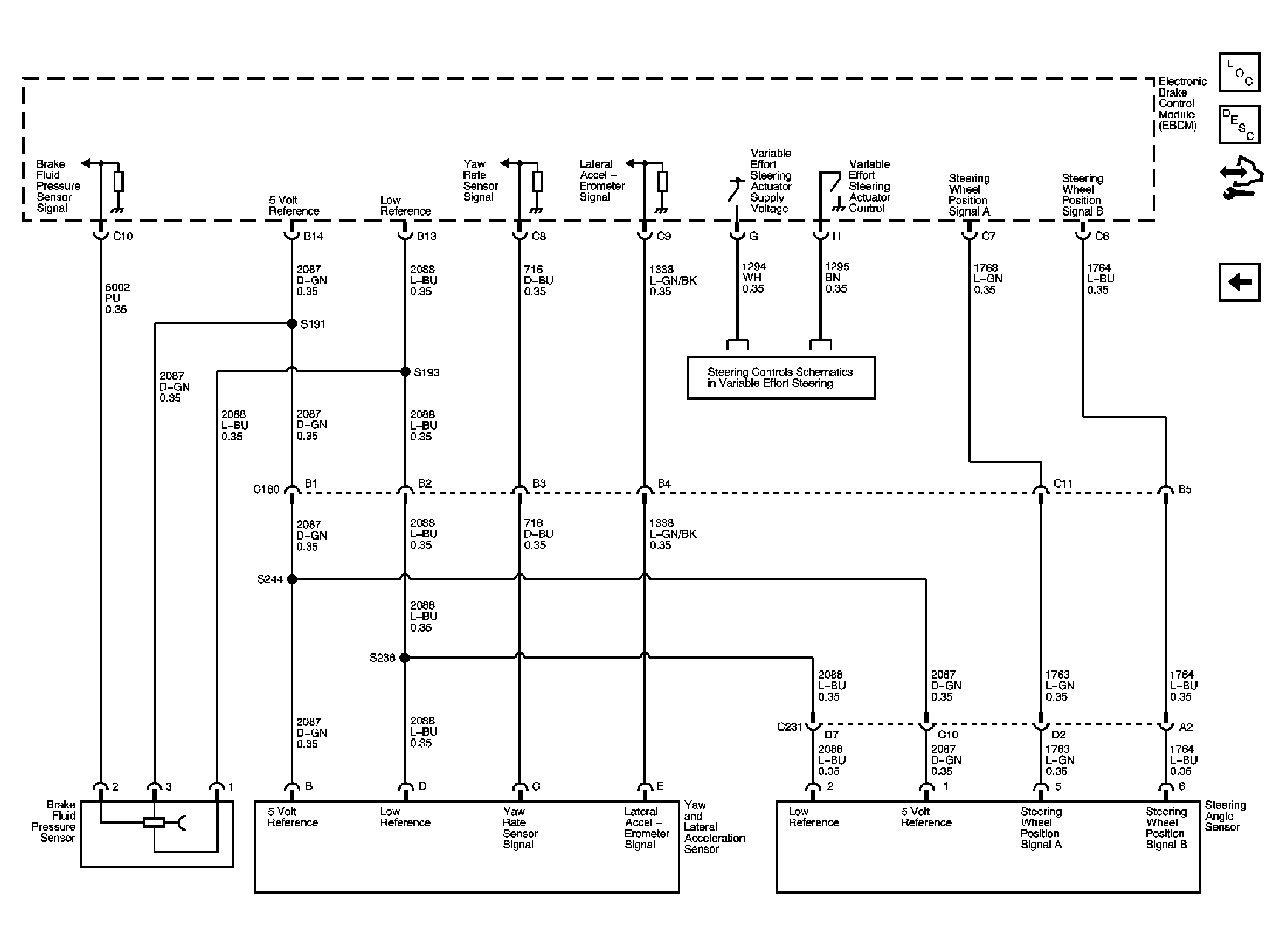

Fig 4: Stability Control Sensors Schematics

Courtesy of GENERAL MOTORS CORP.
