Seat Temperature Control Module

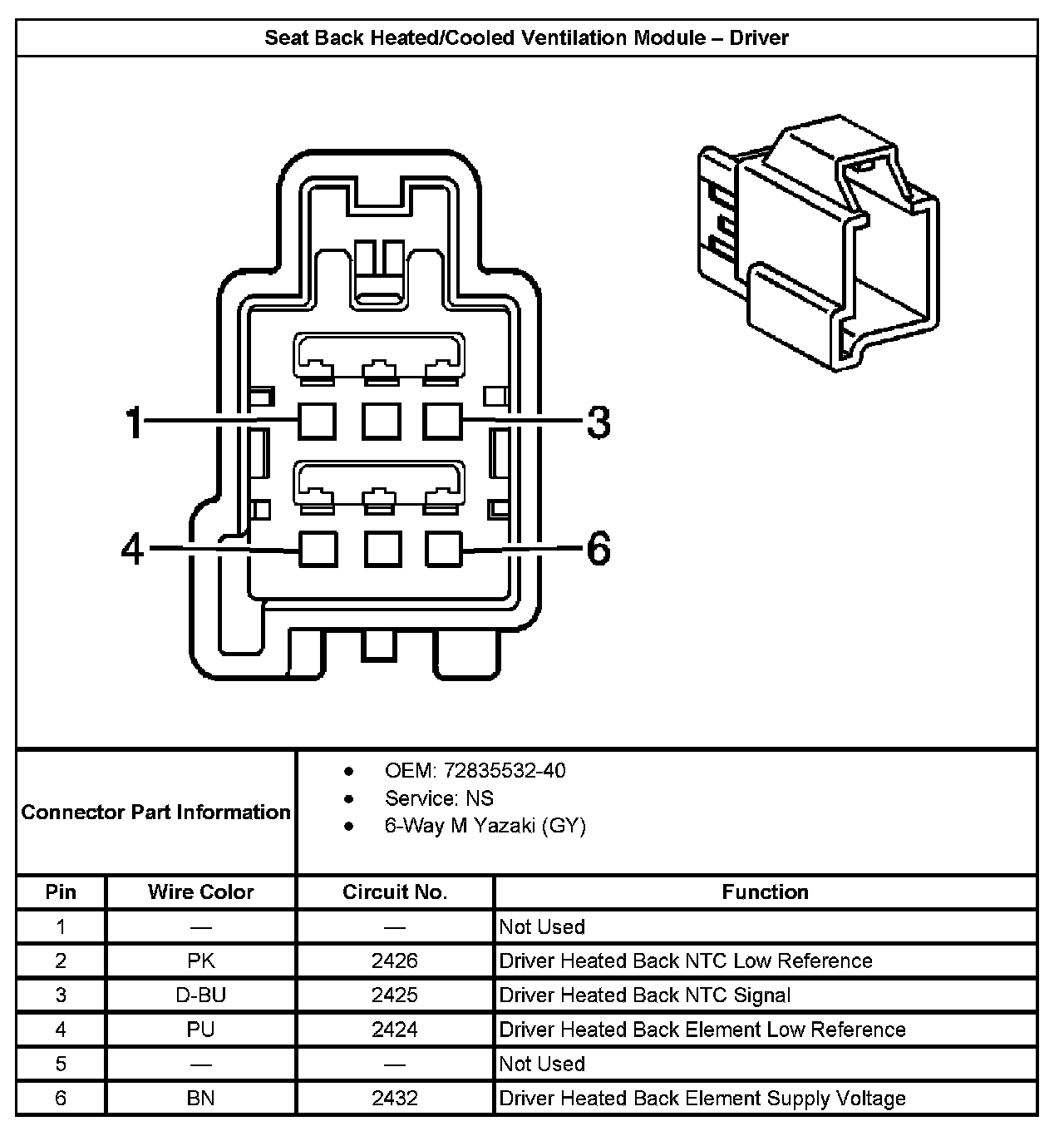

Seat Back Heated/Cooled Ventilation Module - Driver:

Climate Control Seat Module - Driver C1:

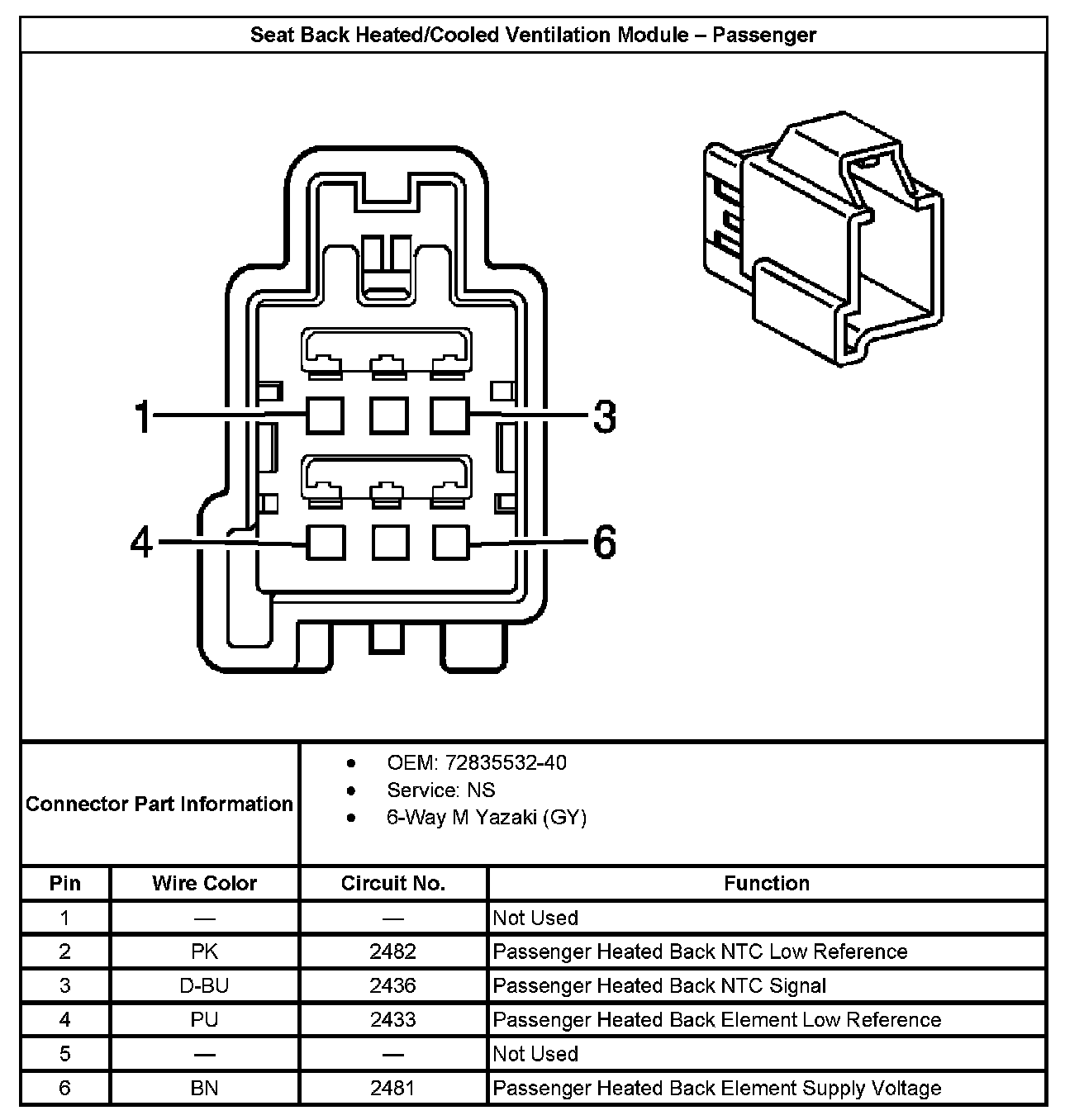

Seat Back Heated/Cooled Ventilation Module - Passenger:

Climate Control Seat Module - Driver C2:

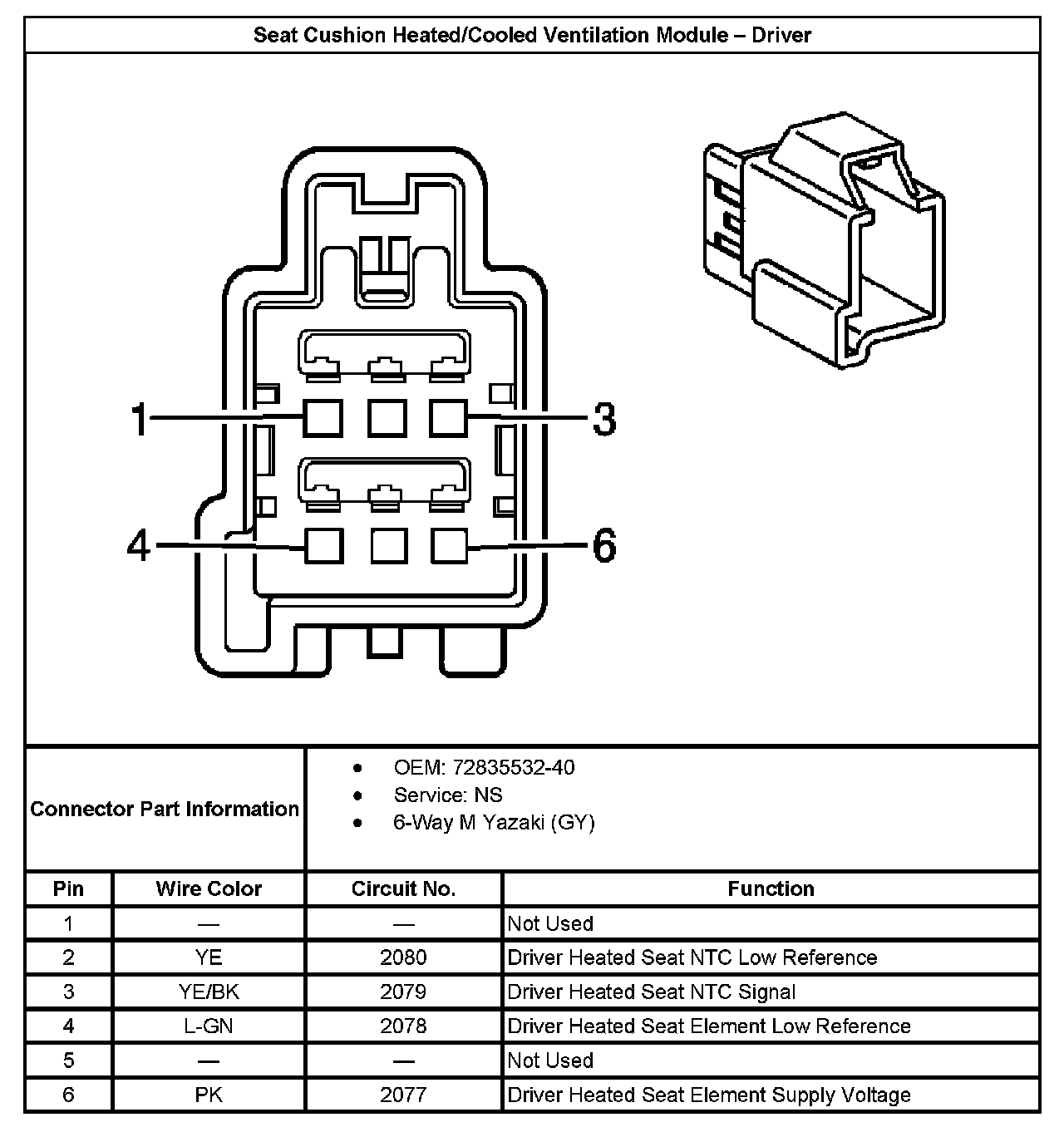

Seat Cushion Heated/Cooled Ventilation Module - Driver:

Climate Control Seat Module - Passenger C1:

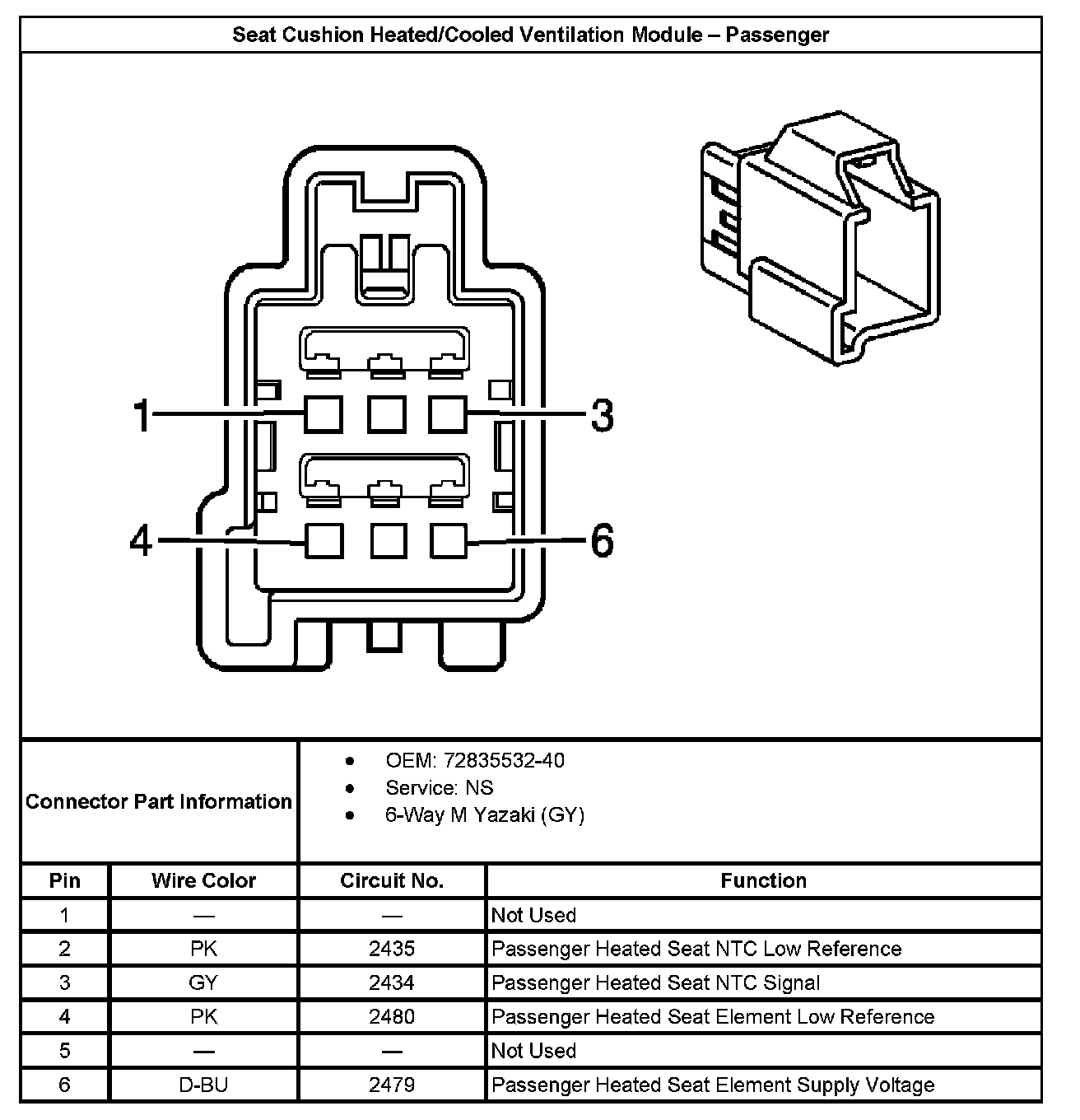

Seat Cushion Heated/Cooled Ventilation Module - Passenger:

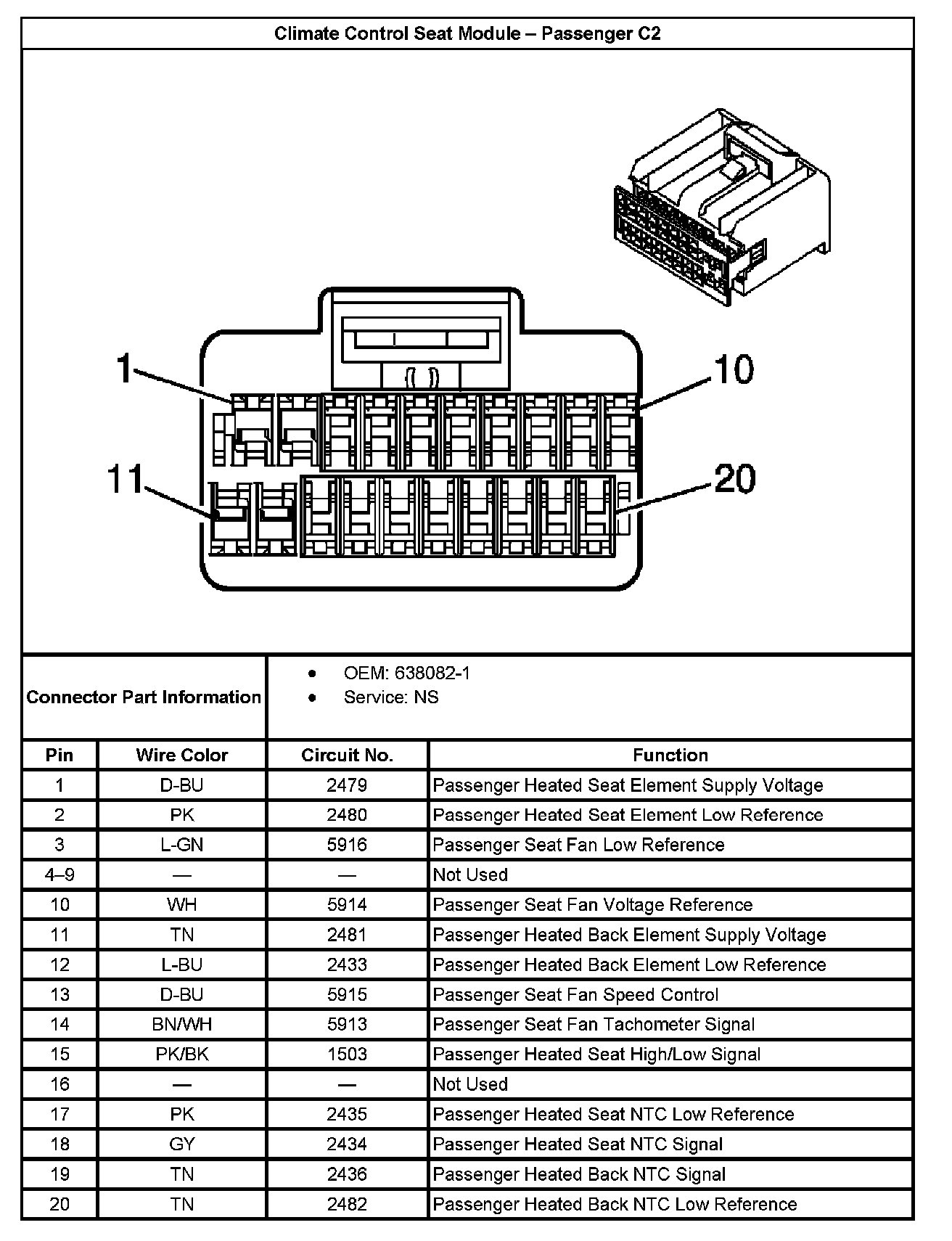

Climate Control Seat Module - Passenger C2:
