Door Module

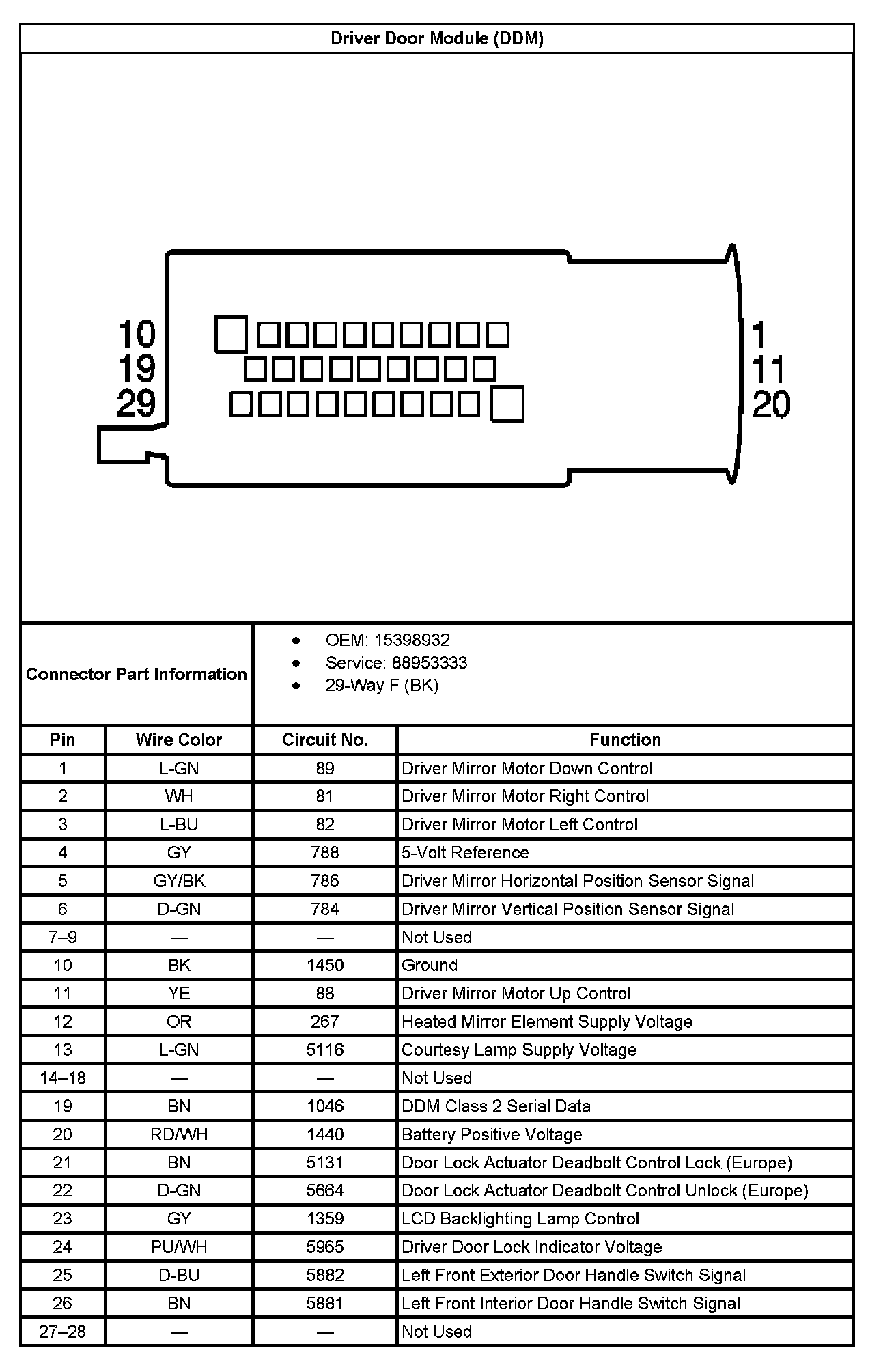

Driver Door Module (DDM) Part 1:



Driver Door Module (DDM) Part 2:

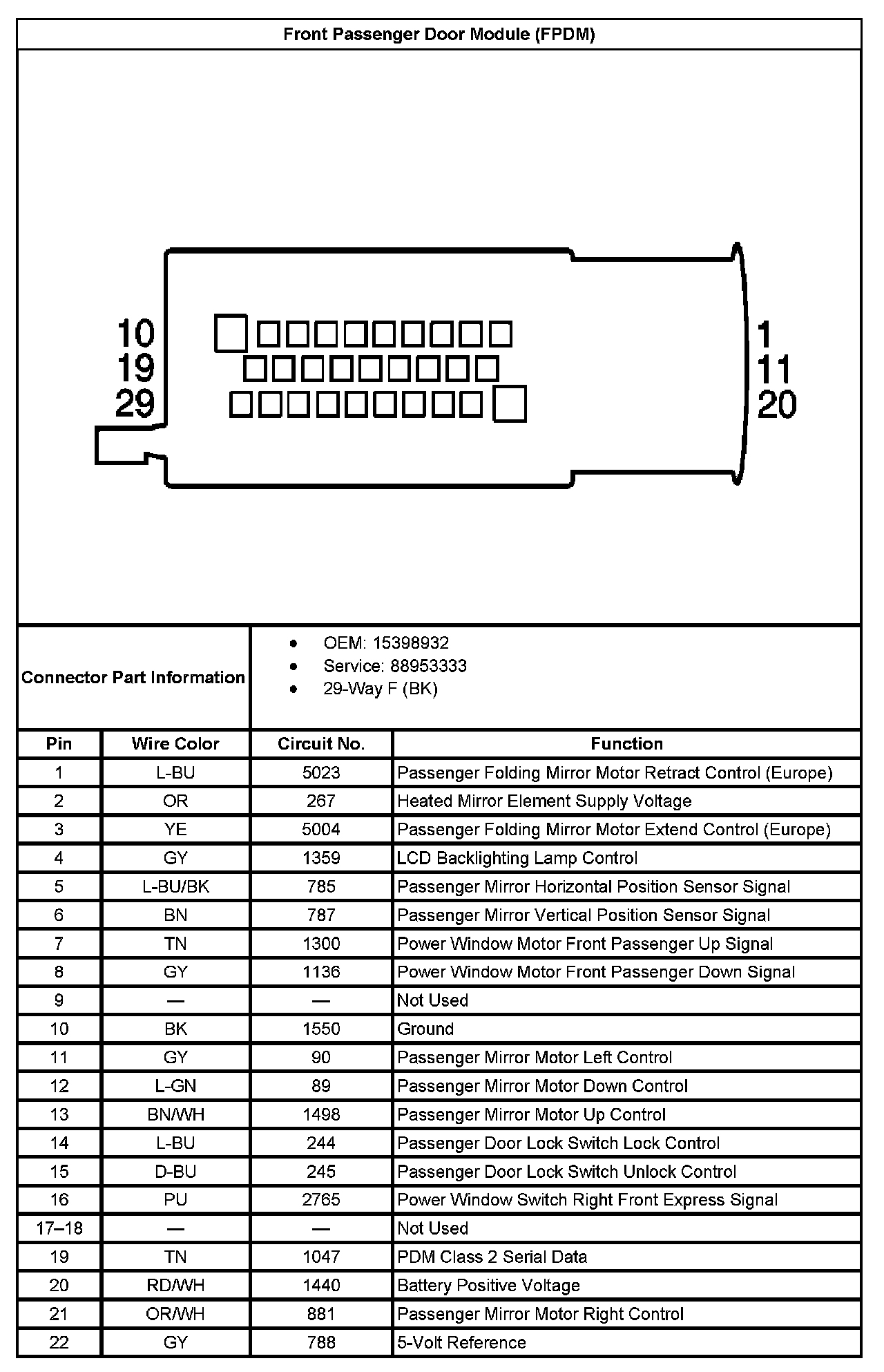

Front Passenger Door Module (FPDM) Part 1:



Front Passenger Door Module (FPDM) Part 2:
