Convertible Top Control Module

Folding Top Module C1:

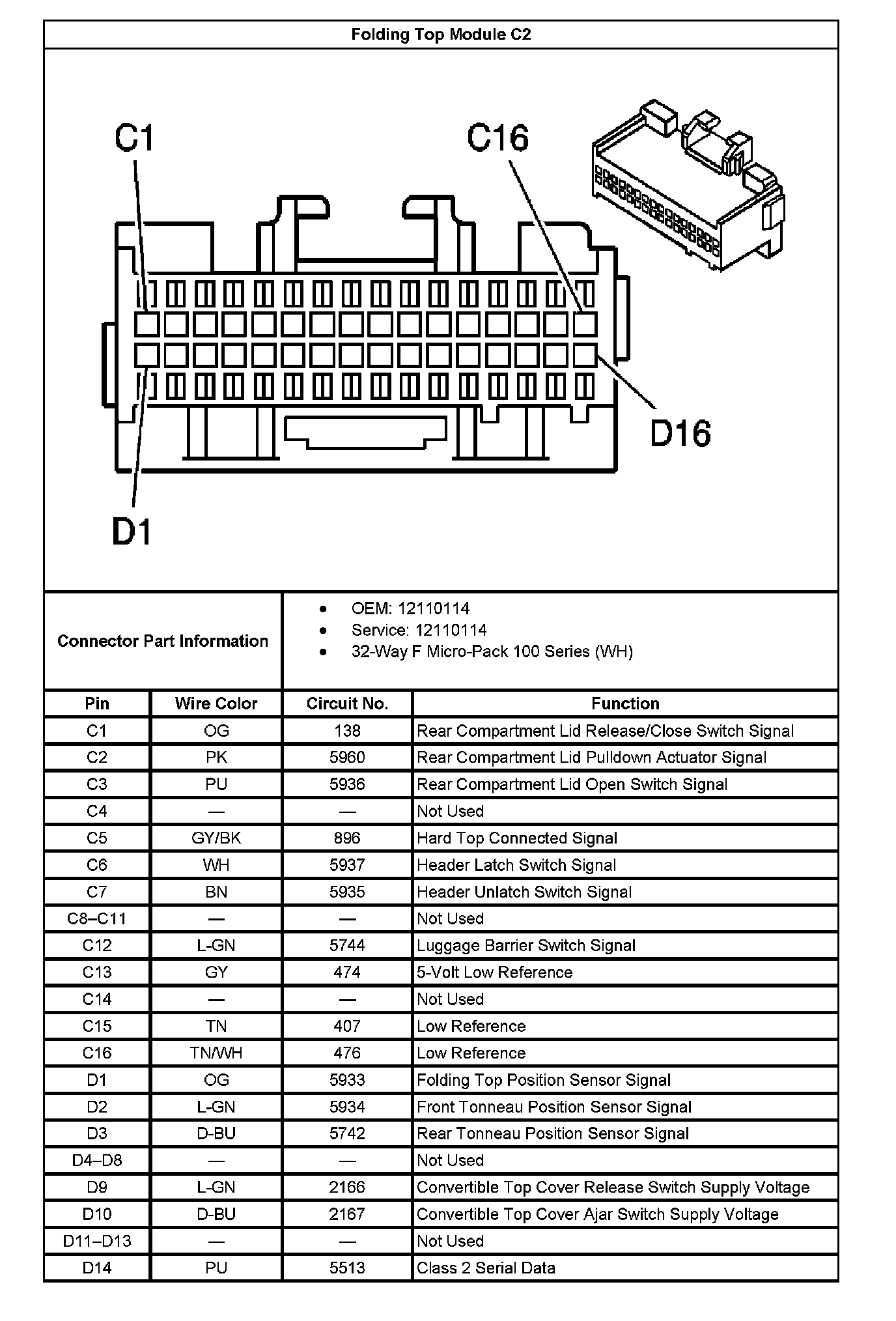

Folding Top Module C2 Part 1:



Folding Top Module C2 Part 2:



Folding Top Module C3:
