Connector Views

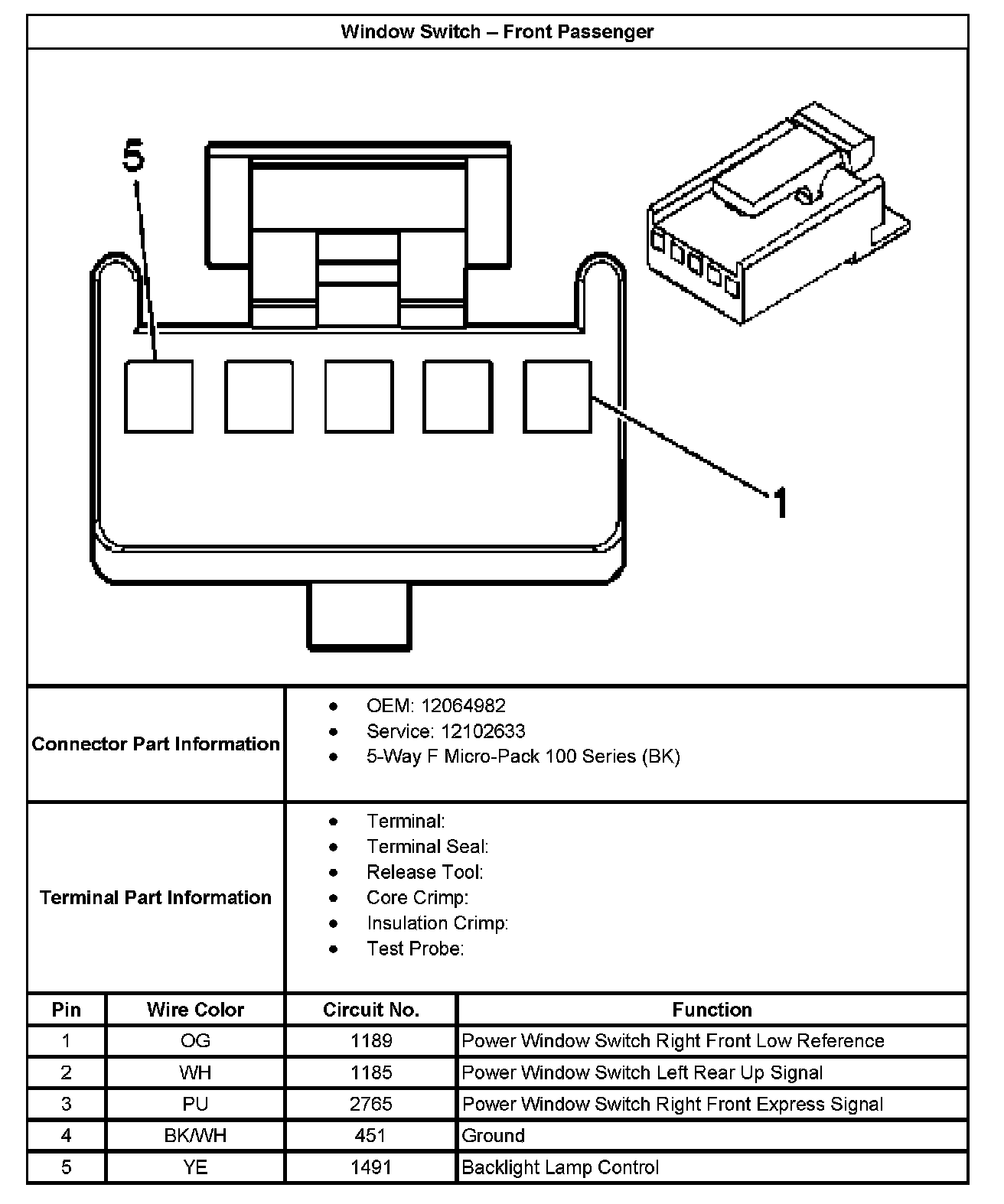

Window Switch - Front Passenger:

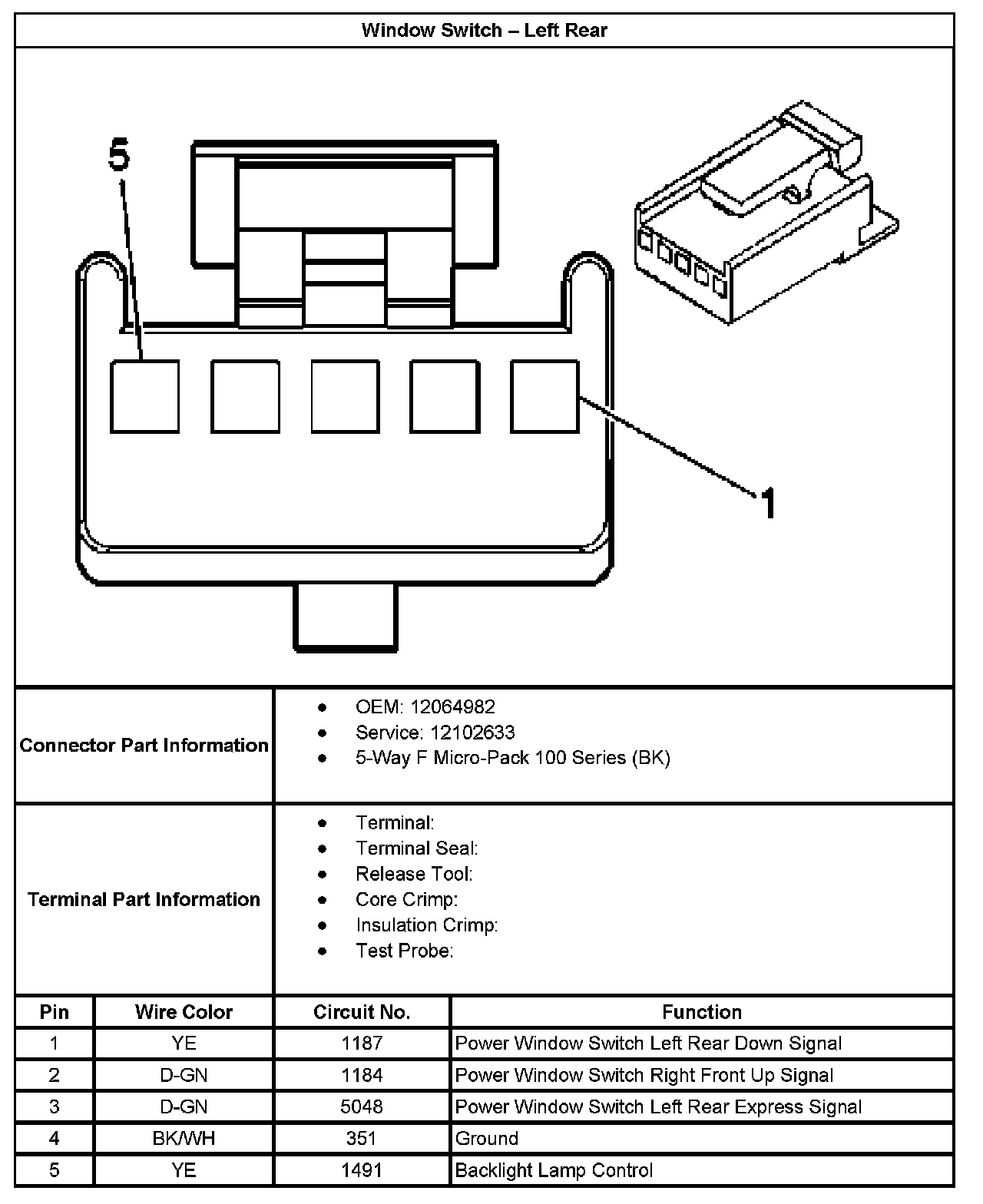

Window Switch - Left Rear:
Window Switch - Right Rear:
