Combination Switch

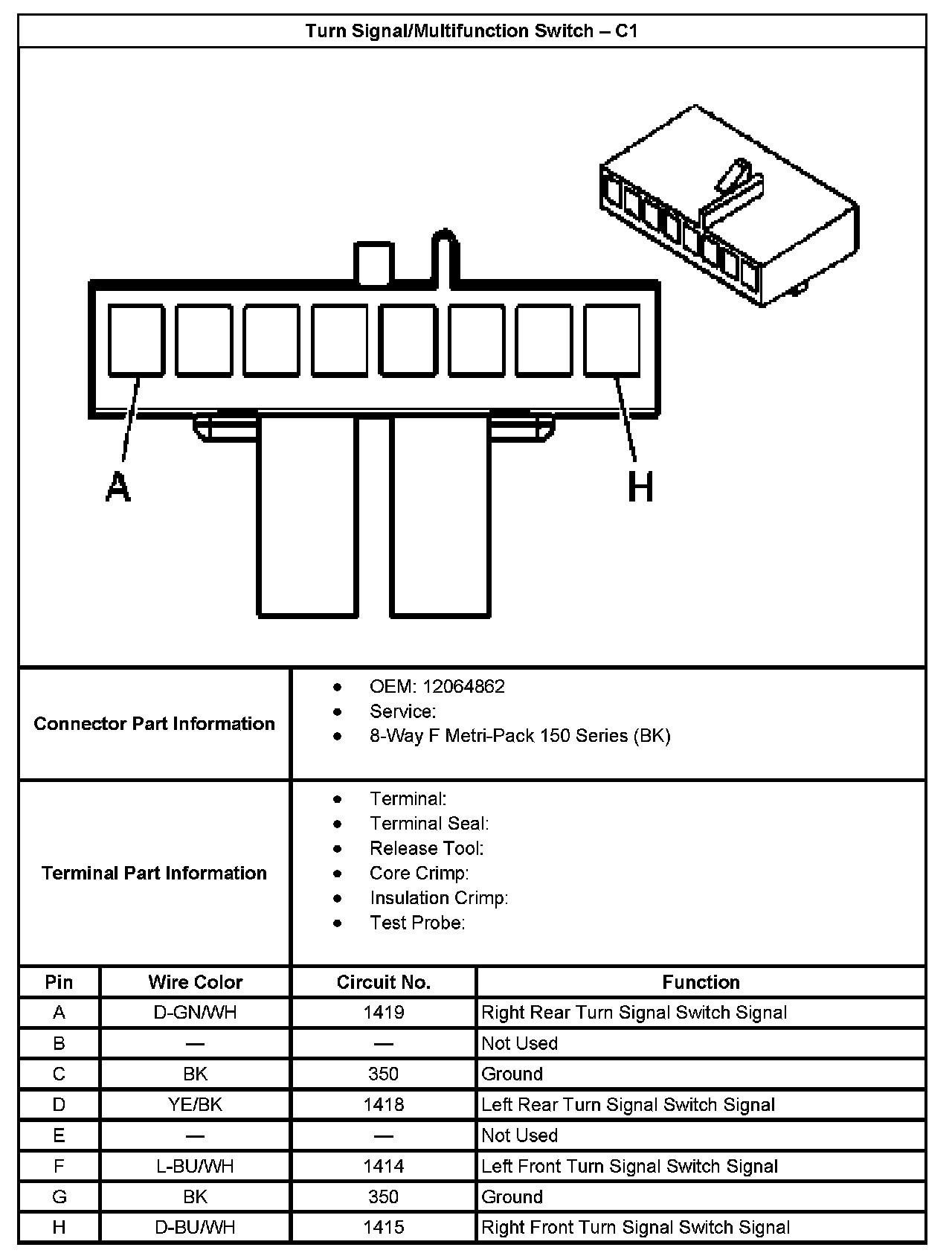

Turn Signal/Multifunction Switch - C1:

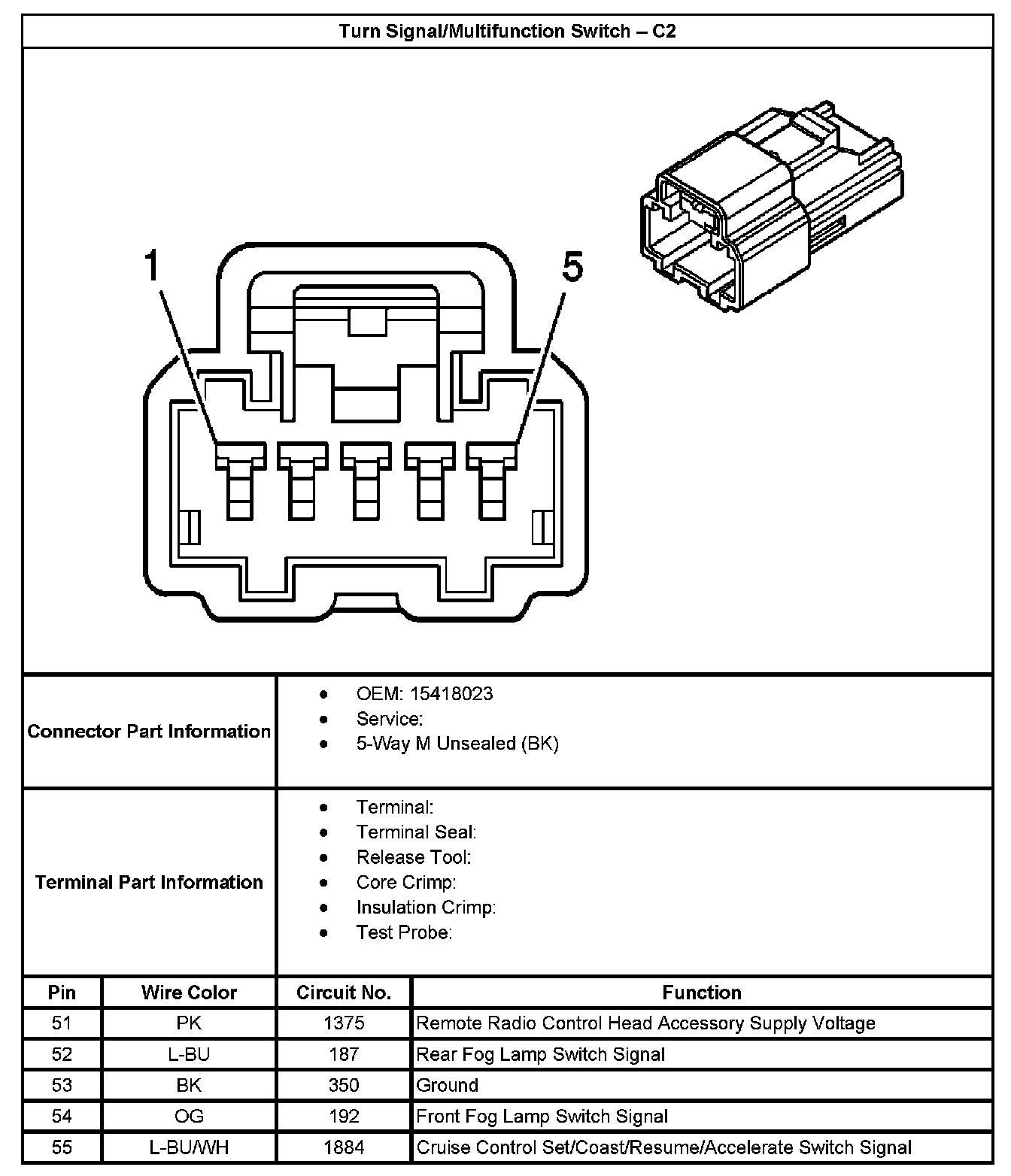

Turn Signal/Multifunction Switch - C2:



Turn Signal/Multifunction Switch - C3:



Turn Signal/Multifunction Switch - C4:
