Steering Control Module

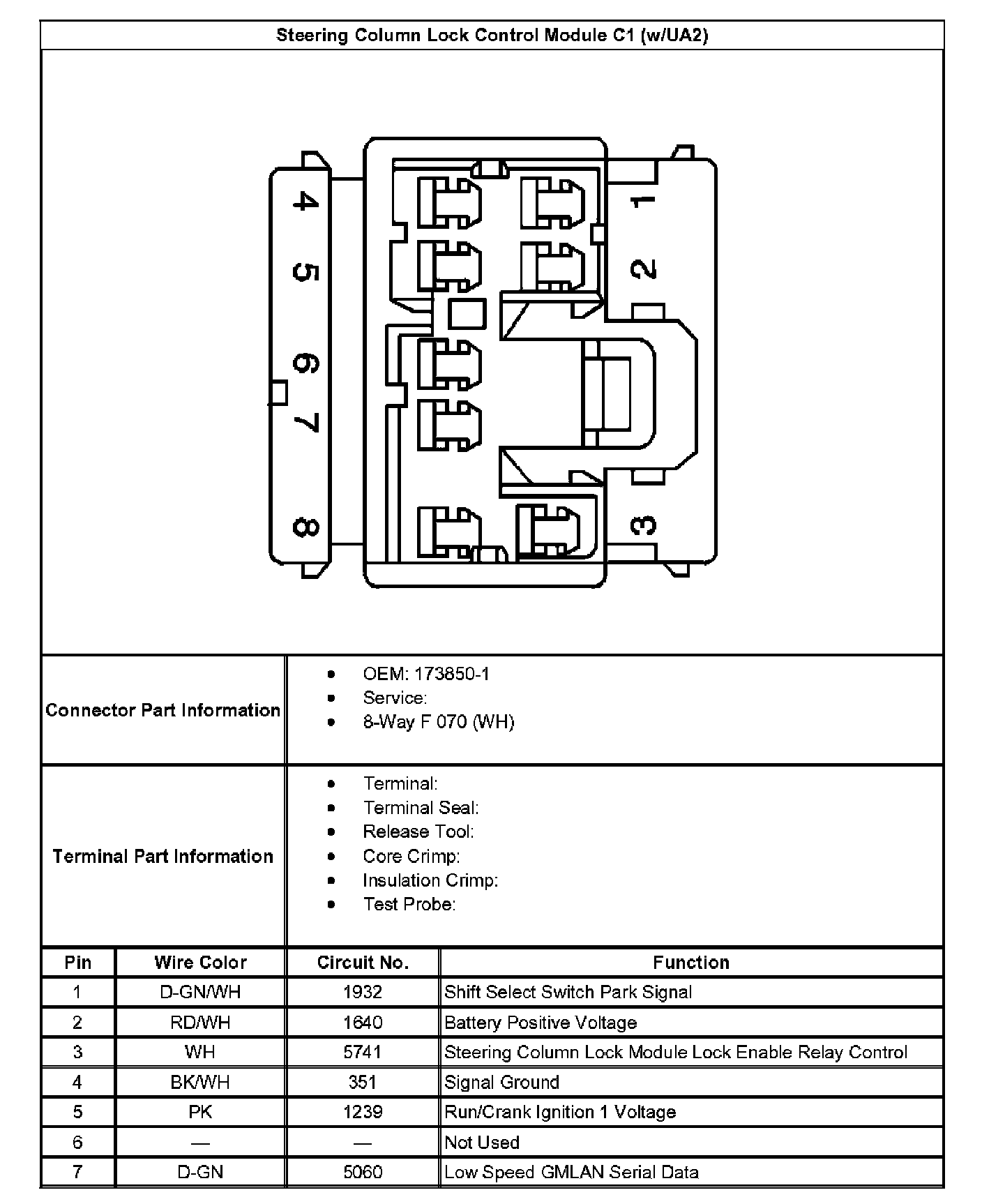

Steering Column Lock Control Module C1 (w/UA2):
Steering Column Lock Control Module C2 (w/UA2):
