Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
Door Module
>>
Right Rear Door Module (RRDM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Right Rear Door Module (RRDM)

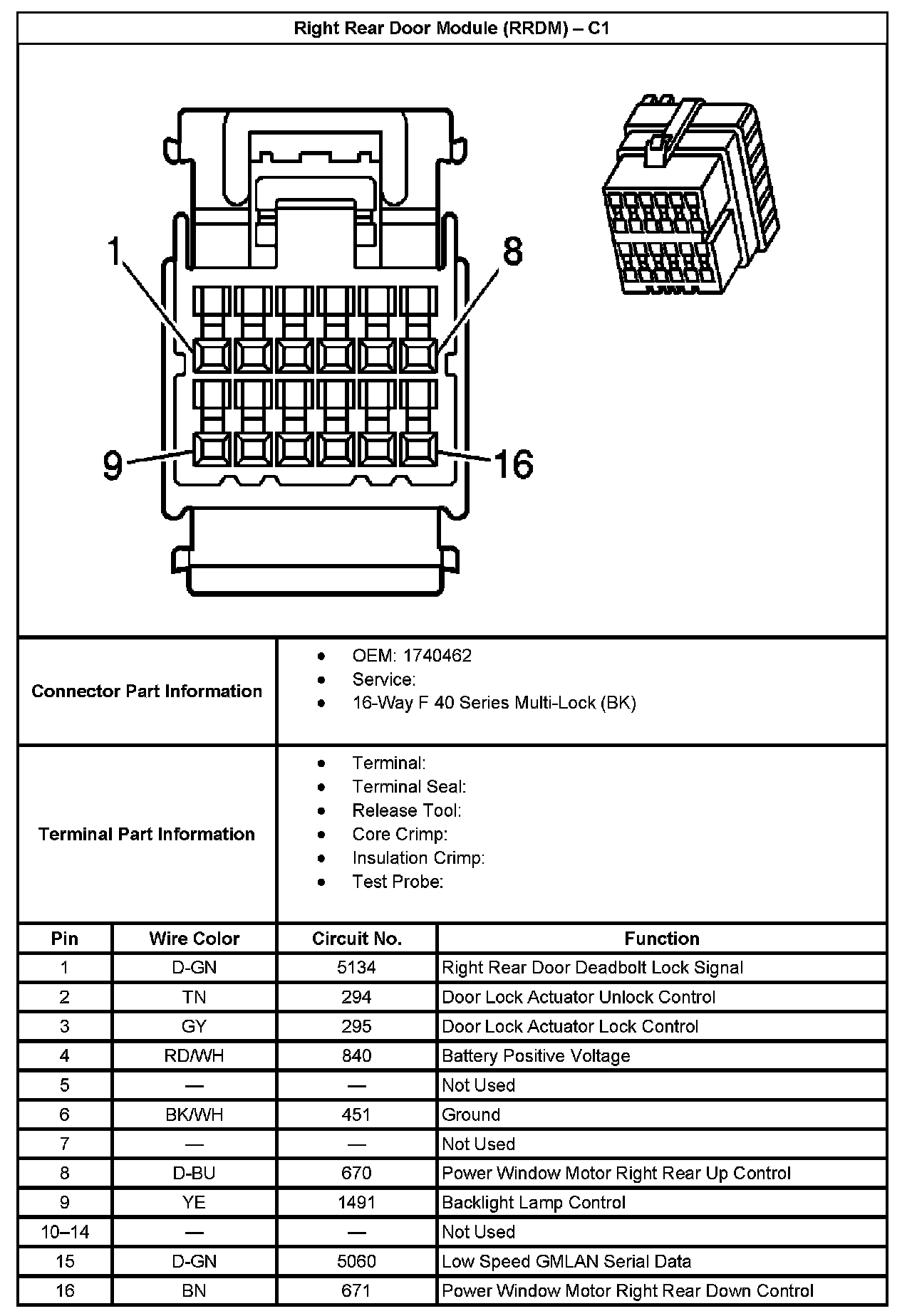

Right Rear Door Module (RRDM) - C1:

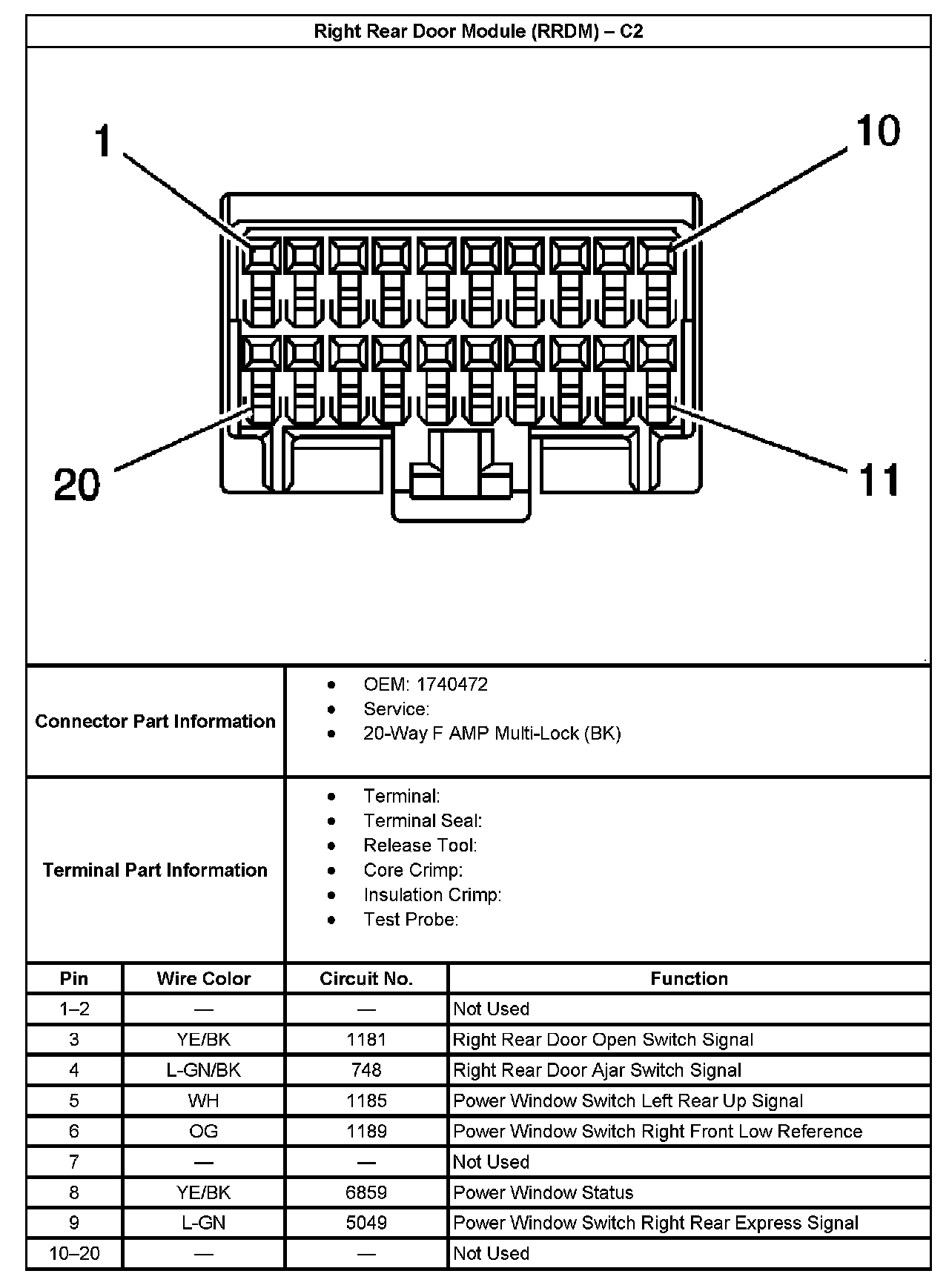

Right Rear Door Module (RRDM) - C2:
