ABS Schematics

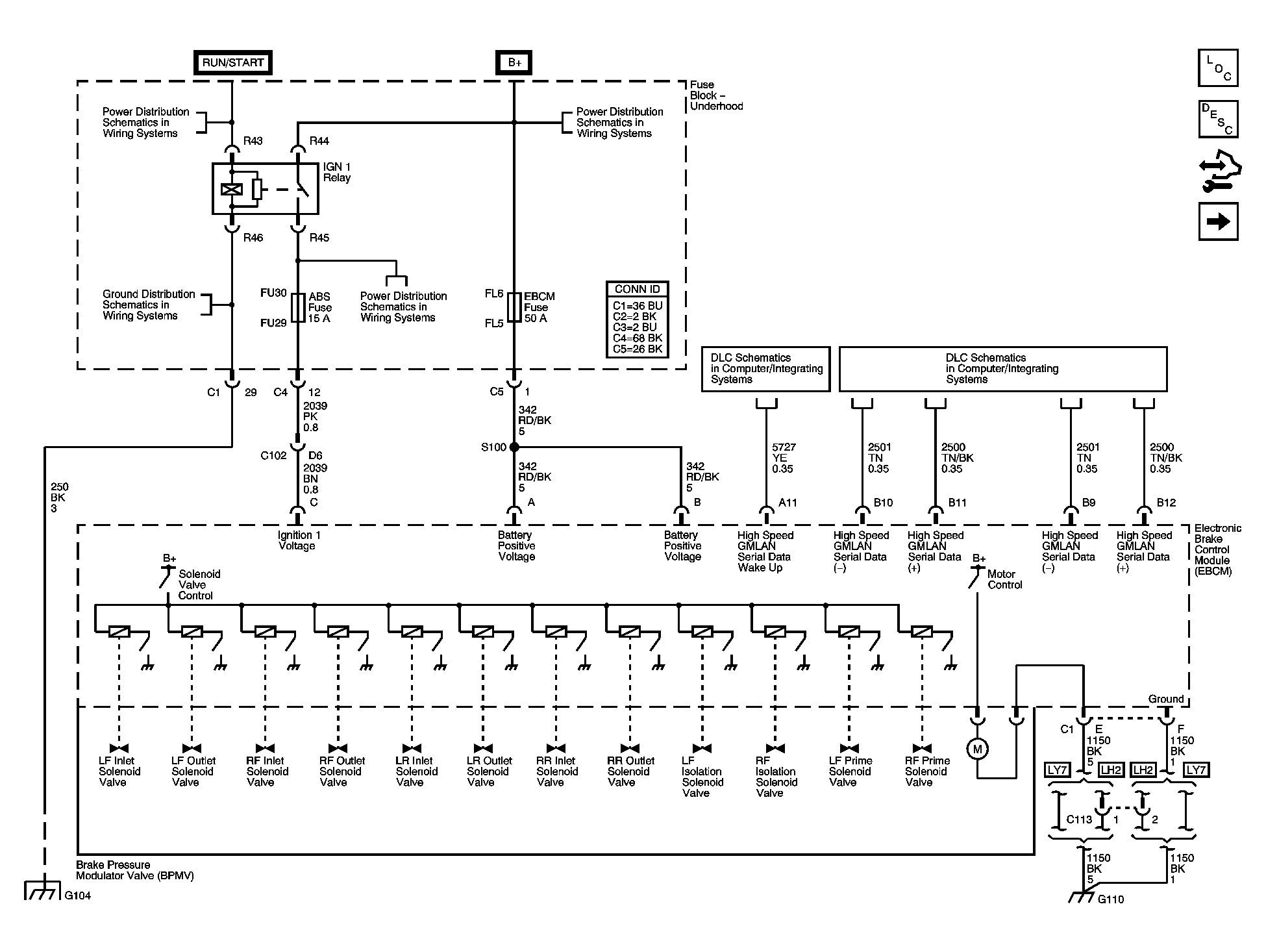

Fig 1: EBCM Module Power, Ground and DLC Schematics

Courtesy of GENERAL MOTORS CORP.

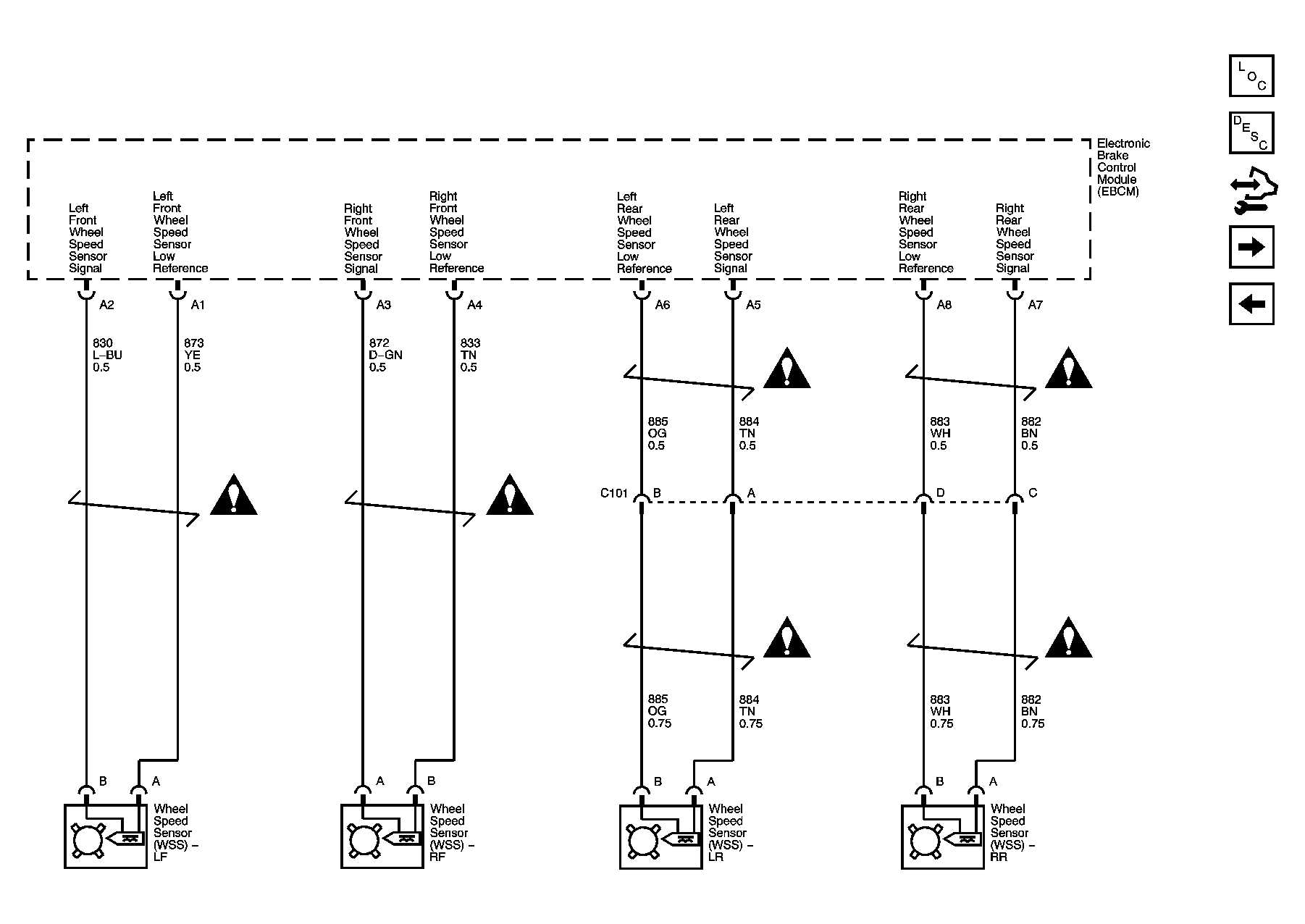

Fig 2: Wheel Speed Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

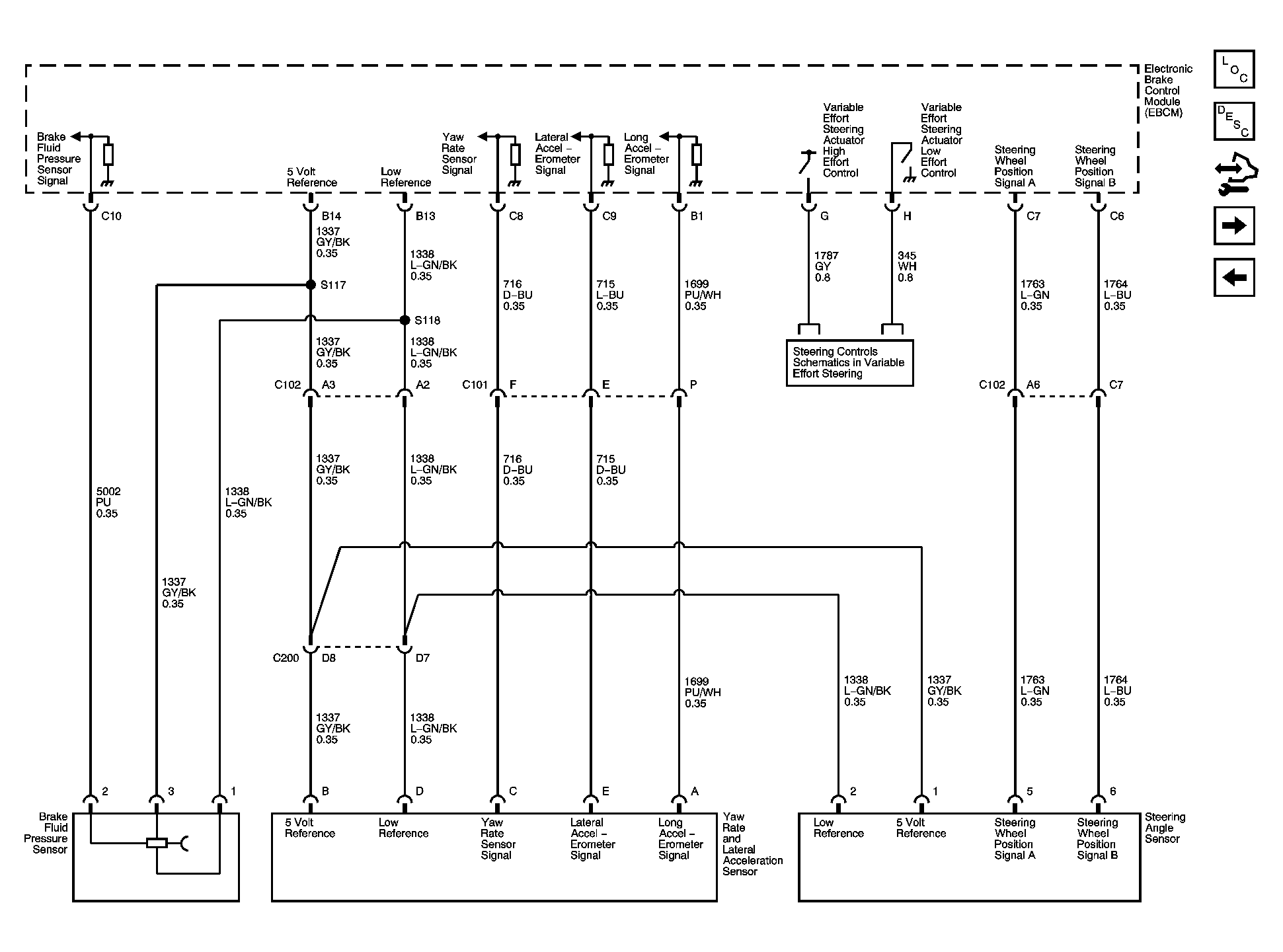

Fig 3: Stability Control System Schematics

Courtesy of GENERAL MOTORS CORP.

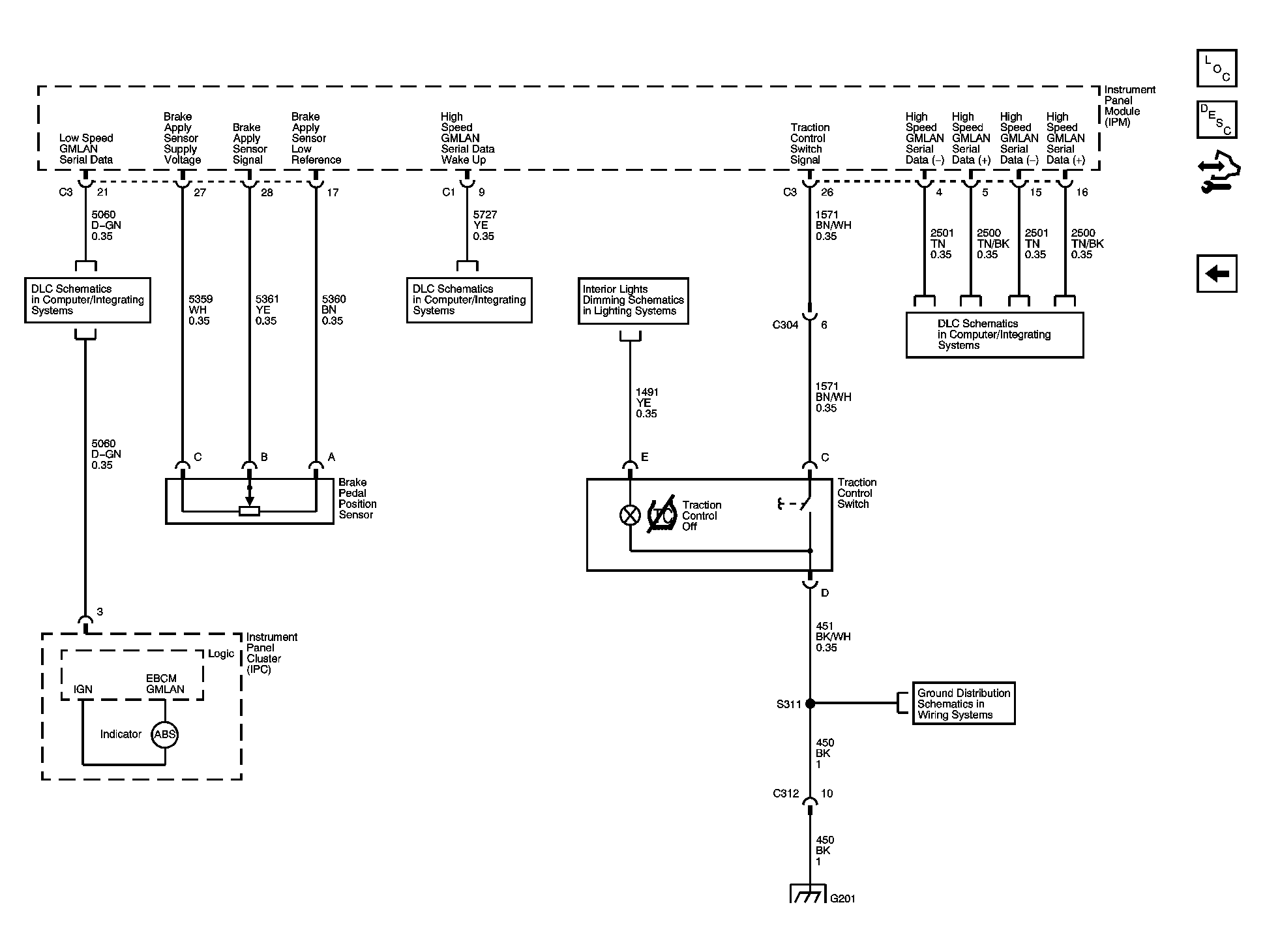

Fig 4: Indicator and Traction Control Schematics

Courtesy of GENERAL MOTORS CORP.
