Defogger Schematics

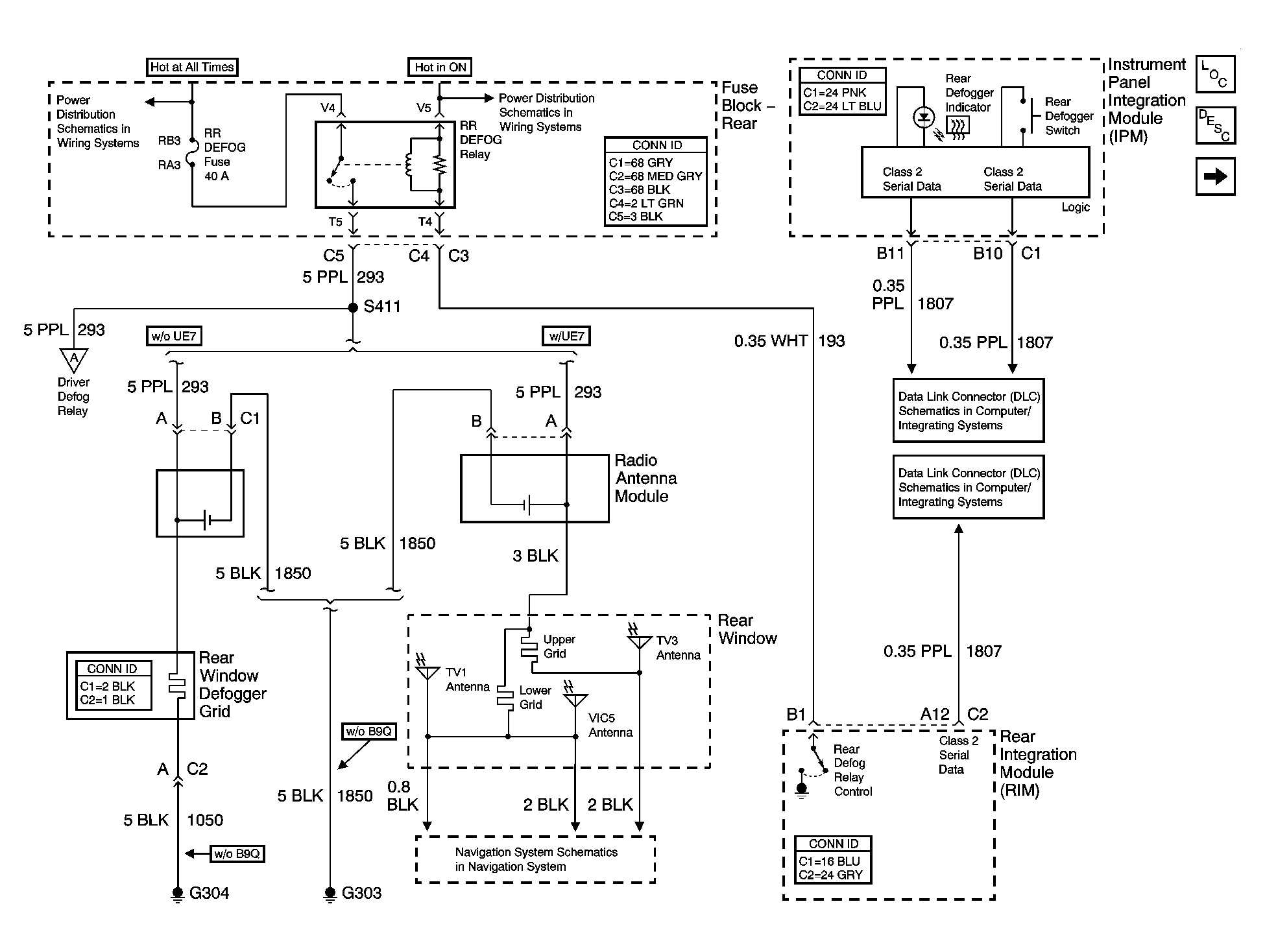

Fig 1: Rear Window Defogger
GM1412249Courtesy of GENERAL MOTORS CORP.

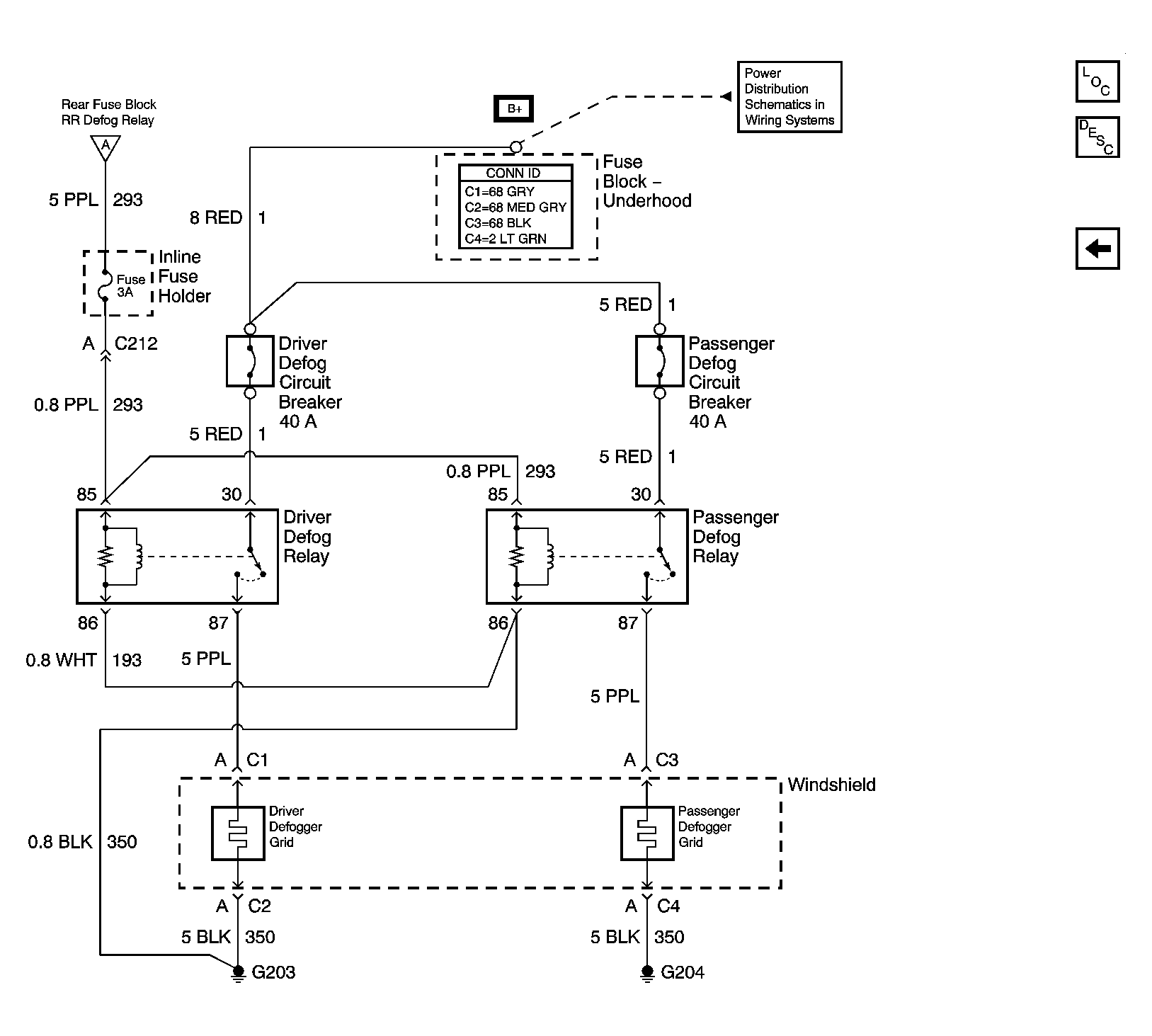

Fig 2: Windshield (WC2/WC8)
GM1412252Courtesy of GENERAL MOTORS CORP.
