Oil Pressure Sensor: Locations

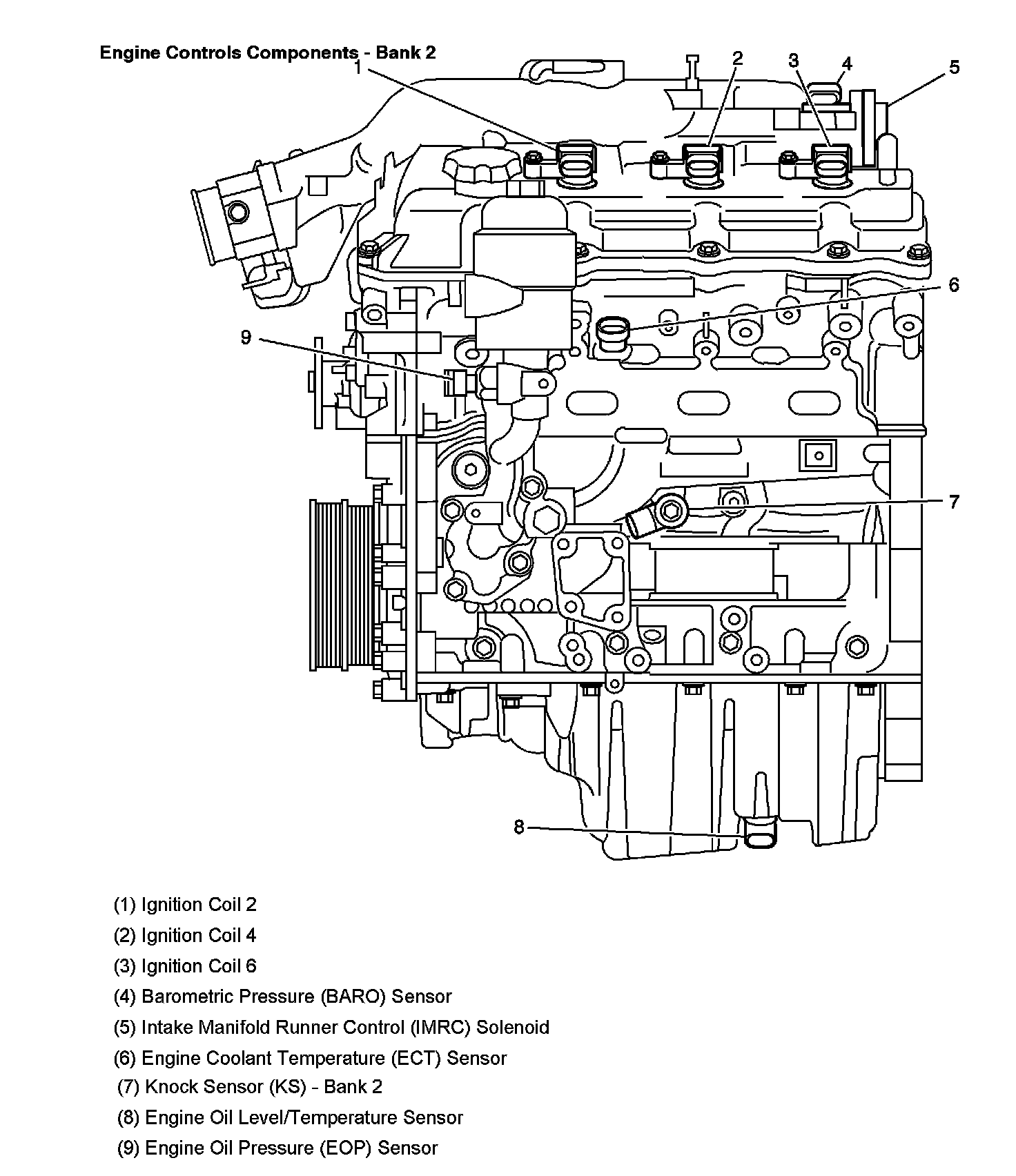

Engine Controls Components - Bank 2:

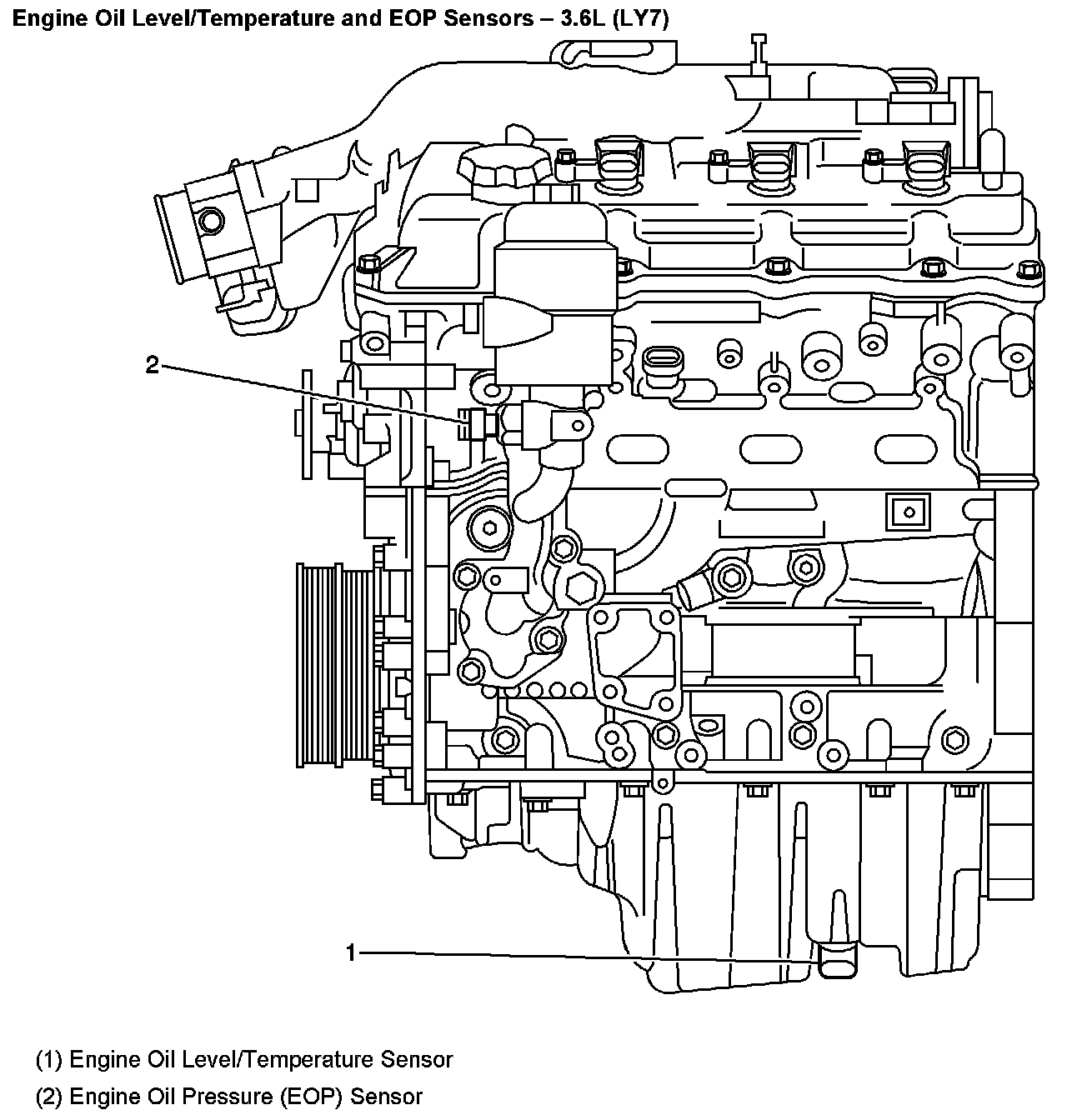

Engine Oil Level/Temperature And EOP Sensors:
