Body Control System Diagrams

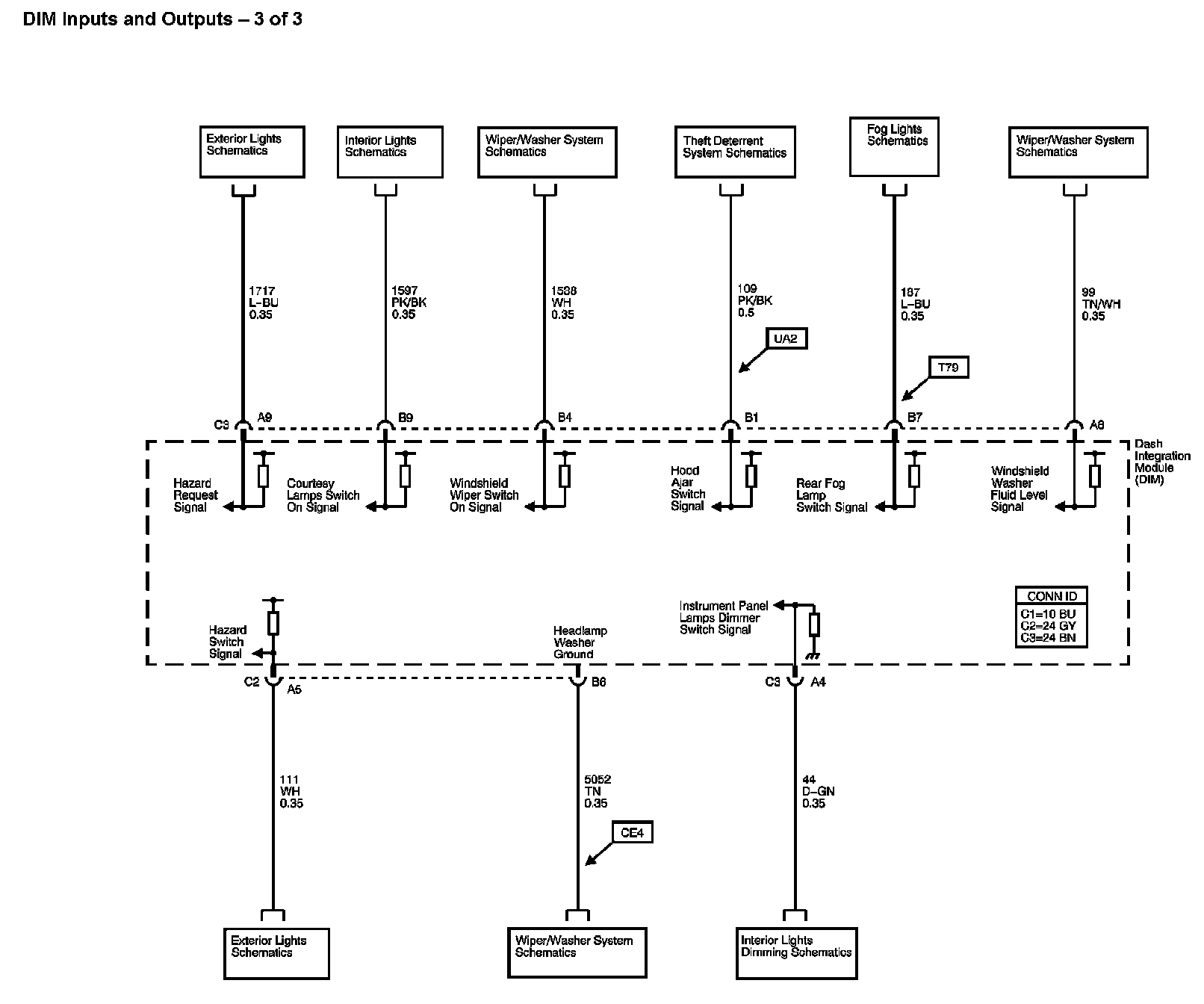

Body Control System Diagram 1:

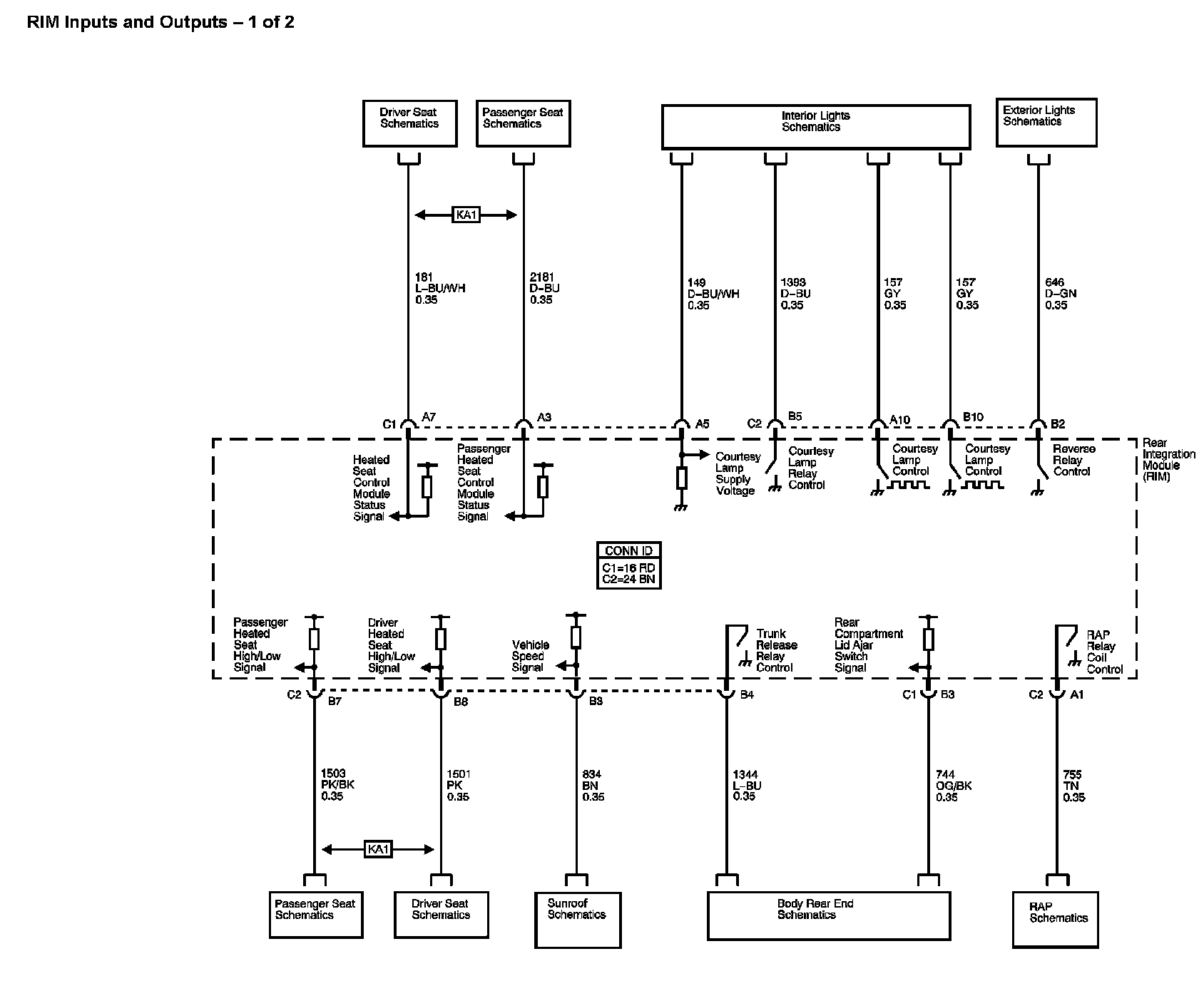

Body Control System Diagram 2:

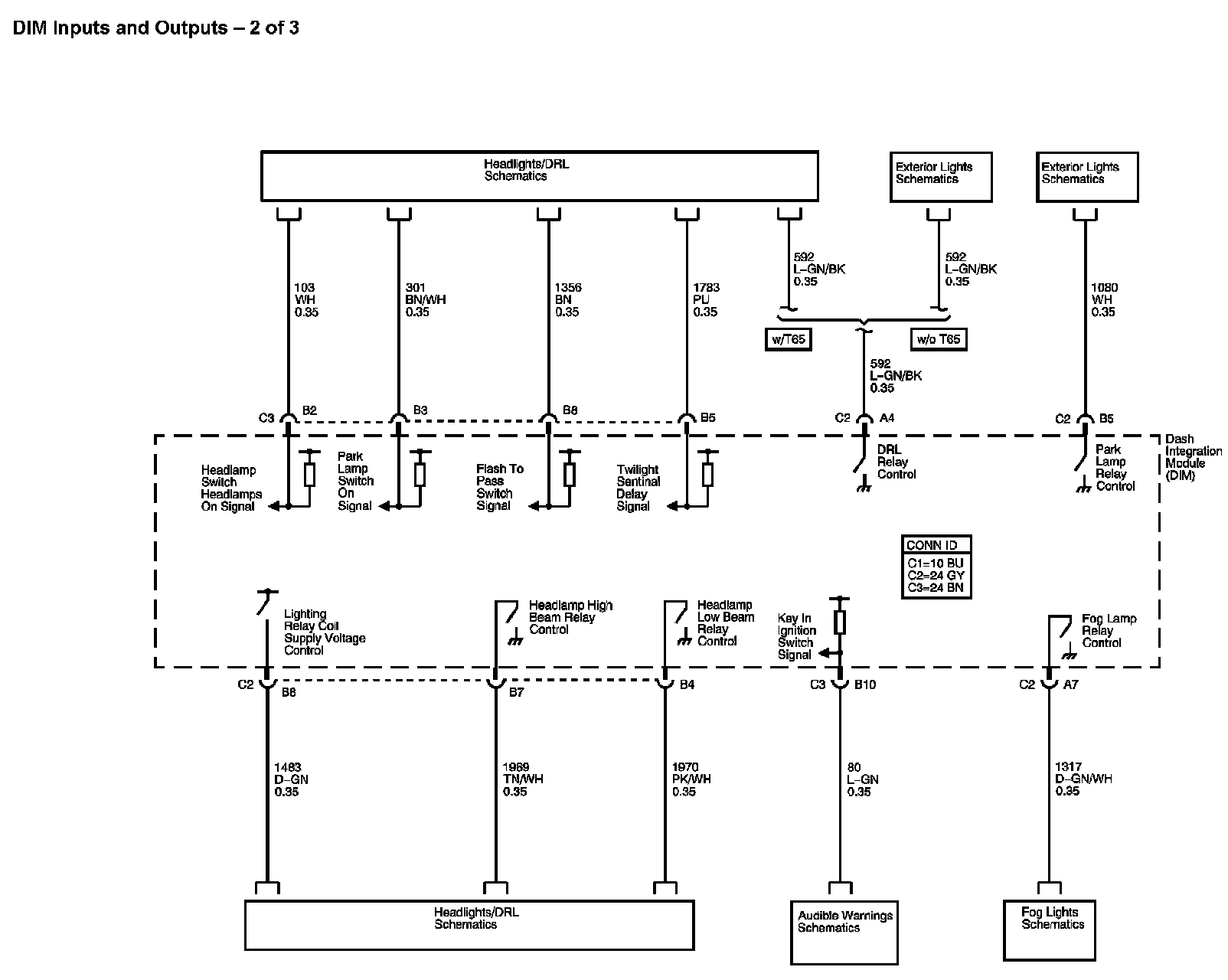

Body Control System Diagram 3:

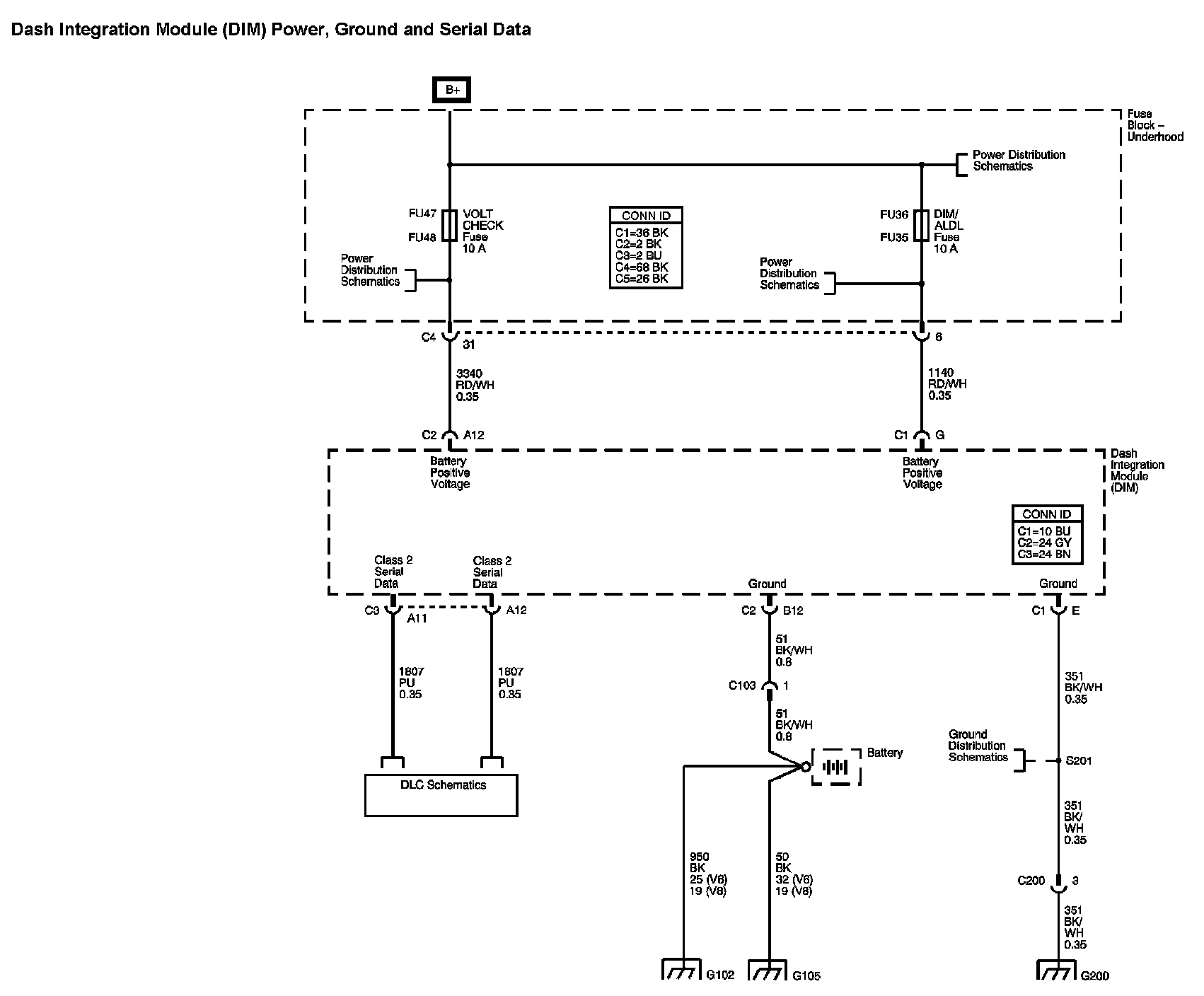

Body Control System Diagram 4:

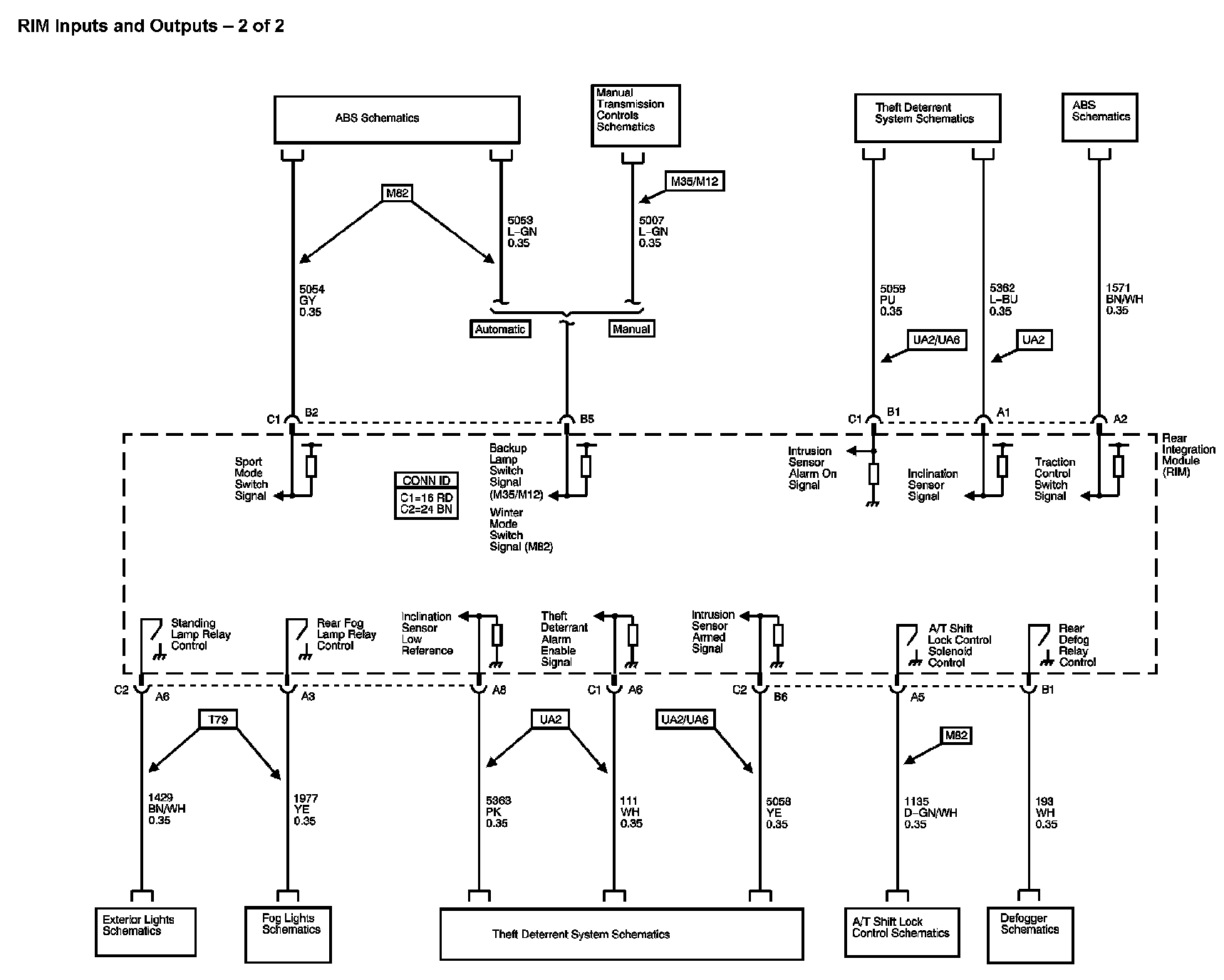

Body Control System Diagram 5:

Body Control System Diagram 6:

Body Control System Diagram 7:

Body Control System Diagram 8:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
