Installation Procedure

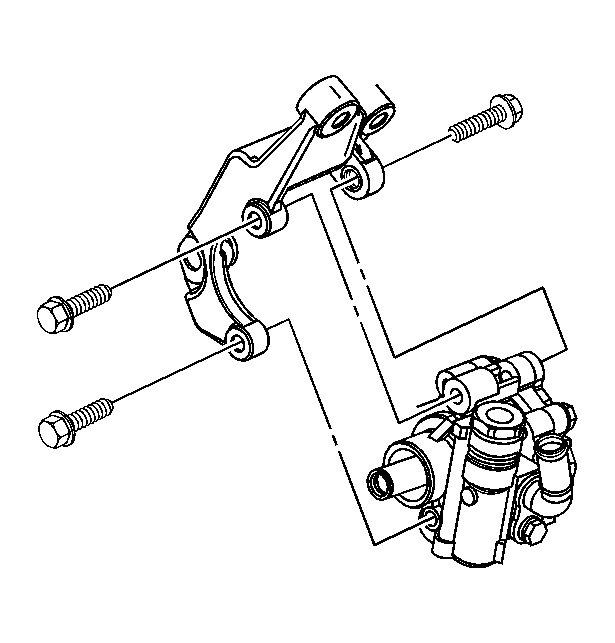

    Fig 1: Removing Power Steering Pump To Bracket Bolts
    GM1298747Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pump to the power steering pump bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering pump to power steering pump bracket bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

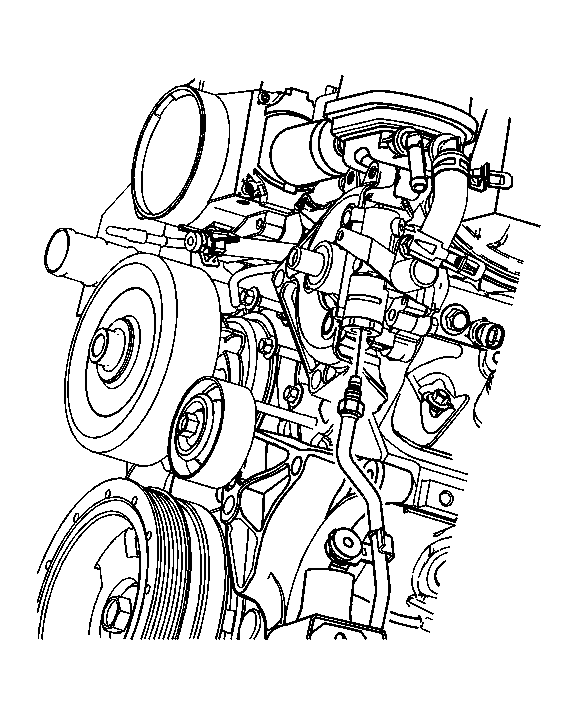

    3. Fig 2: Identifying Power Steering Pressure Hose At Power Steering Pump
    GM1400678Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Clean the material from the power steering pressure hose and install a new seal.
  3. Connect the power steering pressure line to the power steering pump.

    Tighten:  Tighten the fitting to 40 N.m (30 lb ft).

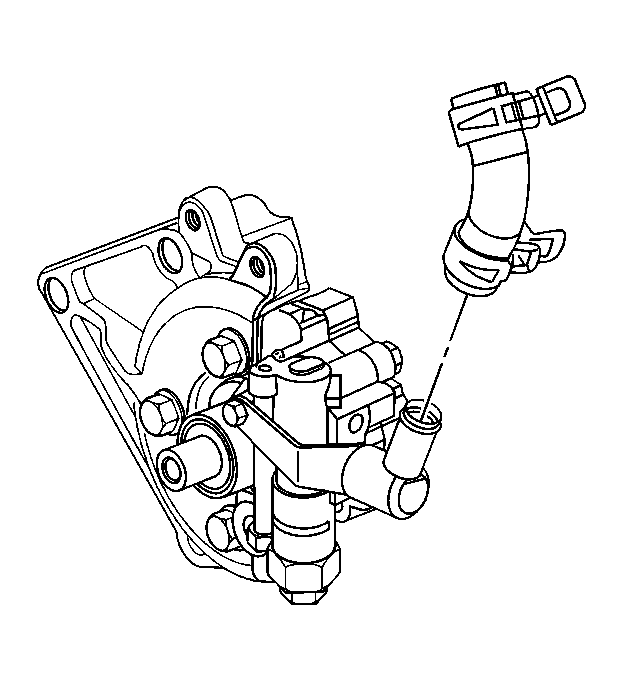

    4. Fig 3: Identifying Power Steering Reservoir Outlet Hose At Power Steering Pump
    GM1391091Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering reservoir outlet hose to the power steering pump.

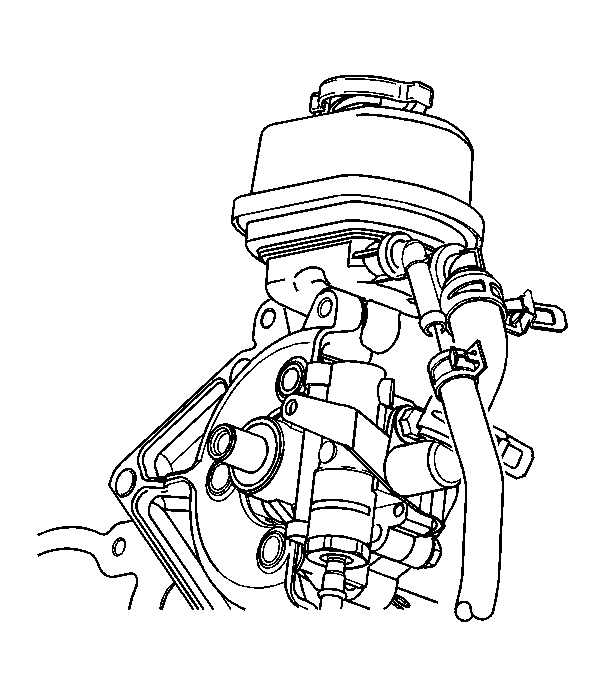

    5. Fig 4: Identifying Power Steering Cooler Outlet Hose At Power Steering Reservoir
    GM1400674Courtesy of GENERAL MOTORS CORP.
  5. Install the power steering cooler outlet hose to the power steering reservoir.
  6. Install the power steering pulley. Refer to Power Steering Pulley Replacement .
  7. Remove the drain pan from under the vehicle.
  8. Install the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
