ABS Schematics

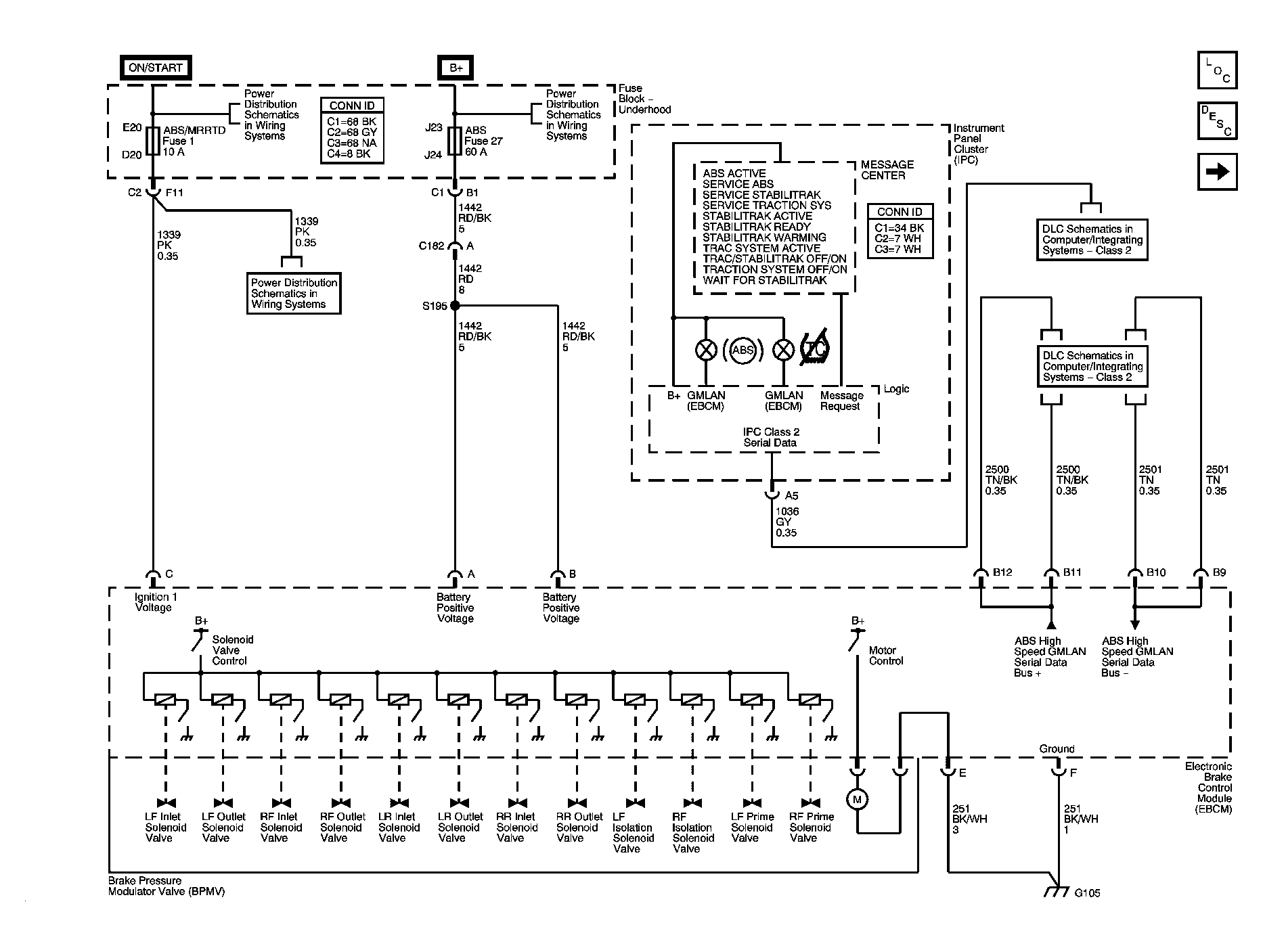

Fig 1: Ground, Indicators, Messages, and Power Schematic

Courtesy of GENERAL MOTORS CORP.

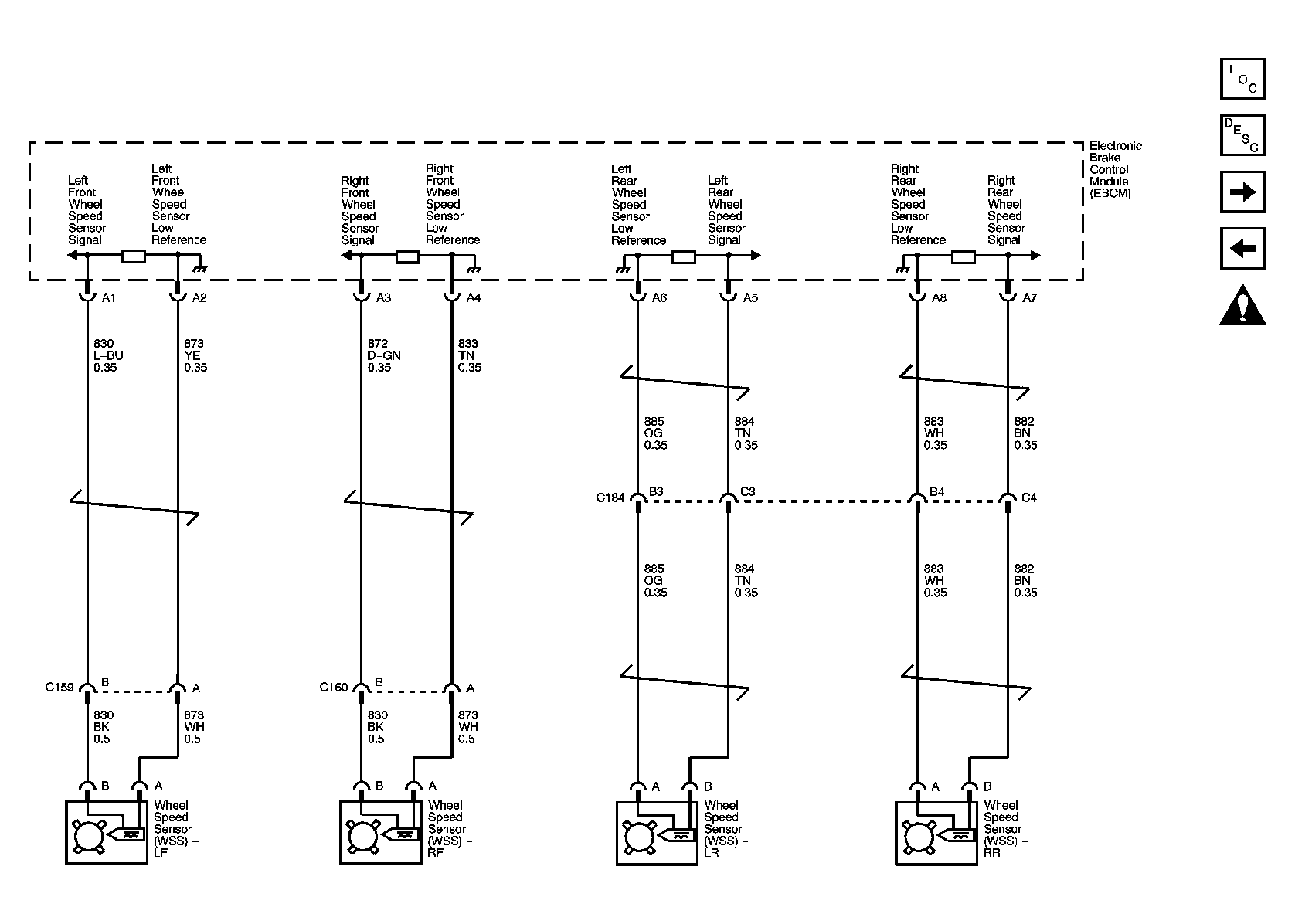

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

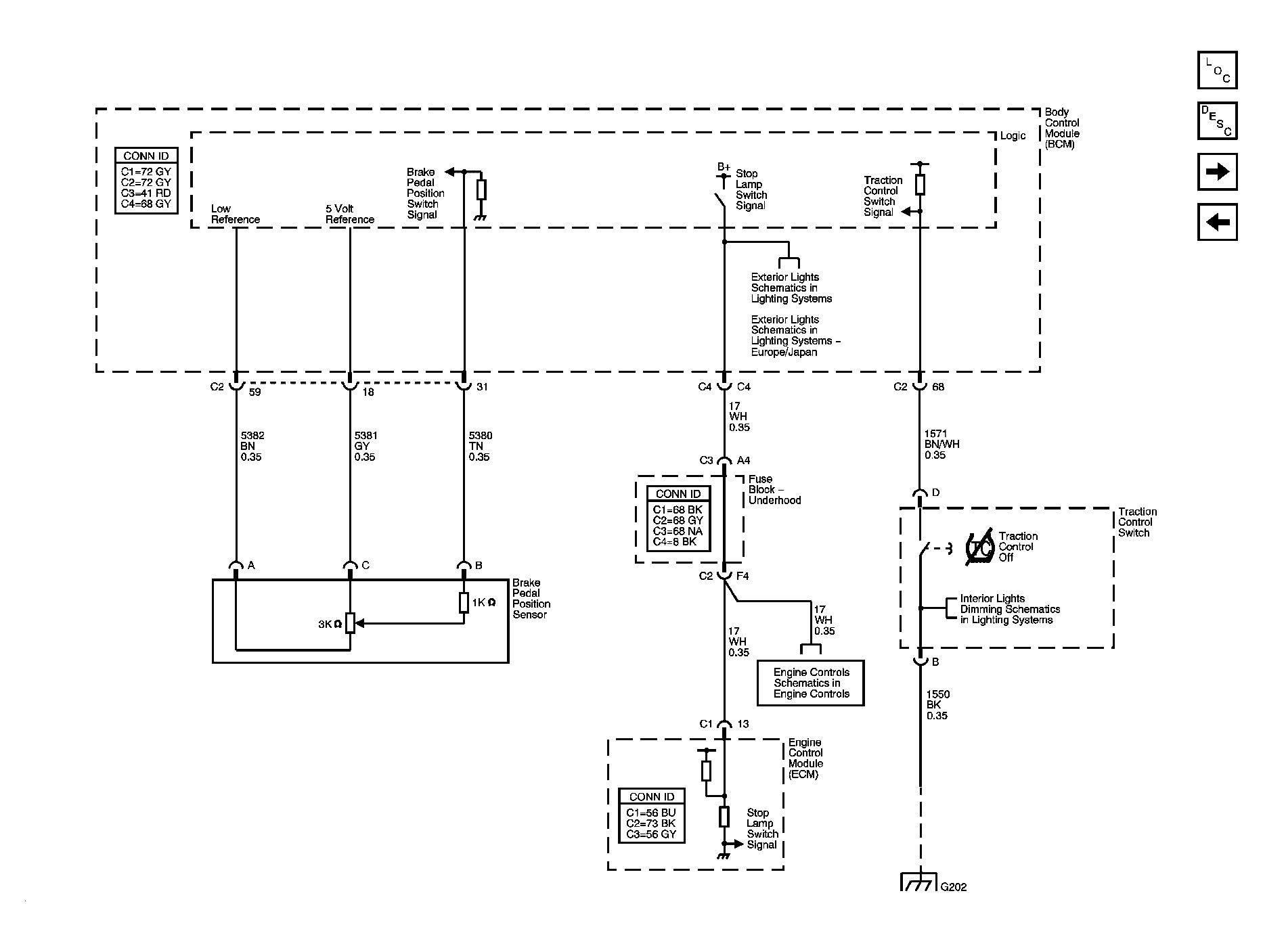

Fig 3: Brake Pedal Signal, and Traction Control Switch Schematic

Courtesy of GENERAL MOTORS CORP.

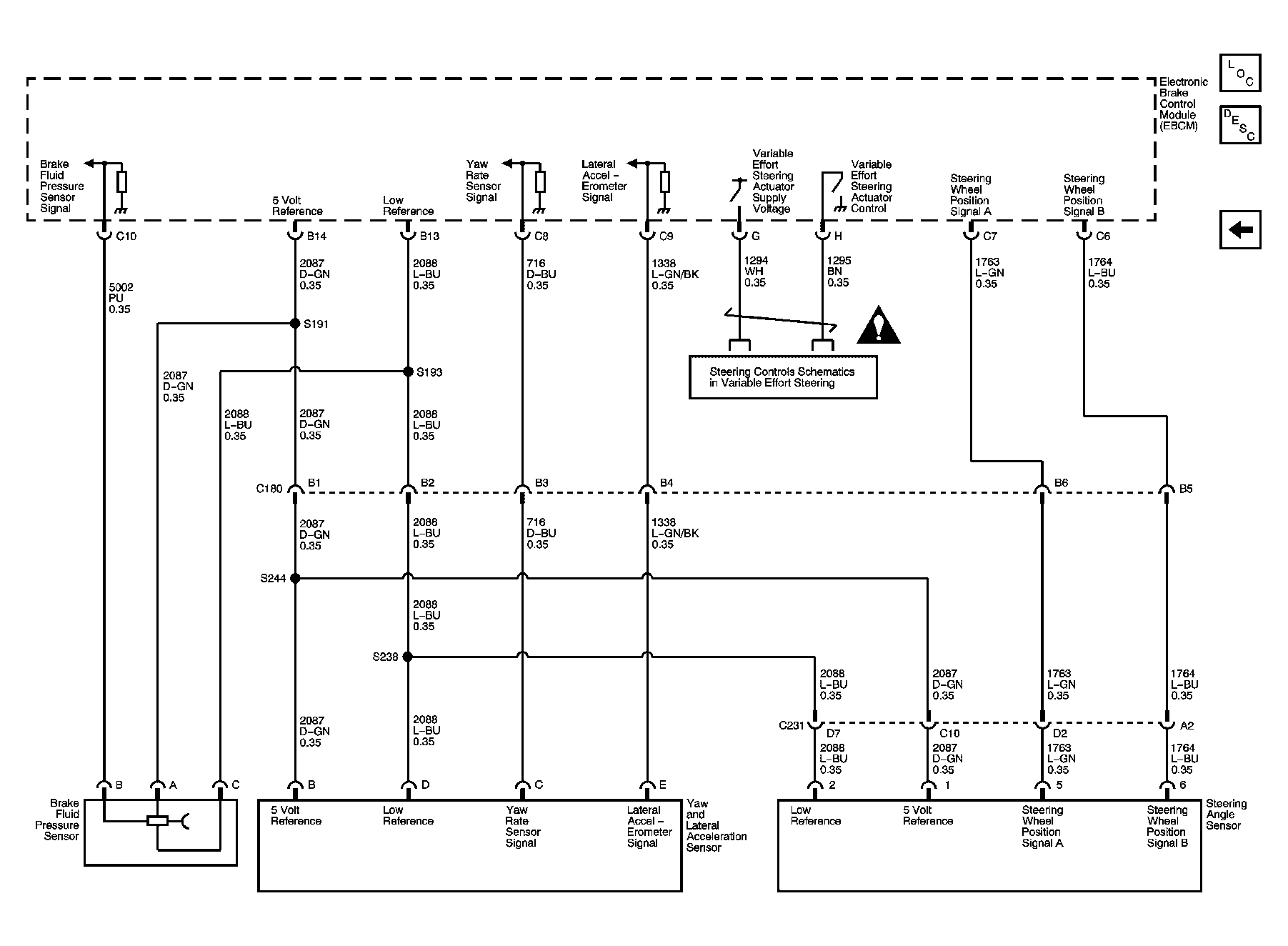

Fig 4: Stability Control Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
