Power Window Schematics

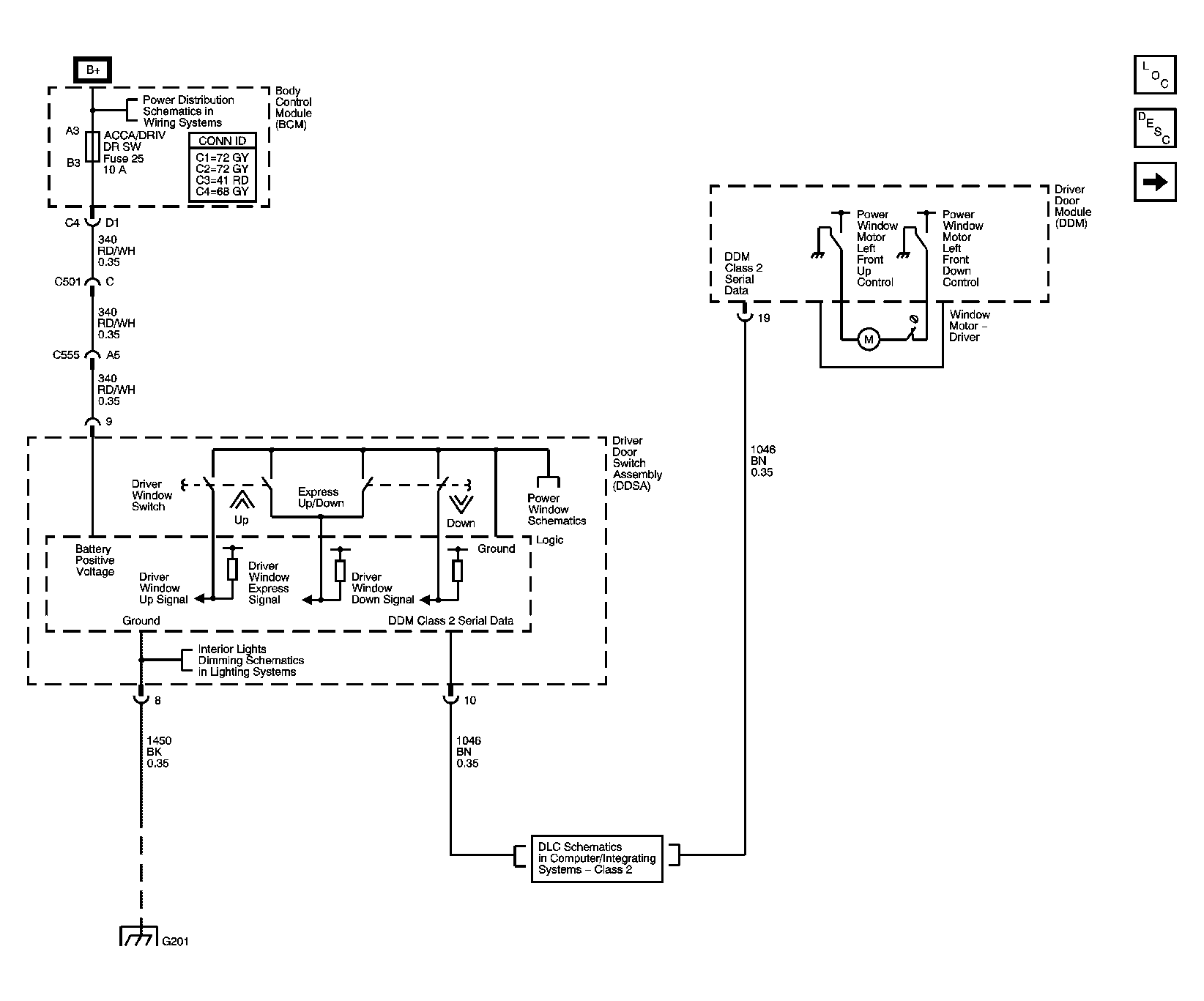

Fig 1: Driver Window Schematic
GM1199361Courtesy of GENERAL MOTORS CORP.

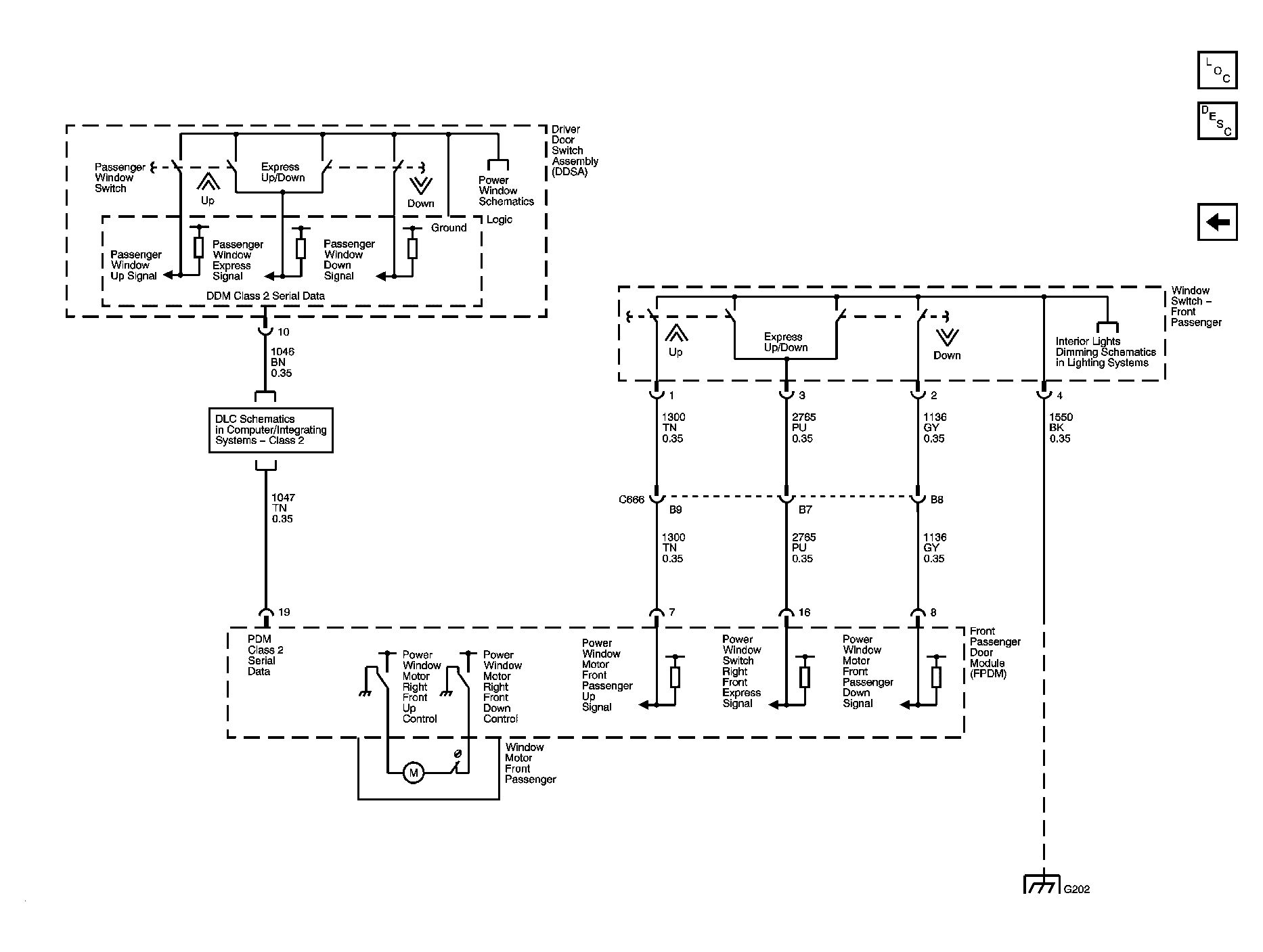

Fig 2: Passenger Window Schematic
GM1199362Courtesy of GENERAL MOTORS CORP.
