Steering Controls Component Views

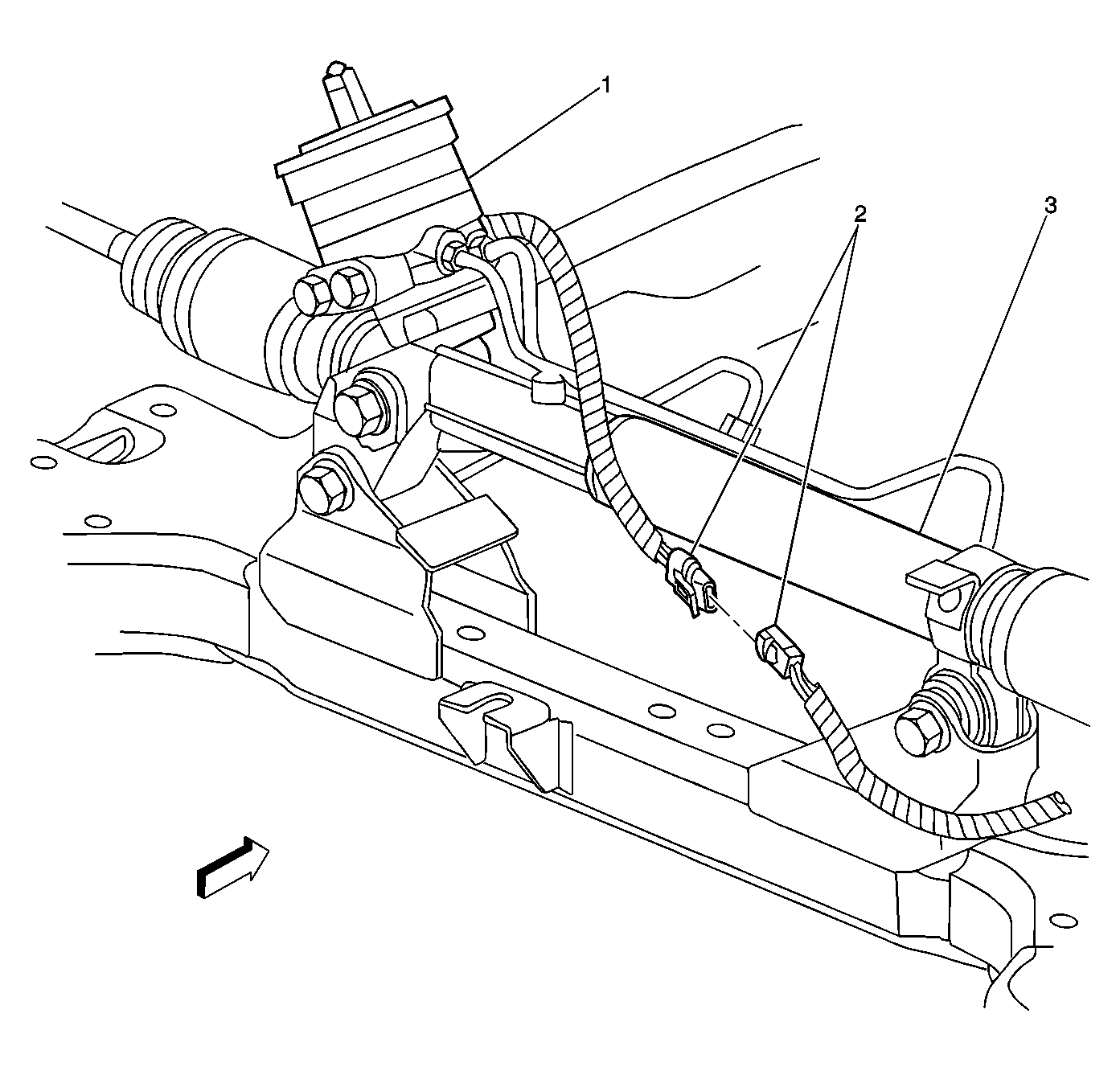

Fig 1: Engine Compartment, Near the Power Steering Gear Component View
GM507088Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Variable Effort Steering Actuator
2 Variable Effort Steering Actuator Pigtail Connector
3 Power Steering Gear
