System Specifications

Crankshaft Balancer Bolt
First Pass 50 Nm (37 ft. lbs.)
Final Pass +120 degrees

Timing Cover

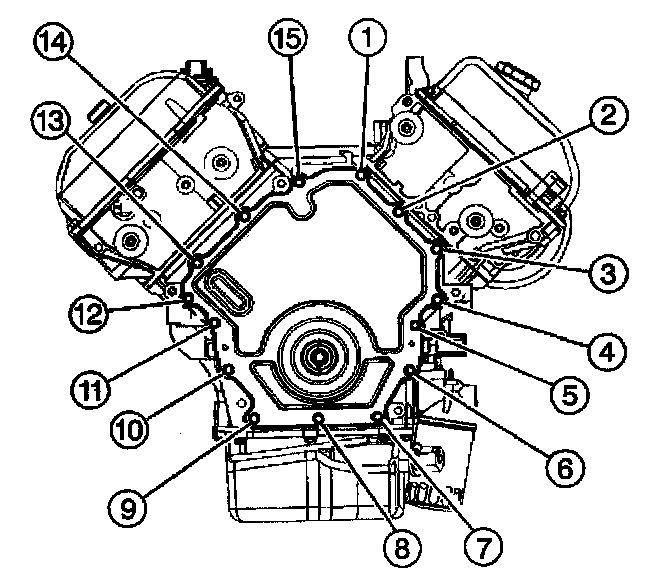

Tighten the engine front cover bolts in proper sequence 10 Nm (89 inch lbs.)
