Powertrain Control Module (PCM) Connector C2

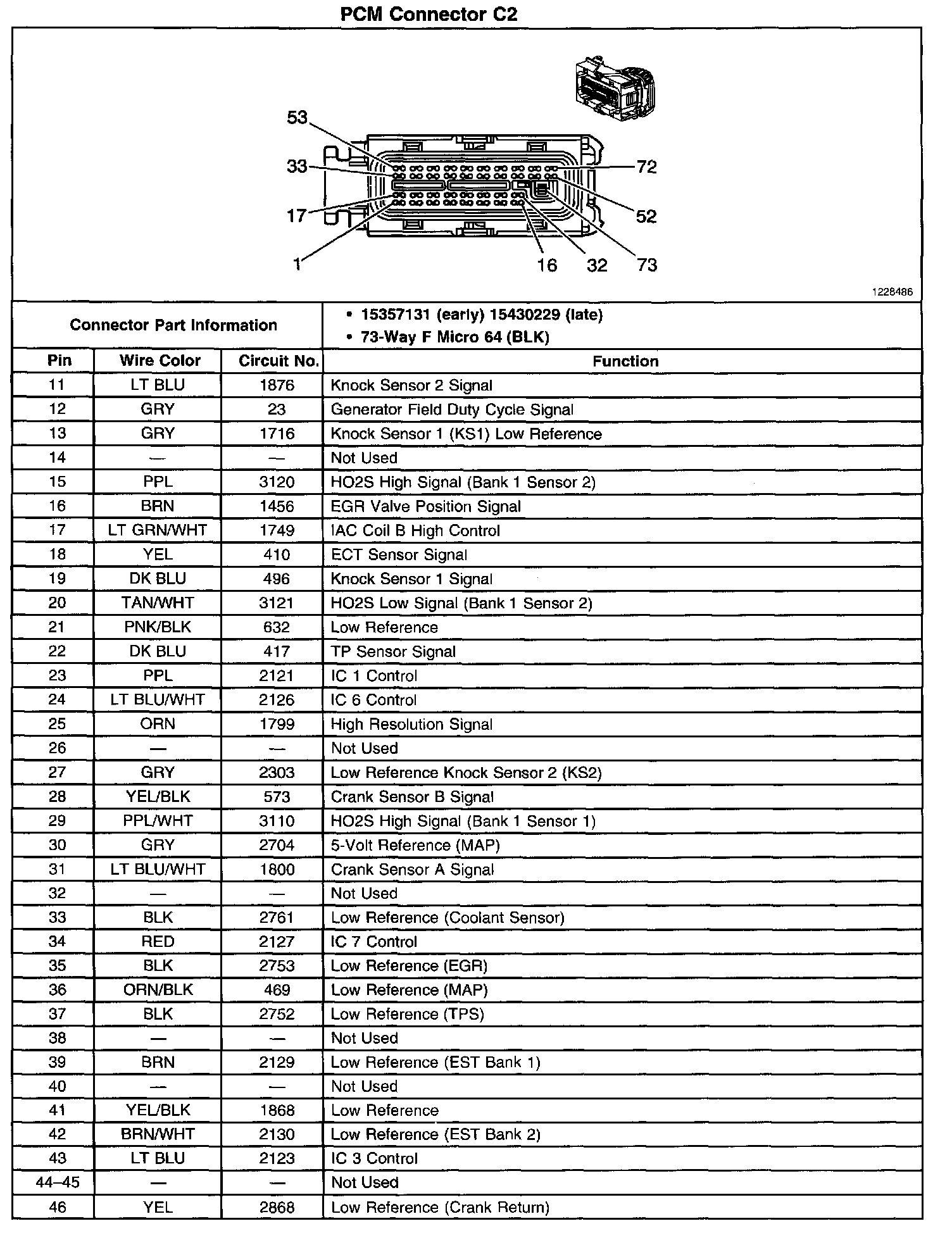

PCM Connector C2 Part 1:

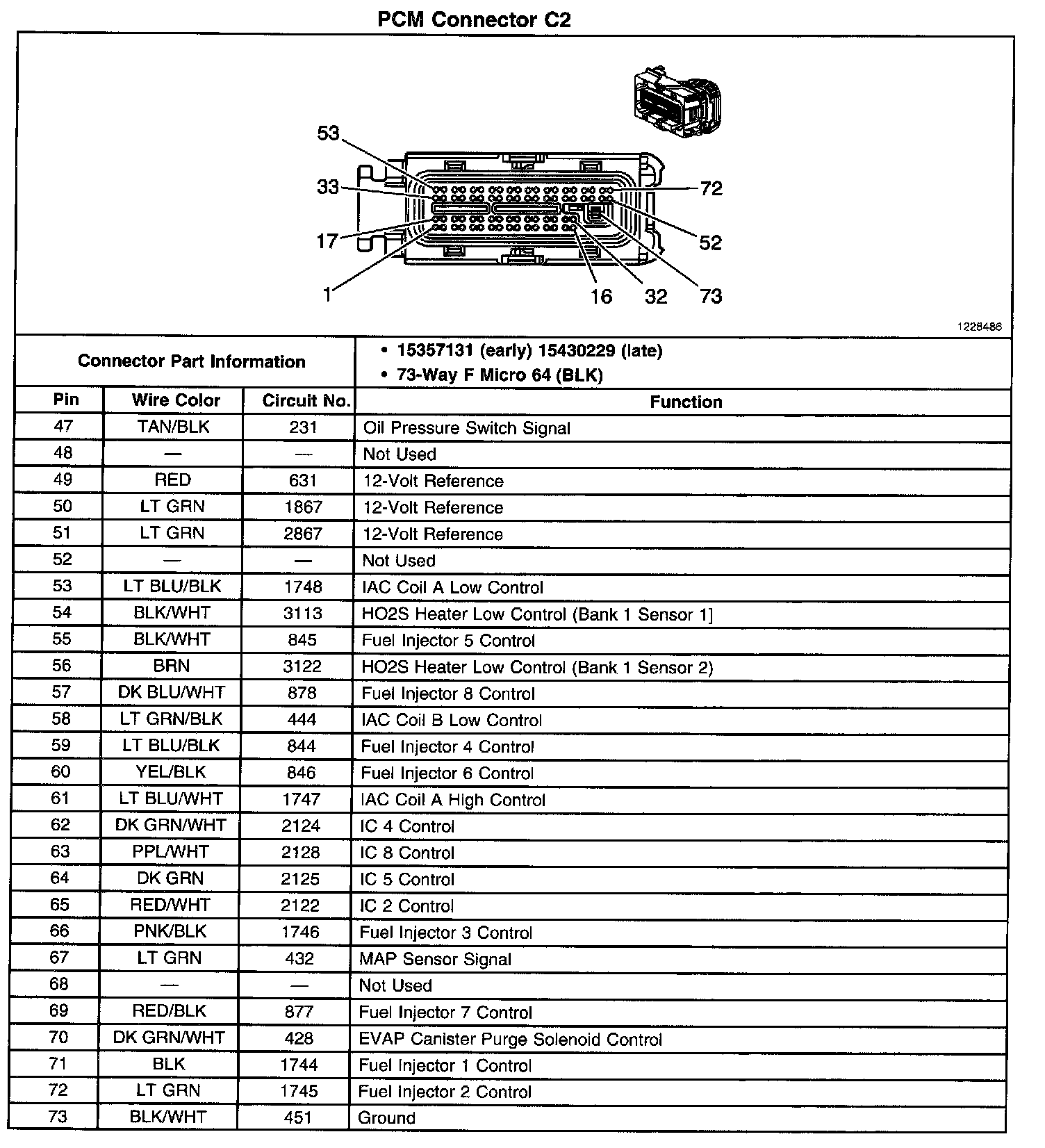

PCM Connector C2 Part 2:

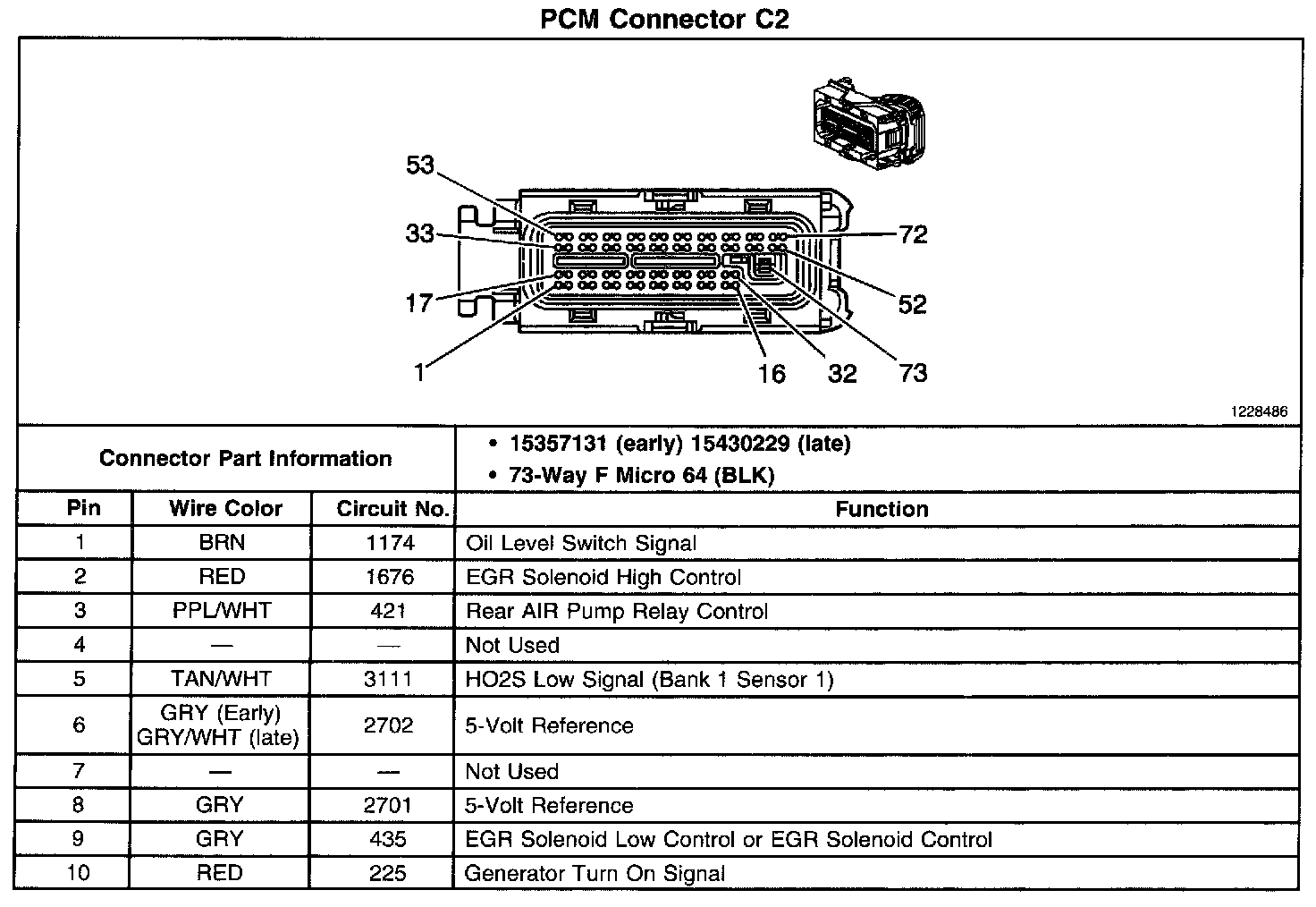

PCM Connector C2 Part 3:
