Cadillac
>>
2004
>>
Seville V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Air Flow Meter/Sensor

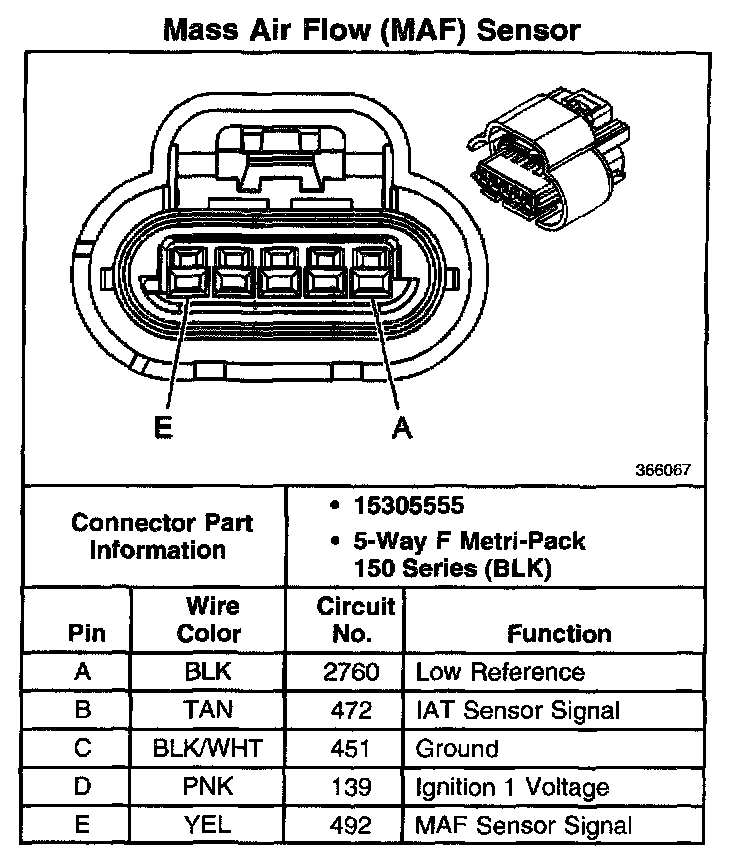

Mass Air Flow Sensor (MAF) Sensor:
