Door Module - LR
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Door Module - LR
Door Module - LR, C1:

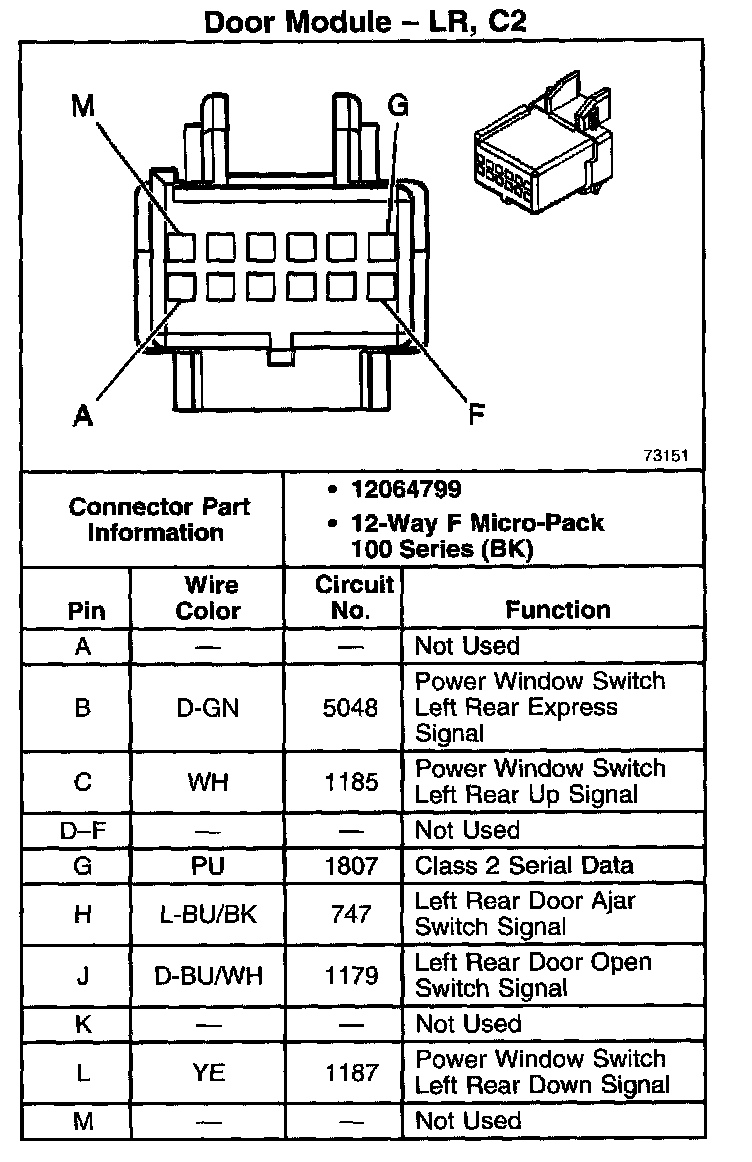

Door Module - LR, C2:

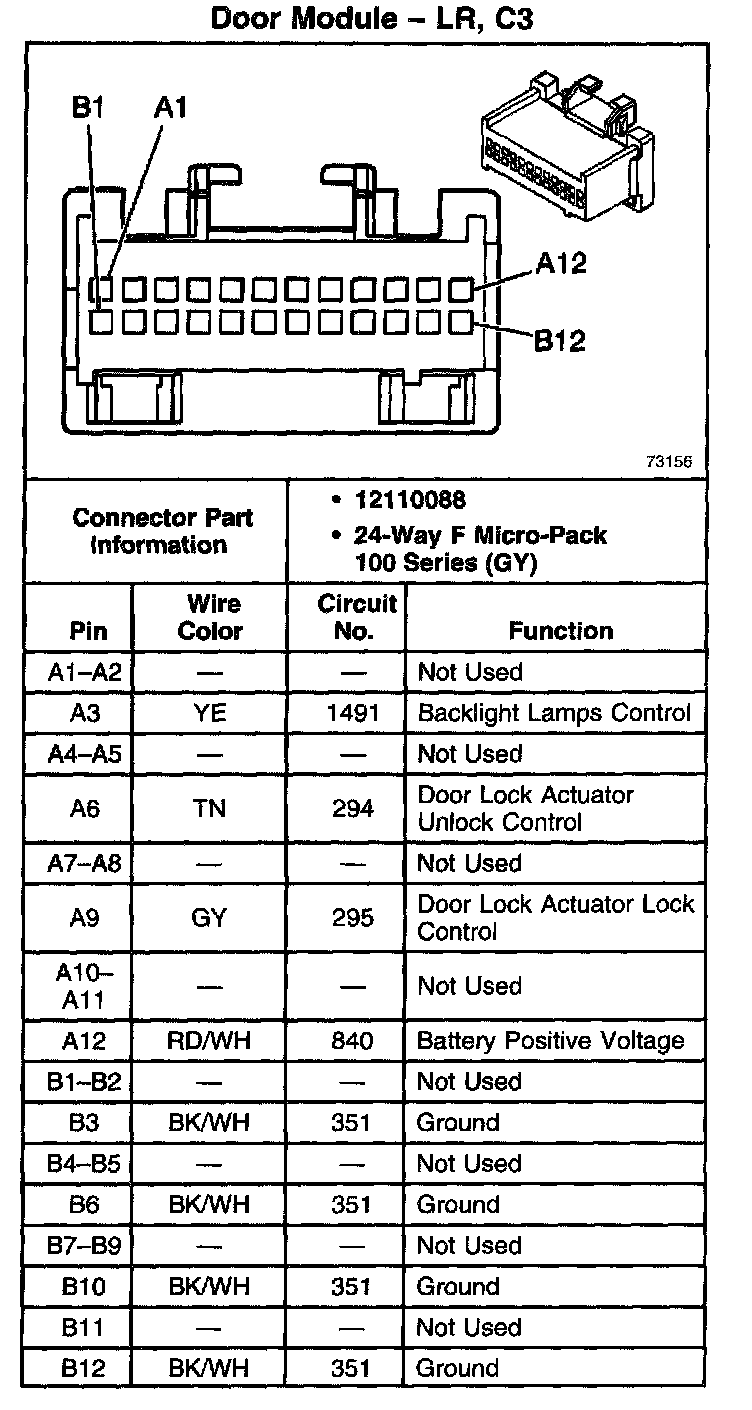

Door Module - LR, C3:
