Rear Integration Module (RIM) C1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

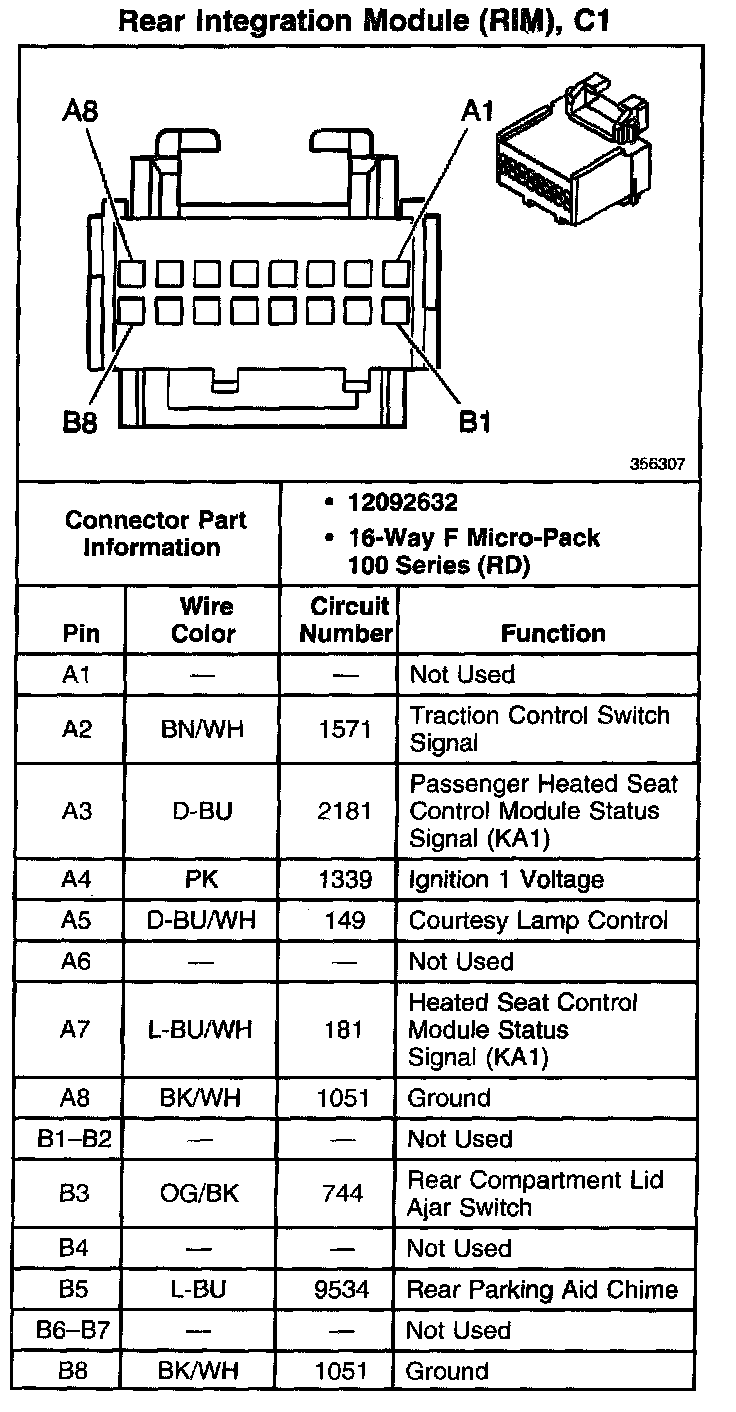

Rear Integration Module (RIM) C1
Rear Integration Module (RIM), C1:
