4 Door

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)

Remove in the order indicated in the table.

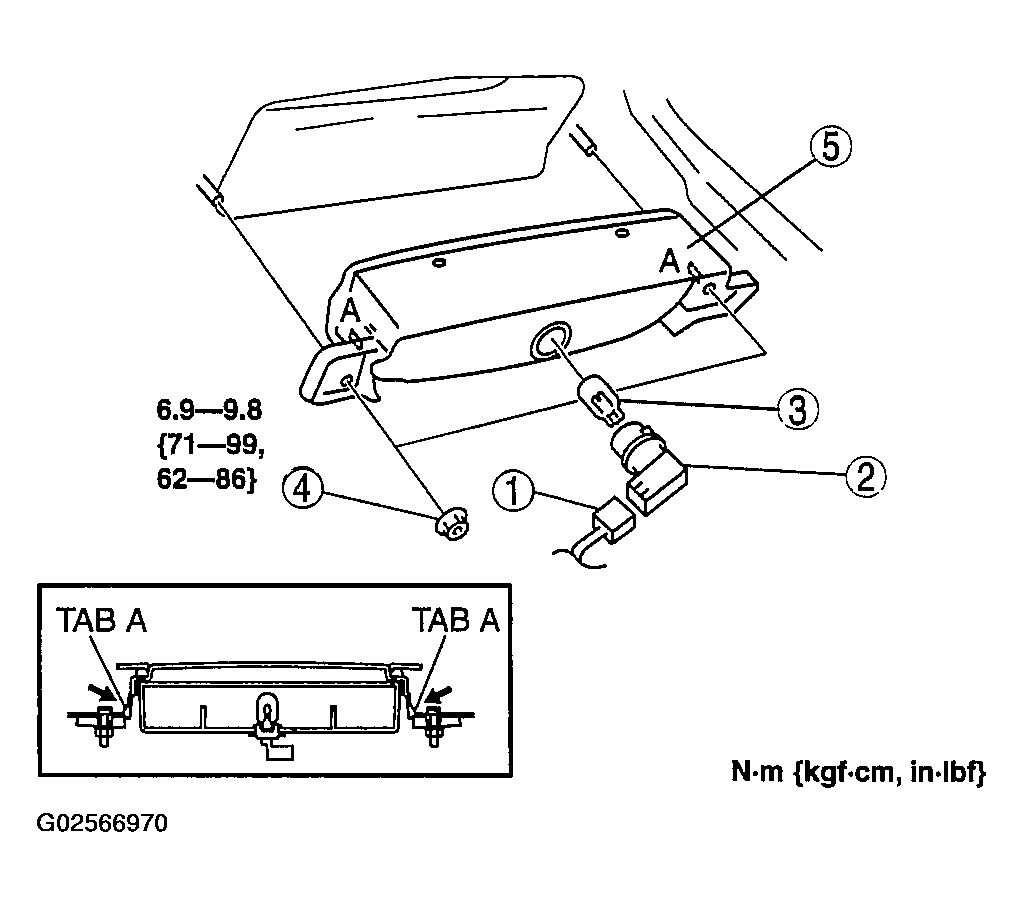

Fig 1: High-Mount Brake Light (4 Door) With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

REMOVAL ORDER OF HIGH-MOUNT BREAK LIGHT

Removal Order	Part
1	Connector
2	Socket
3	High-mount brake light bulb
4	Nut
5	High-mount brake light

Install in the reverse order of removal.
