Installation Procedure

  1. Connect the equalizer to the rear park brake cables.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nut to the threaded end of the intermediate cable.

    Tighten:  Tighten the nut to 3.5 N.m (31 lb in).

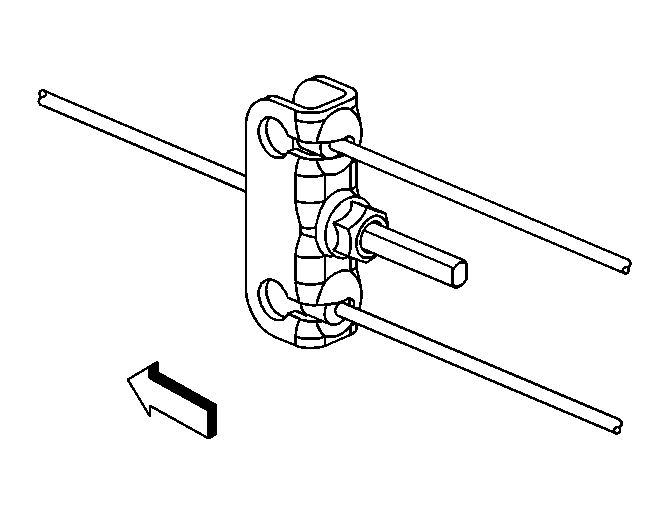

    3. Fig 1: View Of Park Brake Cable To Equalizer Bar
    GM493216Courtesy of GENERAL MOTORS CORP.
  3. Remove the safety stands.
  4. Lower the vehicle.
  5. Adjust the park brake system. Refer to Park Brake Adjustment .
