Installation Procedure

  1. Install the cupholder.
  2. Install the rivets (1) retaining the cupholder to the bottom of the center seat.

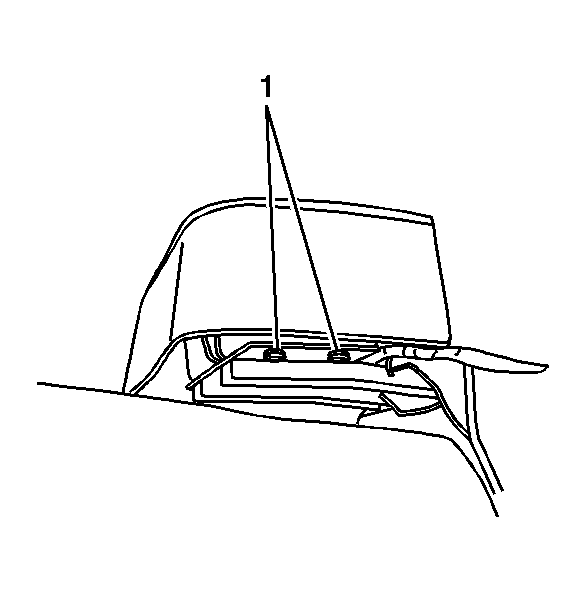

    3. Fig 1: View Of Cupholder Rivets
    GM799077Courtesy of GENERAL MOTORS CORP.
  3. Install the center seat. Refer to Seat Replacement - Center .
