Removal Procedure

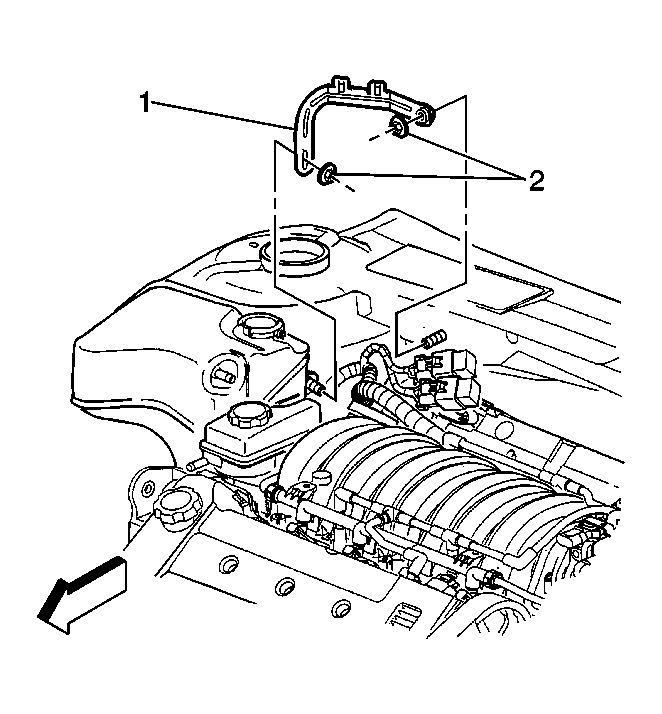

    Fig 1: View Of Secondary AIR Relay Bracket & Retaining Nuts
    GM518257Courtesy of GENERAL MOTORS CORP.
  1. Remove the secondary AIR relay bracket retaining nuts (2).
  2. Remove the secondary AIR relay bracket (1) from the mounting studs.
    3. Fig 2: View Of Surge Tank, Nut & Bolt
    GM517960Courtesy of GENERAL MOTORS CORP.
  3. Remove the surge tank retaining nut (2) and bolt (3).
  4. Position and support the surge tank out of the way.
    5. Fig 3: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  5. Remove the drive belt. Refer to Drive Belt Replacement in Engine Mechanical-4.6L.
  6. Using J 25034-C  remove the power steering pump pulley. See Special Tools and Equipment .
