Data Link Connector: Locations

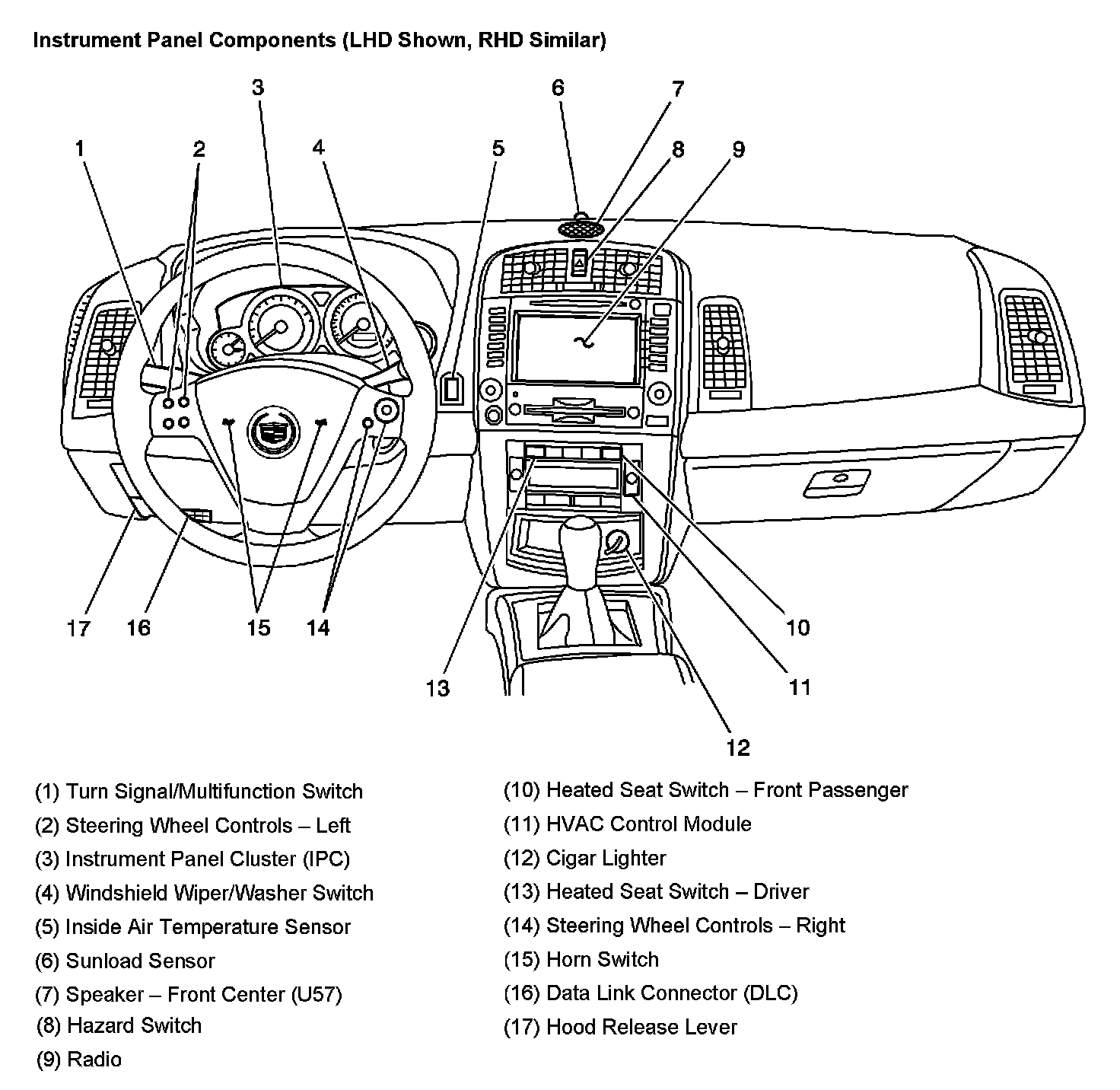

Instrument Panel Components (LHD Shown, RHD Similar):



Windshield Wiper Subsystem Components:

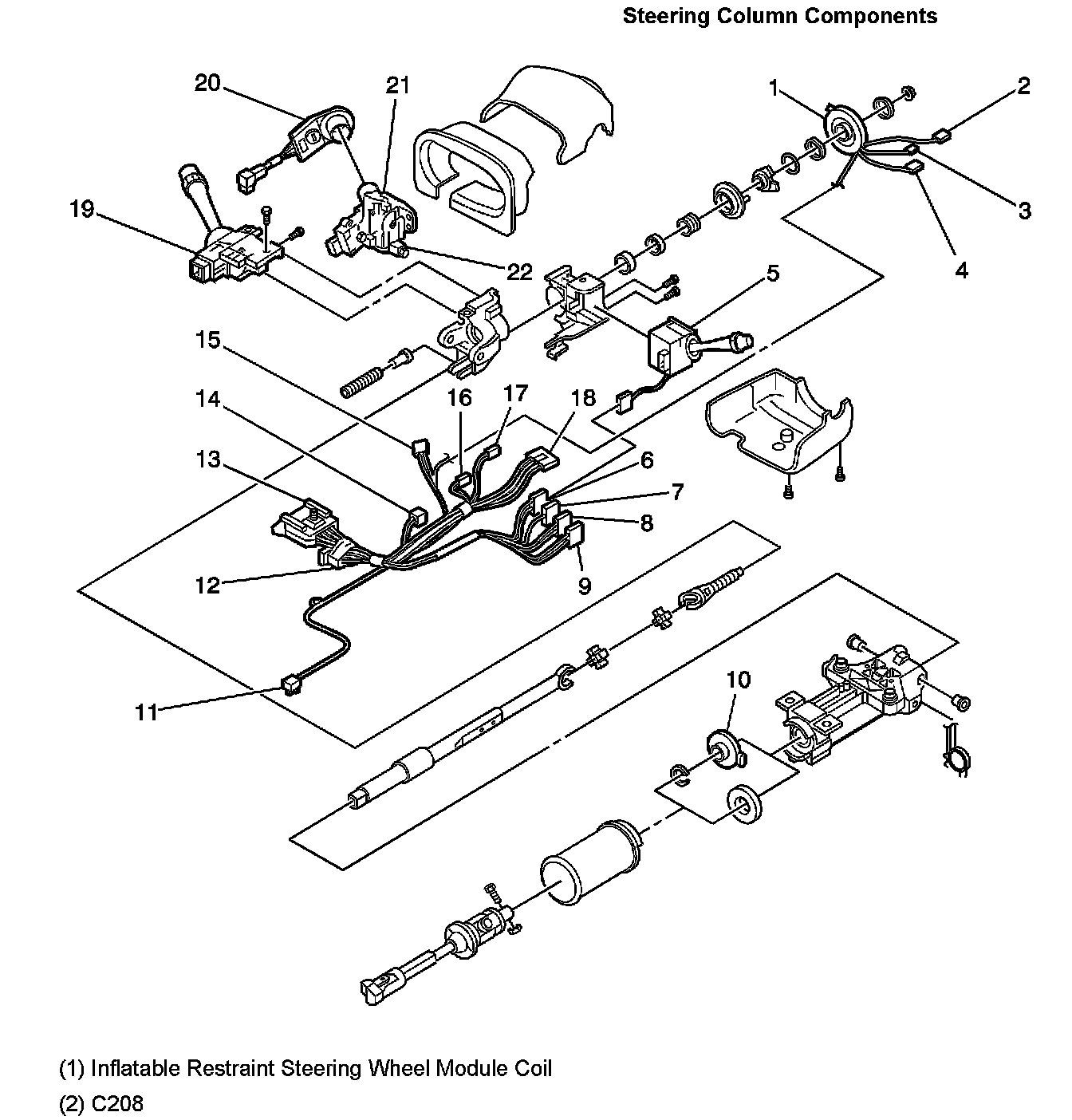

Steering Column Components:

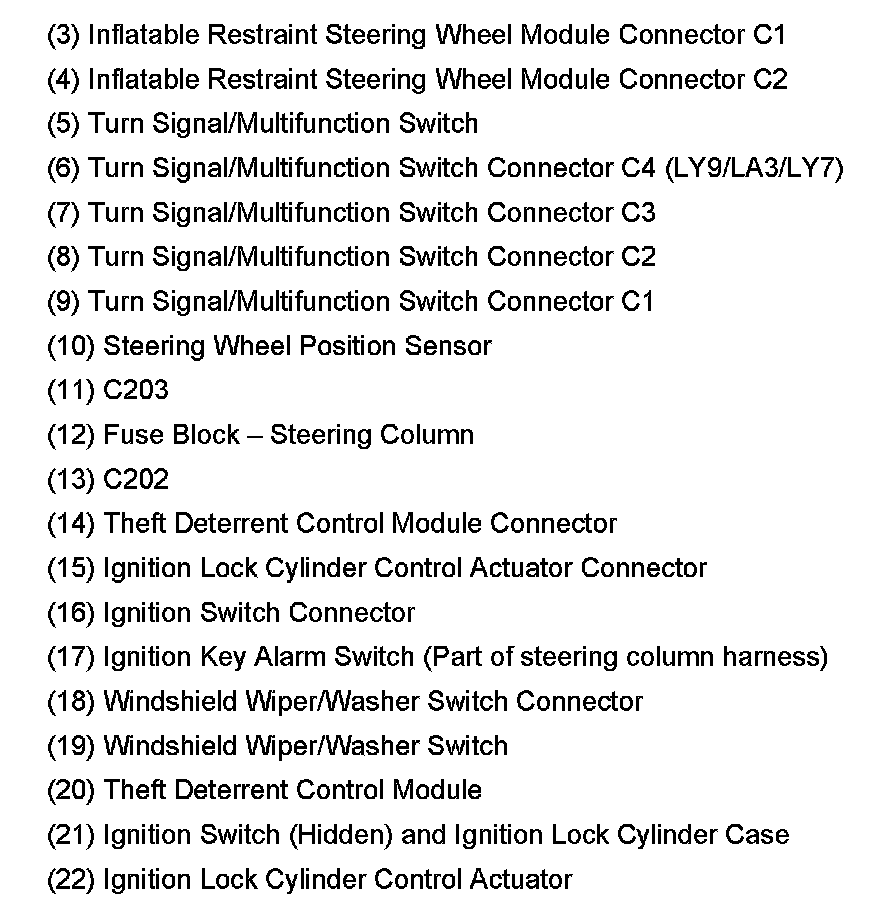

Steering Column Components:

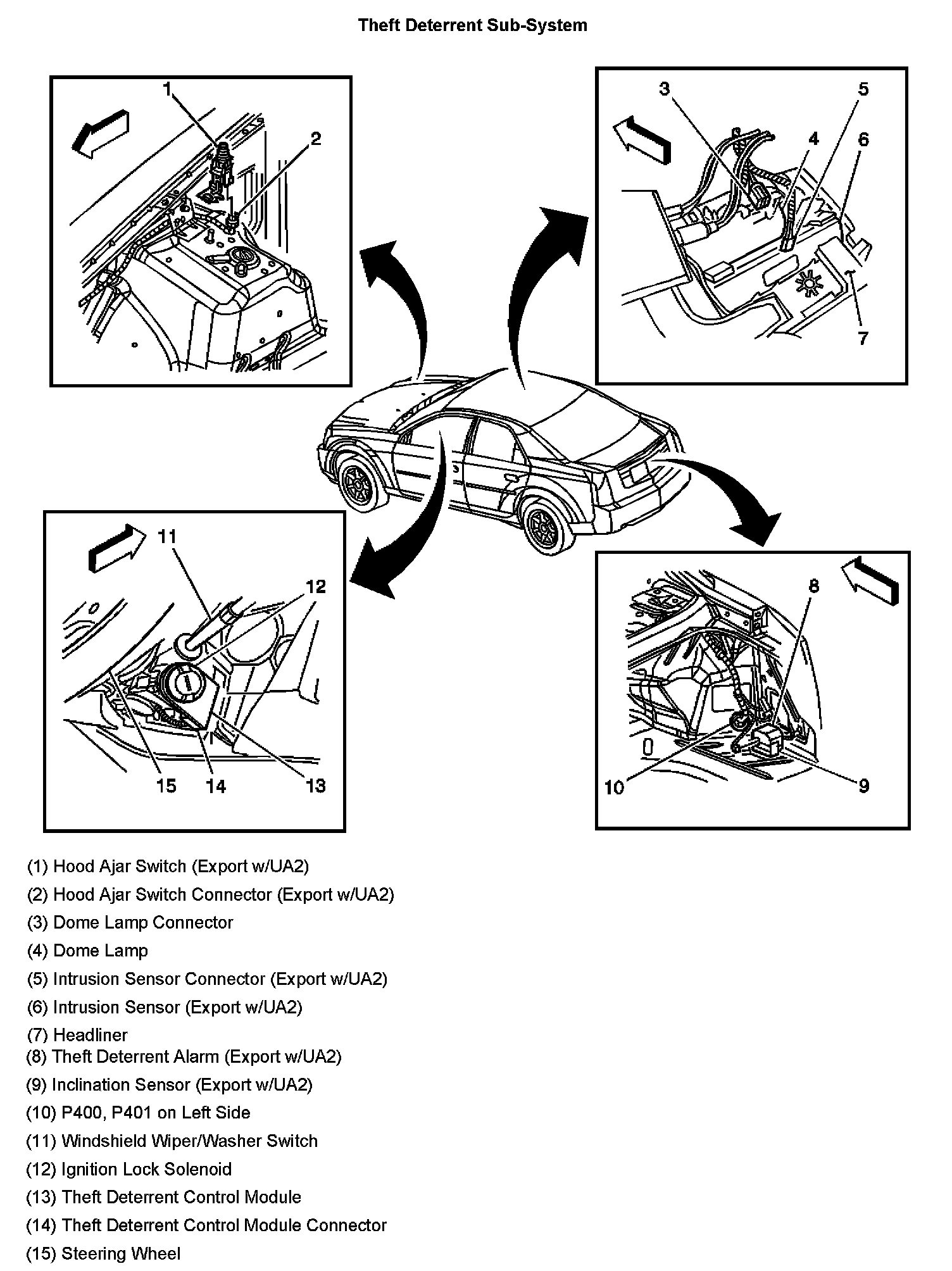

Theft Deterrent Sub-System:
