Scan Tool Data List

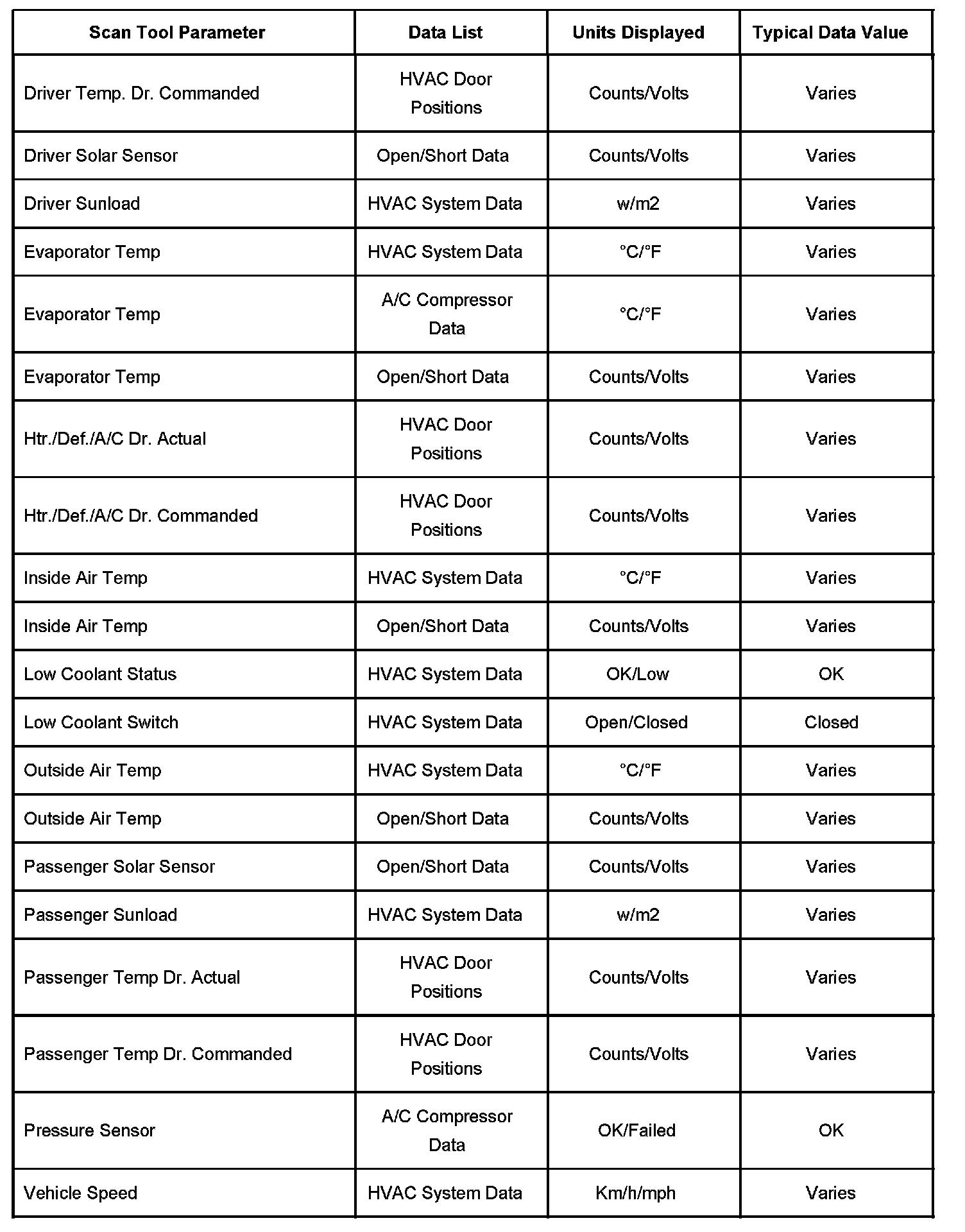

HVAC Control Module Scan Tool Data List Part 1:



HVAC Control Module Scan Tool Data List Part 2:



ECM Scan Tool Data List:
