Electronic Throttle Control Module

Throttle Actuator Control (TAC) Module - C1 Part 1:



Throttle Actuator Control (TAC) Module - C1 Part 2:

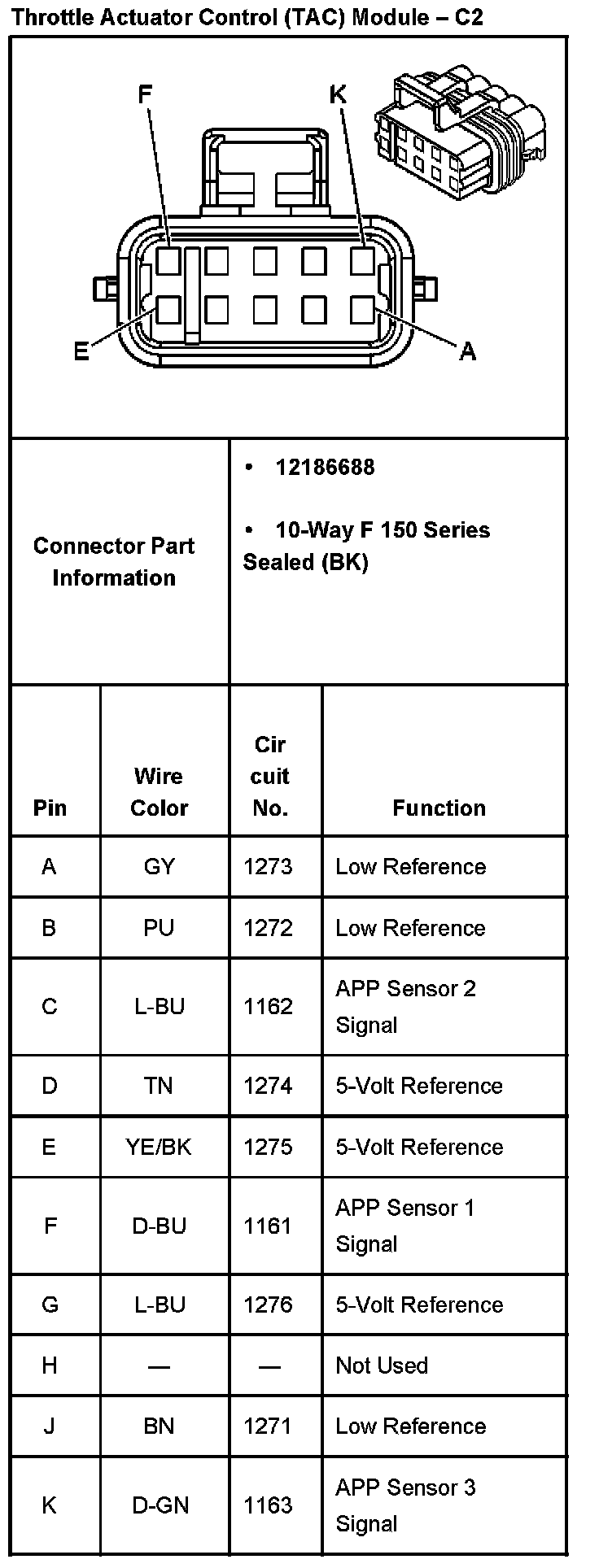

Throttle Actuator Control (TAC) Module - C2:
