Scan Tool Output Controls - Powertrain Control Module (PCM)

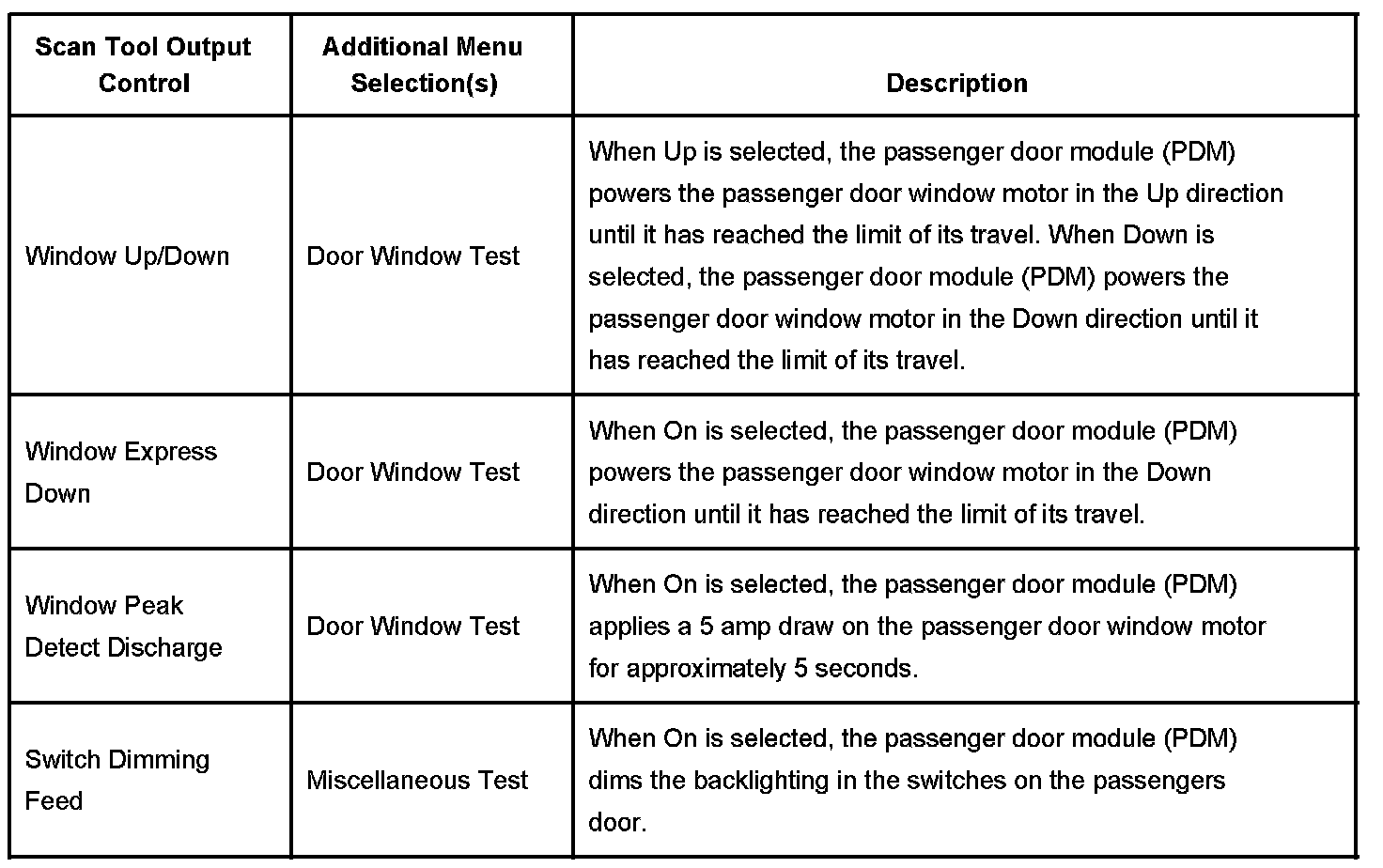

PDM Scan Tool Output Control Part 1:

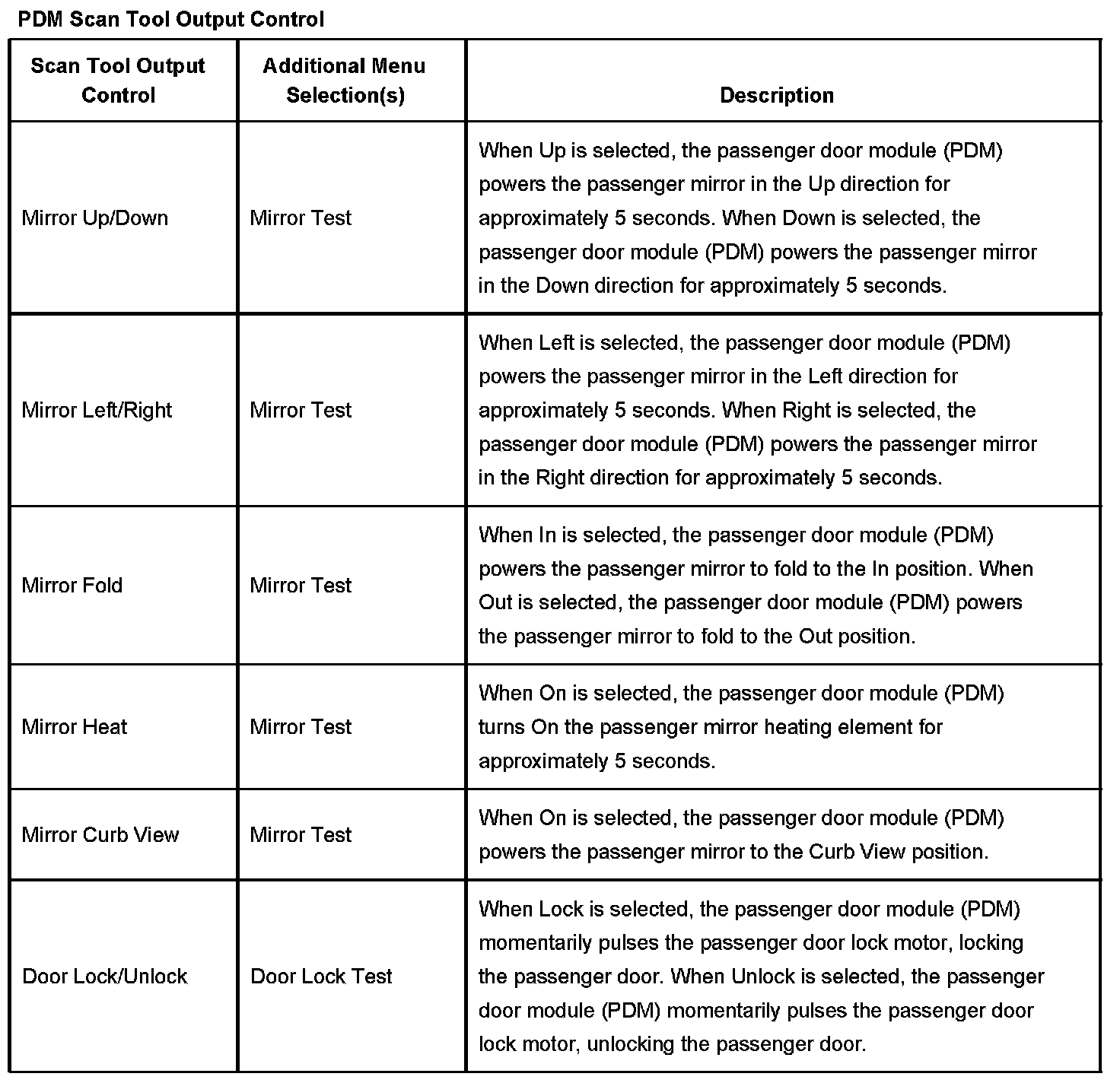

PDM Scan Tool Output Control Part 2:
