Camshaft Position Sensor: Diagrams

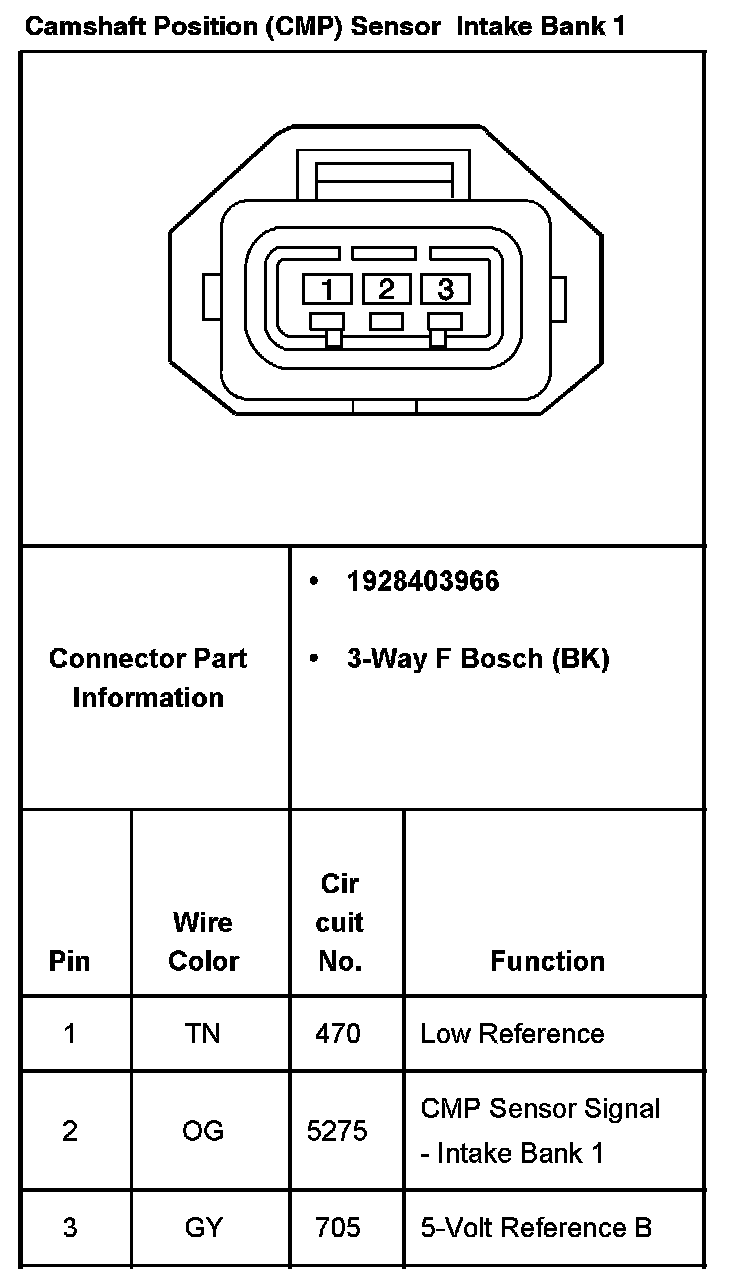

Camshaft Position (CMP) Sensor-Intake Bank 1:

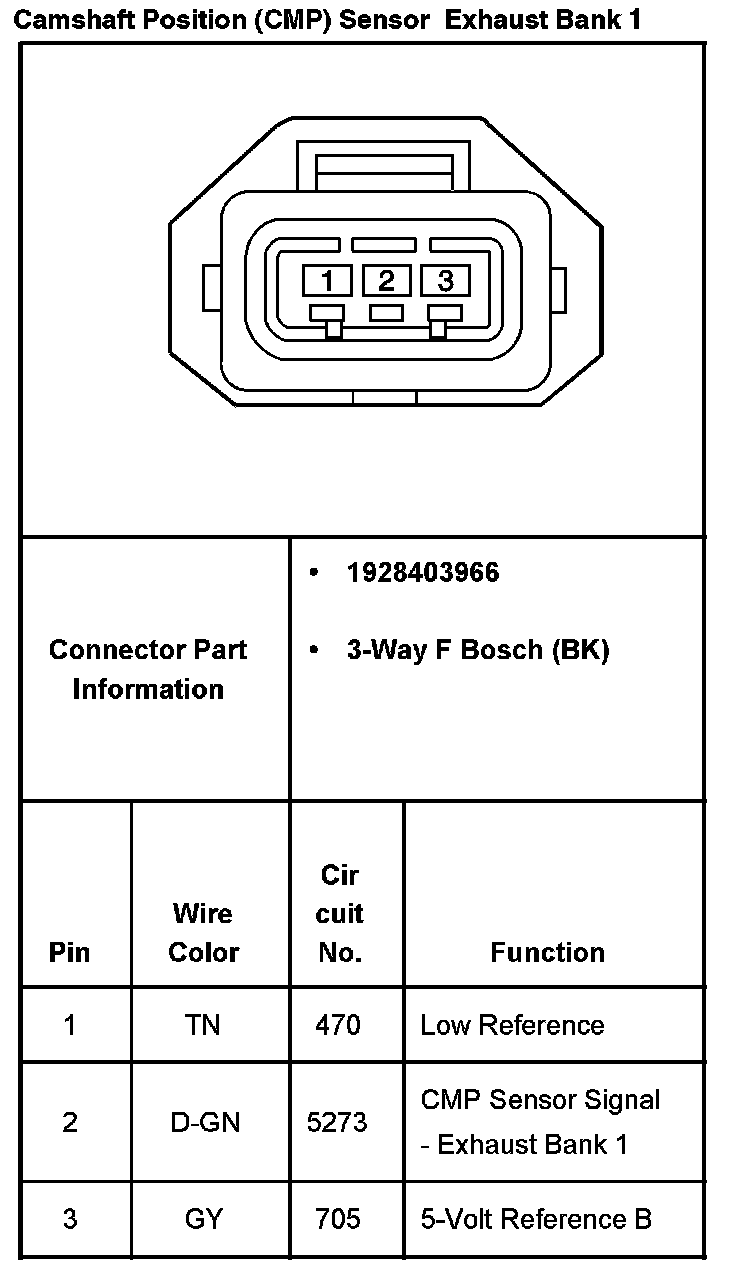

Camshaft Position (CMP) Sensor Exhaust Bank 1:

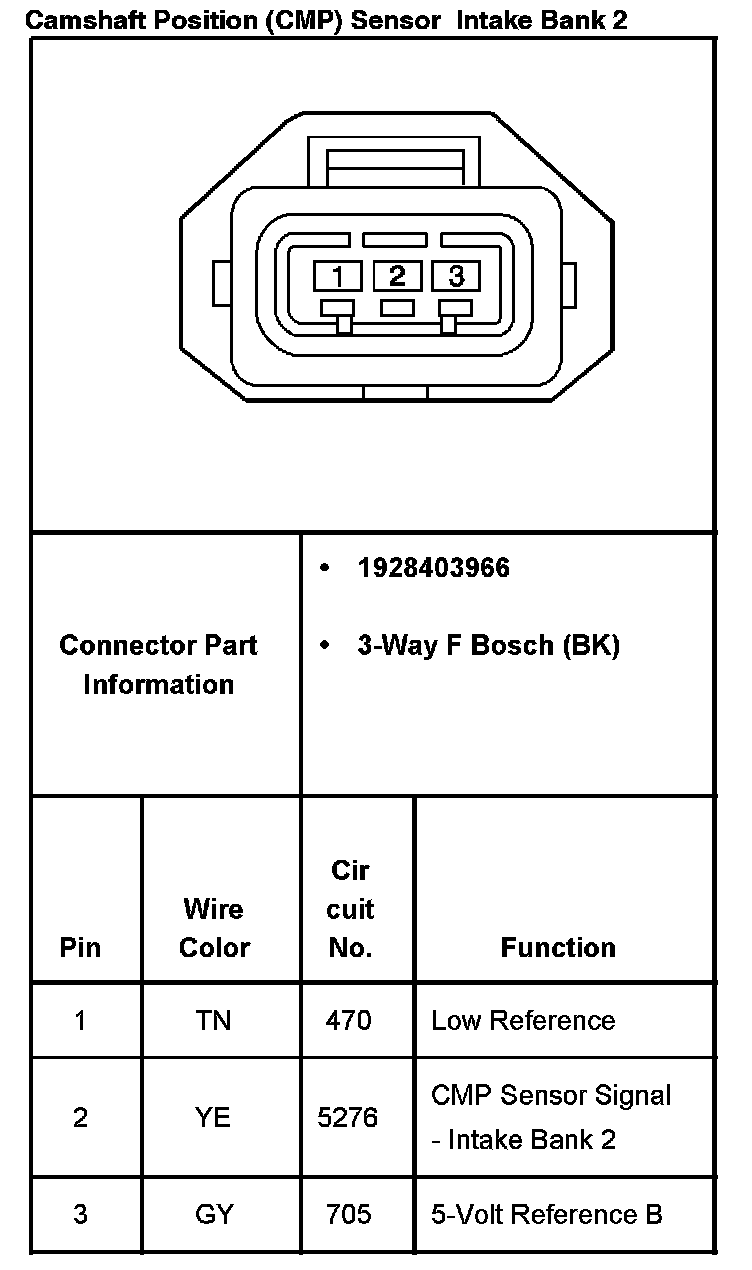

Camshaft Position (CMP) Sensor Intake Bank 2:

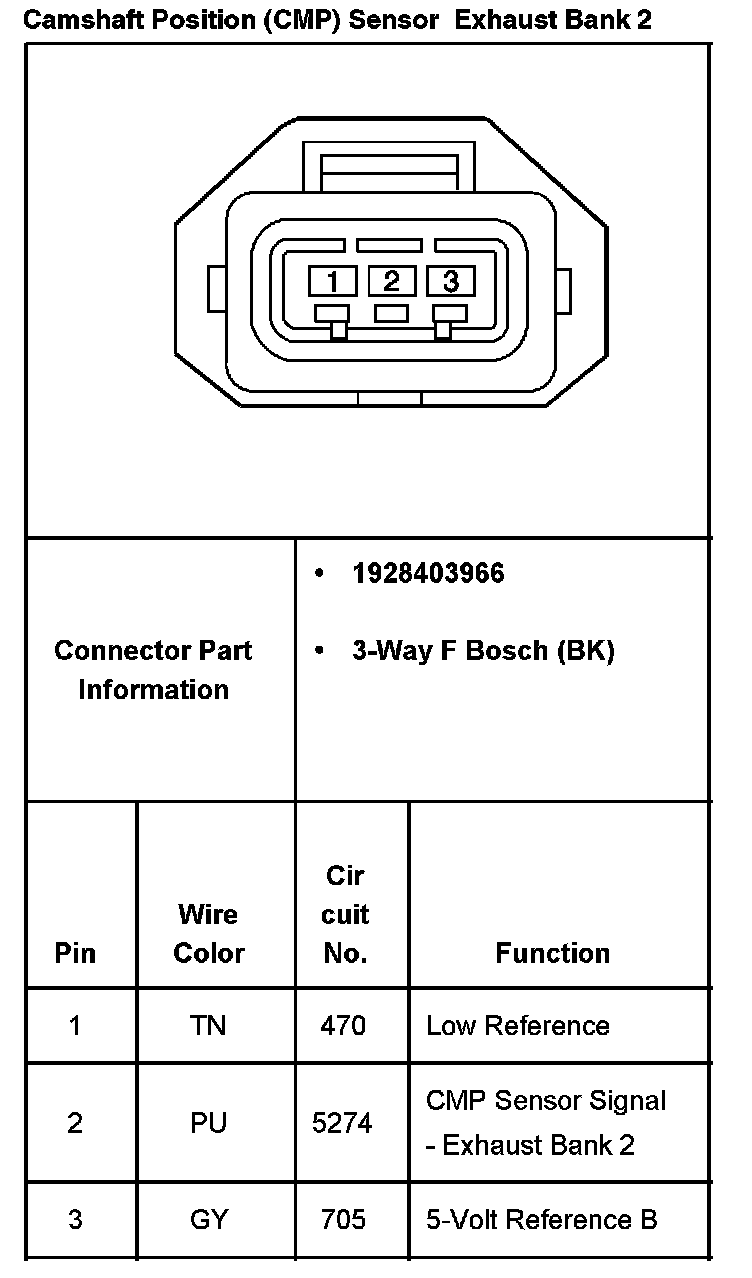

Camshaft Position (CMP) Sensor Exhaust Bank 2:
