Left Rear Fuse Block

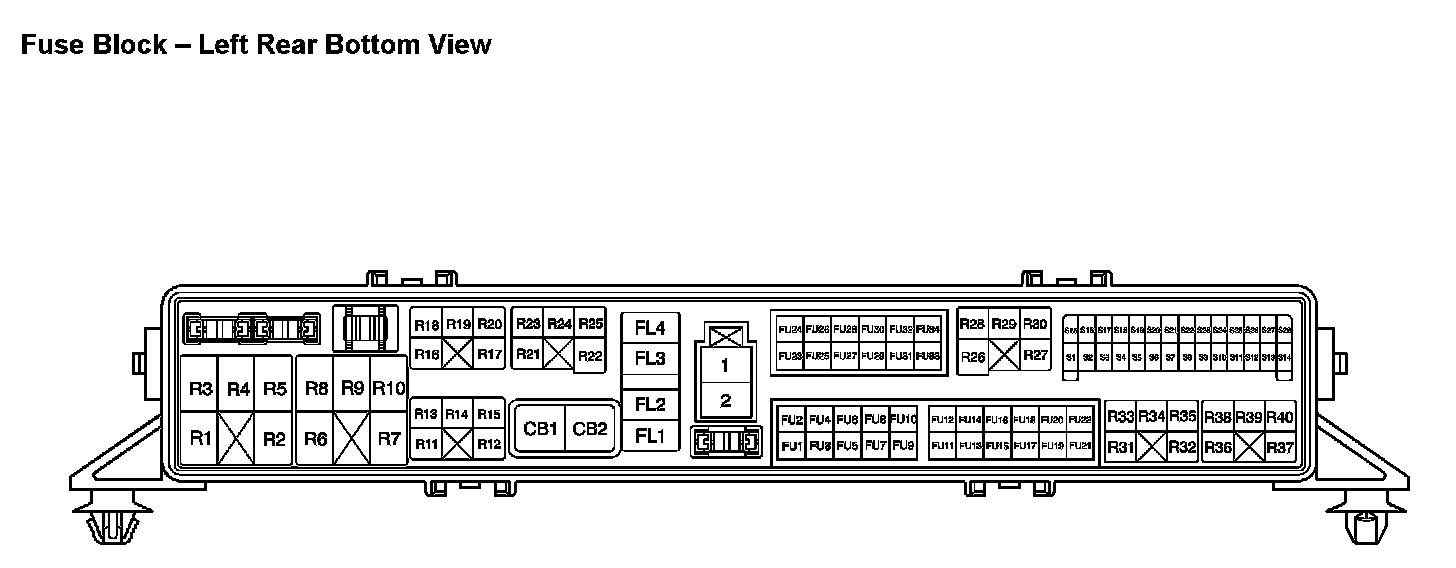

Location View:

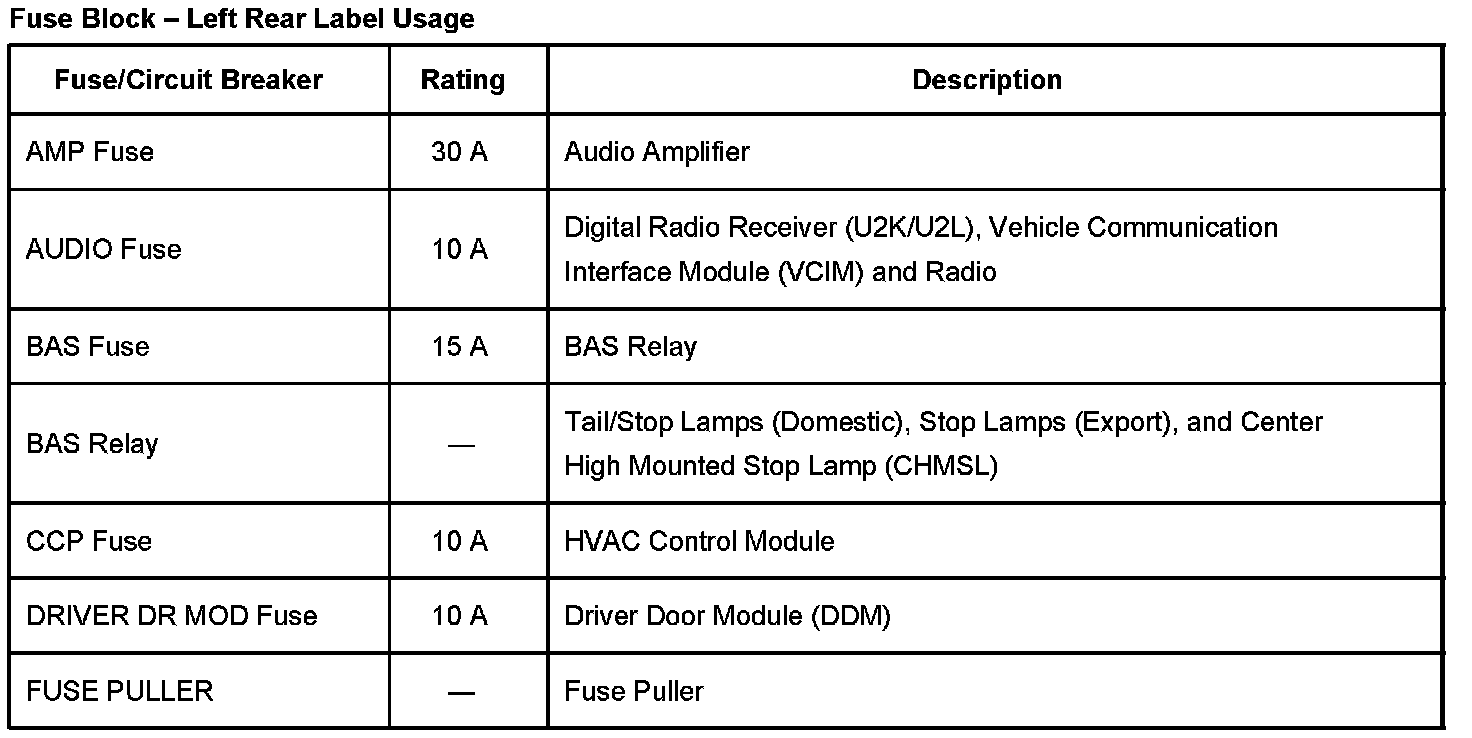

Application Table Part 1:

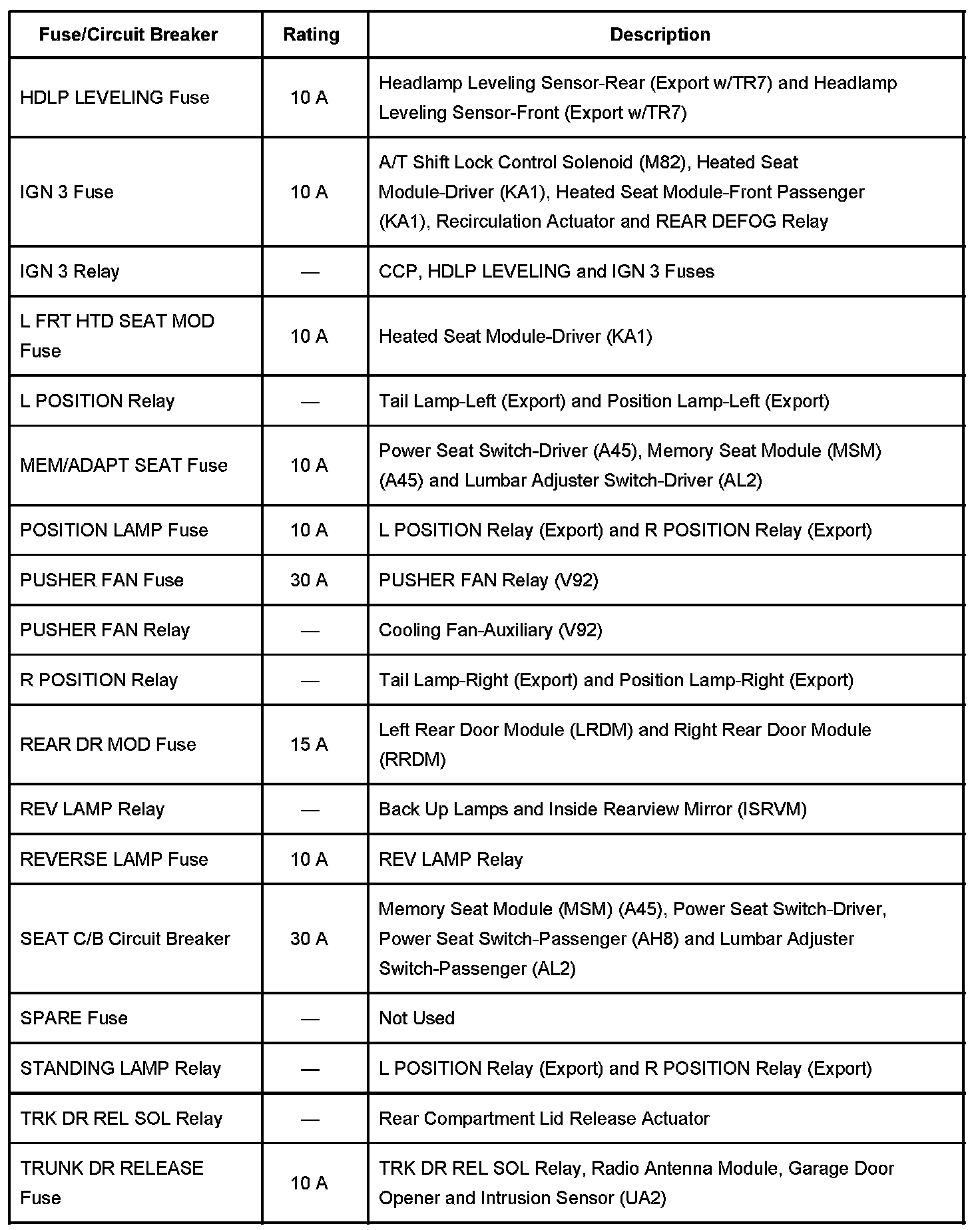

Application Table Part 2:

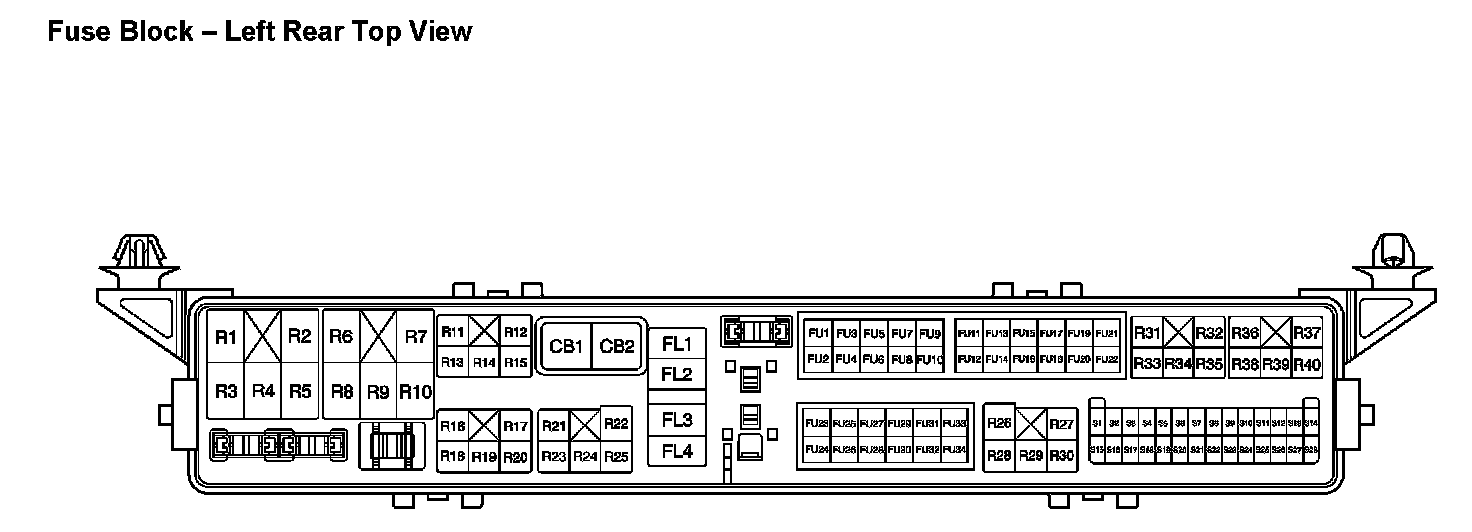

Location View:

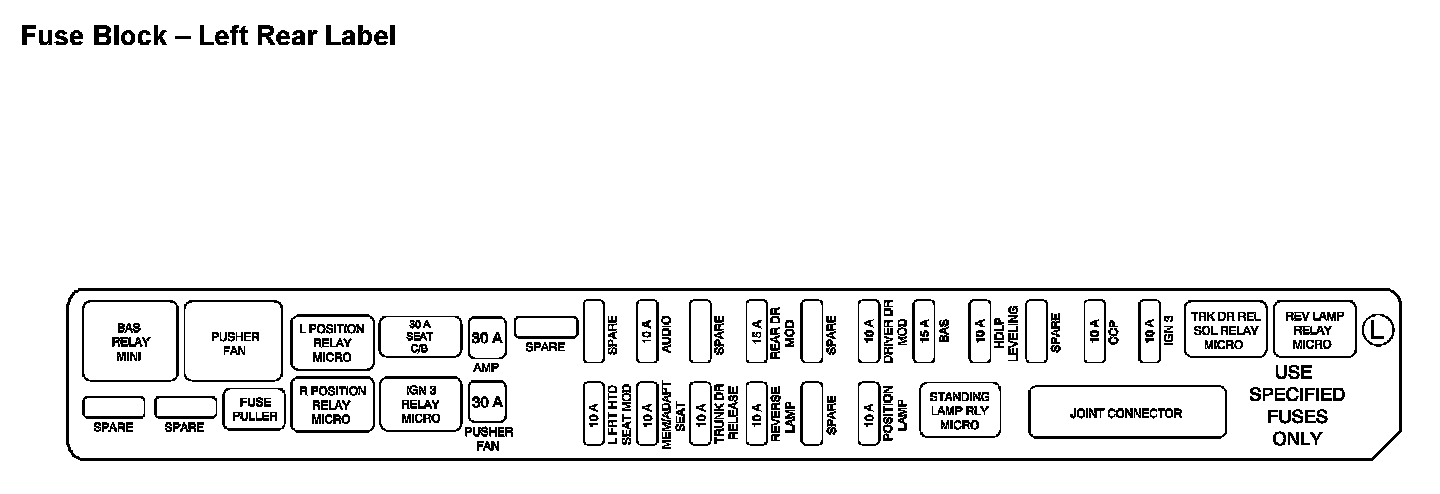

Location View:
