Generic Scan Tool (GST)

IPC Scan Tool Output Controls:

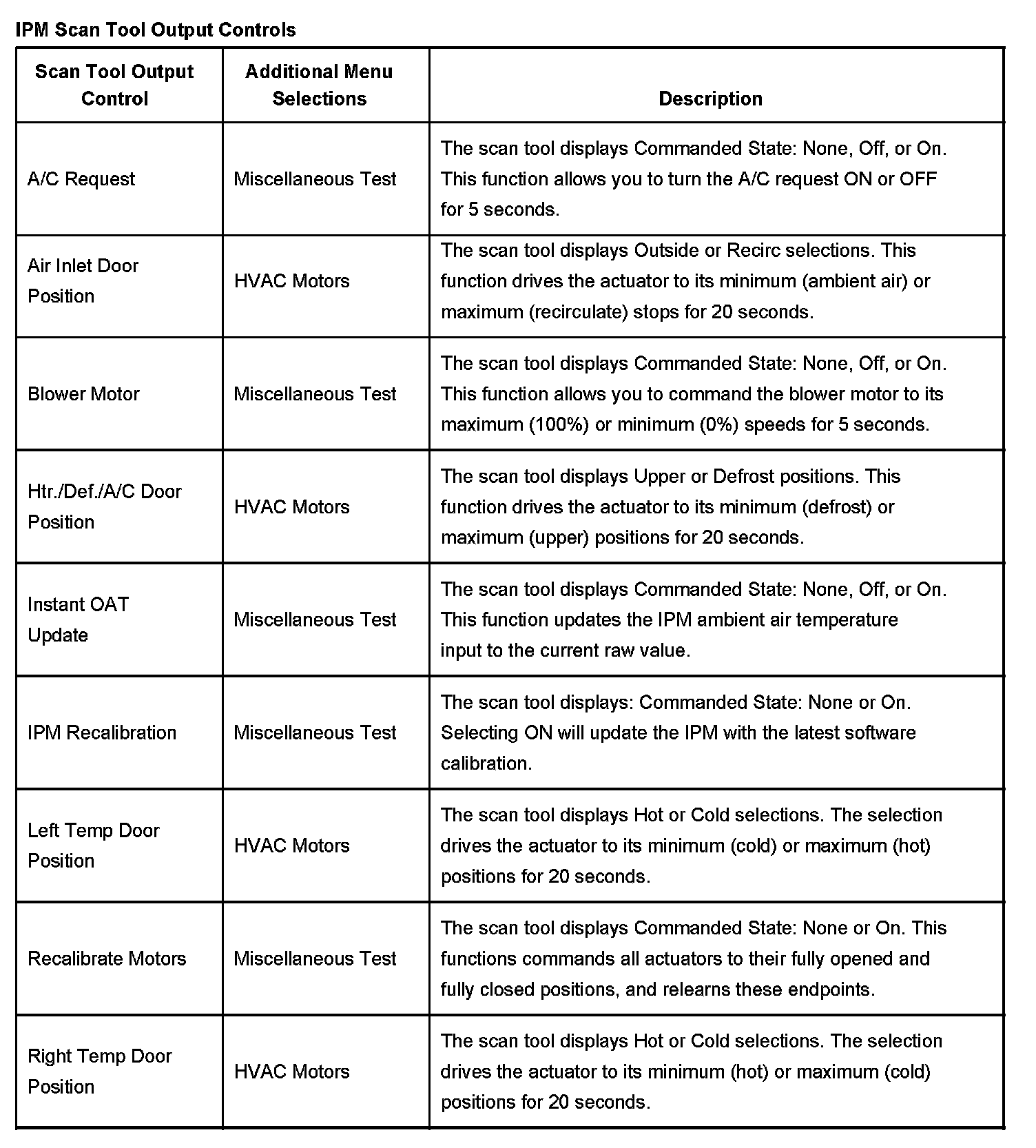

IPM Scan Tool Output Controls:



PCM Scan Tool Output Controls:



Rear Integration Module (RIM) Scan Tool Output Controls:
