Power Distribution Schematics
WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

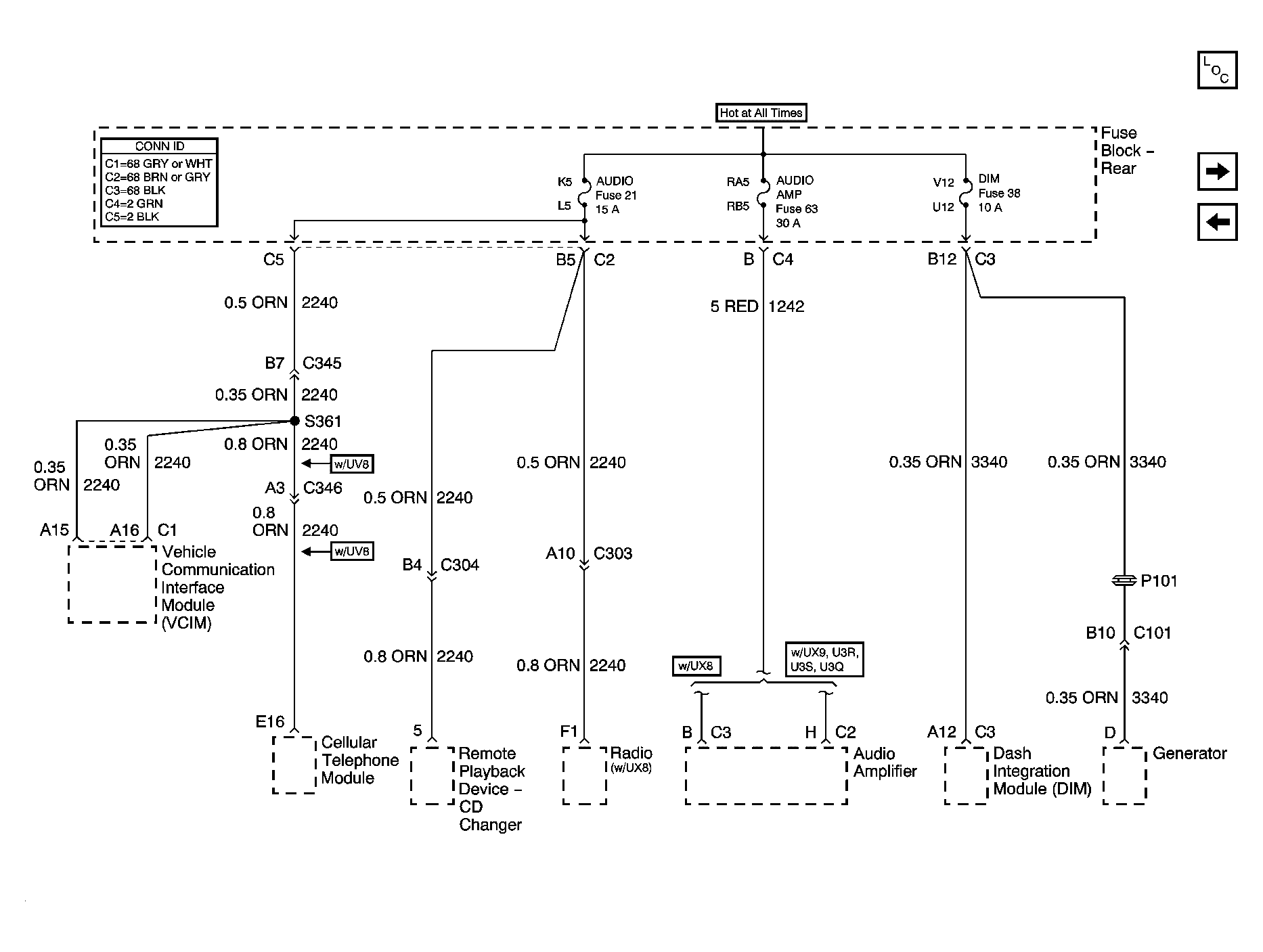

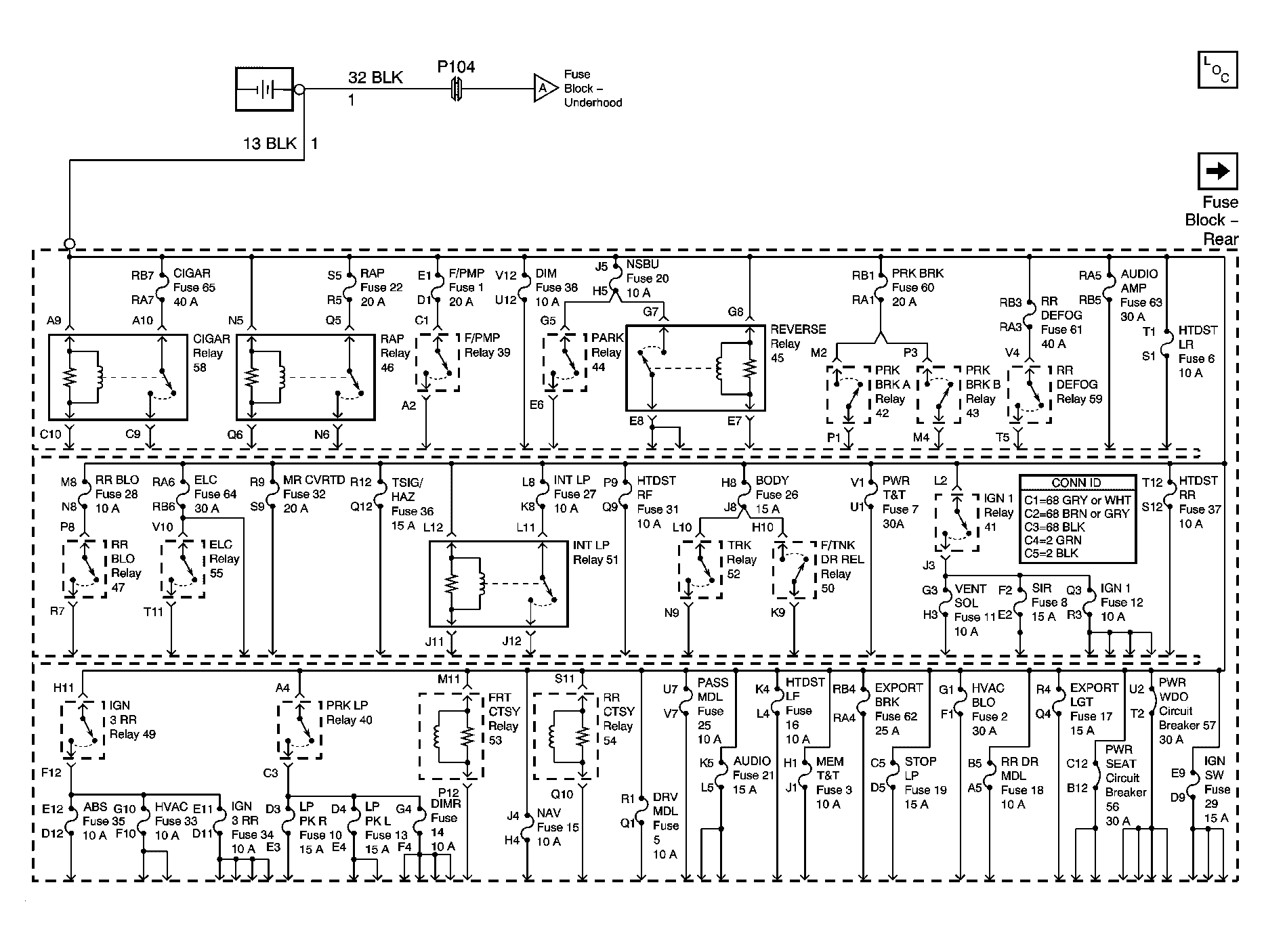

Fig 1: Battery Feed to Fuse Block - Rear Schematic
Courtesy of GENERAL MOTORS CORP.

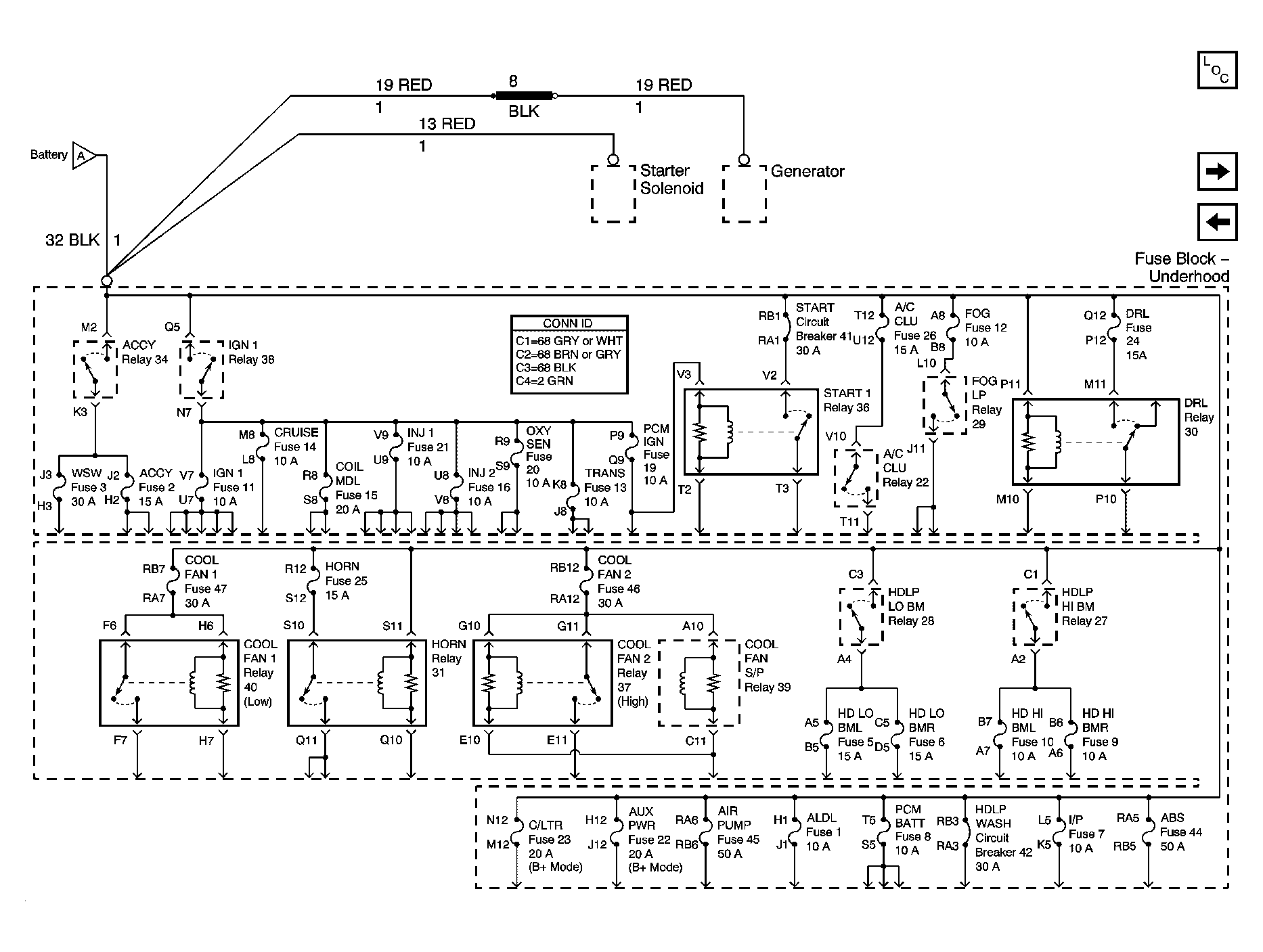

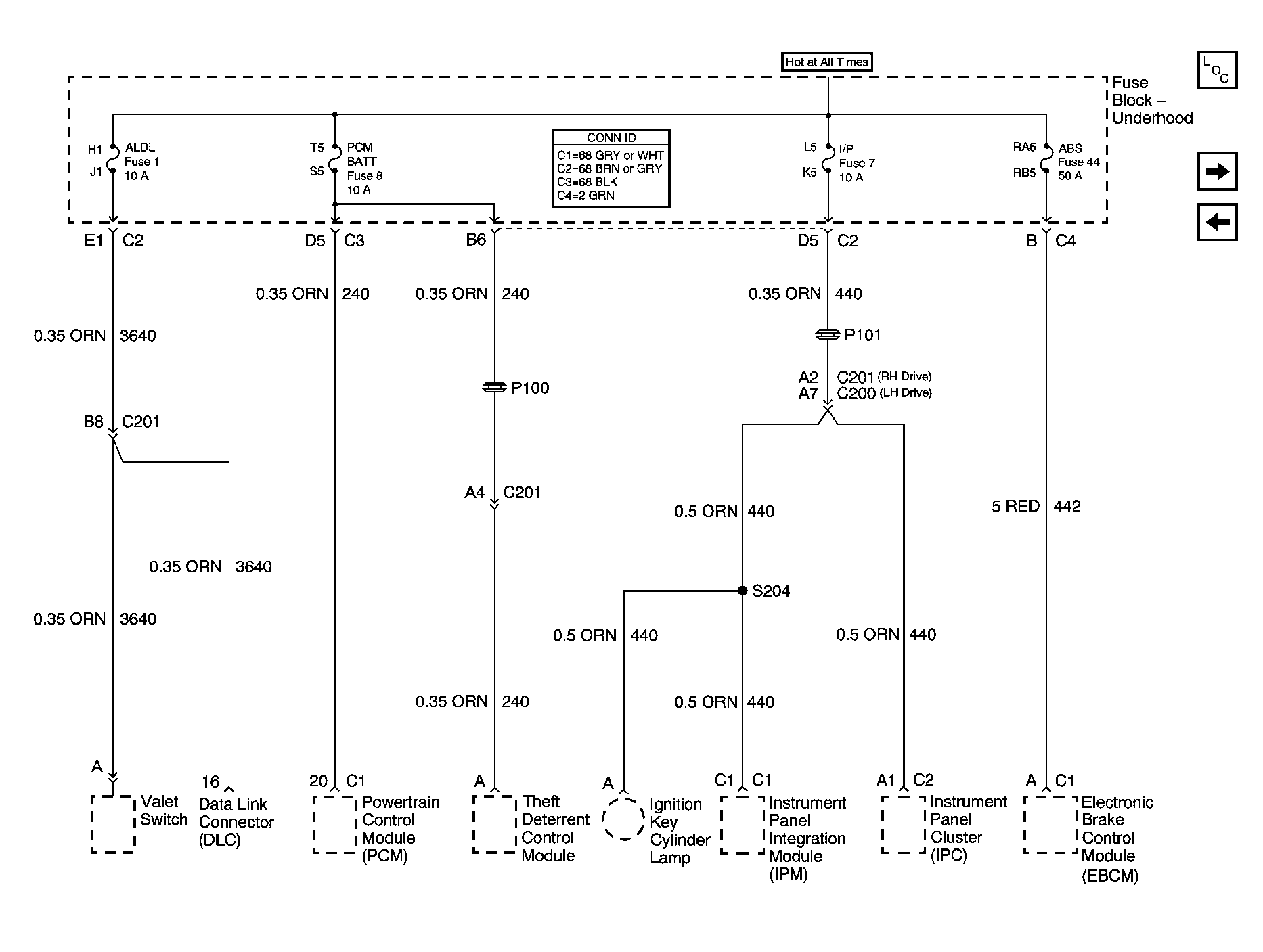

Fig 2: Battery Feed to Fuse Block - Underhood Schematic
Courtesy of GENERAL MOTORS CORP.

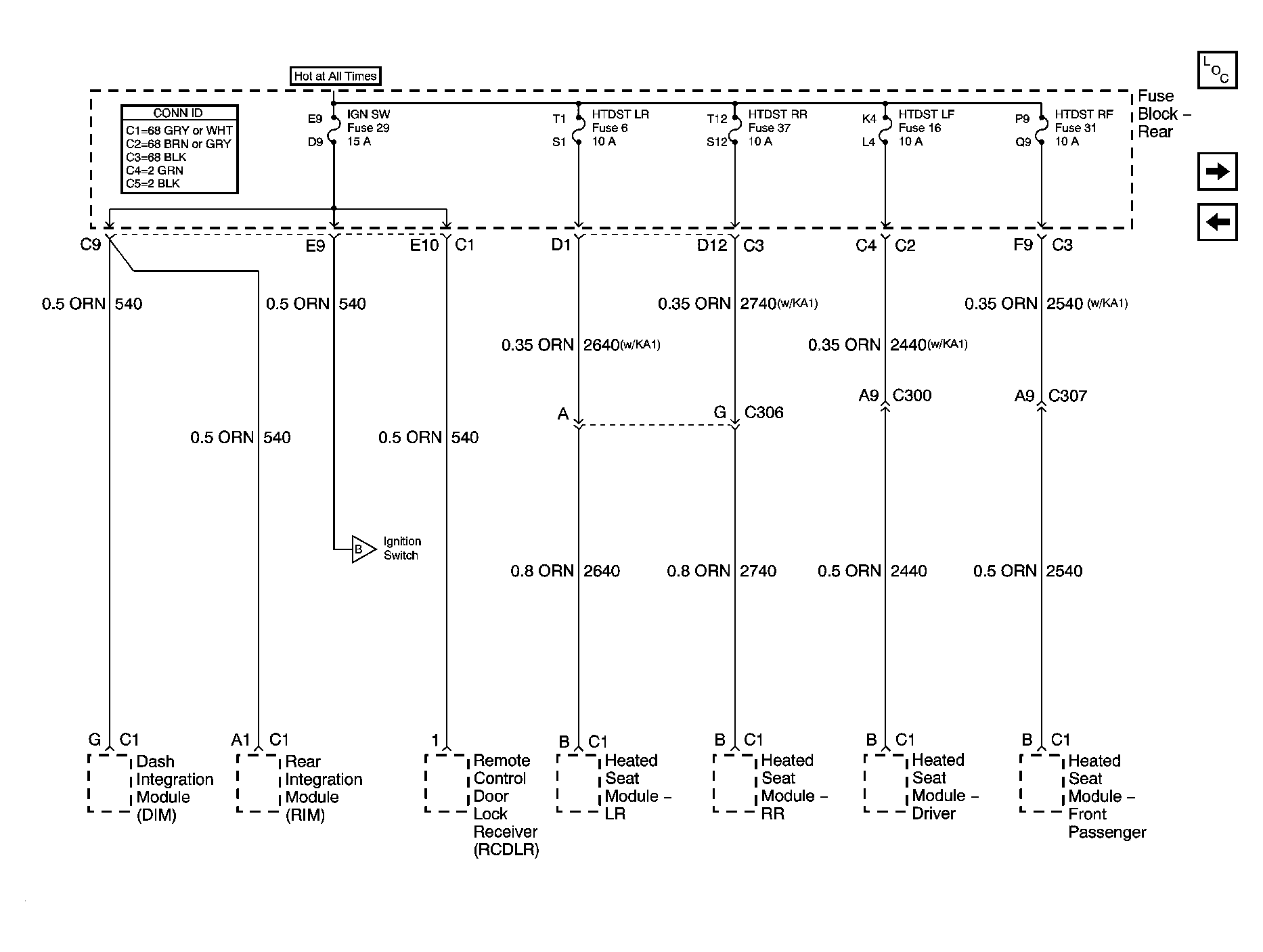

Fig 3: IGN SW and HTDST Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

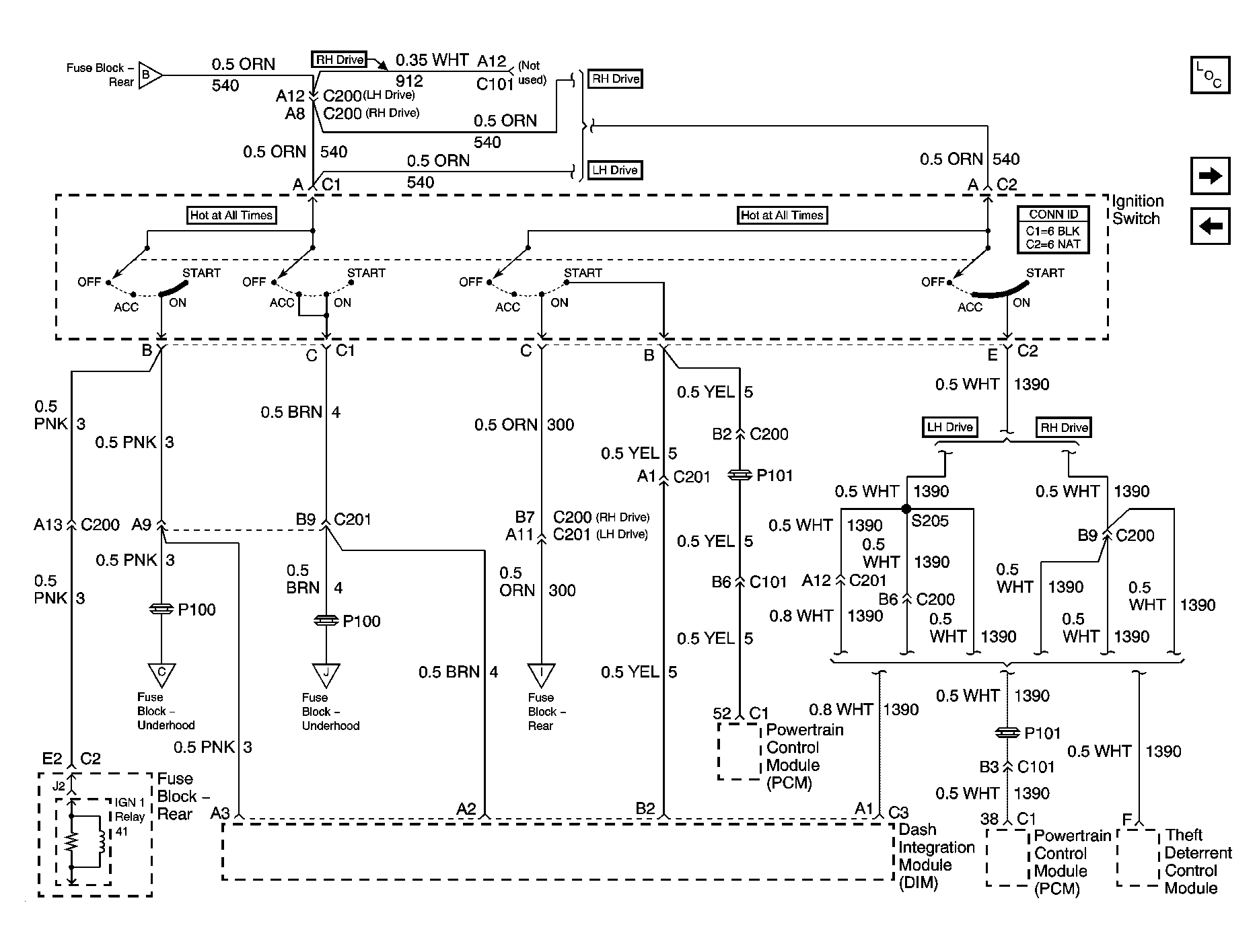

Fig 4: Ignition Switch Supply Schematic
Courtesy of GENERAL MOTORS CORP.

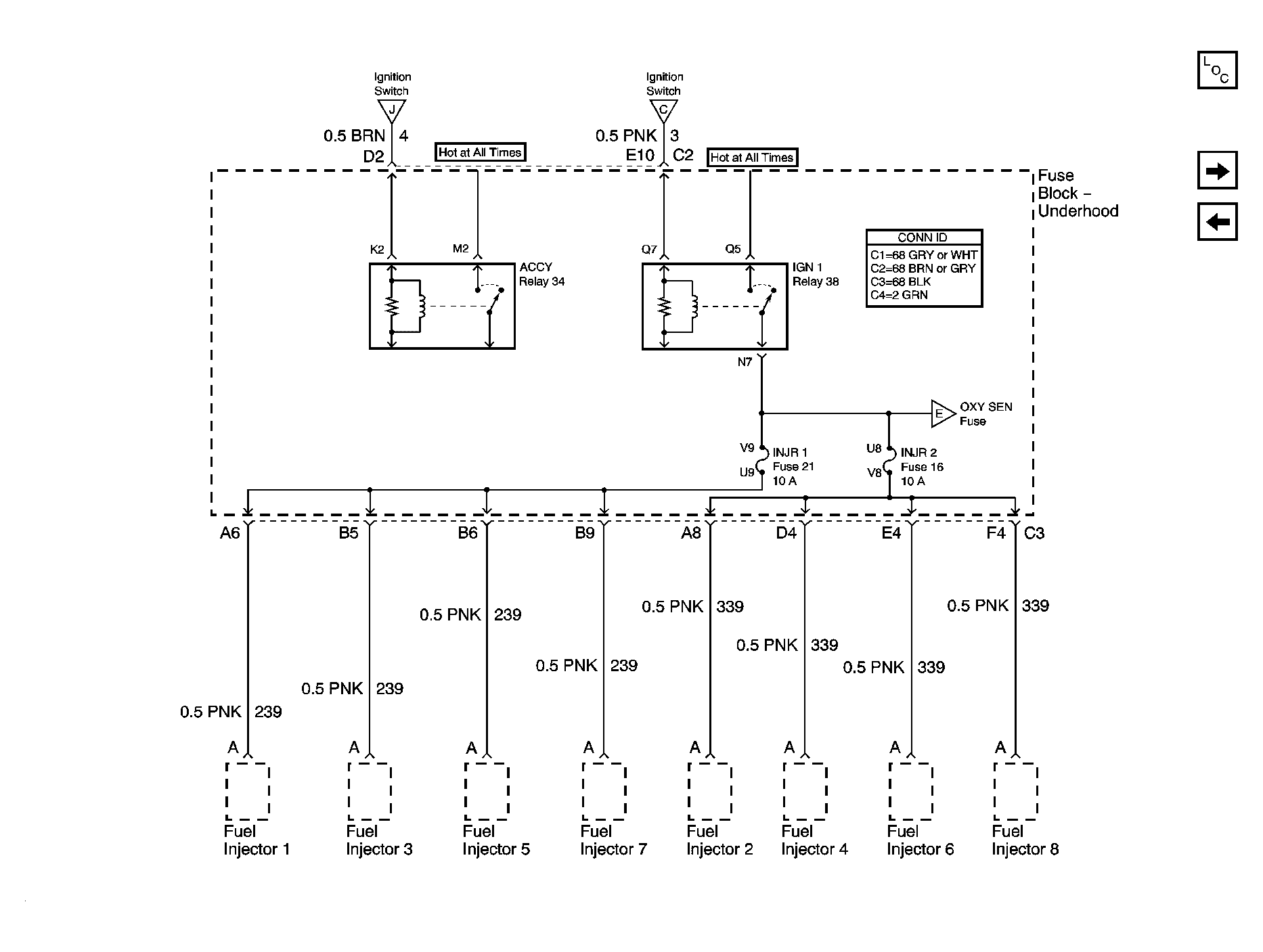

Fig 5: ACCY and IGN 1 Relays and INJR 1 and INJR 2 Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

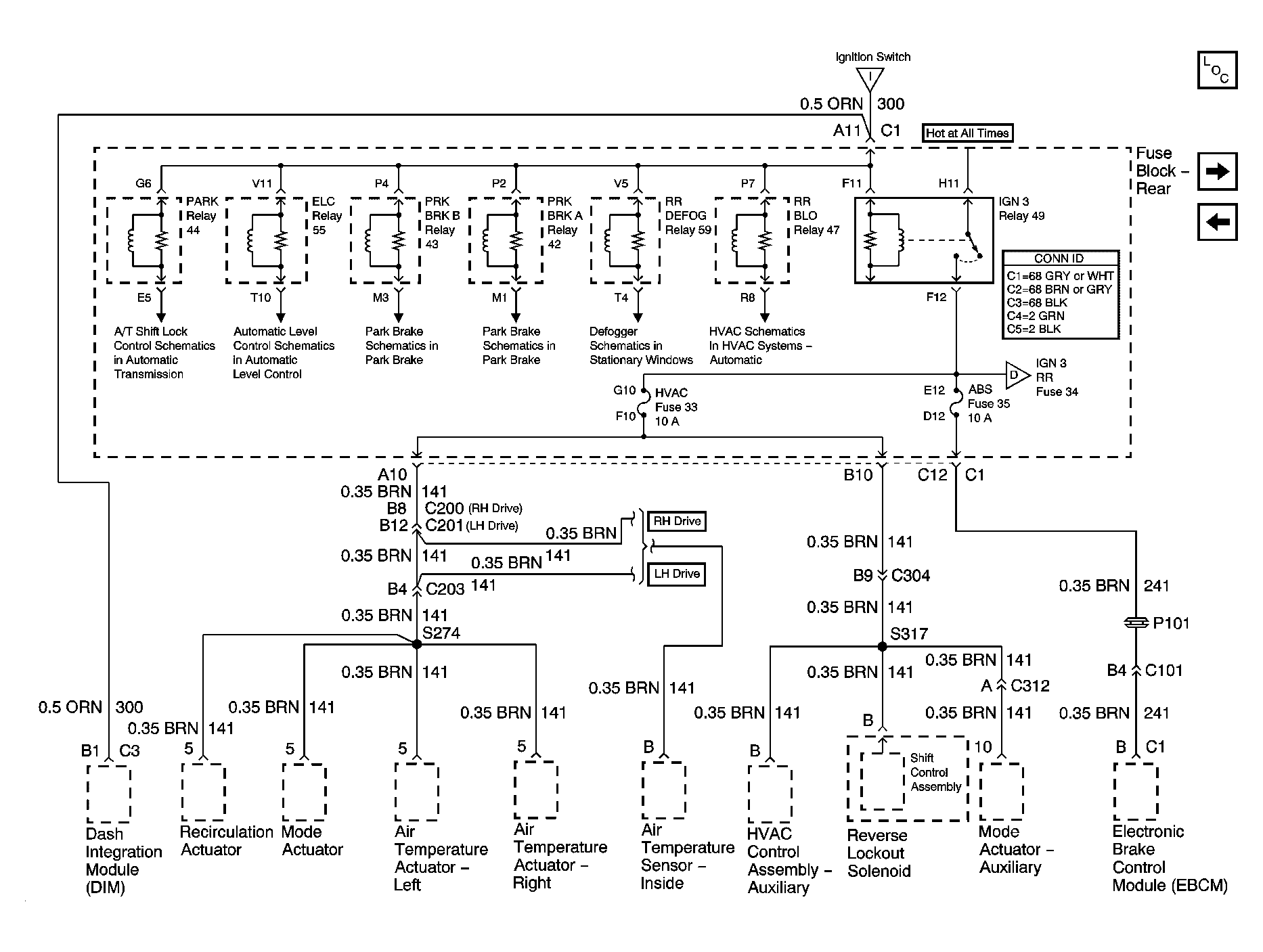

Fig 6: Ignition Switch Supply and HVAC and ABS Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

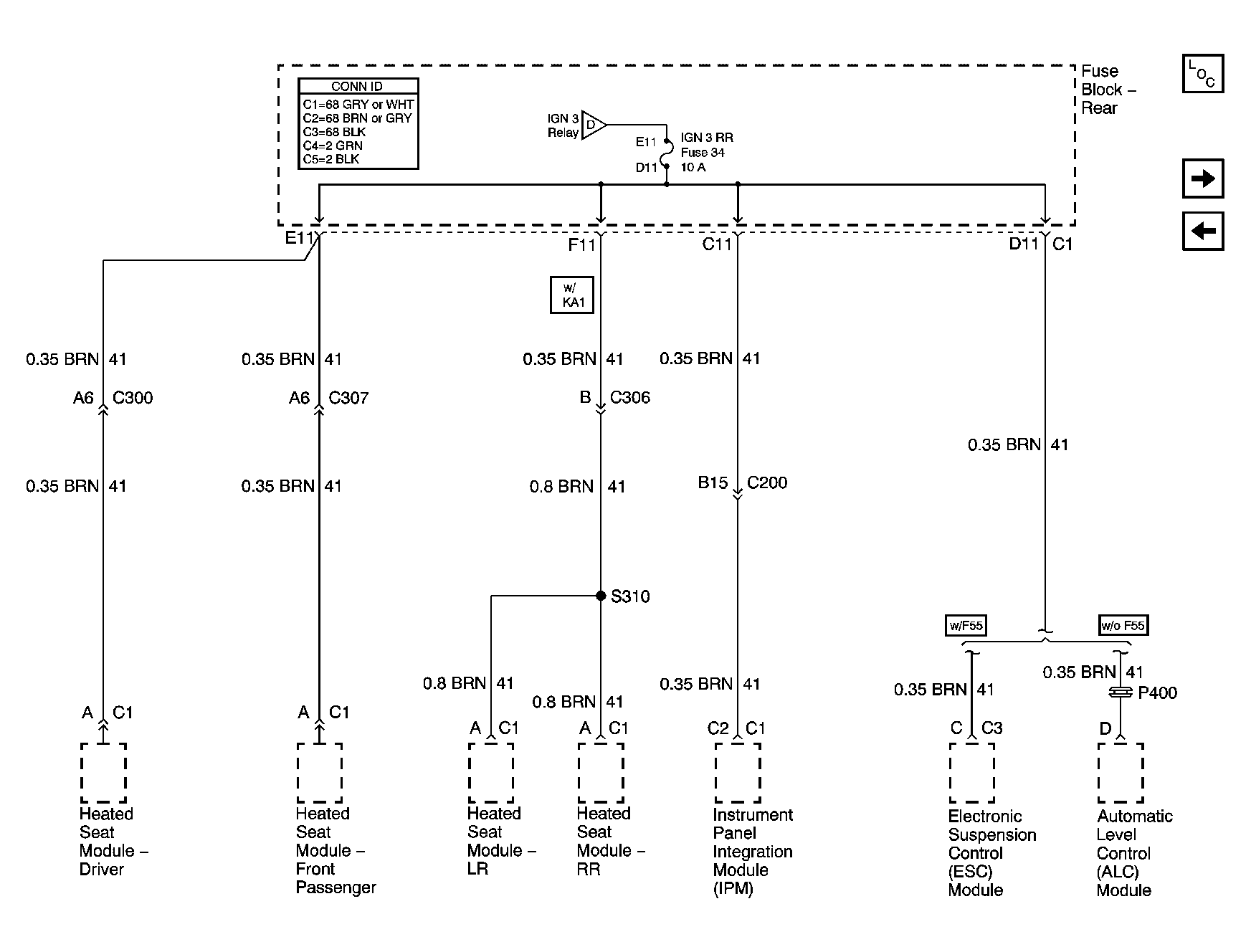

Fig 7: IGN 3 RR Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

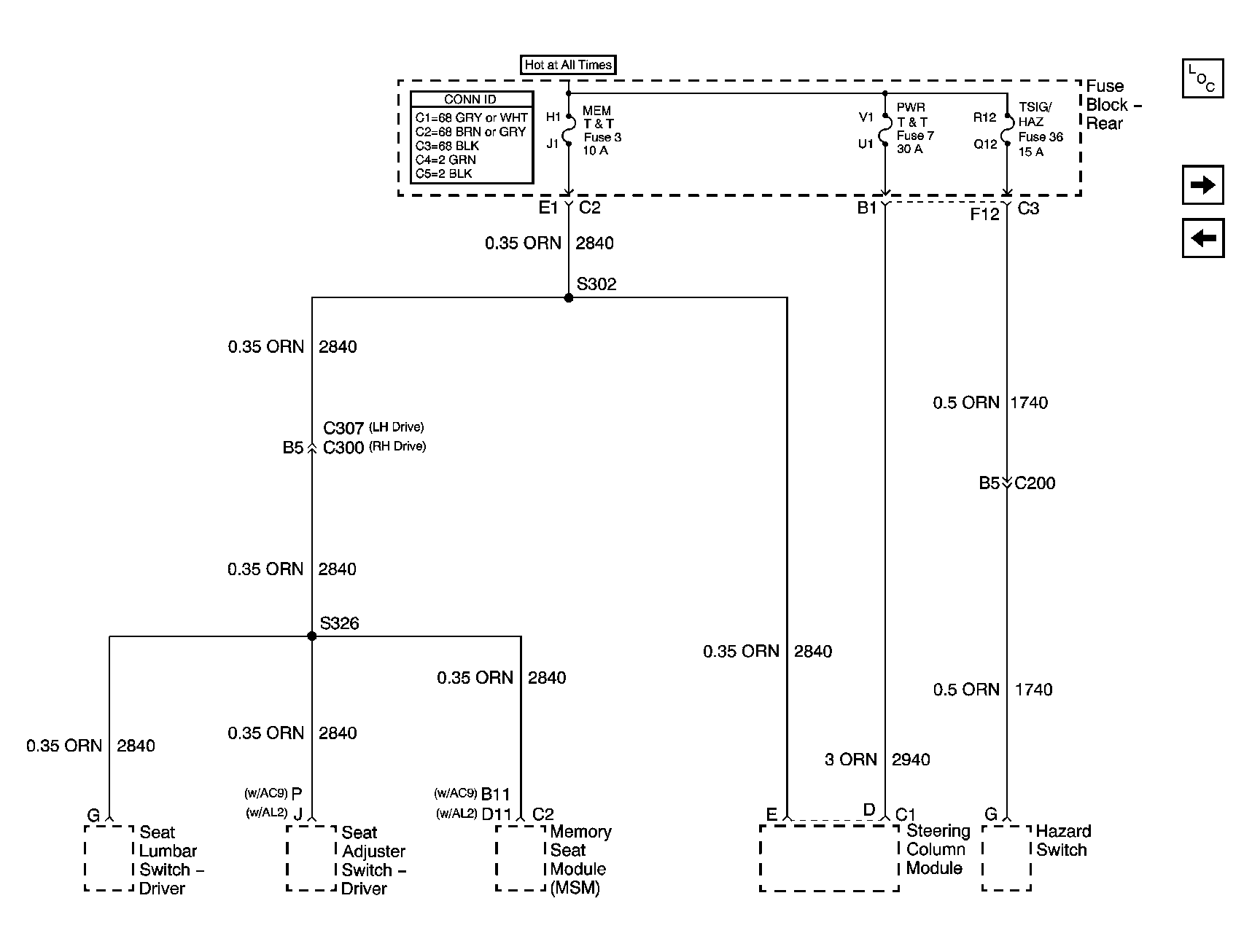

Fig 8: MEM T&T, PWR T&T, and TSIG/HAZ Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

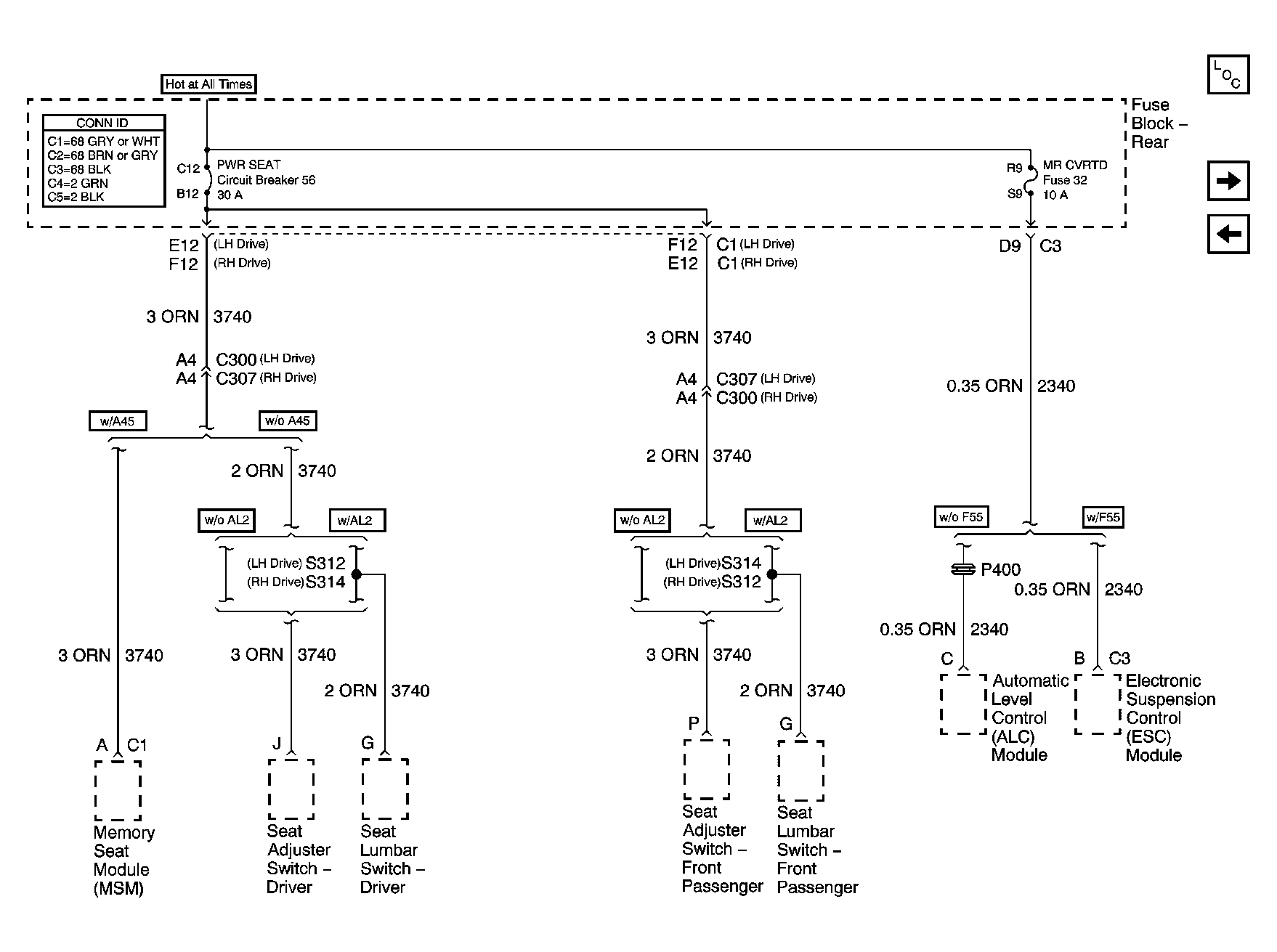

Fig 9: PWR SEAT Circuit Breaker and CVRTD Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

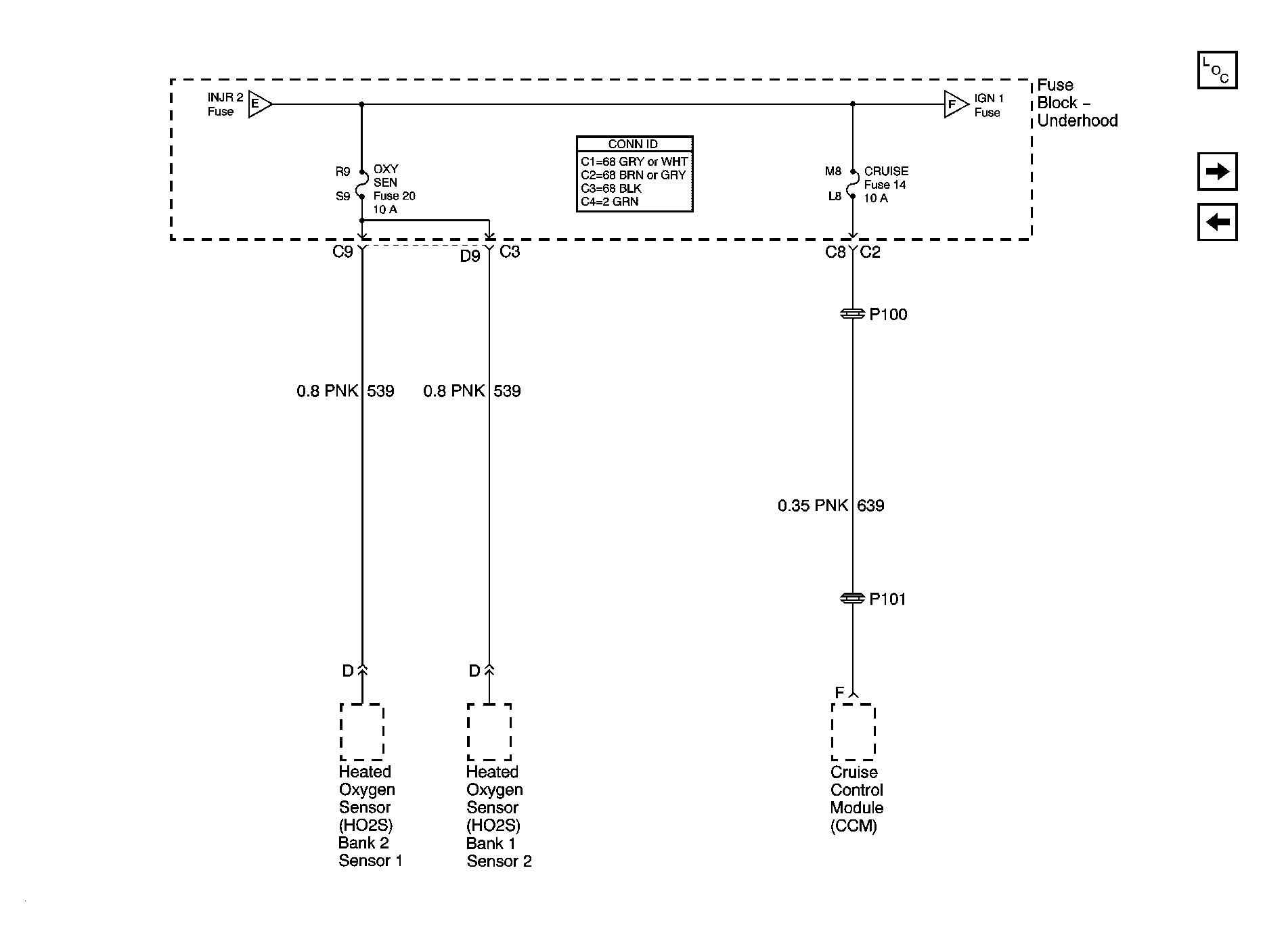

Fig 10: OXY SEN, CRUISE Fuses Schematic
Courtesy of GENERAL MOTORS CORP.

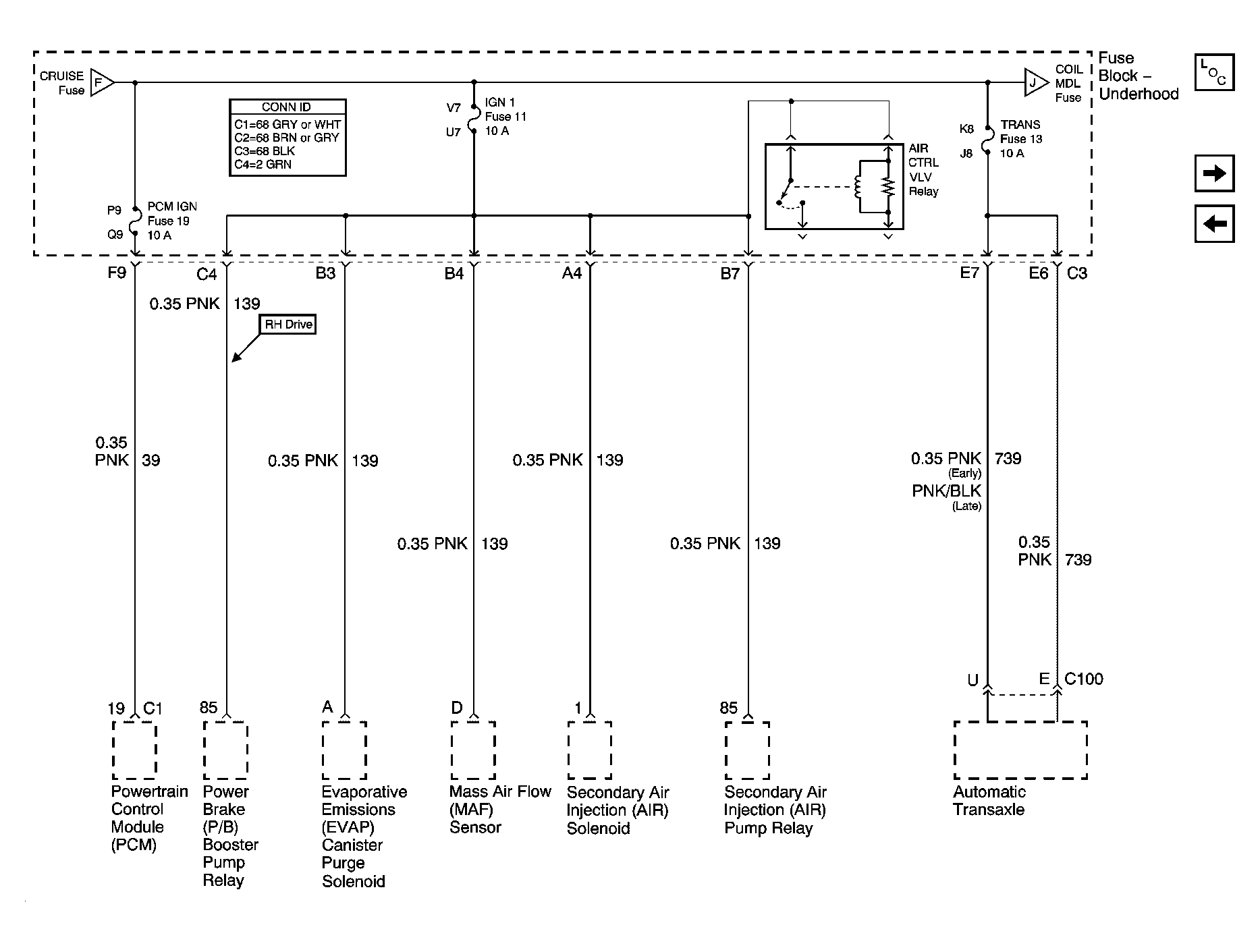

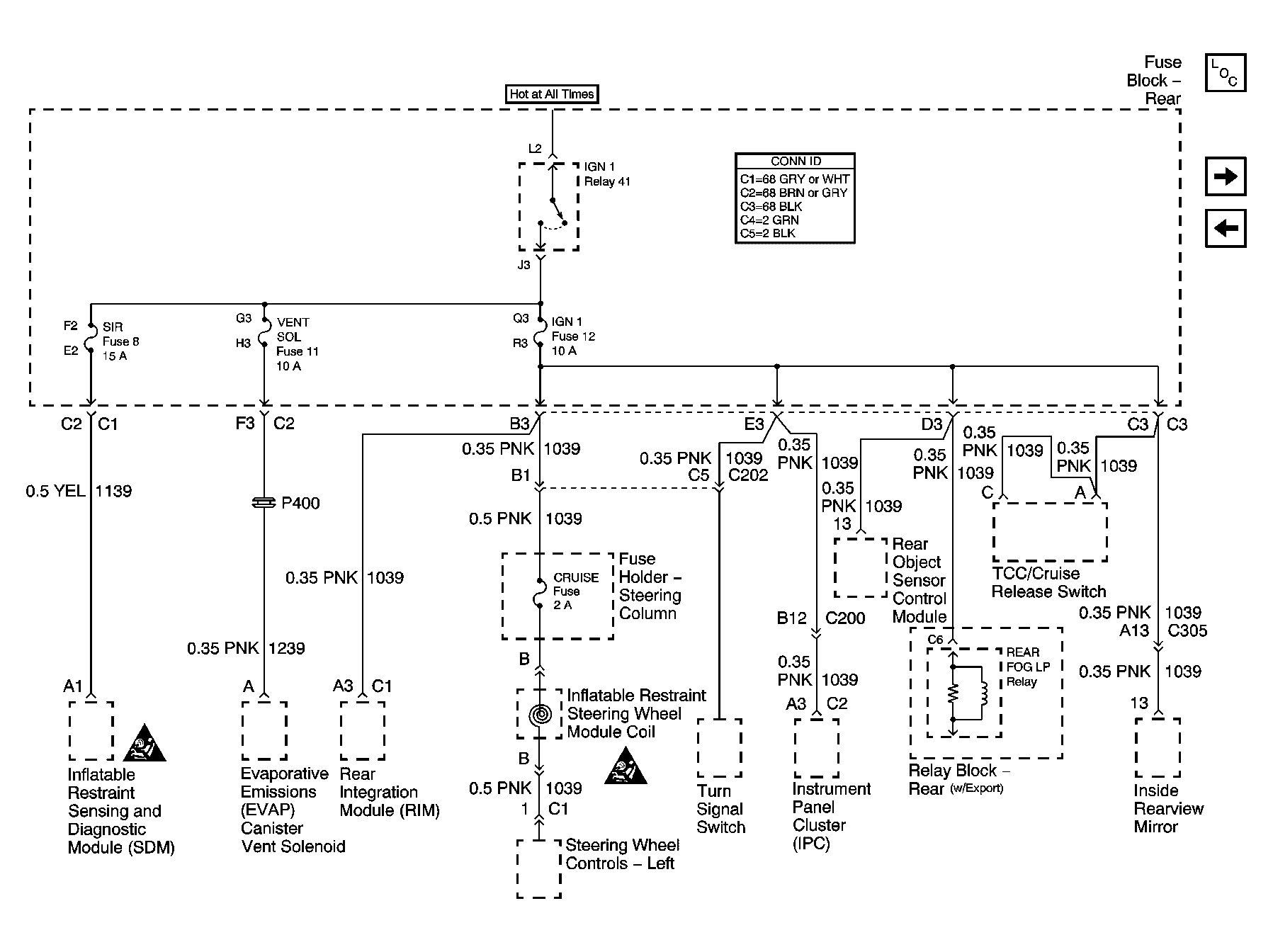

Fig 11: IGN 1 Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

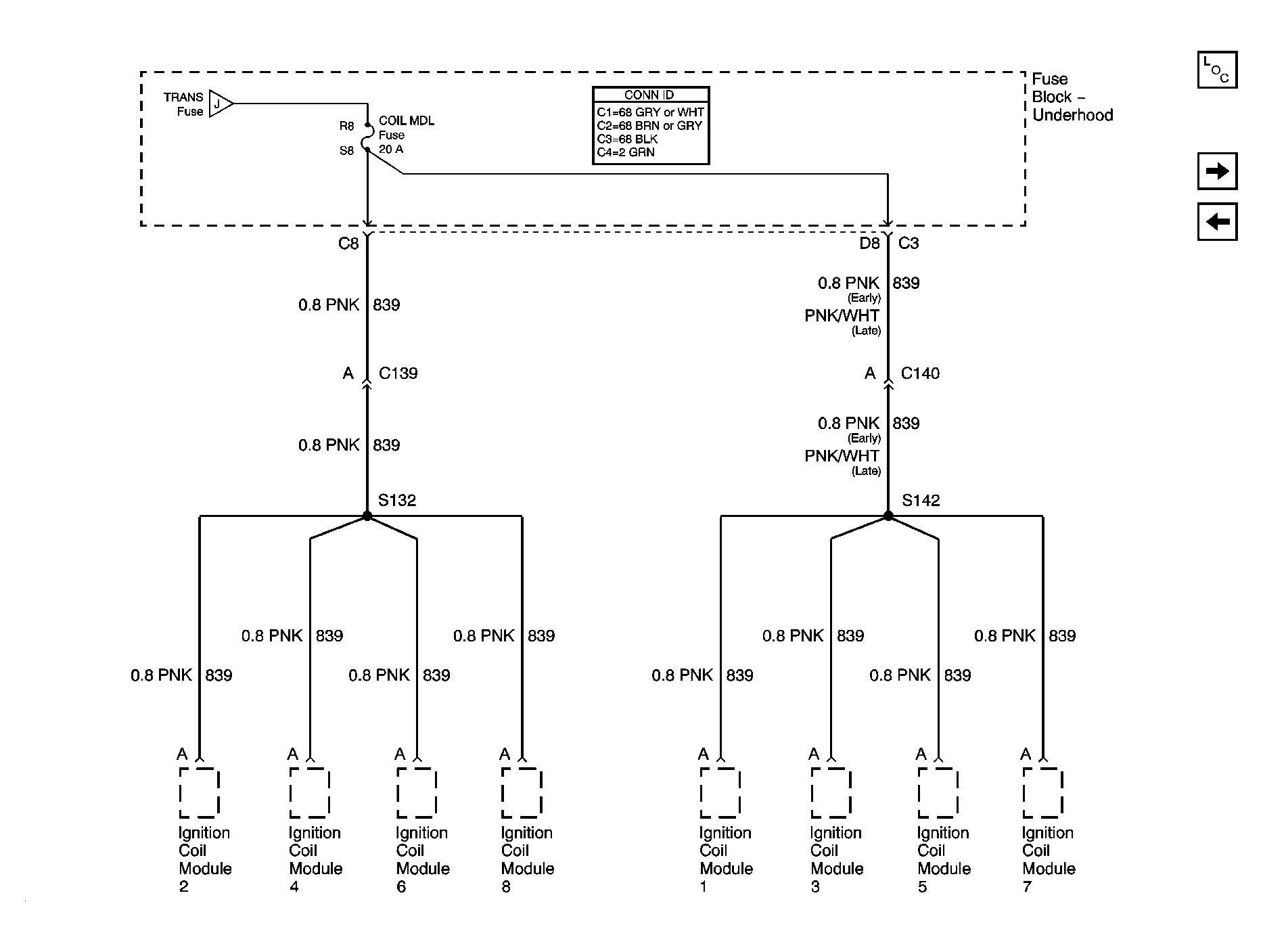

Fig 12: Coil Module Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

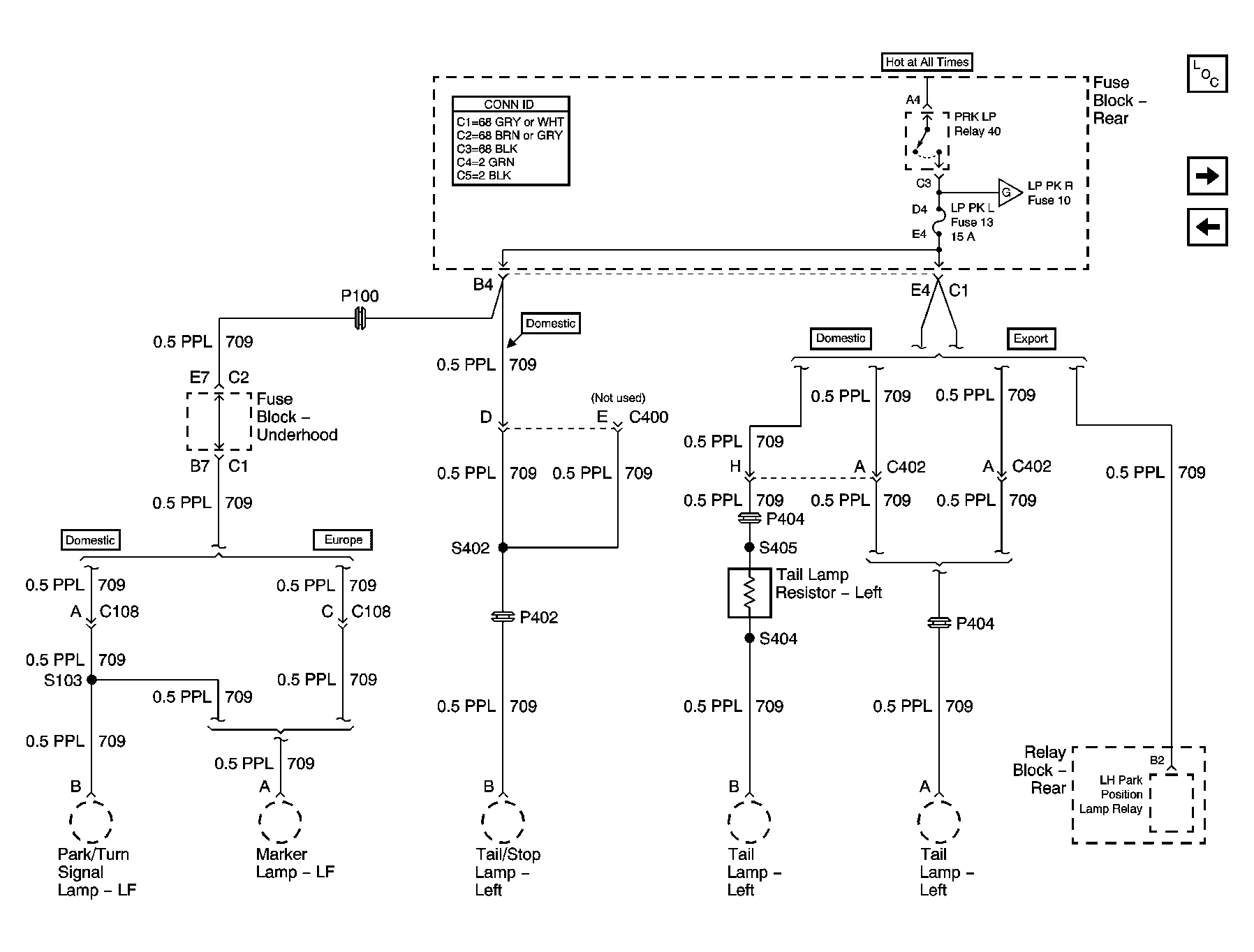

Fig 13: PRK LP Relay and LP PK L Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

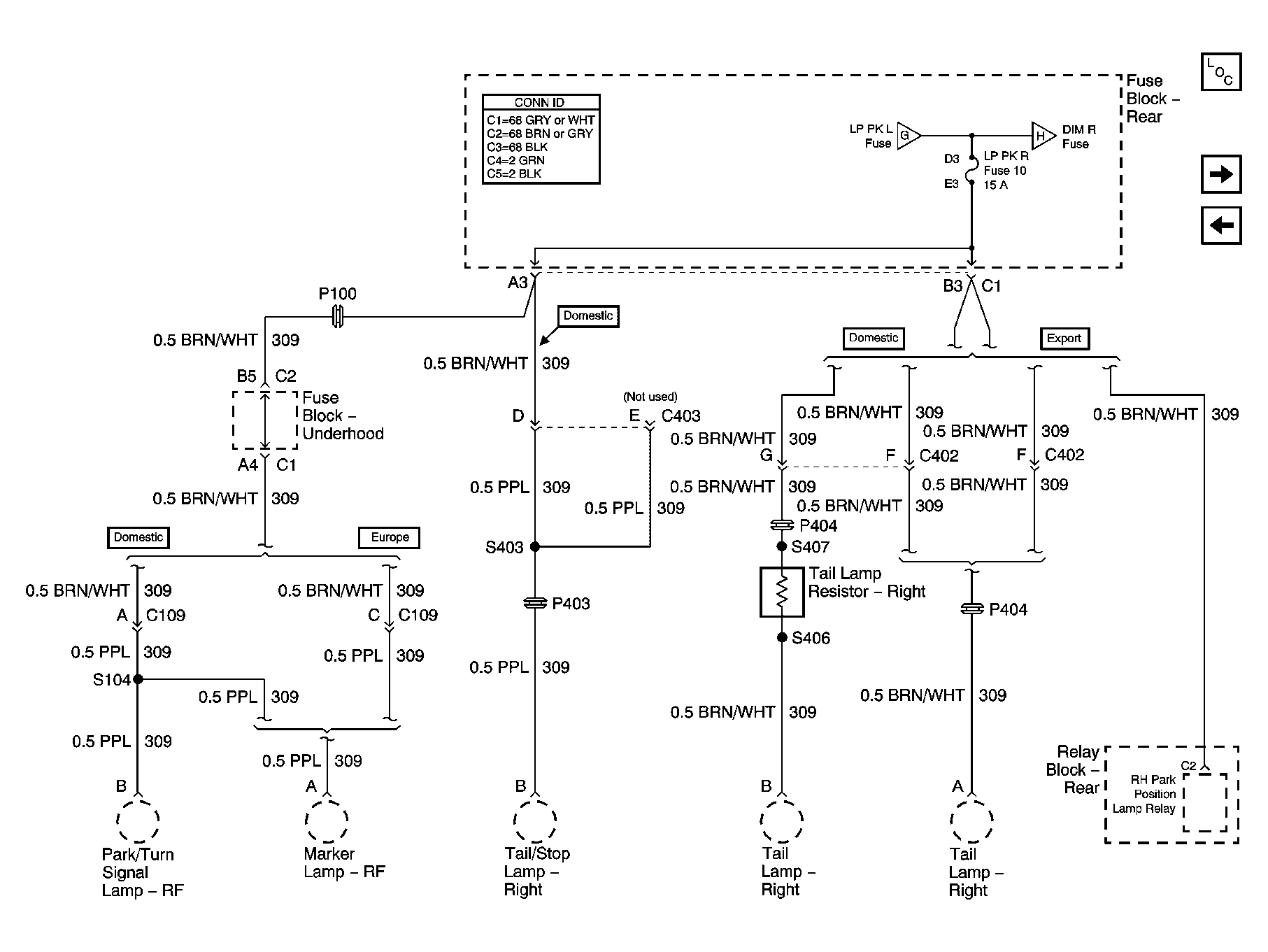

Fig 14: LP PK R Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

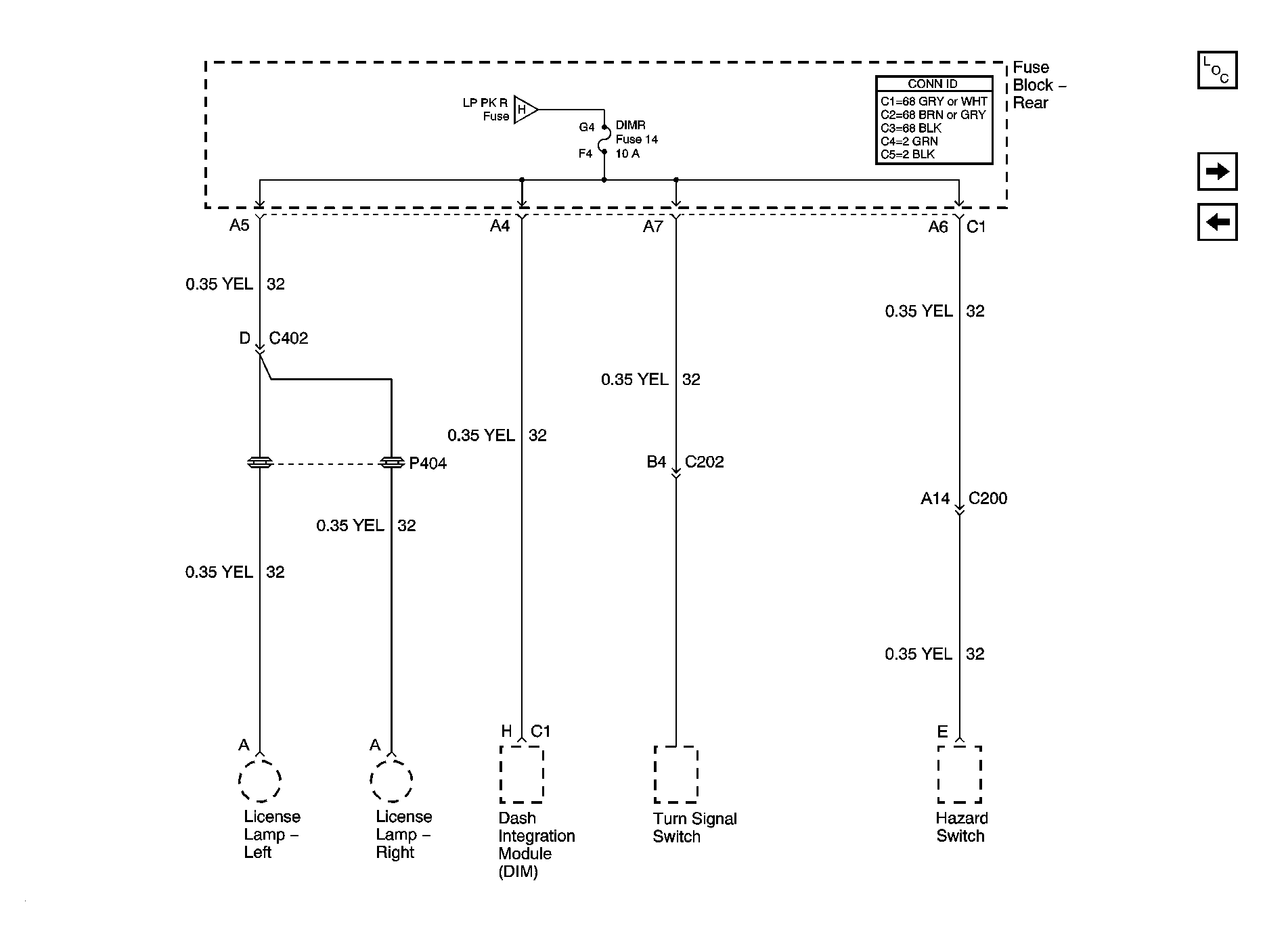

Fig 15: DIMR Fuse Schematic
Courtesy of GENERAL MOTORS CORP.

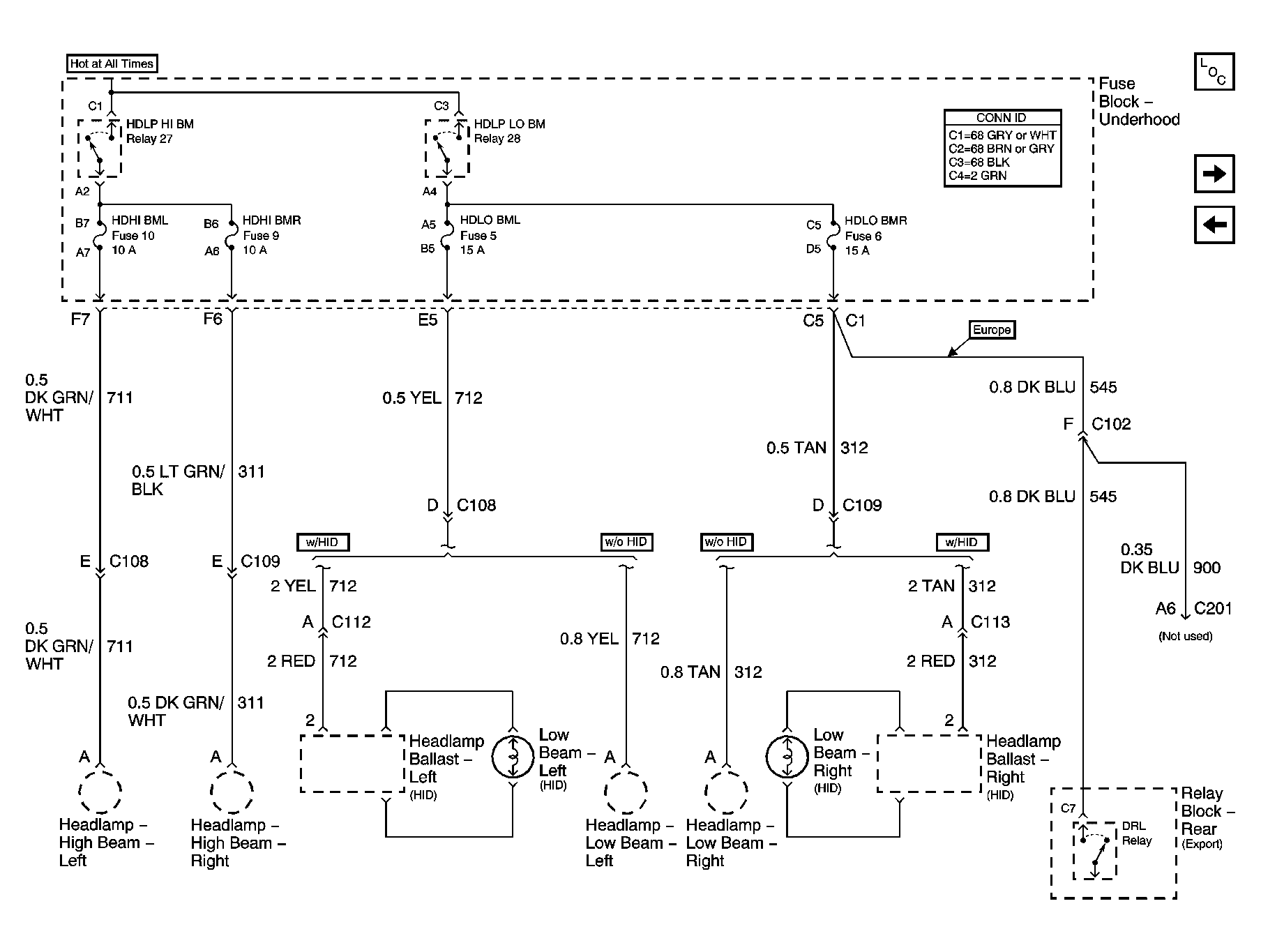

Fig 16: HDLP HI BM and HDLP LO BM Relays and HDHI BM and HDLO BM Fuses Schematic
