Scan Tool Output Controls

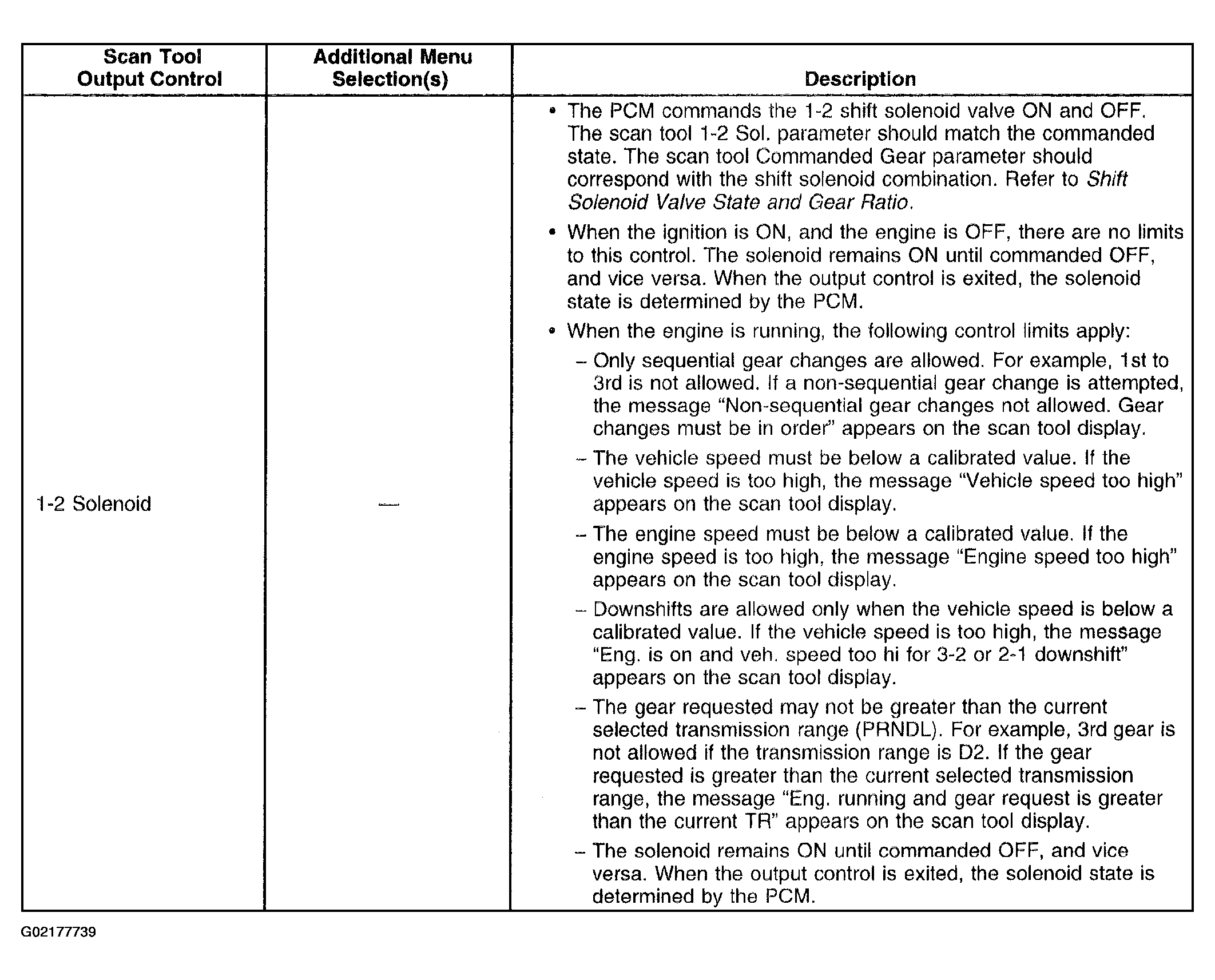

Fig 1: Scan Tool Output Controls Description Chart (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

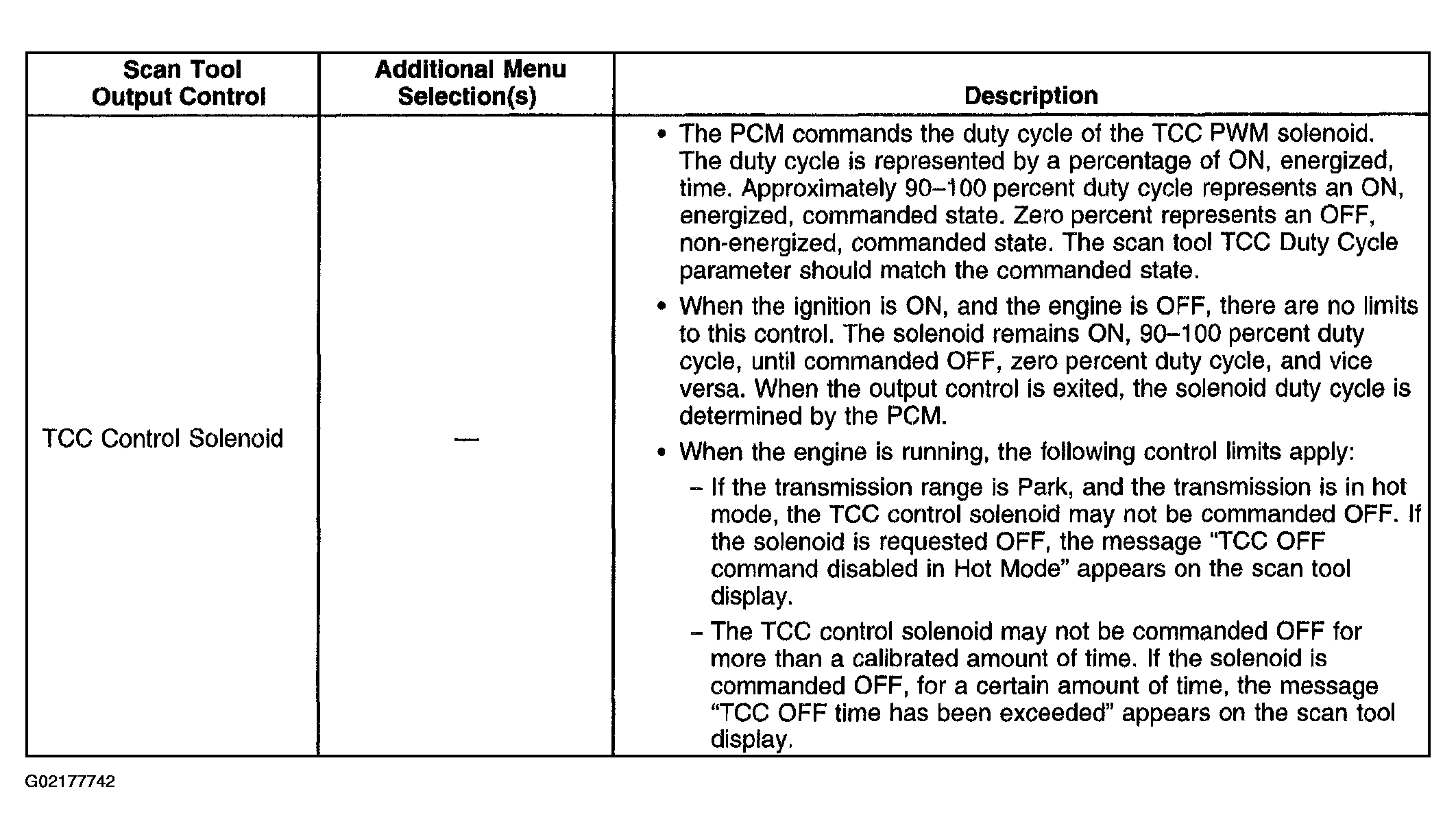

Fig 2: Scan Tool Output Controls Description Chart (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

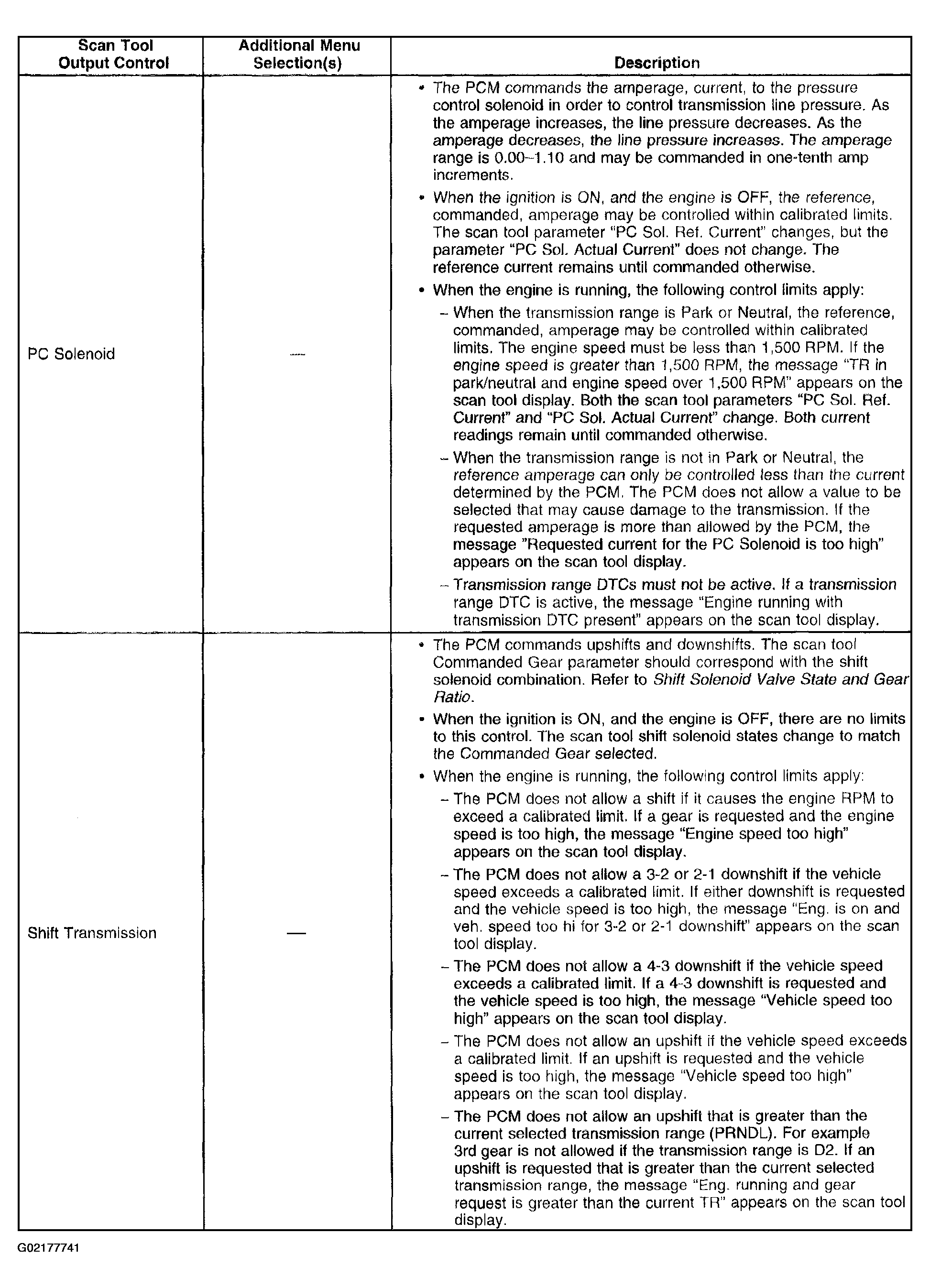

Fig 3: Scan Tool Output Controls Description Chart (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

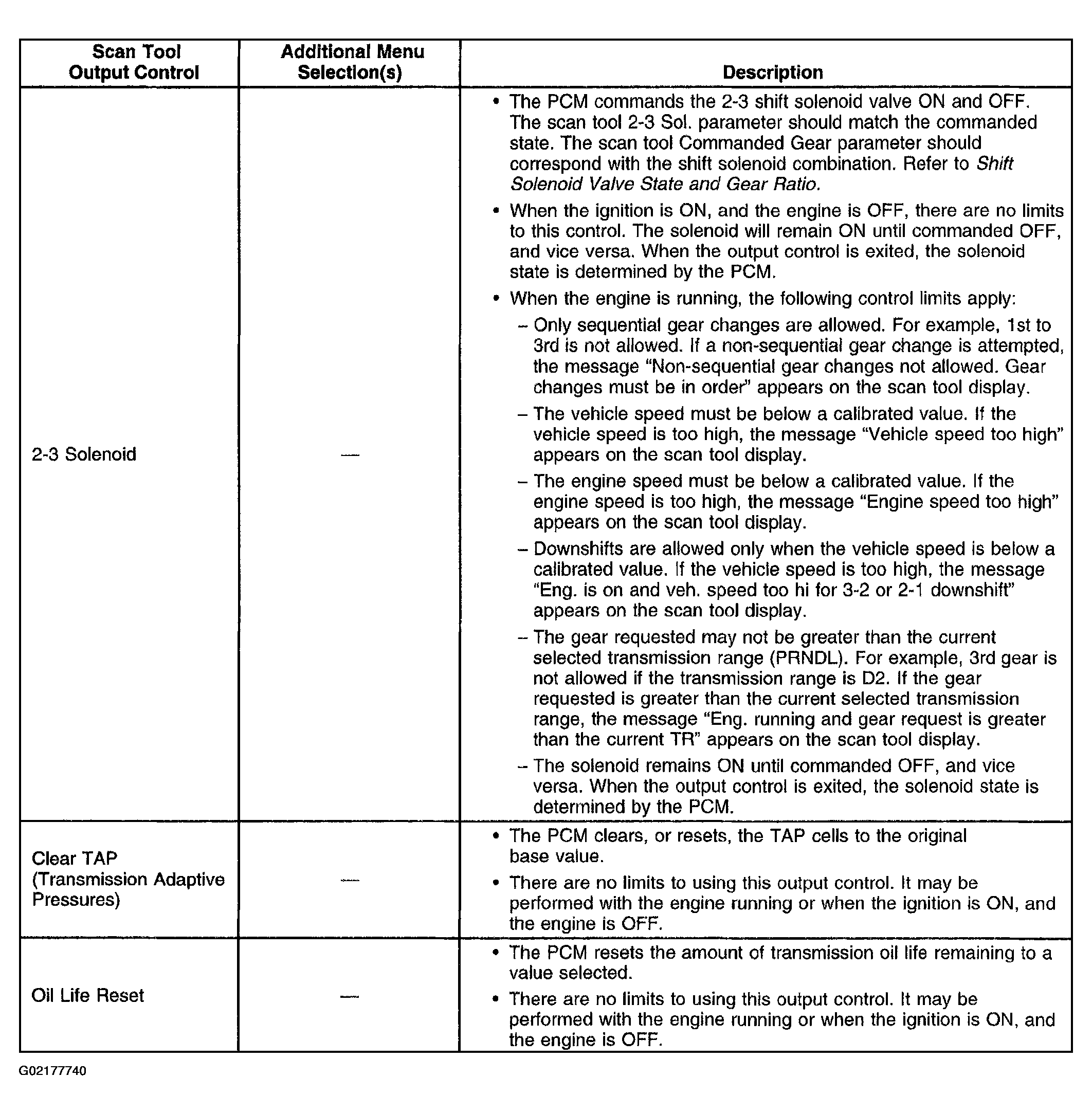

Fig 4: Scan Tool Output Controls Description Chart (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
