Automatic Transmission Electronic Component Views

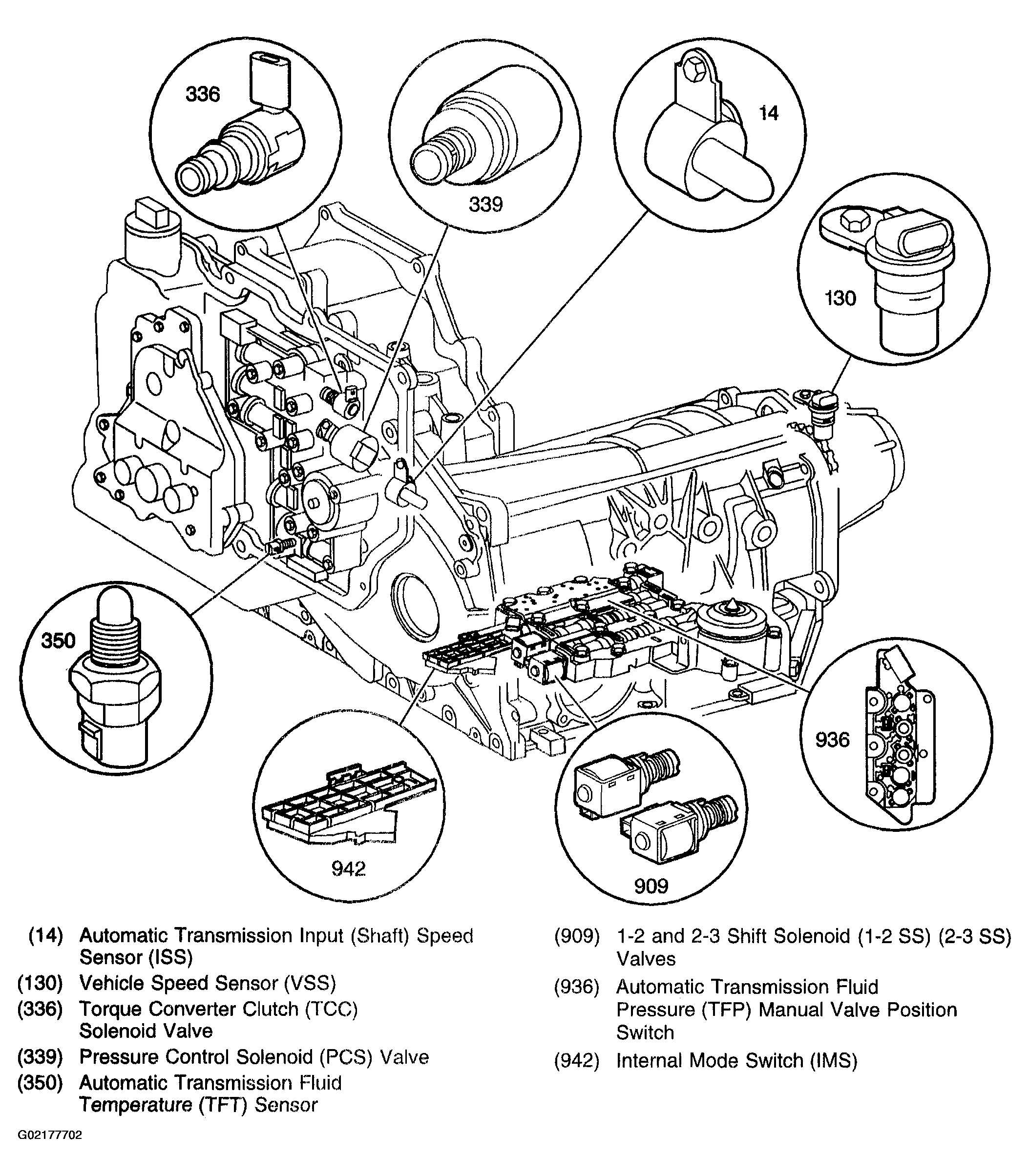

Fig 1: Electronic Component Views
Courtesy of GENERAL MOTORS CORP.
