Steering Column Module C4

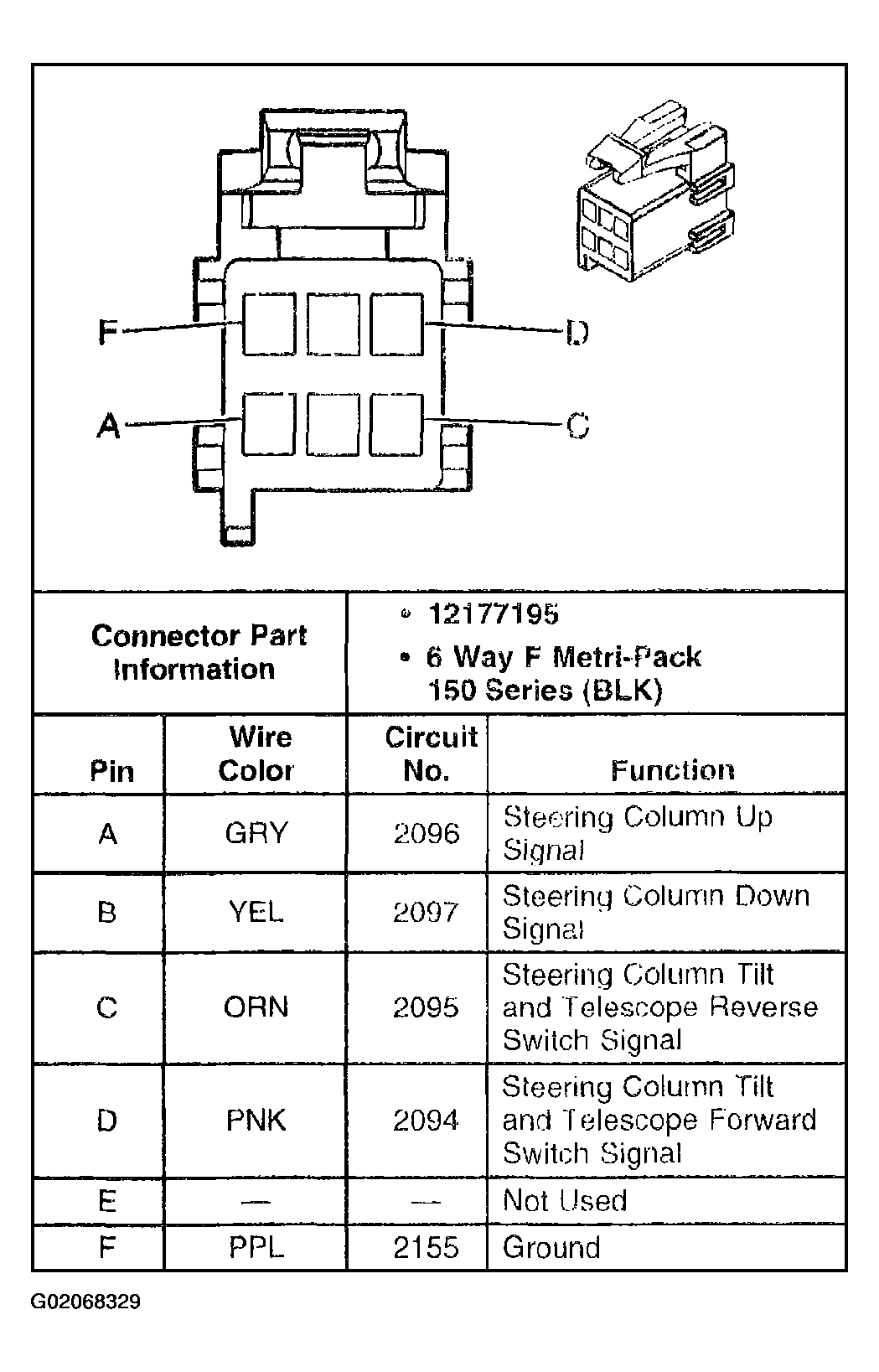

Fig 1: Steering Column Module C4 Connector End View
G02068329Courtesy of GENERAL MOTORS CORP.
