Suspension Position Sensor Connector End View - RR

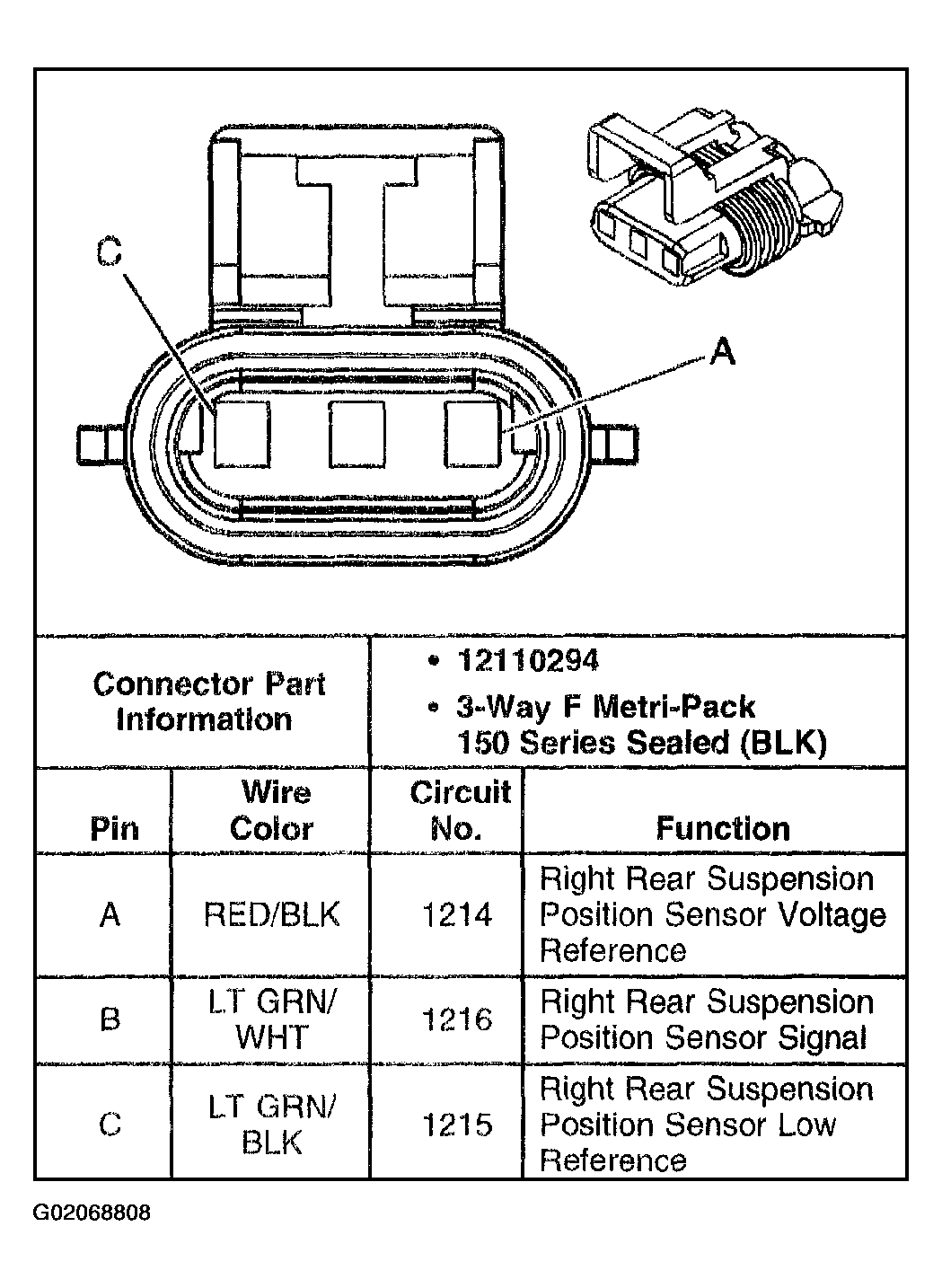

Fig 1: Suspension Position Sensor - RR
G02068808Courtesy of GENERAL MOTORS CORP.
