Reading Lamp Switch Connector End View - Left

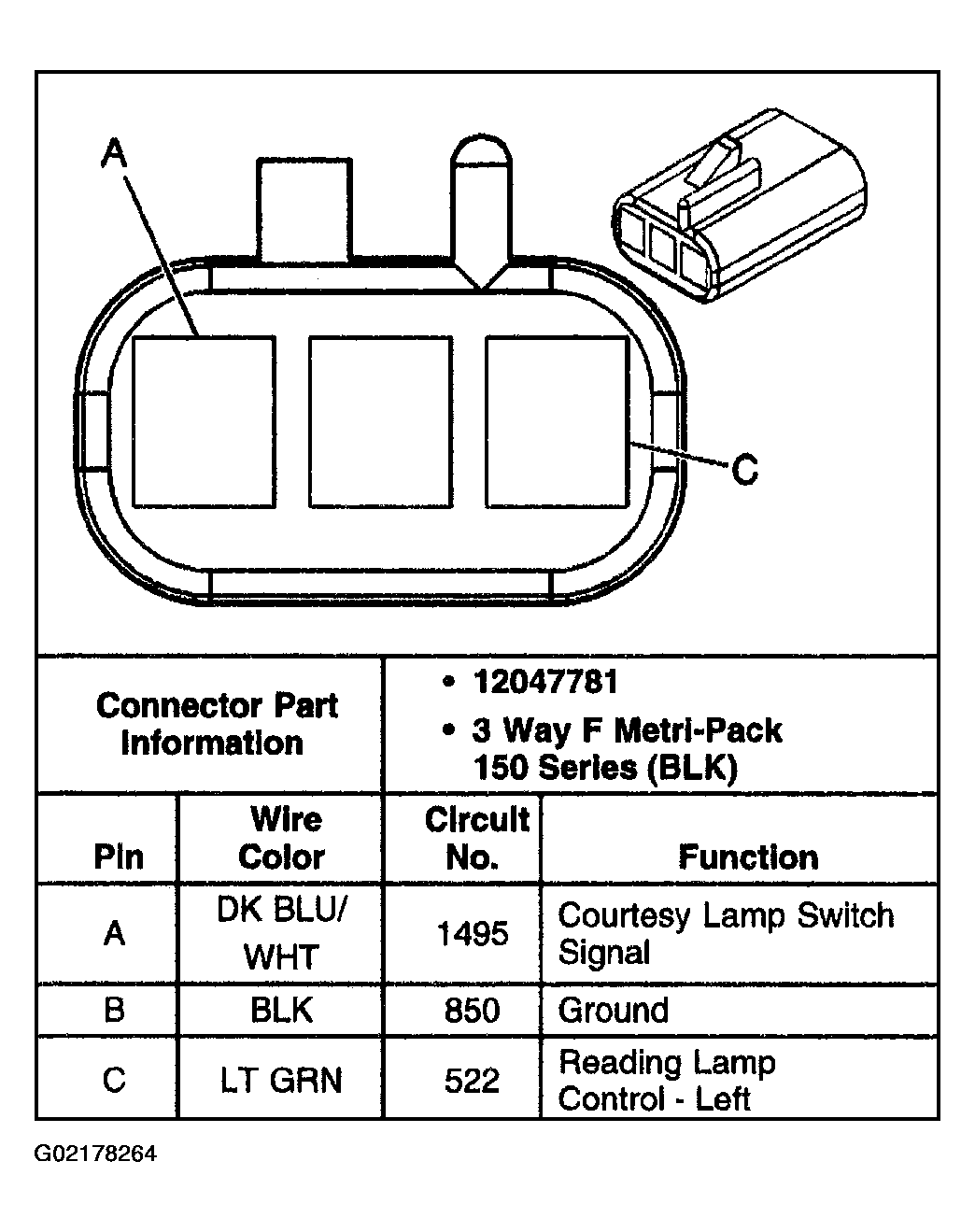

Fig 1: Reading Lamp Switch - Left

G02178264

Courtesy of GENERAL MOTORS CORP.
